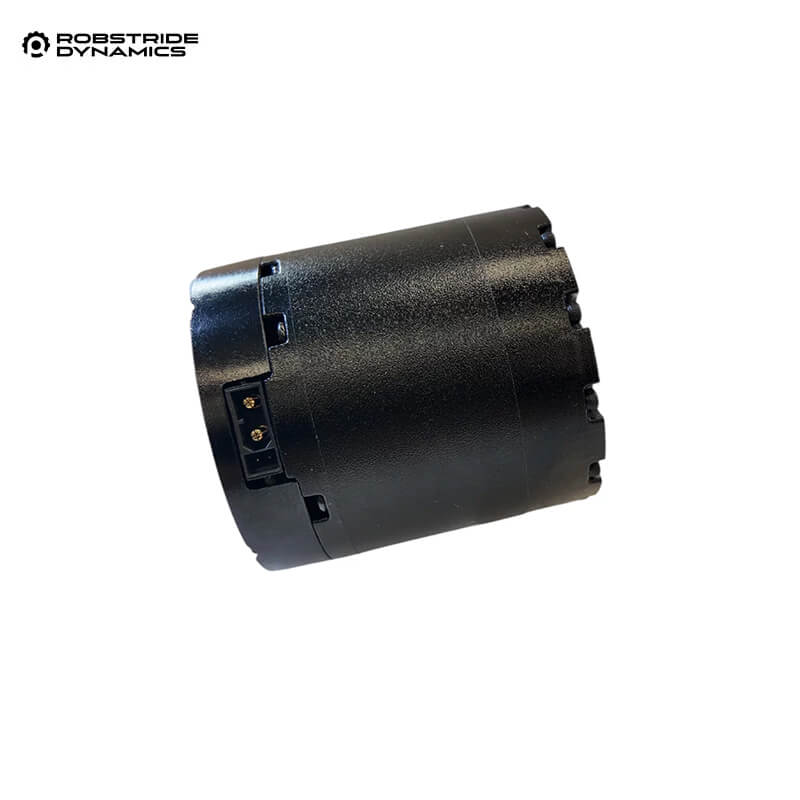

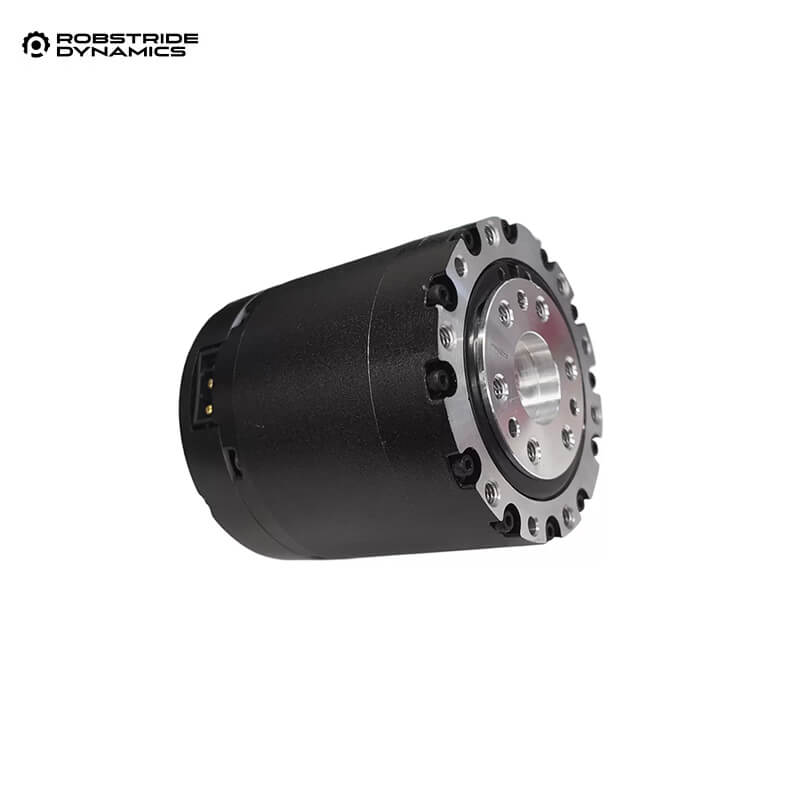

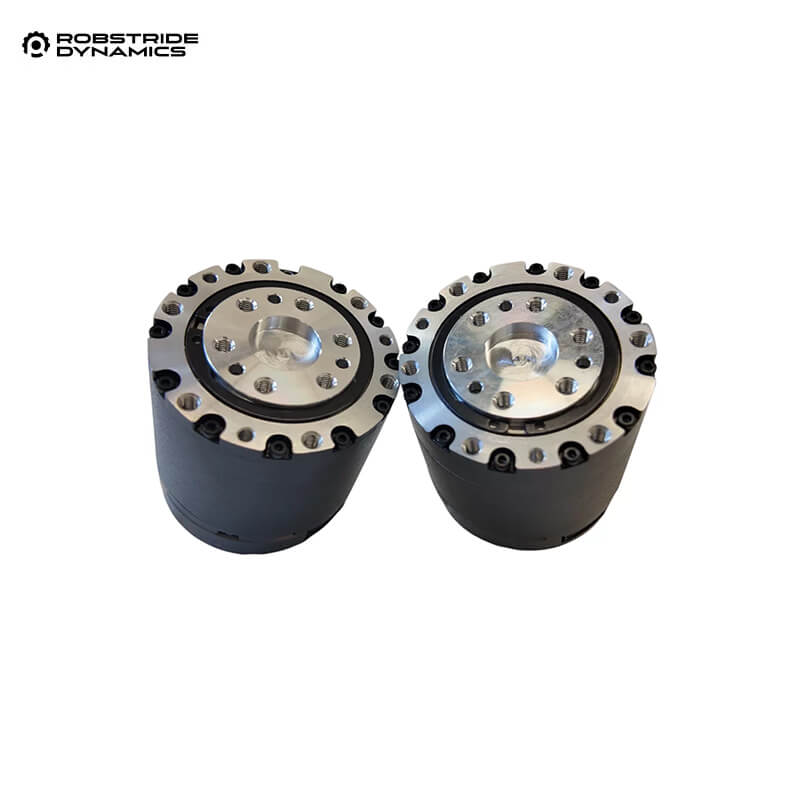

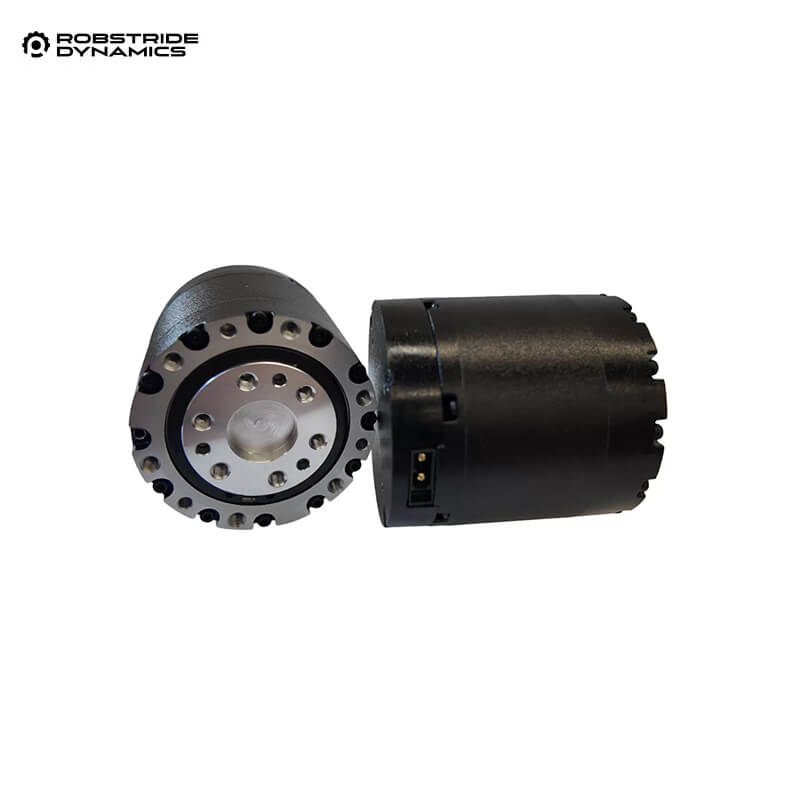

ROBSTRIDE 10P Motor
Regular price
$215.00
Unit price
ROBSTRIDE 10P Motor - ROBSTRIDE 10P Motor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ROBSTRIDE 10P Motor
Regular priceFrom
$215.00
Unit price
ROBSTRIDE 10P Motor - ROBSTRIDE 10P Motor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 460g |
| Poles | 28 |
| Phases | 3 |
| Drive Method | FOC |
| Reduction Ratio | 25 : 1 |
| Gear Material | Machined Steel |
| Magnetic Encoder | 2pcs |
| Rated Voltage | 48V |
| Voltage Range | 15-60V |
| Rotate Rated Torque | 14N.m (Measured under 100rpm) |
| Peak Torque | 42N.m |
| Stall Rated Torque | 10N.m |
| Running Direction | CW/CCW |
| Temperature Range | -20~50°C |
| Humidity Range | 5~85% |
| Storage Temperature Range | -30~70°C |
| Insulation Level | Class B |
| No-load Speed | 125rpm ± 10% |
| No-load Current | 0.4Arms ± 10% |
| Rated Load Phase Current | 5.3Apk ± 10% |
| Peak Phase Current | 19Apk ± 10% |
| Insulation Resistance / Stator Winding | DC 500VAC, 100M Ohms |
| High Voltage Resistance / Stator and Casing | 600VAC, 1s, 2mA |
| Back-EMF | 9.5Vrms/krpm ± 10% |
| Line Resistance | 1.41Ω ± 10% |
| Torque Constant | 3.73N.m/Arms |
| Inductance | 750±20μH ± 10% |
| Moment Inertia | 0.00625kgm2 |
