RoboSense | SKU:

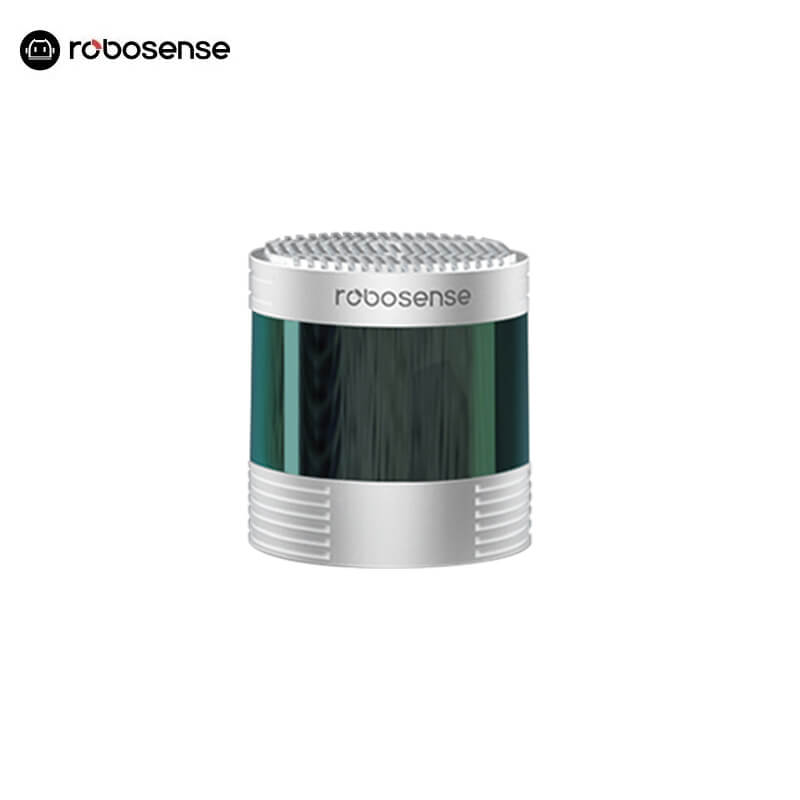

RoboSense Ruby Plus LiDAR
Regular price
$23,150.00
Unit price
RoboSense Ruby Plus LiDAR - Ruby Plus 80 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
RoboSense Ruby Plus LiDAR
Regular priceFrom
$23,150.00
Unit price
RoboSense Ruby Plus LiDAR - Ruby Plus 80 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Number of Lines | 128 |
| Laser Wavelength | 905nm |
| Laser Safety | Class 1 Eye Safety |
| Blind Spot | ≤0.4m |
| Range | 250m (240m @ 10% NIST) |
| Range Precision (Typical) | 2cm |
| Horizontal FOV | 360° |
| Vertical FOV | 40° (-25° ~ +15°) |
| Horizontal Resolution |
[Balance] 0.2° / 0.4° [High Performance] 0.1° / 0.2° |
| Vertical Resolution | Up to 0.1° |
| Frame Rate | 10Hz / 20Hz |
| Rotation Speed | 600 / 1200 rpm (10 / 20Hz) |
| UDP Packet Includes | Spatial Coordinates, Intensity, Timestamp, etc. |
| Output | UDP packets over Ethernet |
| Points Per Second (Single Return) |
[Balance] ~2,304,000 pts/s [High Performance] ~4,608,000 pts/s |
| Points Per Second (Dual Return) |
[Balance] ~4,608,000 pts/s [High Performance] ~9,216,000 pts/s |
| Ethernet Connection | 1000Base-T1 |
| Operating Voltage | 9V ~ 32V |
| Operating Temperature | -40°C ~ +60°C |
| Power Consumption |
[Balance] 27W [High Performance] 30W |
| Storage Temperature | -40°C ~ +85°C |
| Ingress Protection | IP67, IP6K9K |
| Time Synchronization | $GPRMC with 1PPS, PTP & gPTP |
| Dimensions | Φ125mm × H128mm |
| Weight (without cable) | 1920g ± 50g |
