RoboSense | SKU:

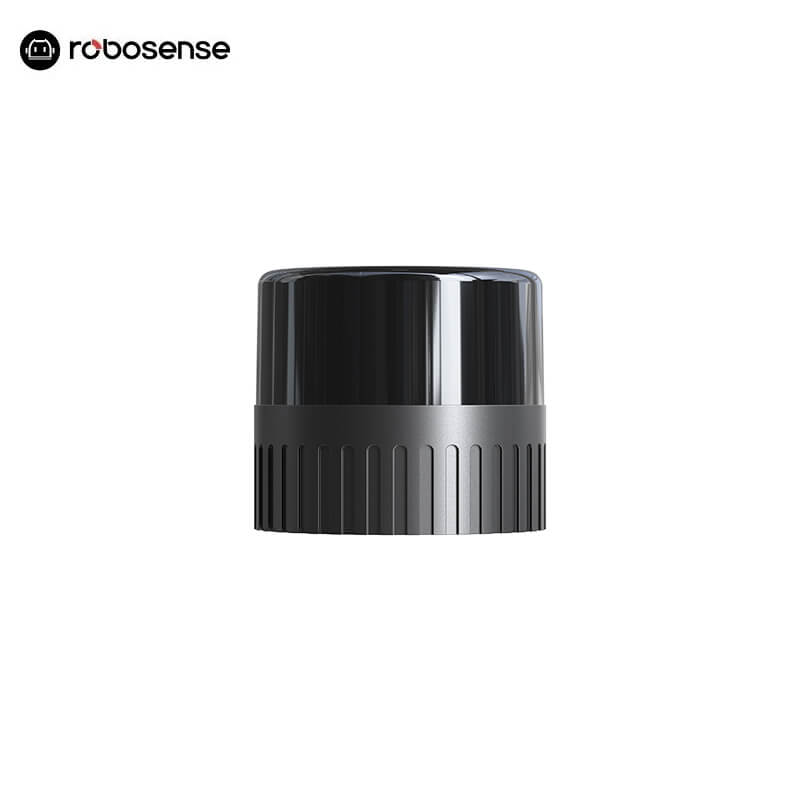

RoboSense Fairy LiDAR
Regular price
$2,180.00
Unit price
RoboSense Fairy LiDAR - Fairy (96-Line) / NOT Include is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
RoboSense Fairy LiDAR
Regular priceFrom
$2,180.00
Unit price
RoboSense Fairy LiDAR - Fairy (96-Line) / NOT Include is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Number of Lines | 96 or 48 |
| Wavelength | 940nm |
| Range | 80m @ 10% |
| Maximum Range | 150m |
| Laser Safety | Class 1 |
| Accuracy | 0.5cm (1σ) |
| FoV (H × V) | 360° × 32° |
| Blind Spot | ≤0.2m |
| Angular Resolution (H) | 0.25° |
| Angular Resolution (V) | 0.33° |
| Frame Rate (Adjustable) | 10Hz |
| Power Consumption | <10W |
| Points per Second (96-line) | ~1,370,000 pts/s |
| Points per Second (48-line) | ~685,000 pts/s |
| Ethernet Connection | 100Base-TX / 100Base-T1 |
| Output | UDP packets over Ethernet |
| Dimensions | φ75mm × H70mm |
| UDP Packet Includes | 3D spatial coordinates, reflectivity, timestamp |
| Weight (without cabling) | <350g |
| Operating Voltage | 9V ~ 32V |
| Operating Temperature | -40°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Time Synchronization | $GPRMC with 1PPS, PTP & gPTP |
| Ingress Protection | IP67, IP6K9K |
