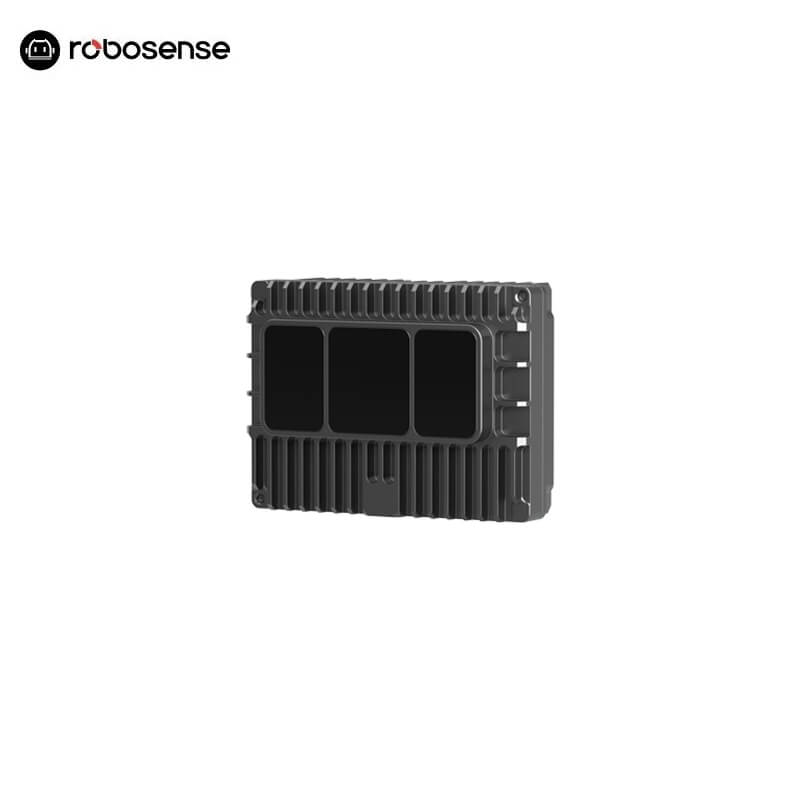

RoboSense E1 LiDAR

$1,470.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Wavelength 940nm
Number of Lines 144
Range 30m @ 10%
Maximum Range 75m
Laser Safety Class 1 Eye Safety
Accuracy ±5cm
FoV (H × V) 120° × 90°
Blind Spot ≤0.1m
Angular Resolution (H) Average 0.625°
Angular Resolution (V) Average 0.625°
Frame Rate (Adjustable) 10Hz / 20Hz / 30Hz
Power Consumption <10W
Points Per Second (Single Return Mode) 260,000 pts/s
Points Per Second (Dual Return Mode) 520,000 pts/s
Dimensions (H × W × D) 69.5 × 95 × 43mm
Window Dimensions (H × W × D) 35 × 75 × 7mm
Weight (without cabling) 330 ± 20g
Operating Voltage 9 ~ 16V
Operating Temperature -40°C ~ +85°C
Storage Temperature -40°C ~ +105°C
Time Synchronization gPTP
Ingress Protection IP67, IP6K9K
