RoboSense

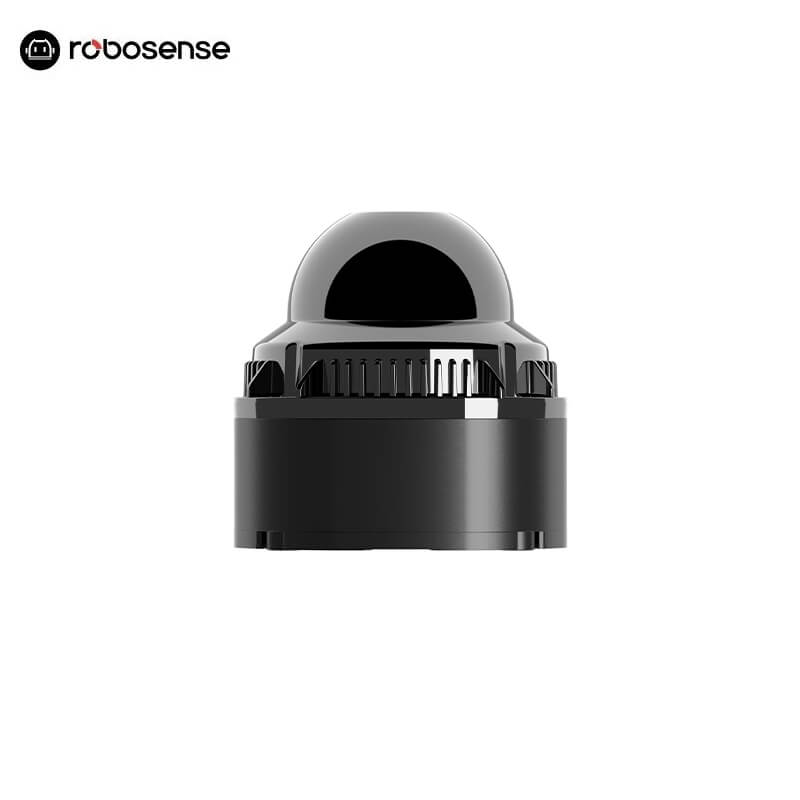

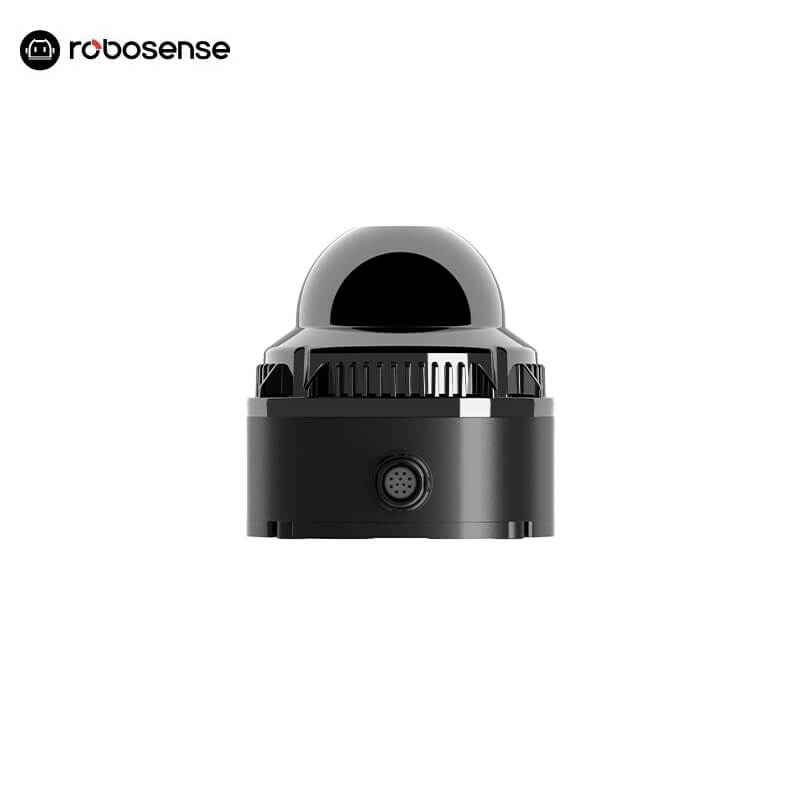

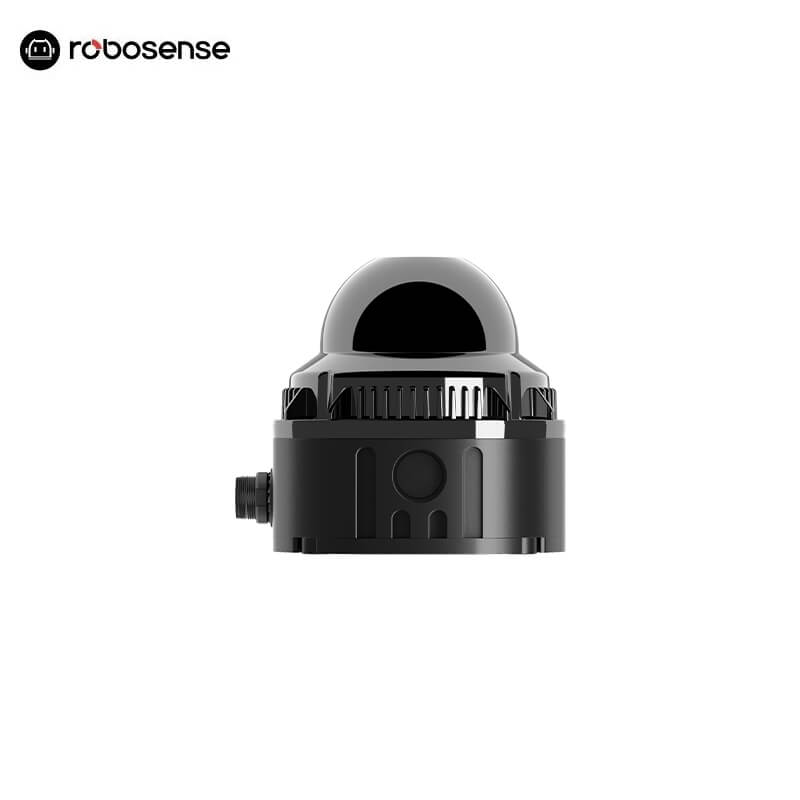

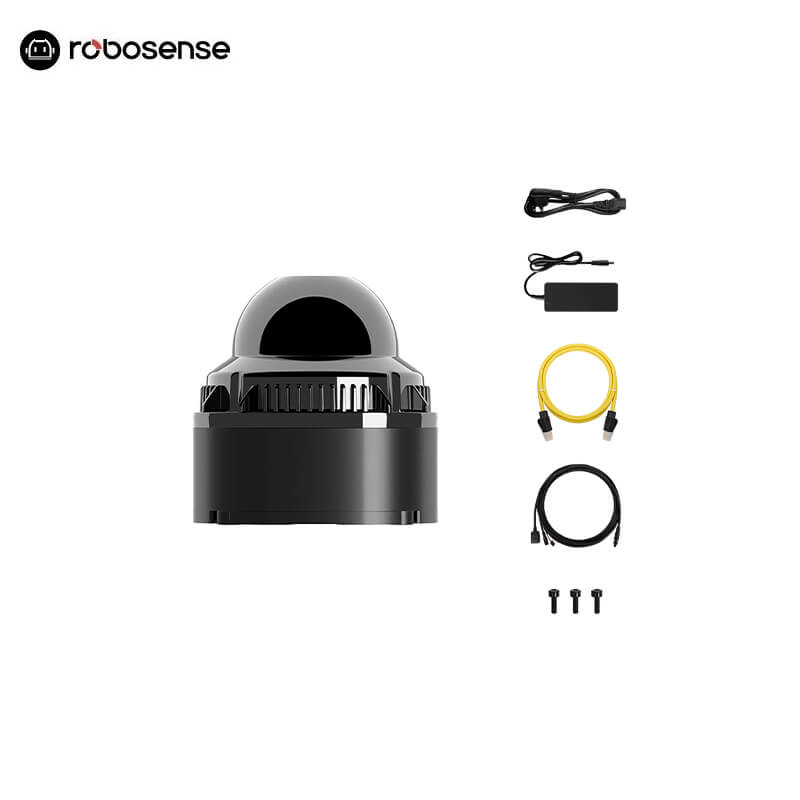

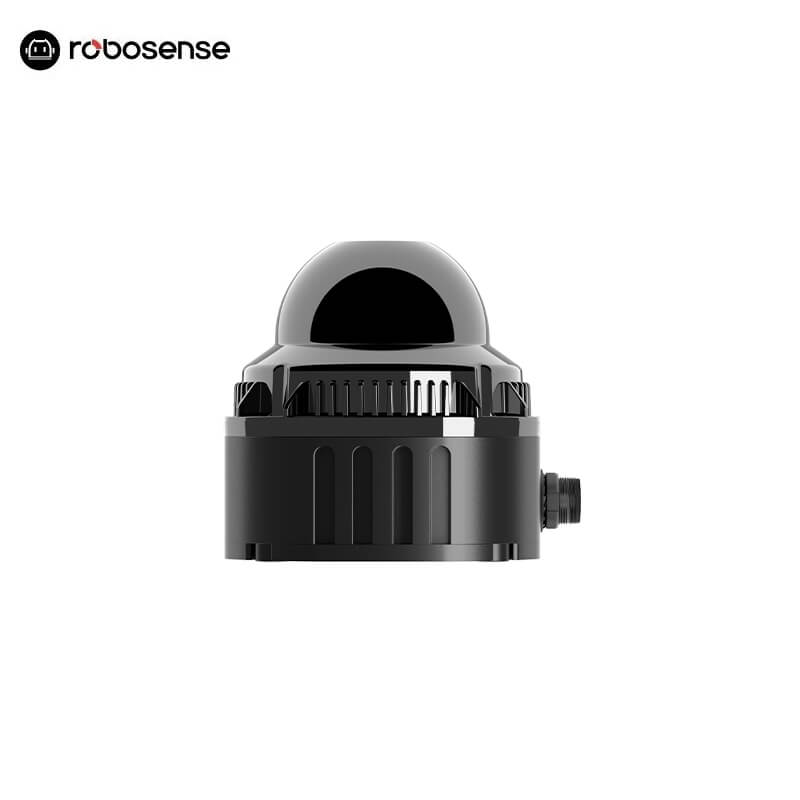

RoboSense Airy Lite LiDAR

$760.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Laser Wavelength 940nm
Blind Zone <0.1m
Detection Range 60m (30m @ 10% NIST)
Ranging Accuracy 1cm (1σ)
Horizontal FOV 360°
Vertical FOV 45°
Angular Resolution 0.6° (H) × 1.96° (V)
Frame Rate 10Hz
Laser Safety Class Class 1 (Eye-Safe)
Point Rate 144,000 pts/s (Single Return Mode)
Data Interface 100M Base-TX
Power Consumption 6W
Dimensions 72.5 × 64.2 × 65mm (including aviation connector)
Weight 235 ± 10g
Output Data Content 3D spatial coordinates, reflectivity, timestamp, etc.
Operating Voltage 9V ~ 32V
Operating Temperature -20°C ~ +60°C
Storage Temperature -40°C ~ +85°C
Time Synchronization GPS & gPTP & PTP
Protection Rating IP67
