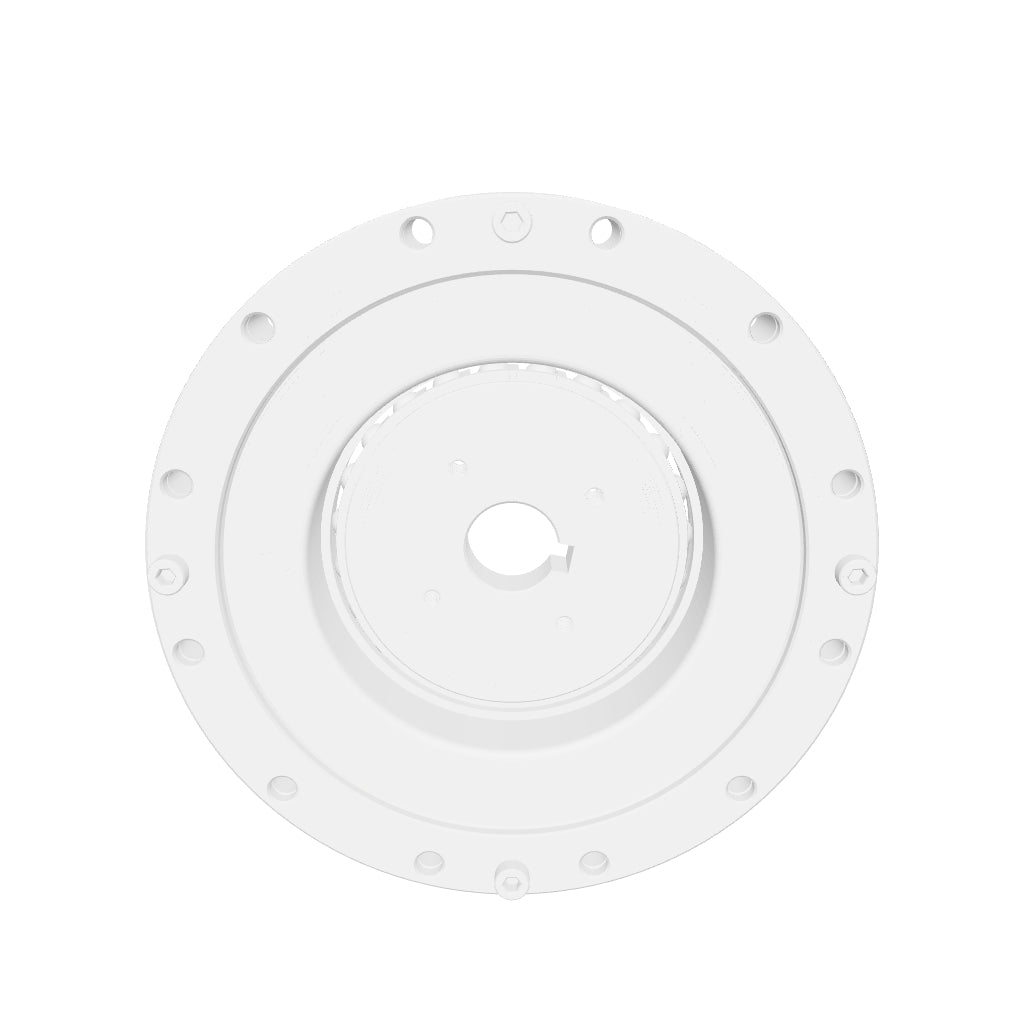

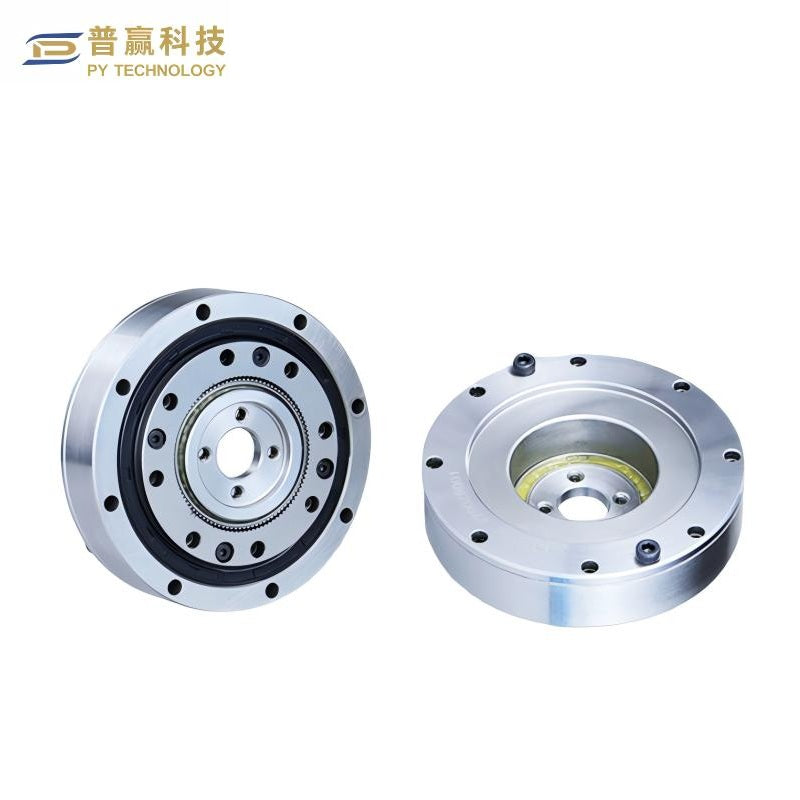

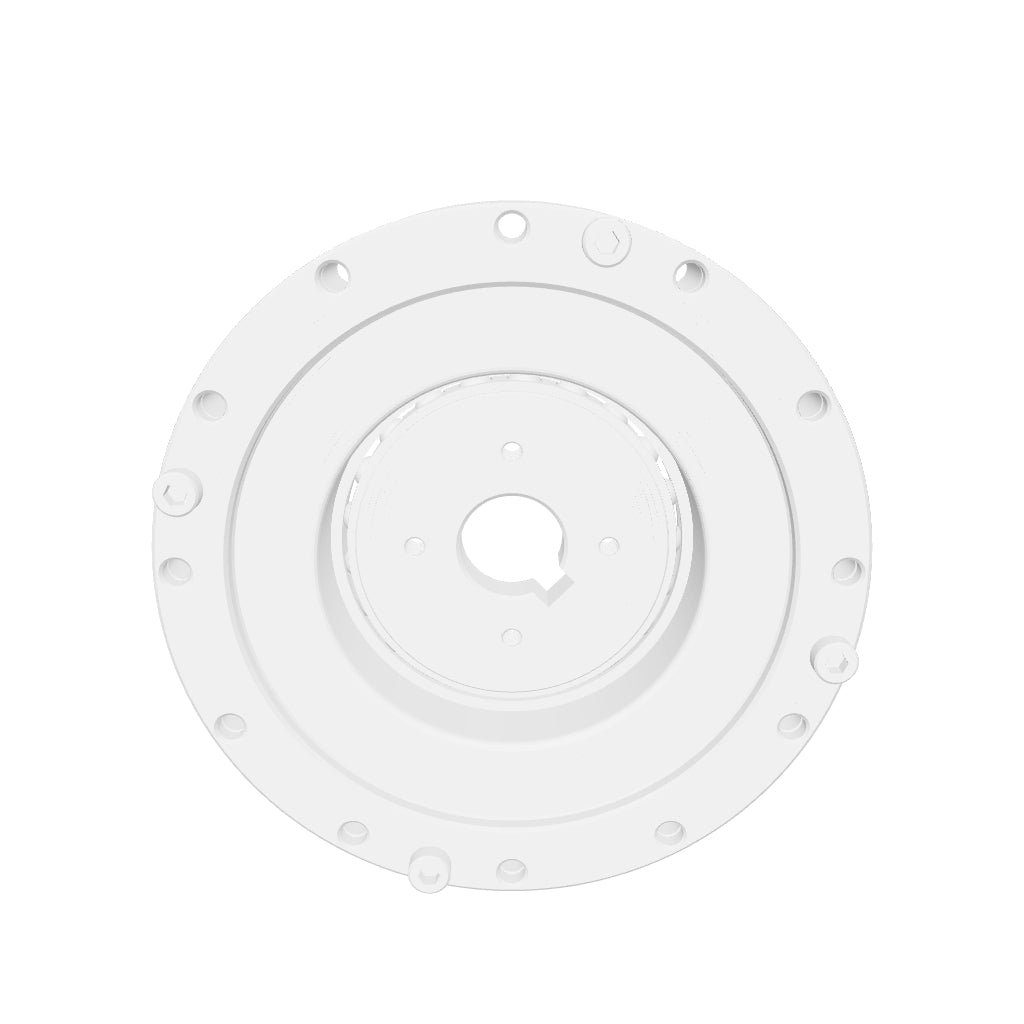

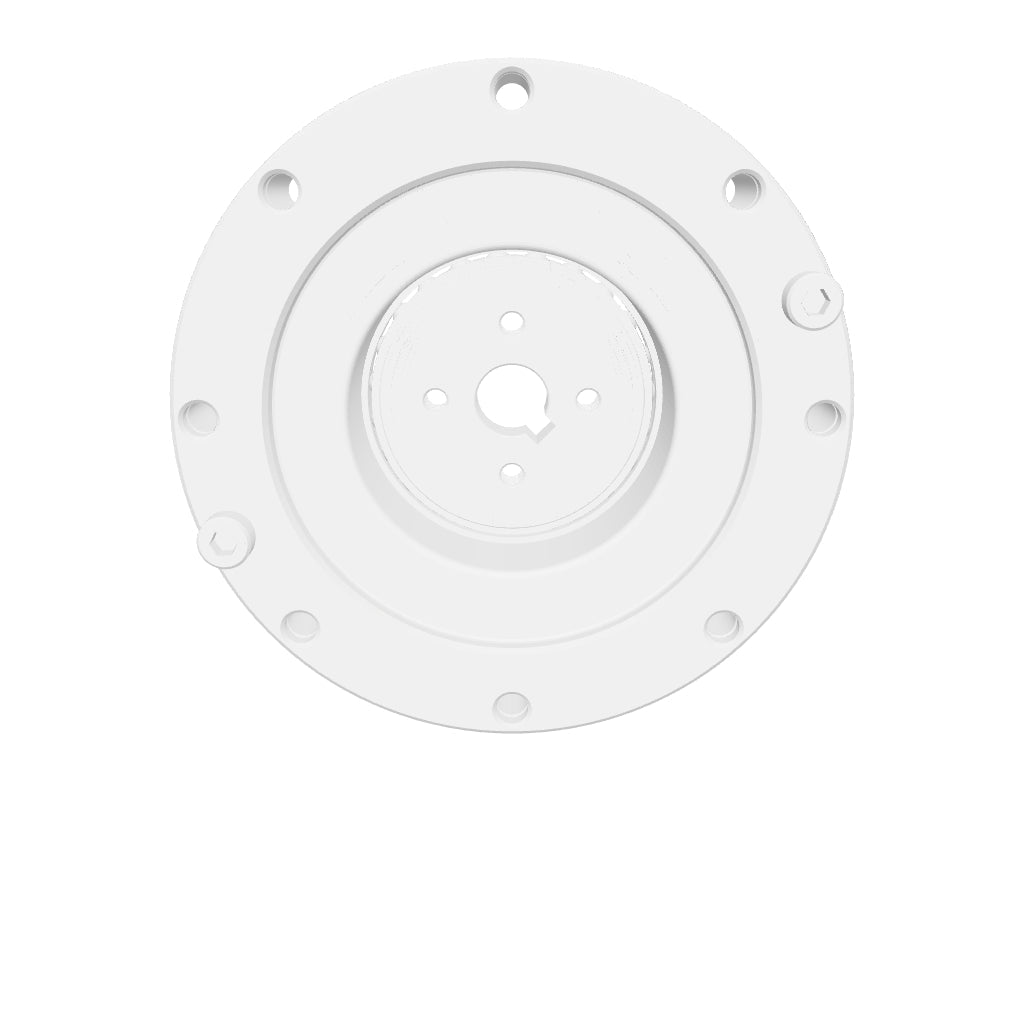

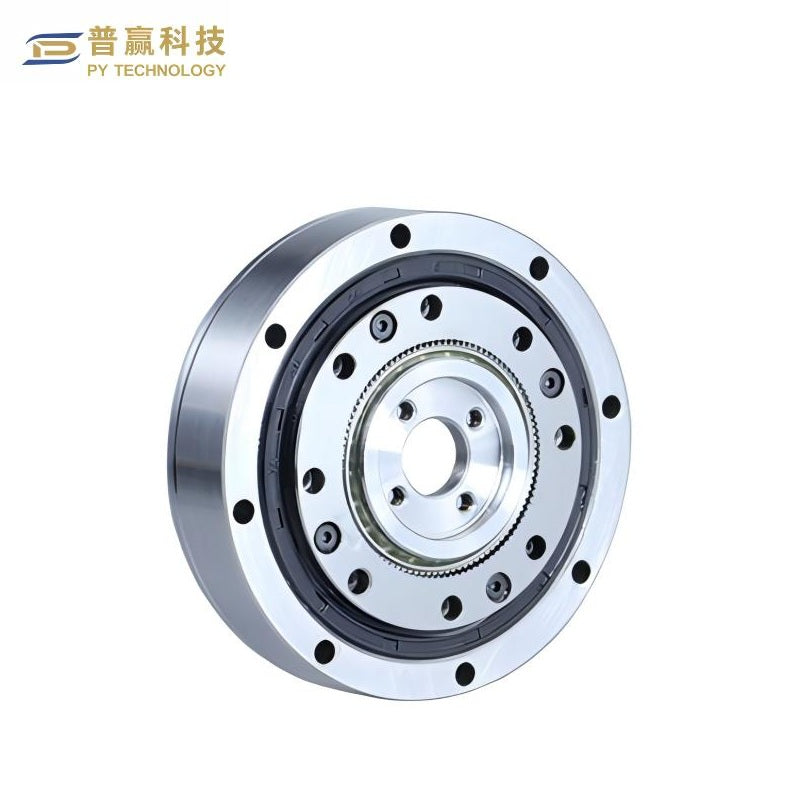

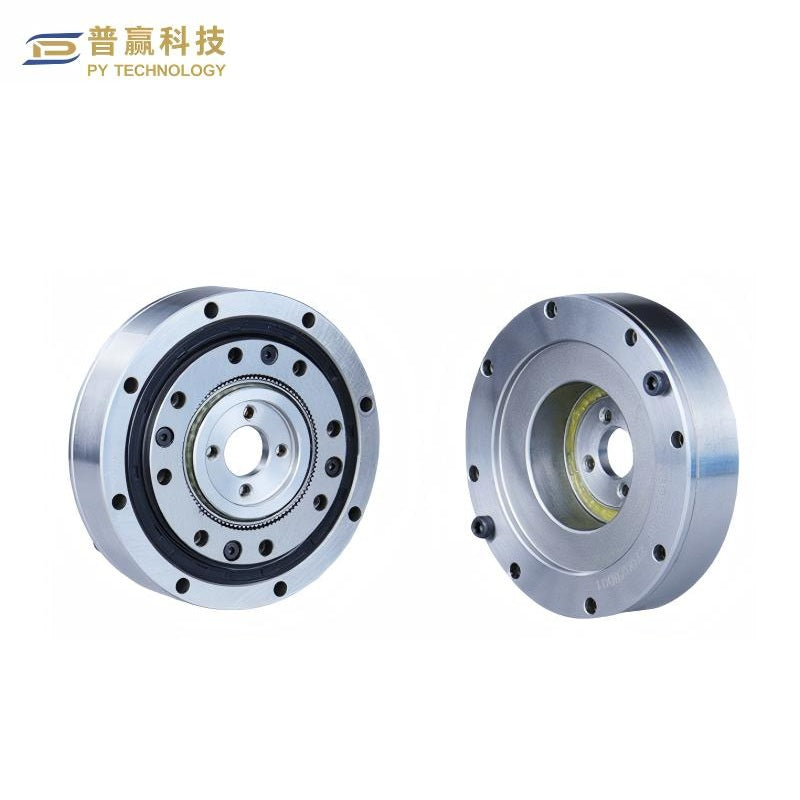

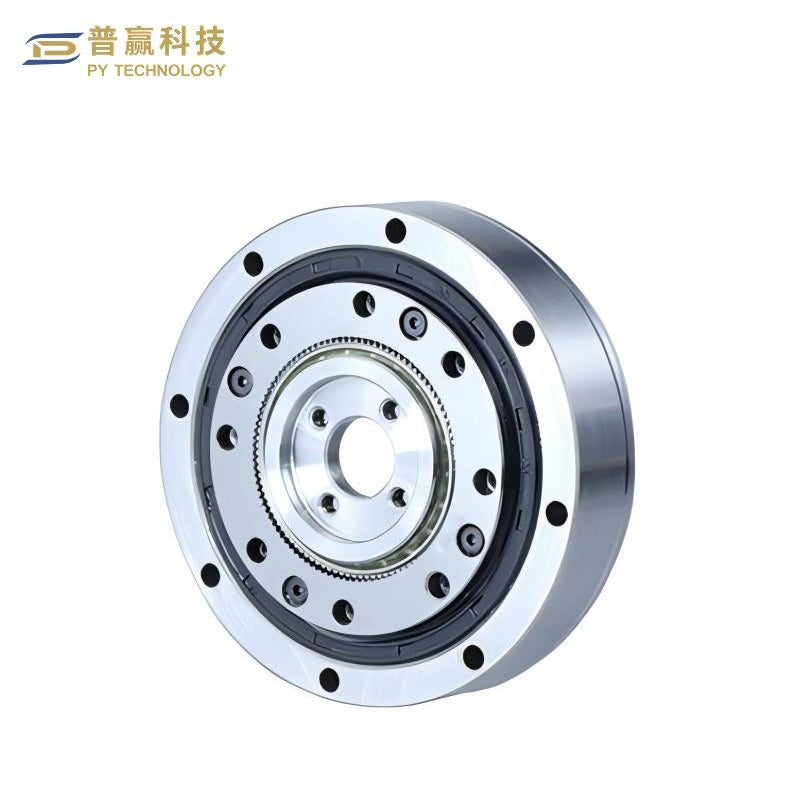

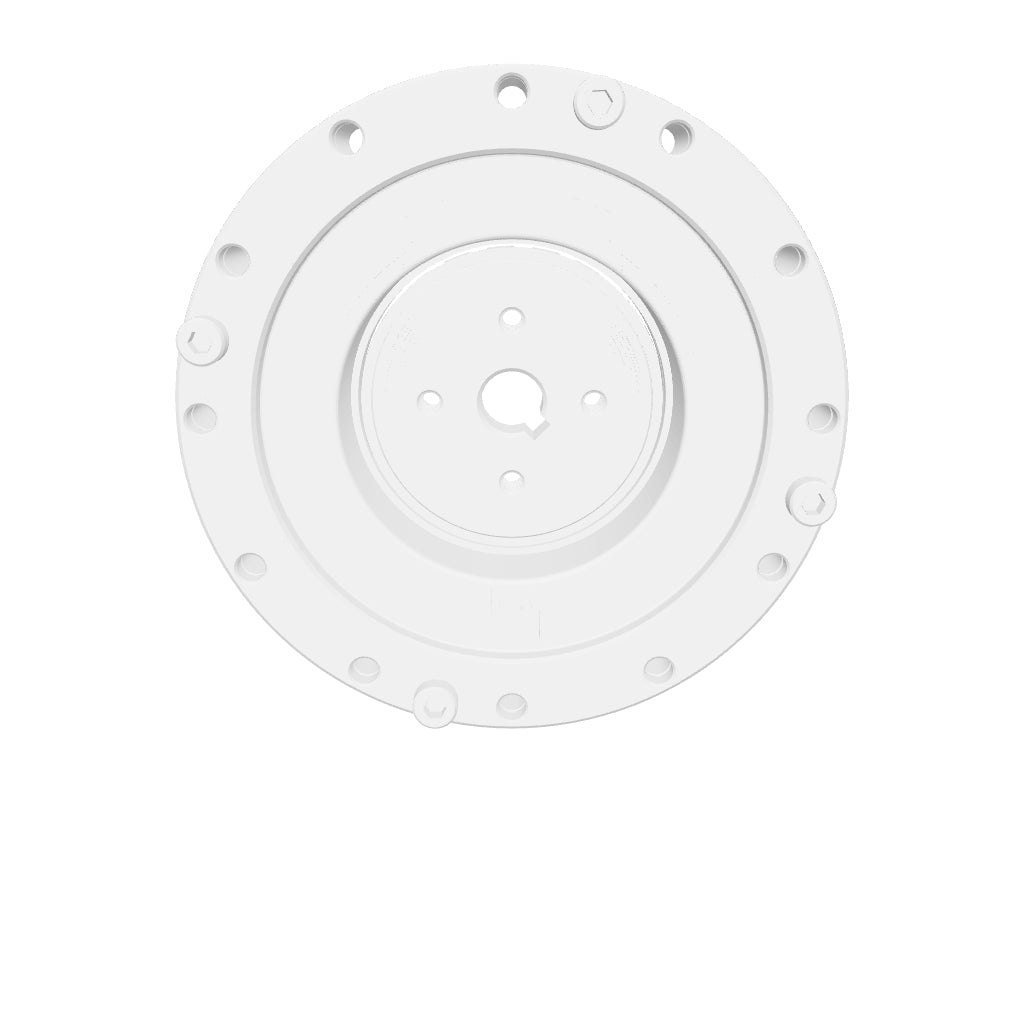

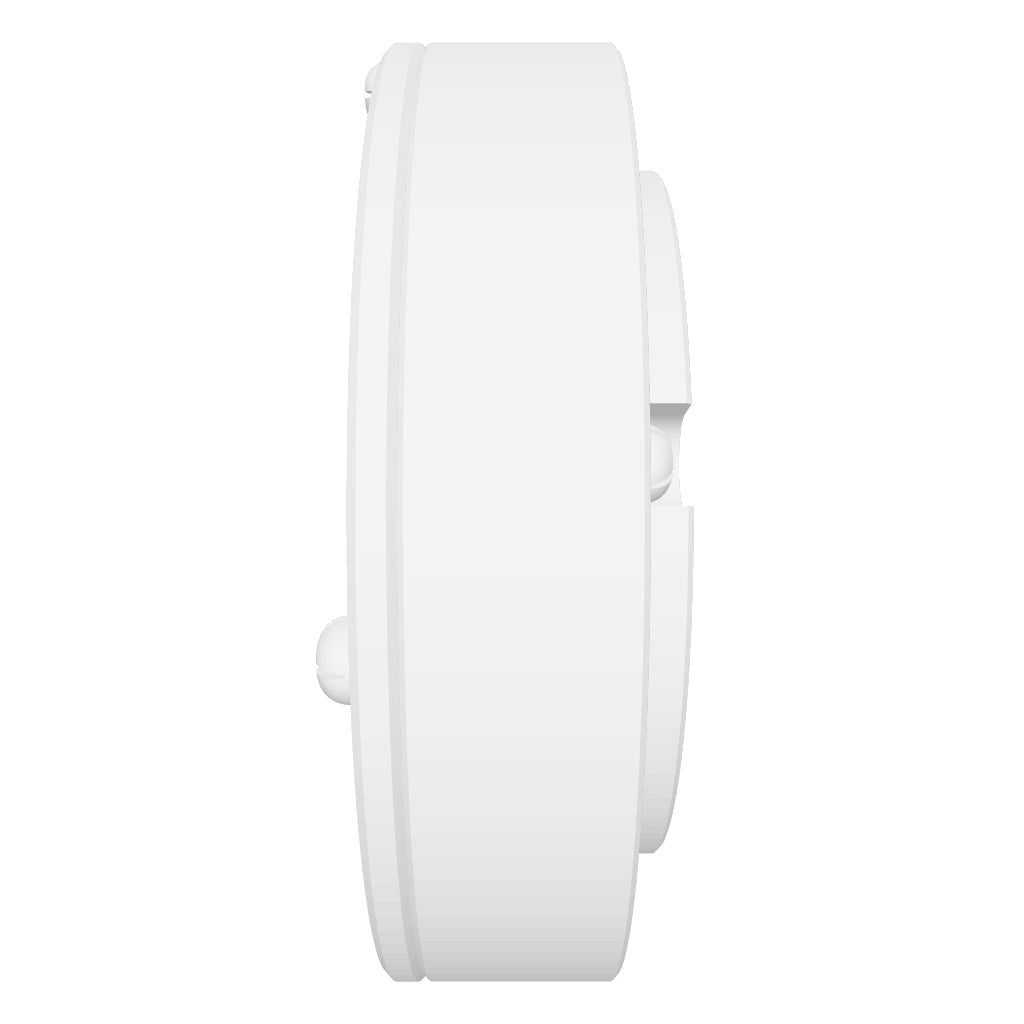

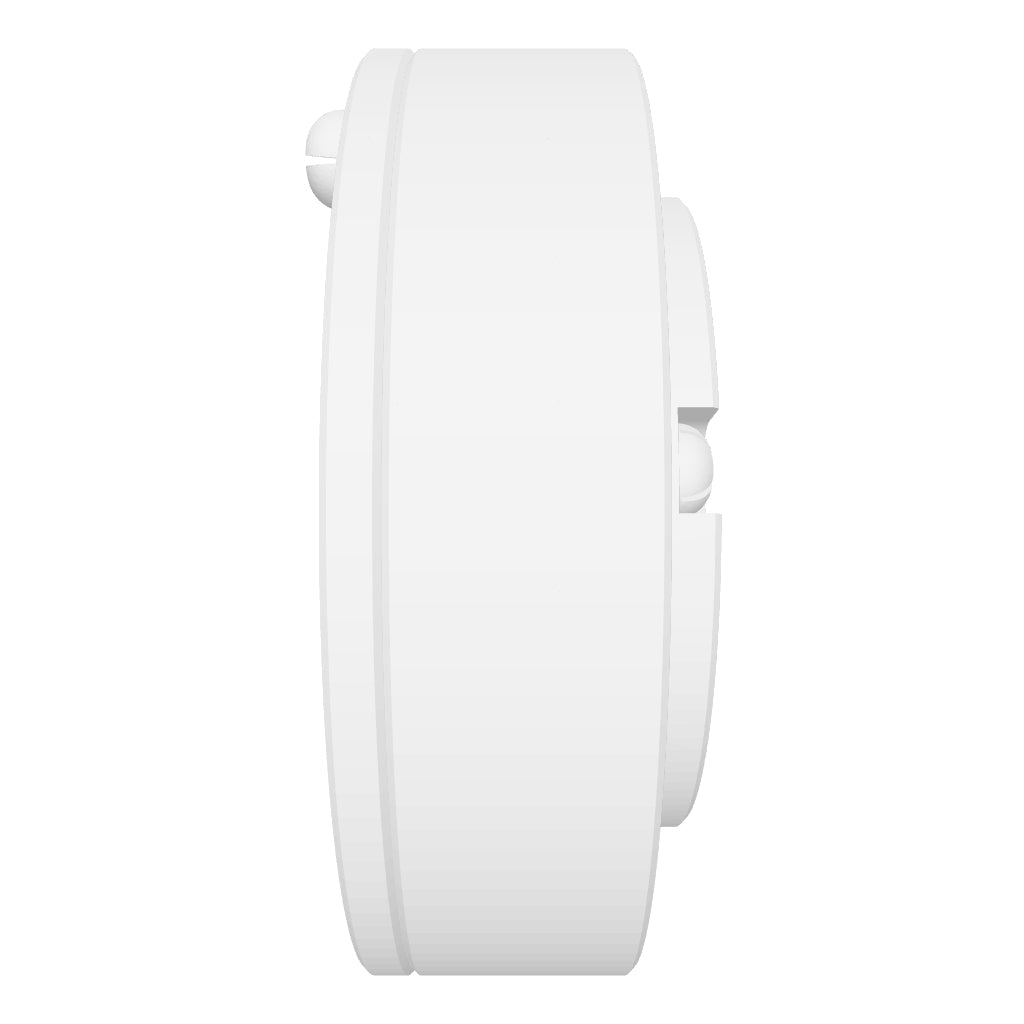

PY TECHNOLOGY HBD Series Harmonic Reducer

$95.00
Version
Reduction Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value Value Value Value
Model HBD-08 HBD-08 HBF-08 HBF-08
Reduction Ratio 30 50 80 100
Weight (kg) 0.06 0.06 0.06 0.06
Rated Torque at 2000 r/min (Nm) 1.0 1.95 2.5 2.85
Rated Torque at 2000 r/min (Kgf·m) 0.11 0.20 0.26 0.29
Permissible Peak Torque (Start/Stop) (Nm) 2.1 3.95 4.8 5.5
Permissible Peak Torque (Start/Stop) (Kgf·m) 0.21 0.395 0.48 0.55
Allowable Average Load Torque (Nm) 1.65 2.75 3.50 3.95
Allowable Average Load Torque (Kgf·m) 0.17 0.28 0.36 0.4
Instantaneous Permissible Maximum Torque (Nm) 3.95 7.95 9 10.8
Instantaneous Permissible Maximum Torque (Kgf·m) 0.4 0.8 0.91 1.09
Permissible Max Input Speed (r/min) 8500 8500 8500 8500
Permissible Average Input Speed (r/min) 3500 3500 3500 3500
Moment of Inertia (1/4GD²) (kg·cm²) 3.2×10³
3.0×10³
 3.2×10³
3.0×10³		 3.2×10³
3.0×10³		 3.2×10³
3.0×10³
Backlash (Arc sec) ≤20 ≤20 ≤20 ≤20



Parameter Value Value Value Value
Model HBD-11 HBD-11 HBF-11 HBF-11
Reduction Ratio 30 50 80 100
Weight (kg) 0.13 0.13 0.13 0.13
Rated Torque at 2000 r/min (Nm) 2.6 4.2 5.0 6.0
Rated Torque at 2000 r/min (Kgf·m) 0.27 0.43 0.51 0.61
Permissible Peak Torque (Start/Stop) (Nm) 5.5 10 10.5 13.2
Permissible Peak Torque (Start/Stop) (Kgf·m) 0.55 1.0 1.1 1.3
Allowable Average Load Torque (Nm) 4.0 6.6 8.6 10.5
Allowable Average Load Torque (Kgf·m) 0.41 0.67 0.87 1.20
Instantaneous Permissible Maximum Torque (Nm) 10.2 20 24 30
Instantaneous Permissible Maximum Torque (Kgf·m) 1.02 2 2.4 3
Permissible Max Input Speed (r/min) 8500 8500 8500 8500
Permissible Average Input Speed (r/min) 3500 3500 3500 3500
Moment of Inertia (1/4GD²) (kg·cm²) 1.4×10²
1.2×10²
 1.4×10²
1.2×10²		 1.4×10²
1.2×10²		 1.4×10²
1.2×10²
Backlash (Arc sec) ≤20 ≤20 ≤20 ≤20



Parameter Value Value Value Value
Model HBD-14 HBD-14 HBF-14 HBF-14
Reduction Ratio 30 50 80 100
Weight (kg) 0.31 0.31 0.31 0.31
Rated Torque at 2000 r/min (Nm) 2.6 4.2 5 6
Rated Torque at 2000 r/min (Kgf·m) 0.27 0.43 0.51 0.61
Permissible Peak Torque (Start/Stop) (Nm) 5.5 10 10.5 13.2
Permissible Peak Torque (Start/Stop) (Kgf·m) 0.55 1 1.1 1.3
Allowable Average Load Torque (Nm) 4 6.6 8.6 10.5
Allowable Average Load Torque (Kgf·m) 0.41 0.67 0.87 1.2
Instantaneous Permissible Maximum Torque (Nm) 10.2 20 24 30
Instantaneous Permissible Maximum Torque (Kgf·m) 1.02 2 2.4 3
Permissible Max Input Speed (r/min) 8500 8500 8500 8500
Permissible Average Input Speed (r/min) 3500 3500 3500 3500
Moment of Inertia (1/4GD²) (kgms²) 1.4×10²
1.2×10²		 1.4×10²
1.2×10²		 1.4×10²
1.2×10²		 1.4×10²
1.2×10²
Backlash (Arc sec) ≤20 ≤20 ≤20 ≤20



Parameter Value Value Value Value
Model HBD-17 HBD-17 HBF-17 HBF-17
Reduction Ratio 30 50 80 100
Weight (kg) 0.41 0.41 0.41 0.41
Rated Torque at 2000 r/min (Nm) 6.8 11 14 16
Rated Torque at 2000 r/min (Kgf·m) 0.68 1.1 0.14 1.6
Permissible Peak Torque (Start/Stop) (Nm) 12 23 33 37
Permissible Peak Torque (Start/Stop) (Kgf·m) 1.2 2.3 3.3 3.8
Allowable Average Load Torque (Nm) 9.3 18 25 27
Allowable Average Load Torque (Kgf·m) 0.93 1.9 2.5 2.8
Instantaneous Permissible Maximum Torque (Nm) 27 48 71 71
Instantaneous Permissible Maximum Torque (Kgf·m) 2.7 4.9 0.71 0.71
Permissible Max Input Speed (r/min) 7300 7300 7300 7300
Permissible Average Input Speed (r/min) 3500 3500 3500 3500
Moment of Inertia (×10² km²) 0.054 0.054 0.054 0.054
Moment of Inertia (×10⁴ kgf·m·s²) 0.055 0.055 0.055 0.055
Backlash (Arc sec) ≤20 ≤20 ≤20 ≤20



Parameter Value Value Value Value
Model HBD-20 HBD-20 HBF-20 HBF-20
Reduction Ratio 30 50 80 100
Weight (kg) 0.52 0.52 0.52 0.52
Rated Torque at 2000 r/min (Nm) 9 17 24 28
Rated Torque at 2000 r/min (Kgf·m) 0.9 1.7 2.4 2.9
Permissible Peak Torque (Start/Stop) (Nm) 21 39 51 57
Permissible Peak Torque (Start/Stop) (Kgf·m) 2.1 4.0 5.1 5.8
Allowable Average Load Torque (Nm) 15 24 32 34
Allowable Average Load Torque (Kgf·m) 1.5 2.4 3.2 3.5
Instantaneous Permissible Maximum Torque (Nm) 36 69 88 95
Instantaneous Permissible Maximum Torque (Kgf·m) 3.6 7.0 8.8 10
Permissible Max Input Speed (r/min) 6500 6500 6500 6500
Permissible Average Input Speed (r/min) 3500 3500 3500 3500
Moment of Inertia (×10²km²) 0.09 0.09 0.09 0.09
Moment of Inertia (×10⁴ kgf·m·s²) 0.092 0.092 0.092 0.092
Backlash (Arc sec) ≤20 ≤20 ≤20 ≤20



Parameter Value Value
Model HBD-25 HBF-25
Reduction Ratio 50 100
Weight (kg) 0.95 0.95
Rated Torque at 2000 r/min (Nm) 27 47
Rated Torque at 2000 r/min (Kgf·m) 2.8 4.8
Permissible Peak Torque (Start/Stop) (Nm) 69 110
Permissible Peak Torque (Start/Stop) (Kgf·m) 7.0 11
Allowable Average Load Torque (Nm) 38 75
Allowable Average Load Torque (Kgf·m) 3.9 7.6
Instantaneous Permissible Maximum Torque (Nm) 127 184
Instantaneous Permissible Maximum Torque (Kgf·m) 13 19
Permissible Max Input Speed (r/min) 5600 5600
Permissible Average Input Speed (r/min) 3500 3500
Moment of Inertia (×10⁴ kg·cm²) 0.282 0.282
Moment of Inertia (×10⁵ kgf·m·s²) 0.288 0.288
Backlash (Arc sec) ≤20 ≤20



Parameter Value Value
Model HBD-32 HBF-32
Reduction Ratio 50 100
Weight (kg) 2 2
Rated Torque at 2000 r/min (Nm) 53 96
Rated Torque at 2000 r/min (Kgf·m) 5.4 10
Permissible Peak Torque (Start/Stop) (Nm) 151 233
Permissible Peak Torque (Start/Stop) (Kgf·m) 15.0 24
Allowable Average Load Torque (Nm) 75 151
Allowable Average Load Torque (Kgf·m) 7.6 15
Instantaneous Permissible Maximum Torque (Nm) 268 420
Instantaneous Permissible Maximum Torque (Kgf·m) 27 43
Permissible Max Input Speed (r/min) 4800 4800
Permissible Average Input Speed (r/min) 3500 3500
Moment of Inertia (×10⁴ kg·cm²) 1.09 1.09
Moment of Inertia (×10⁴ kgf·m·s²) 1.11 1.11
Backlash (Arc sec) ≤20 ≤20
