OCServo

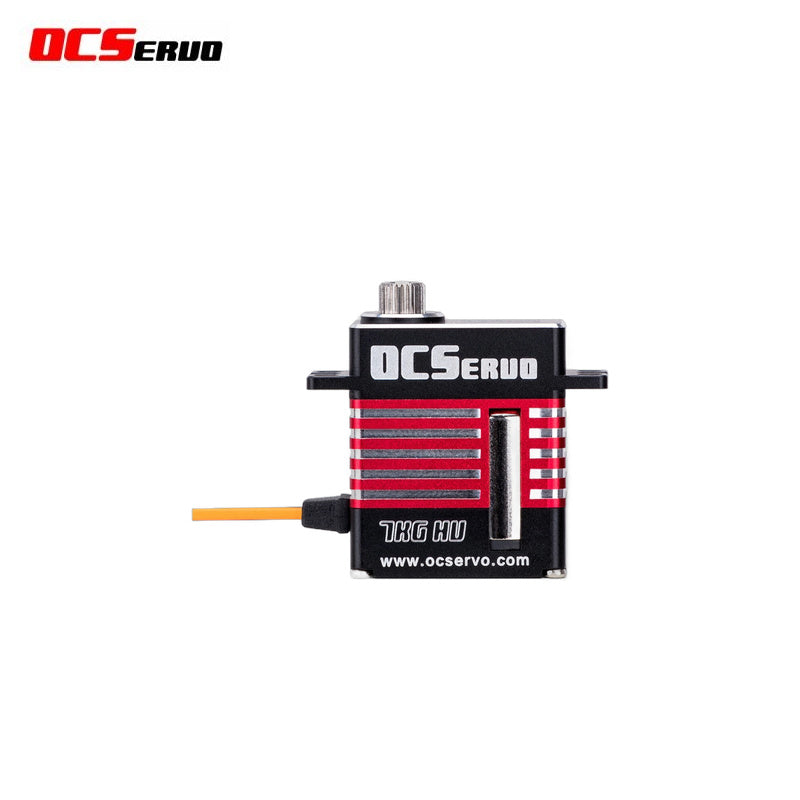

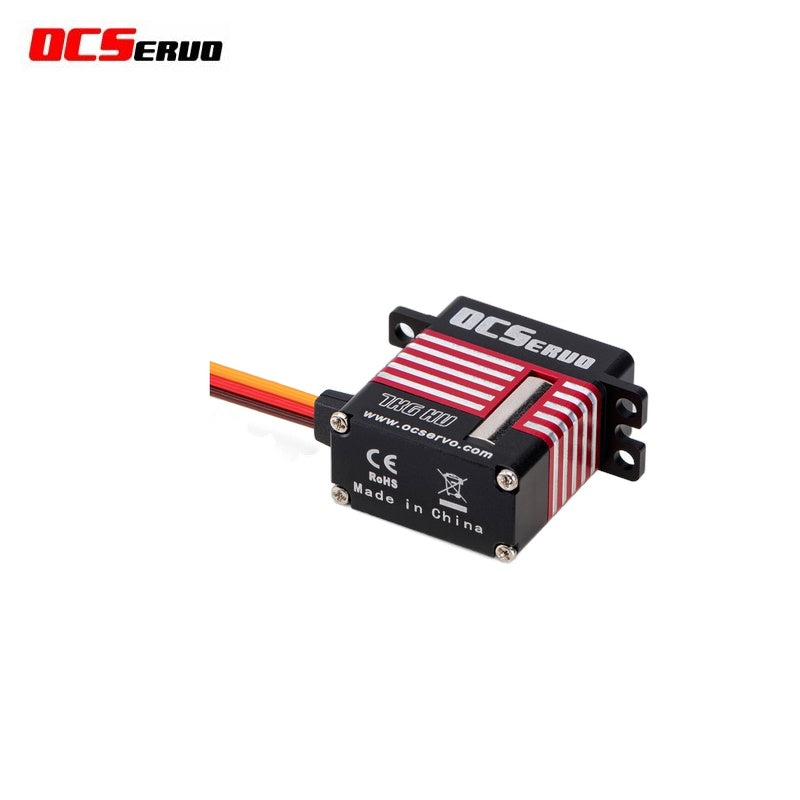

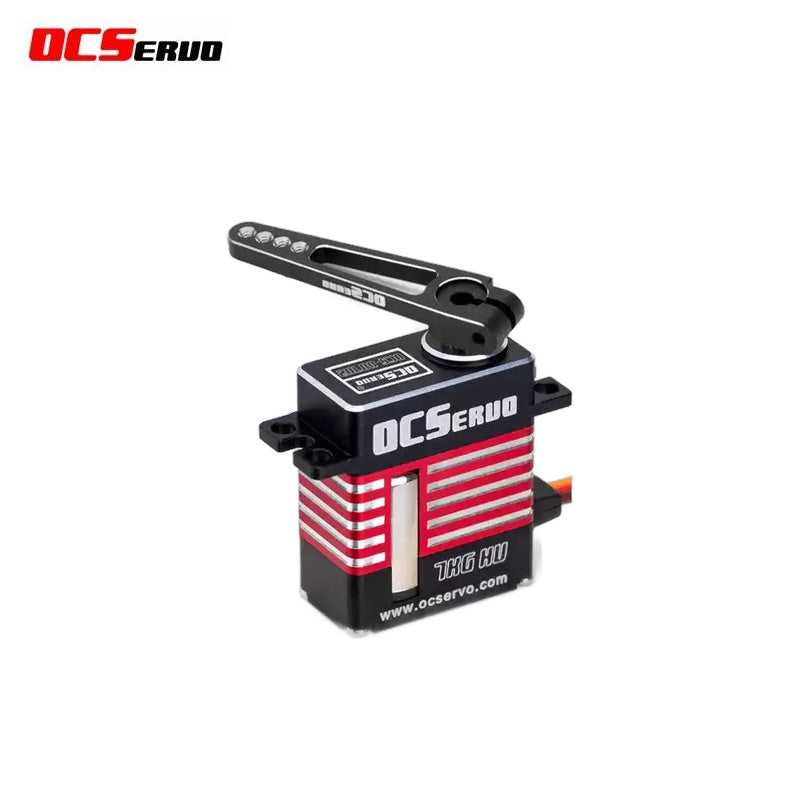

OCServo OCS-D0702 Servo Motor

$45.00
Version
Accessory

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Storage Temperature Range -20℃ ~ 70℃
Operating Temperature Range -15℃ ~ 65℃
Test Temperature 25℃ ± 5℃
Test Humidity 65% ± 10%
Size 12 × 23 × 27.1 mm
Weight 20g (no including accessory)
Gear Type Stainless Steel
Limit Angle No
Bearings 2 Ball bearings
Horn Gear Spline 25T Φ4.93mm
Horn Type Plastic, POM
Case Material Aluminum CNC
Connector Wire 180mm 3P
Motor Type Coreless motor
Waterproof Performance No
Operating Voltage Range 6.0V / 7.4V / 8.4V
No load speed 6.0V: 0.10 sec/60°; 7.4V: 0.07 sec/60°; 8.4V: 0.06 sec/60°
Running current (at no load) 6.0V: 170 mA; 7.4V: 240 mA; 8.4V: 300 mA
Peak stall torque 6.0V: 5 kg·cm; 7.4V: 6.2 kg·cm; 8.4V: 7.0 kg·cm
Stall current 6.0V: 1.7 A; 7.4V: 2.2 A; 8.4V: 2.5 A
Command signal PWM
Amplifier type Digital Controller
Pulse width range 800~2200μsec
Neutral position 1500 μsec
Running degree 96° (when 1000~2000 μ sec)
Dead band width 2 μsec
Rotating direction CCW (when 1000~2000 μsec)
