OAKChina | SKU:

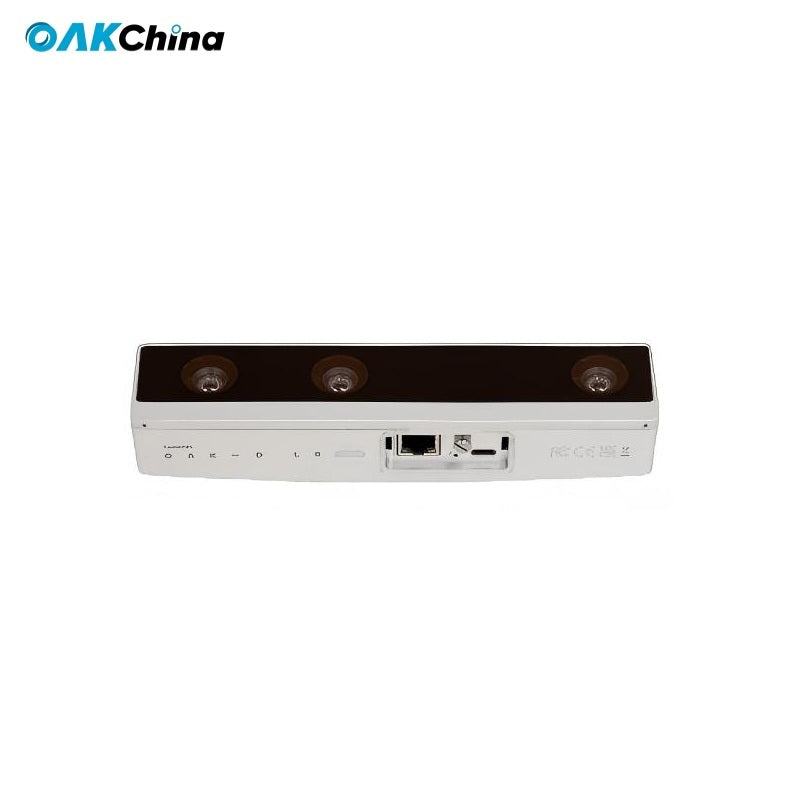

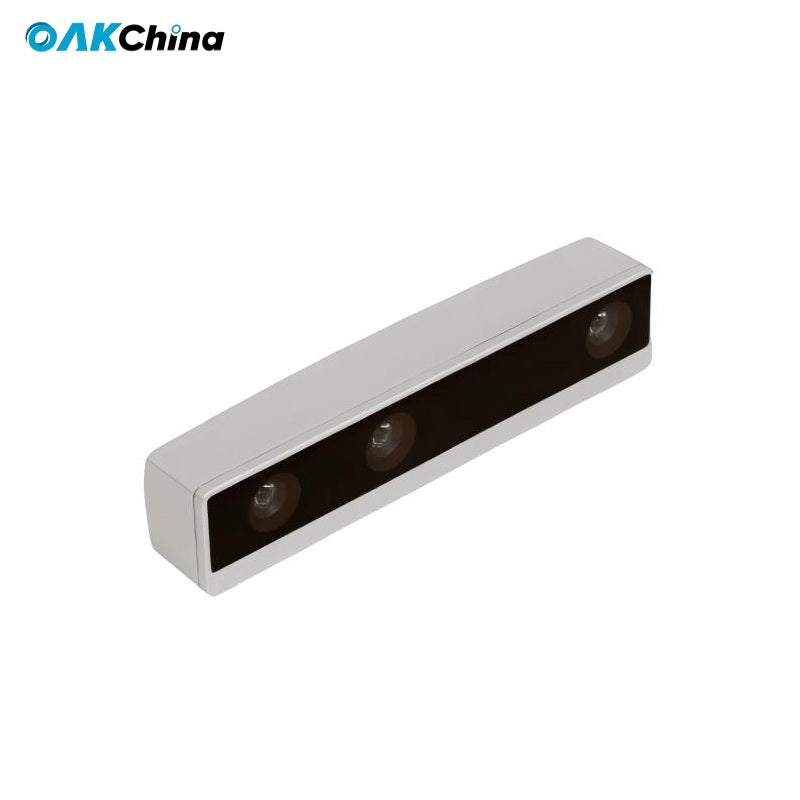

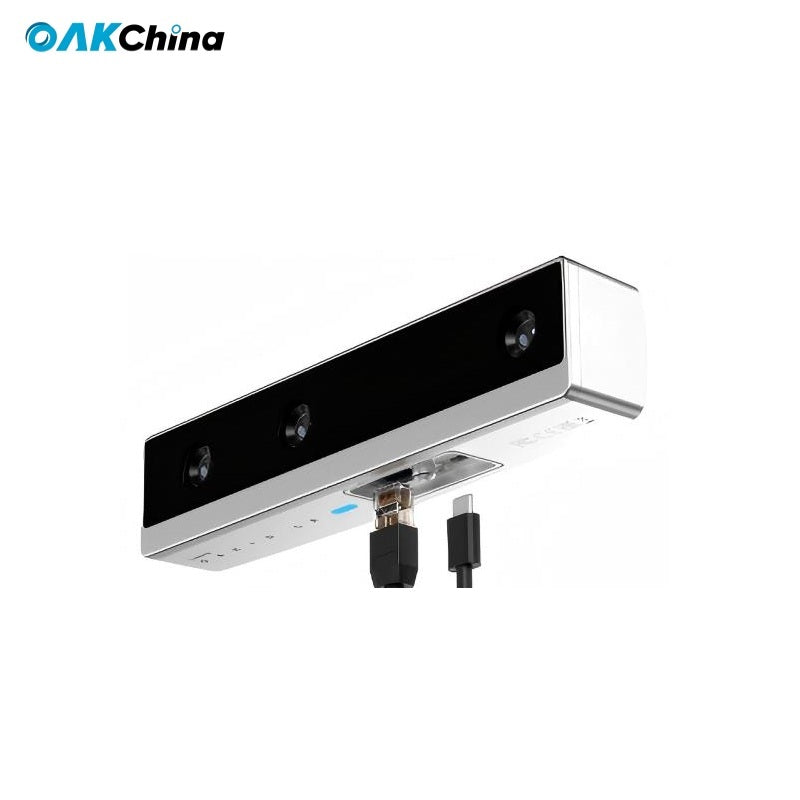

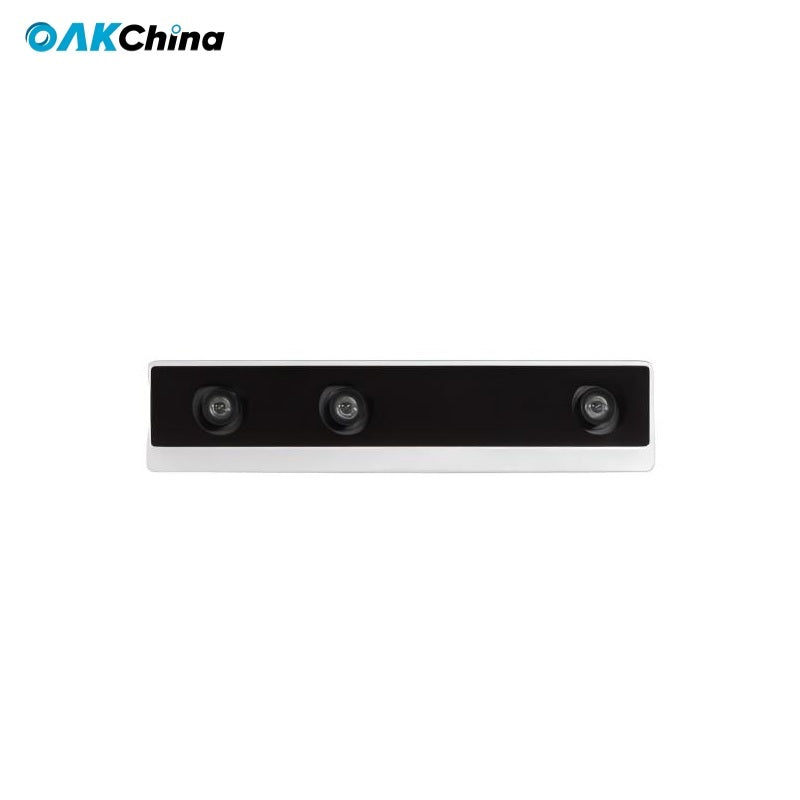

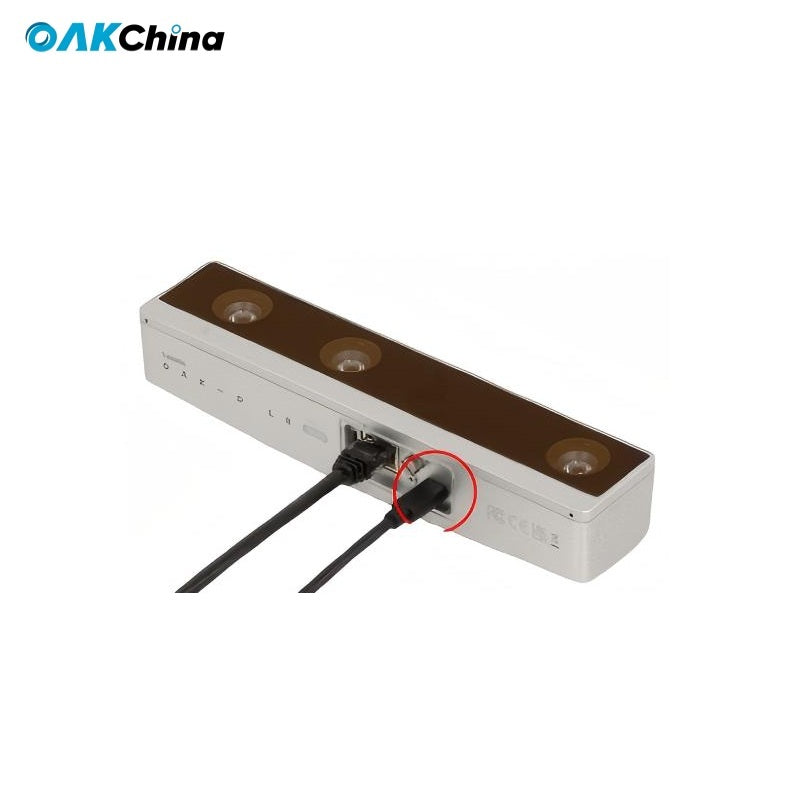

OAKChina OAK-D-LR Camera
Regular price
$1,830.00
Unit price
OAKChina OAK-D-LR Camera - OAK-D-LR is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
OAKChina OAK-D-LR Camera
Regular price
$1,830.00
Unit price
OAKChina OAK-D-LR Camera - OAK-D-LR is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor Specifications: | |
| Resolution | 1920 × 1200 |
| Effective Pixels | 2.3 MP |
| Sensor Type | Color |
| Sensor Format (Lens Interface) | 1/2.6" |
| Pixel Size | 3 μm × 3 μm |
| Shutter Type | Global Shutter |
| Maximum Frame Rate | 60 FPS (Sensor Capture Frame Rate) |
| Optical Specifications: | |
| DFOV / HFOV / VFOV | 100° / 82° / 56° |
| Effective Focal Length (EFL) | 3.6 mm |
| F-Number (F.No) | 2.8 ± 5% |
| Spectral Range | Visible Light |
| Focus Range | M12 (FF): 45 cm – ∞ |
