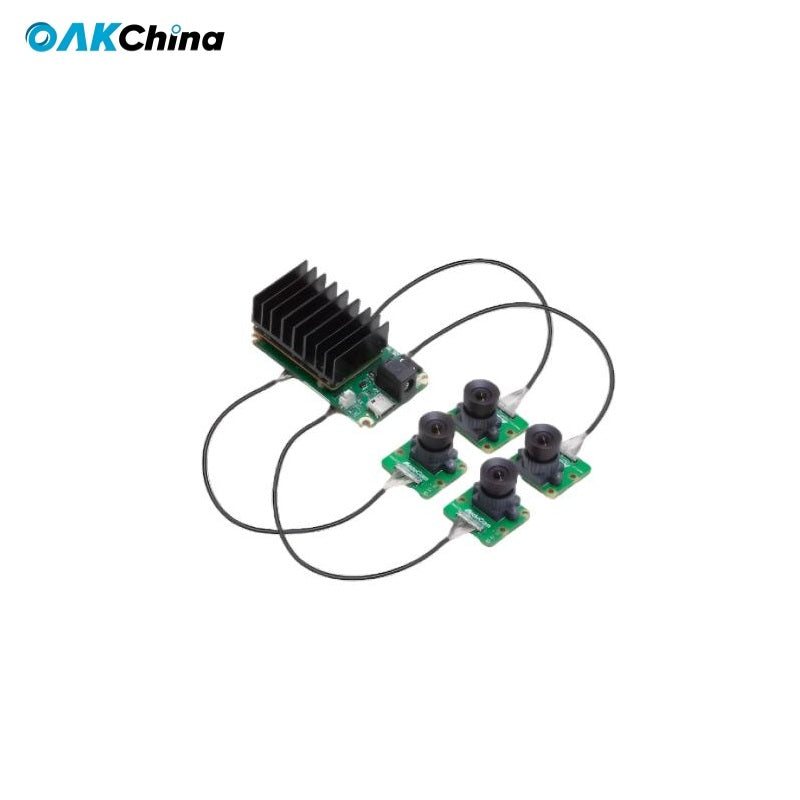

OAKChina OAK-4P-New Camera

$750.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
General Specifications:
Product Model OAK-4P-New
Interface USB 3.2 Gen 1 (USB Type-C)
Power Consumption 2W ~ 5.5W

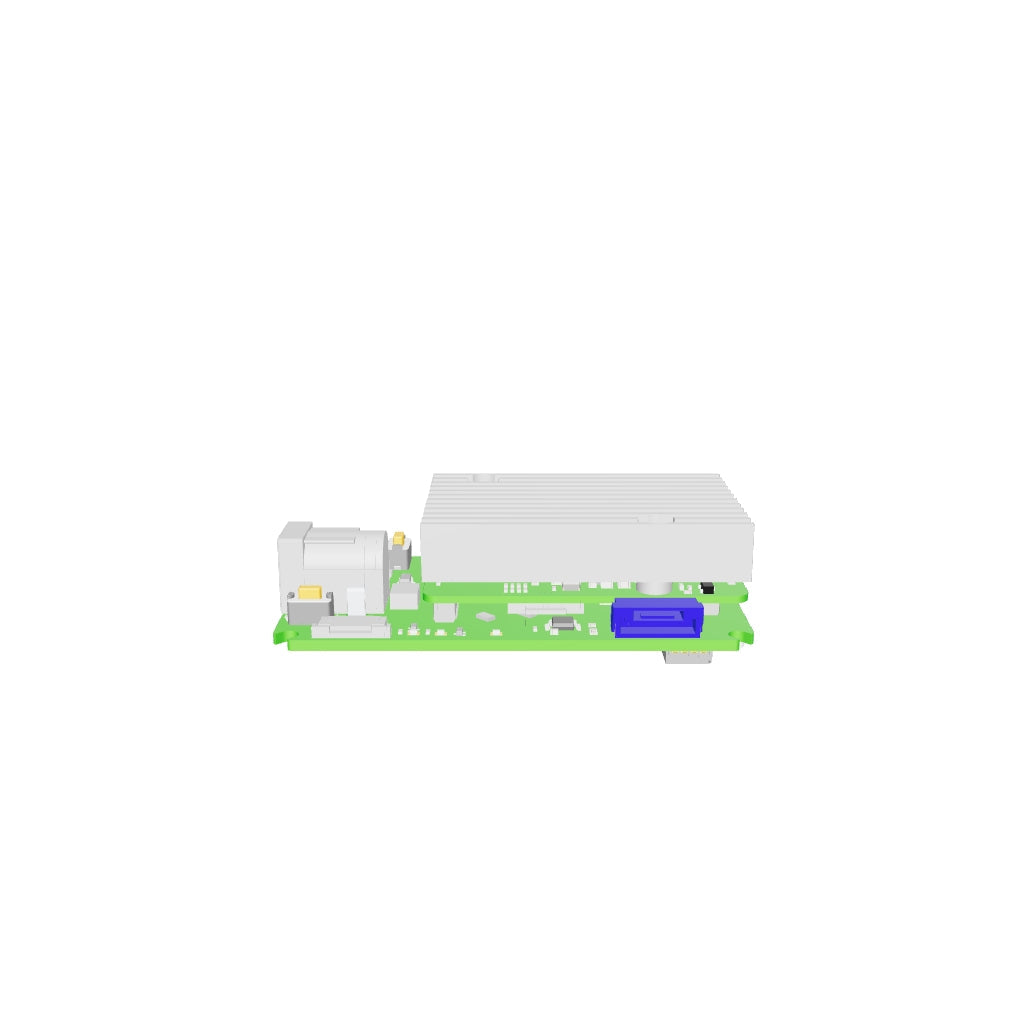

Dimensions 65×38×20mm (PCBA + Heat Sink)
Weight Approx. 41g (PCBA + Heat Sink)
Operating Temperature -20℃ ~ 60℃
Camera & Imaging:

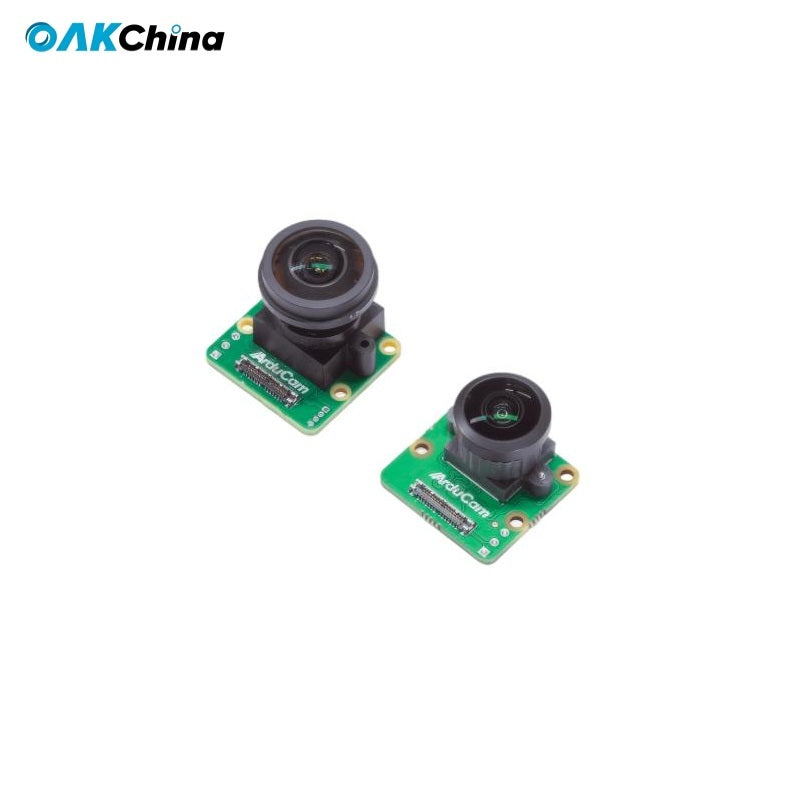

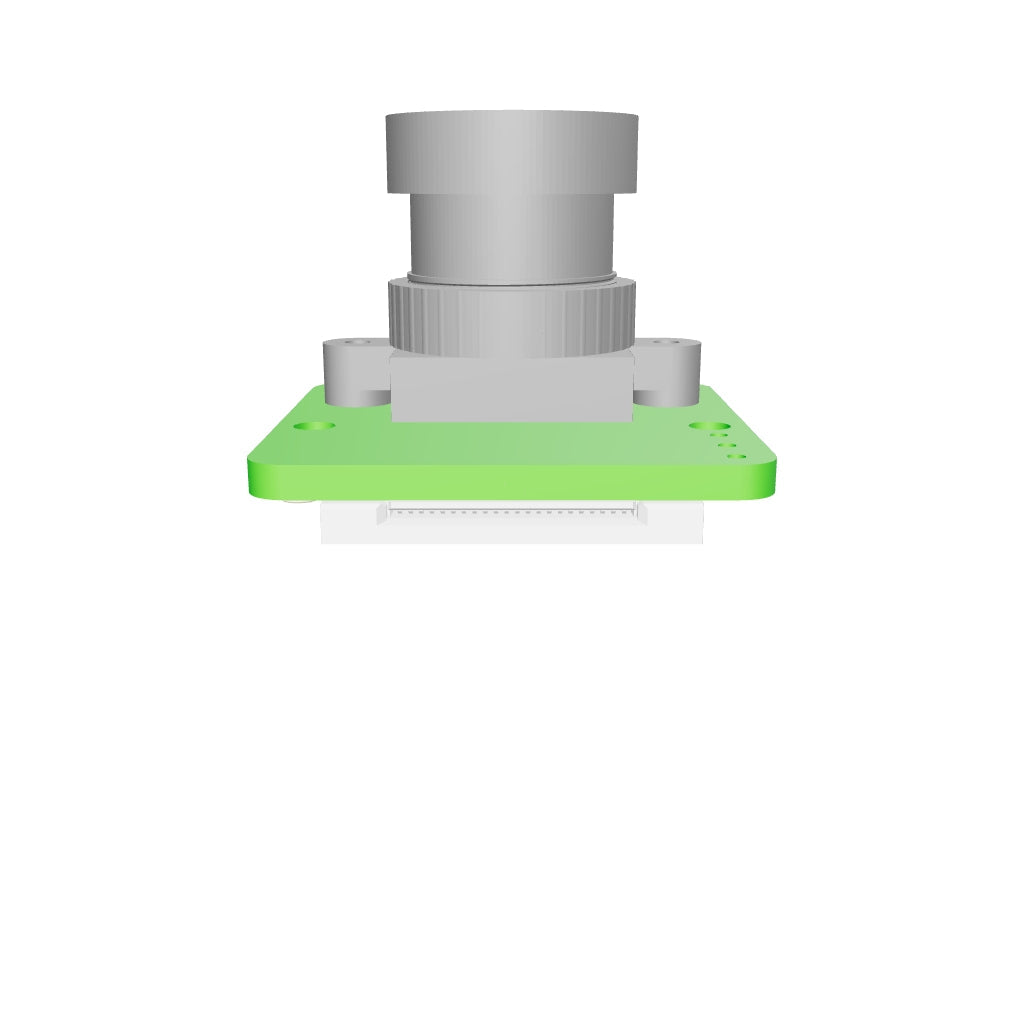

Camera Configuration 4 independent camera modules (coaxial cable connection)
Hardware Synchronization Error ≤50μs
IMU Module 9-axis high-performance IMU
Encoding Support H.264, H.265, MJPEG (4K/30FPS, 1080P/60FPS)
AI & Processing:
Edge AI Core RVC2 AI chipset
RVC2 Process 16nm
RVC2 Computing Power 4T edge computing power (1.4T for AI inference)
RVC2 Max Power Consumption Approx. 4.5W
Supported AI Frameworks OpenVINO, Kaldi, Caffe, ONNX, MXNet, TensorFlow, PyTorch, MobileNetv2 SSD, Deeplabv3+, YOLO v3 and above
Software & Compatibility:
Supported Systems & Platforms Windows 10, Ubuntu, Raspberry Pi, Linux, macOS, Jetson, Python, C++, ROS1/ROS2, Android (3rd-party)
Accessories:
Standard Cables 4×20cm coaxial cables (50cm optional), 1×1.5m USB cable
