NOUS Robot | SKU:

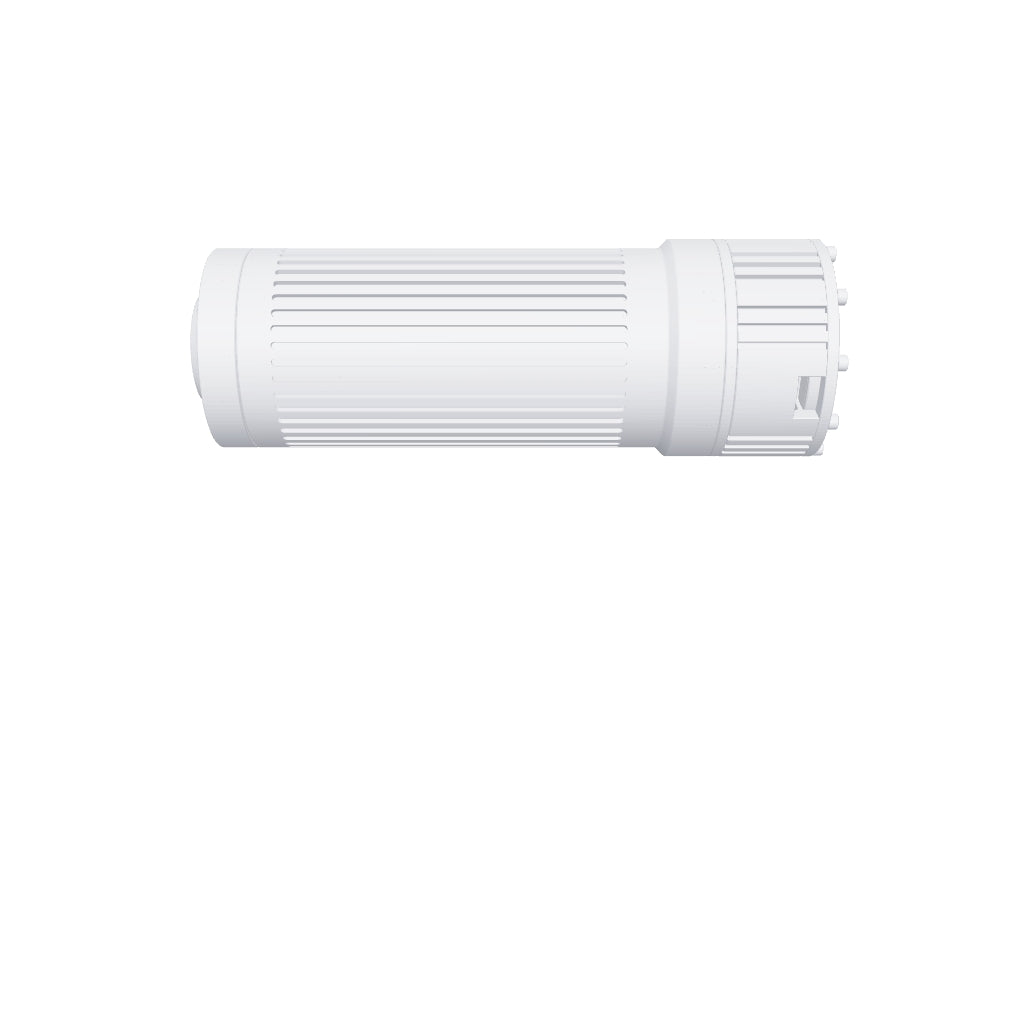

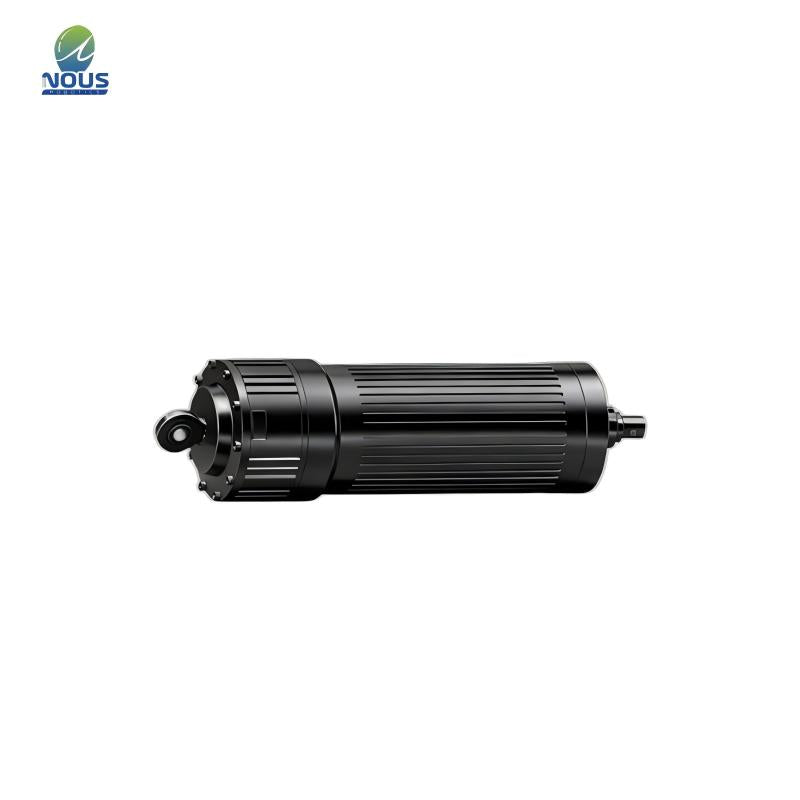

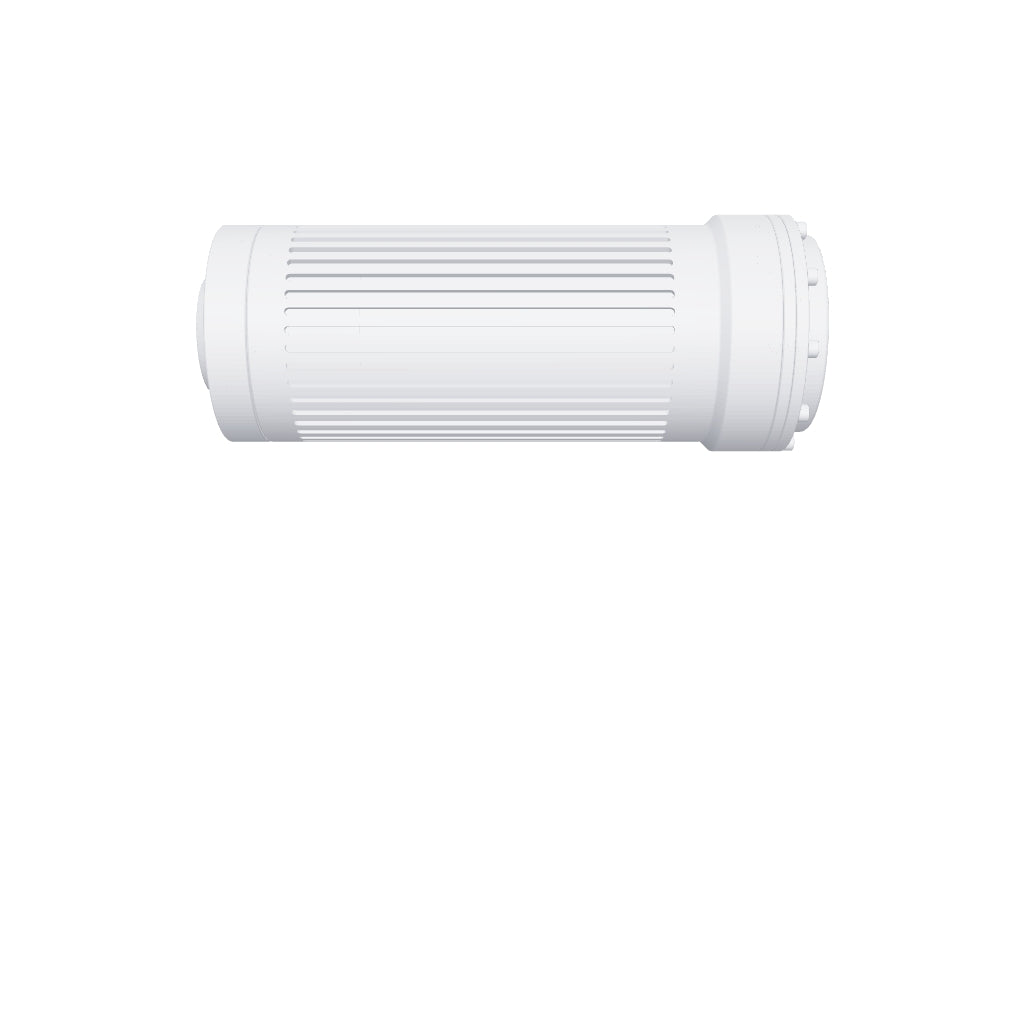

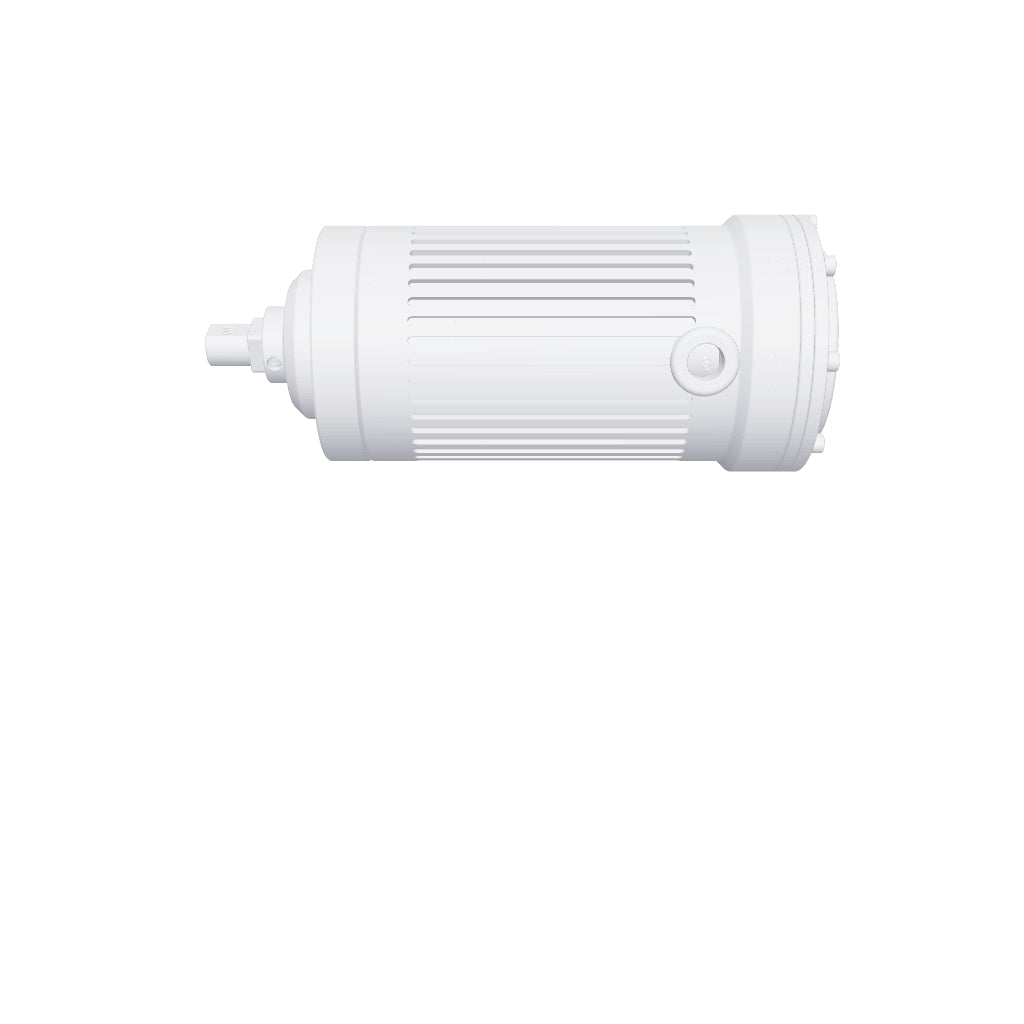

NOUS OPI50IF Medium Actuator
Regular price
$3,450.00
Unit price
NOUS OPI50IF Medium Actuator - OPI50IF‑60‑06‑3‑RS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
NOUS OPI50IF Medium Actuator
Regular price
$3,450.00
Unit price
NOUS OPI50IF Medium Actuator - OPI50IF‑60‑06‑3‑RS is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Vaule |
|---|---|
| Model | OP150IF‑60‑06‑3‑RS |
| External dimensions (mm) | Φ60*172 |
| Rated thrust (N) | 800 |
| Maximum thrust (N) | 1500 |
| Maximum self‑locking force (N) | - |
| Rated linear velocity (mm/s) | 200 |
| Maximum linear velocity (mm/s) | 350 |
| Stroke (mm) | 60 |
| Repeatability (mm) | ±0.1 |
| Weight (g) | 1500 |
| Temperature (℃) | -10‑45℃ |
| IP Level | IP54 |
| Screw type | Reverse planetary roller screw |
| Motor type | Frameless torque motor |
| Rated voltage (VDC) | DC48±10% |
| Rated current (A) | 5.7 |
| Instantaneous maximum current (A) | 50 |
| Encoder type | 17‑bit Single‑turn / 16‑bit Multi‑turn |
| Drive control | Built‑in |
| Location feedback | No |
| Torque feedback | Yes |
| Communication interface | RS485/CAN |
