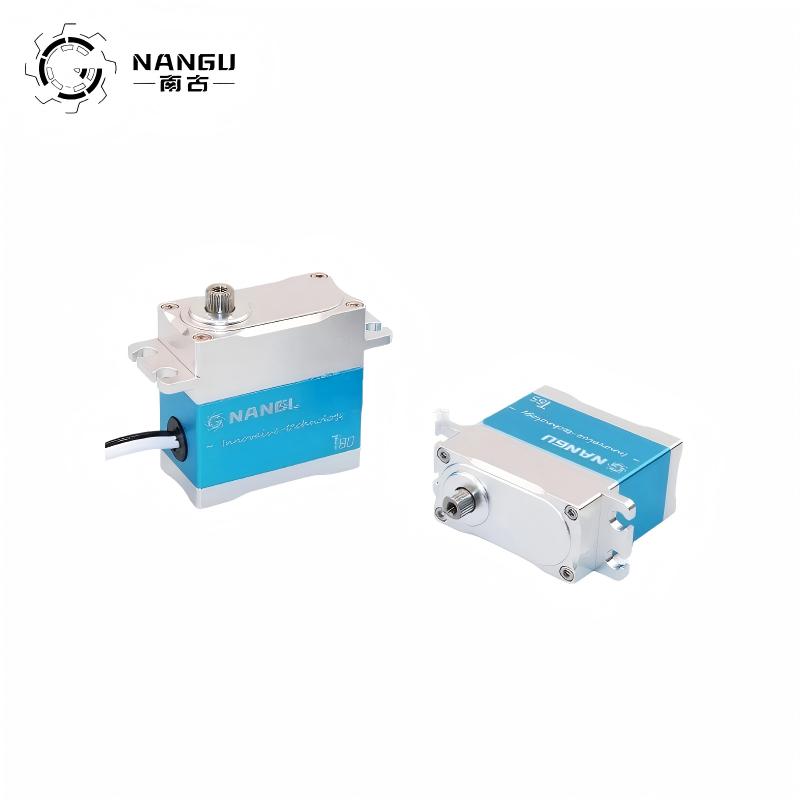

NANGU S Series Servo Motor
Regular price
$80.00
Unit price
NANGU S Series Servo Motor - S15-High Speed / Metal Servo Arm / Without is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
NANGU S Series Servo Motor
Regular priceFrom
$55.00
Unit price
NANGU S Series Servo Motor - S15-High Speed / Metal Servo Arm / Without is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | 6V | 7V | 8.4V |
|---|---|---|---|
| S25 Brushless | |||
| Speed / 60° (s) | 0.078 | 0.072 | 0.065 |
| Stall Torque (kg) | 20 | 26 | 33 |
| Weight(g) | 85 | ||

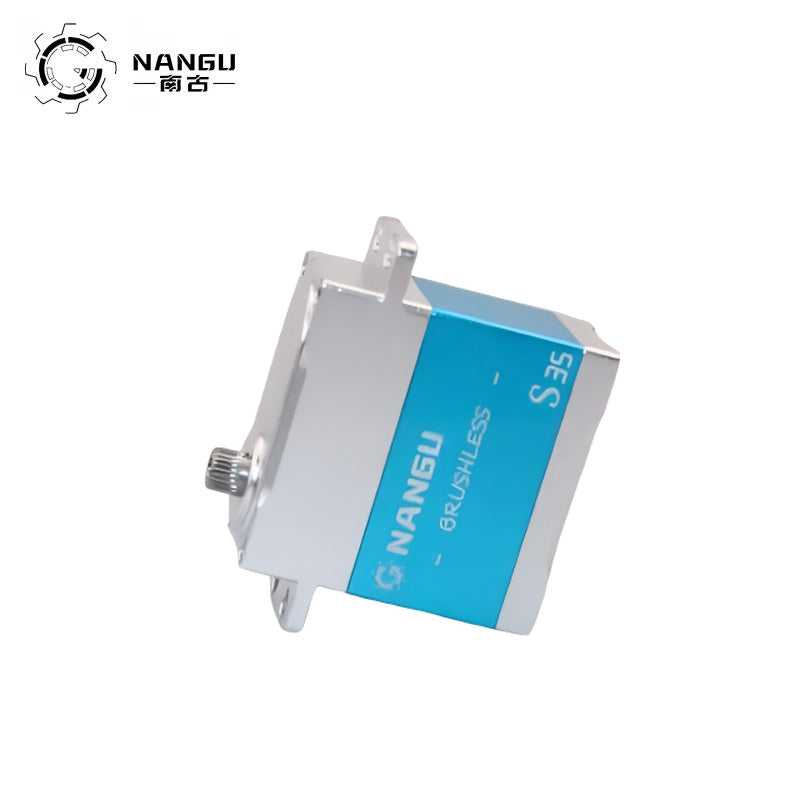

| S35 Brushless | |||
| Speed / 60° (s) | 0.096 | 0.084 | 0.075 |
| Stall Torque (kg) | 28 | 35 | 42 |
| Weight(g) | 85 | ||
| S50 Brushless | |||
| Speed / 60° (s) | 0.11 | 0.098 | 0.086 |
| Stall Torque (kg) | 38 | 45 | 52 |
| Weight(g) | 85 | ||
| S65 Brushless | |||
| Speed / 60° (s) | 0.13 | 0.12 | 0.11 |
| Stall Torque (kg) | 51 | 58 | 66 |
| Weight(g) | 85 | ||

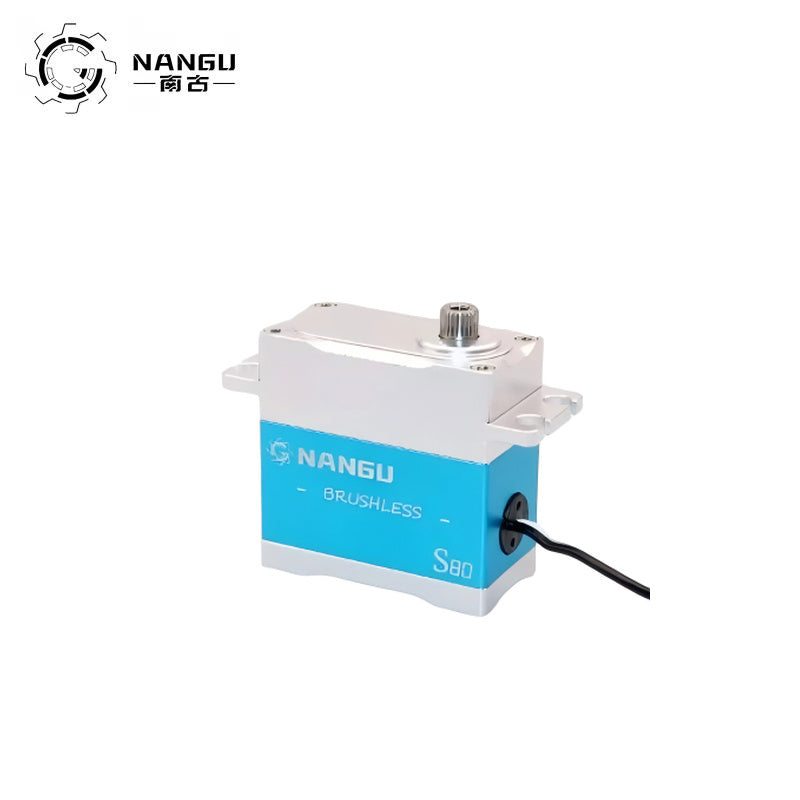

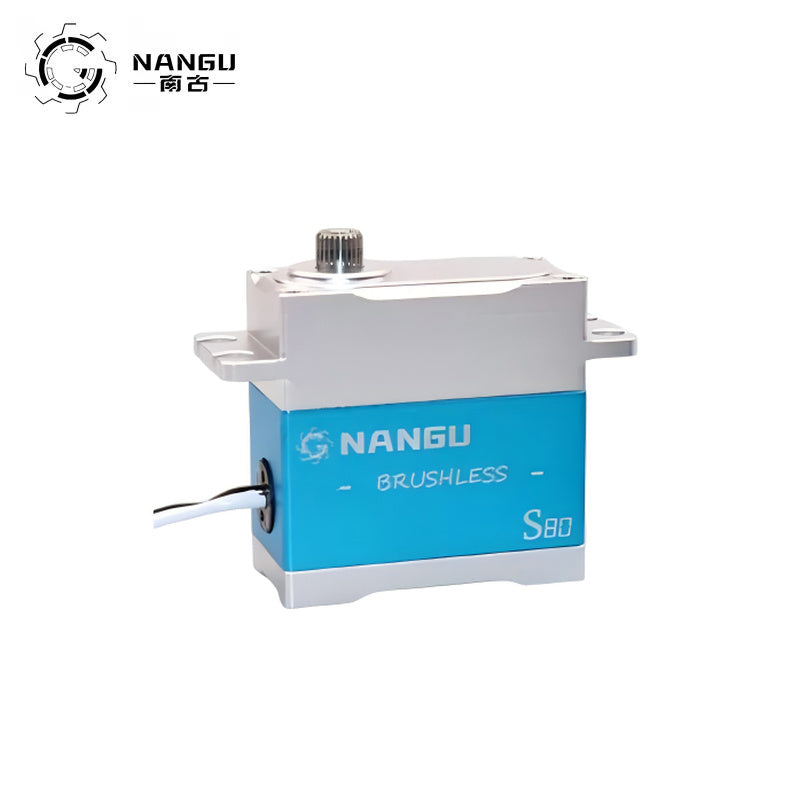

| S80 Brushless | |||
| Speed / 60° (s) | 0.16 | 0.15 | 0.14 |
| Stall Torque (kg) | 63 | 70 | 78 |
| Weight(g) | 85 |

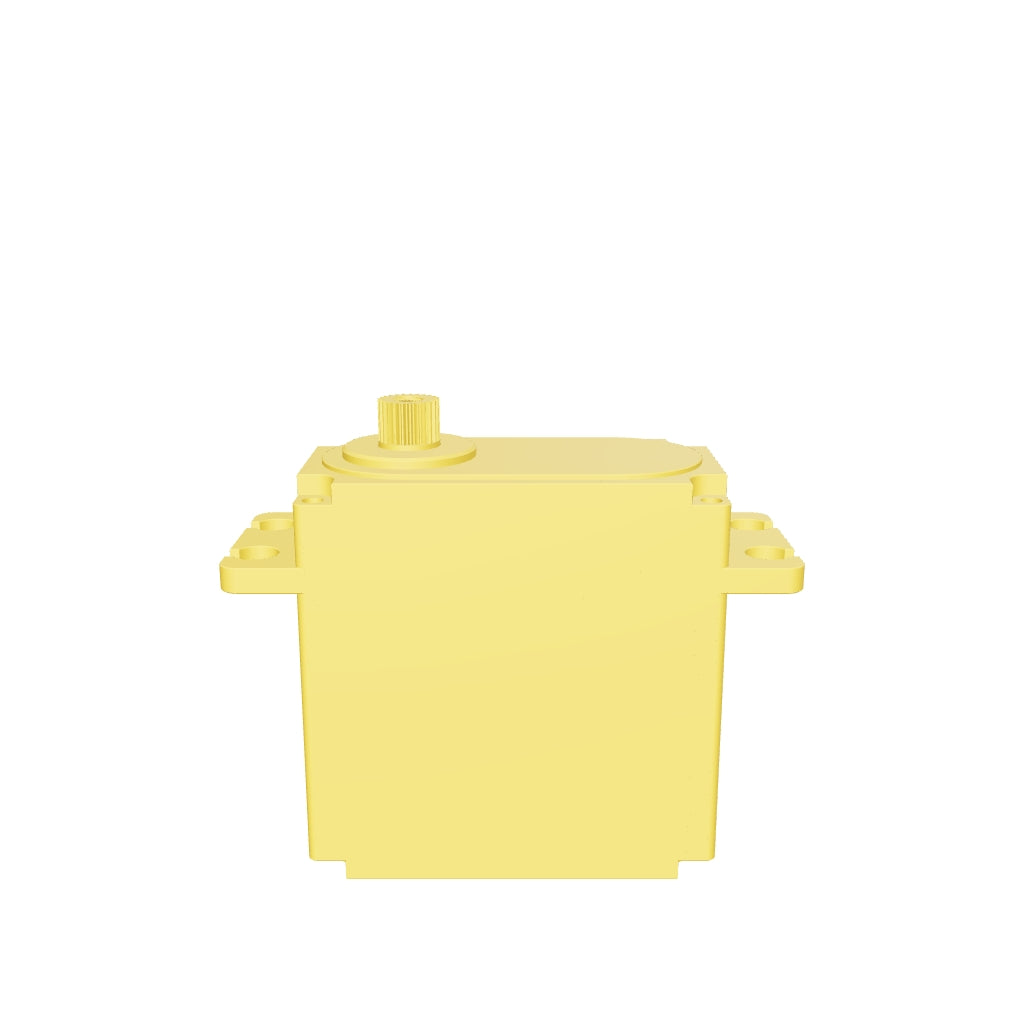

NANGU S Series Servo Motor-drawing.pdf
NANGU S Series Servo Motor-drawing.stp
