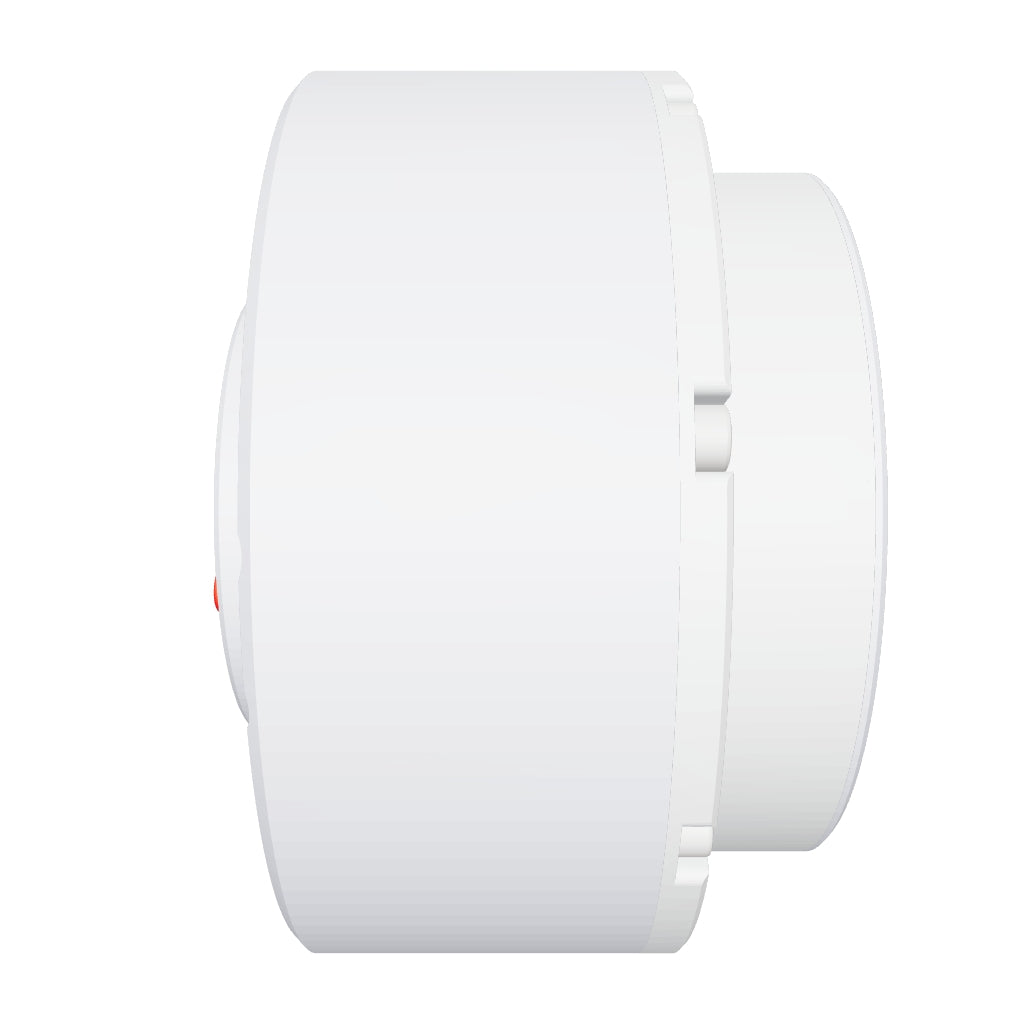

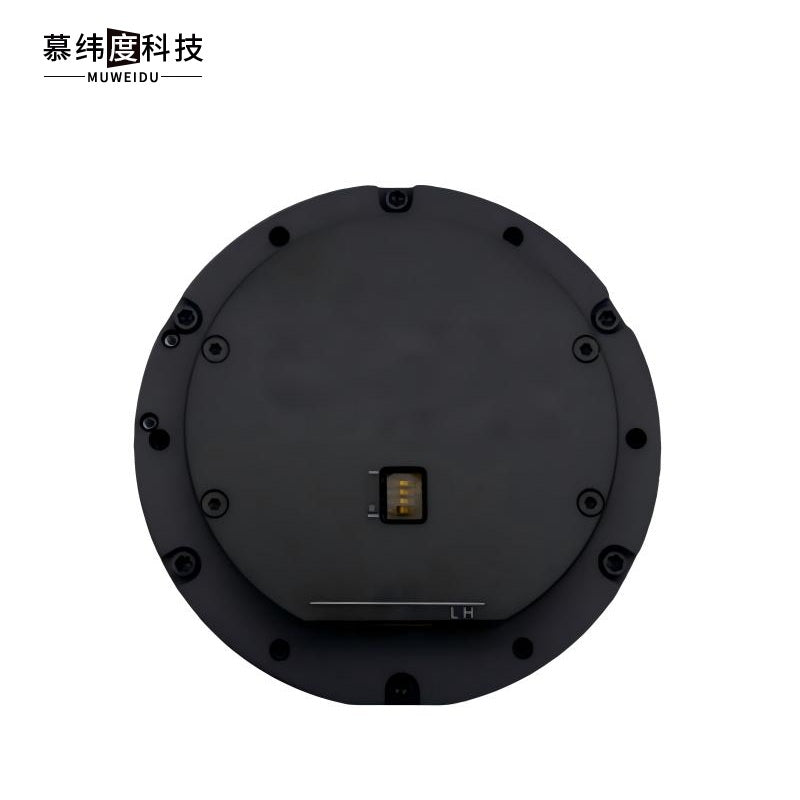

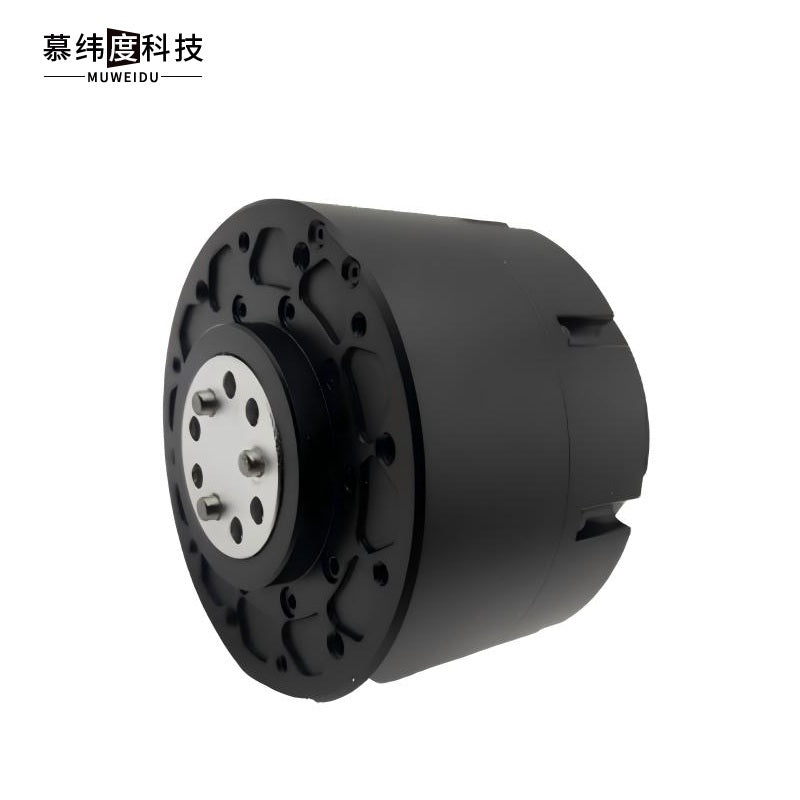

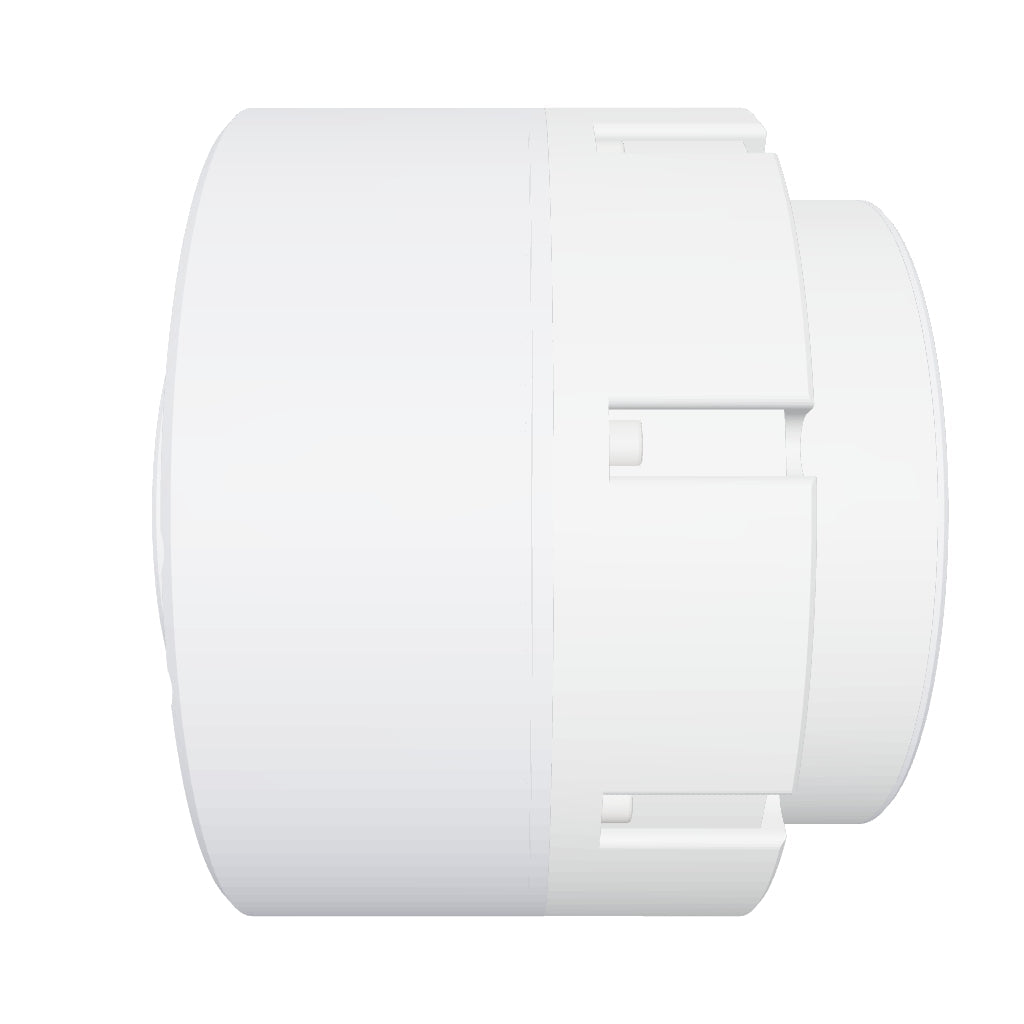

MUWEIDU TS8025-36 Motor
Regular price
$860.00
Unit price
MUWEIDU TS8025-36 Motor - TS8025-36 Motor with Brake / RS485 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MUWEIDU TS8025-36 Motor
Regular priceFrom
$660.00
Unit price
MUWEIDU TS8025-36 Motor - TS8025-36 Motor with Brake / RS485 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | TS8025-36 |
| Rated Voltage | 24V/48V |
| Rated Current | 4A/4.8A |
| Peak Power | 140W/500W |
| Rated Torque | 25N.m |
| Peak Torque | 40N.m |
| Rated Speed | 45rpm/74rpm |
| Rated Speed (with brake) | 33rpm/74rpm |
| Encoder | 18bit + 14bit |
| Encoder (with brake) | 19bit |
| Rotor Inertia | 930gcm²/8930gcm² |
| Reduction Ratio | 1:36 |
| Motor temperature monitoring (with brake) | YES |
| Control Modes | Torque/Speed/Position |
| Communication Protocol | RS485/CAN |
| Overall Dimensions | Φ80mm×53.5mm |
| Overall Dimensions (with brake) | Φ80mm×66mm |
| Weight | 503g |
| Weight (with brake) | 788g |
