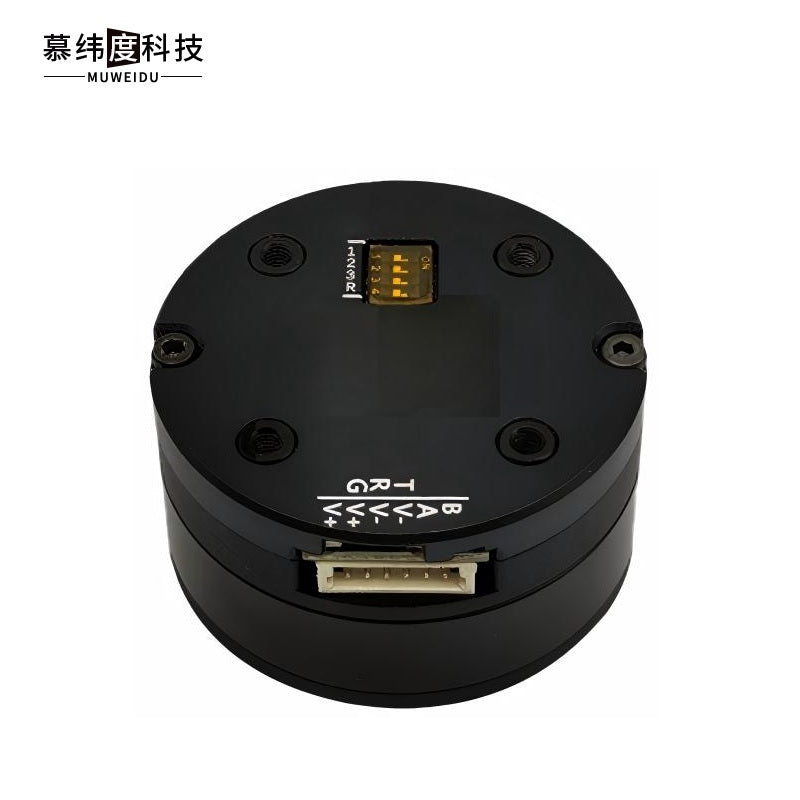

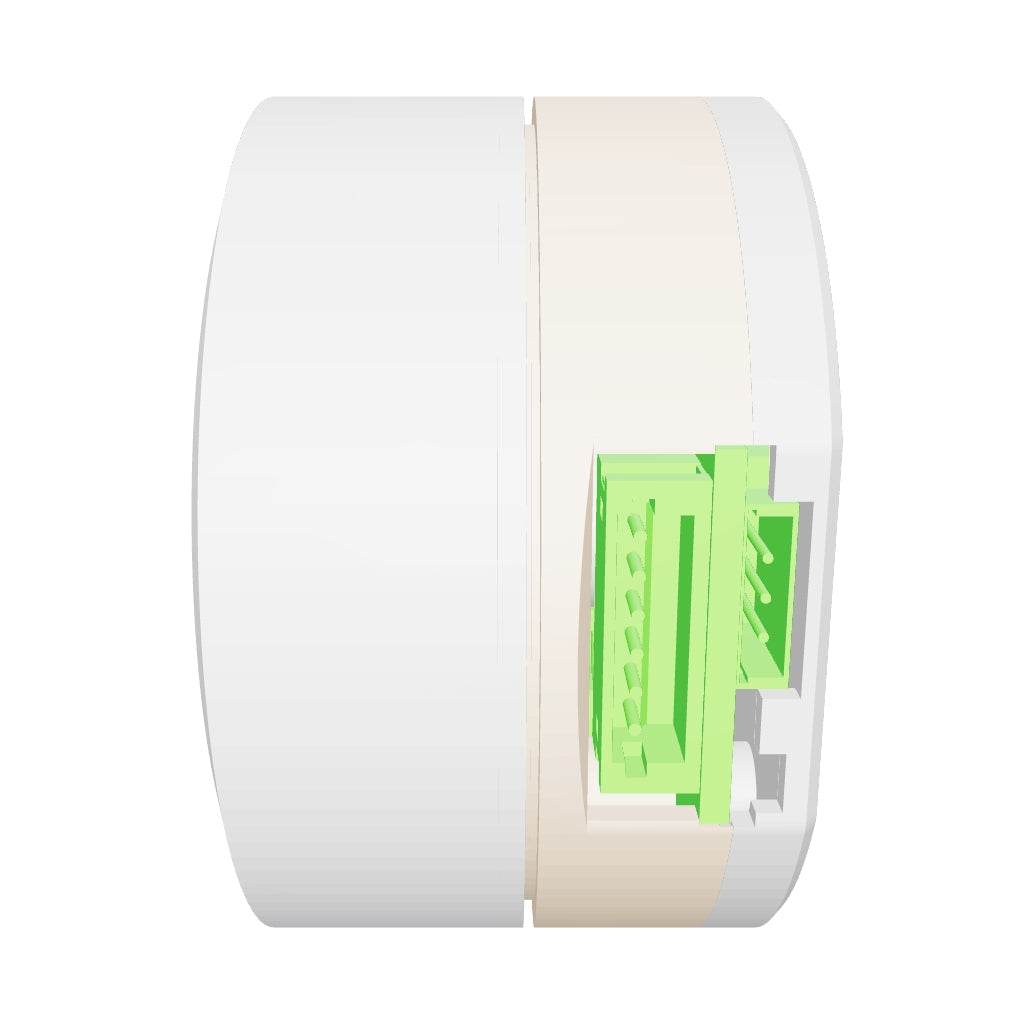

MUWEIDU L4020 Motor
Regular price
$105.00
Unit price
MUWEIDU L4020 Motor - L4020 Motor / RS485 / 15bit (Mountable Slip Ring) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MUWEIDU L4020 Motor
Regular price
$105.00
Unit price
MUWEIDU L4020 Motor - L4020 Motor / RS485 / 15bit (Mountable Slip Ring) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | L4020 |
| Rated Voltage | 12V |
| Rated Current | 0.65A |
| Peak Power | 3.4W |
| Rated Torque | 0.07N.m |
| Peak Torque | 0.1N.m |
| Rated Speed | 450rpm |
| Encoder | 15bit or 18bit |
| Rotor Inertia | 52gcm² |
| Motor Temperature Monitoring | YES |
| Control Modes | Speed/Position |
| Communication Protocol | RS485 or CAN |
| Overall Dimensions | Φ39.6mm×23mm |
| Weight | 65g |
