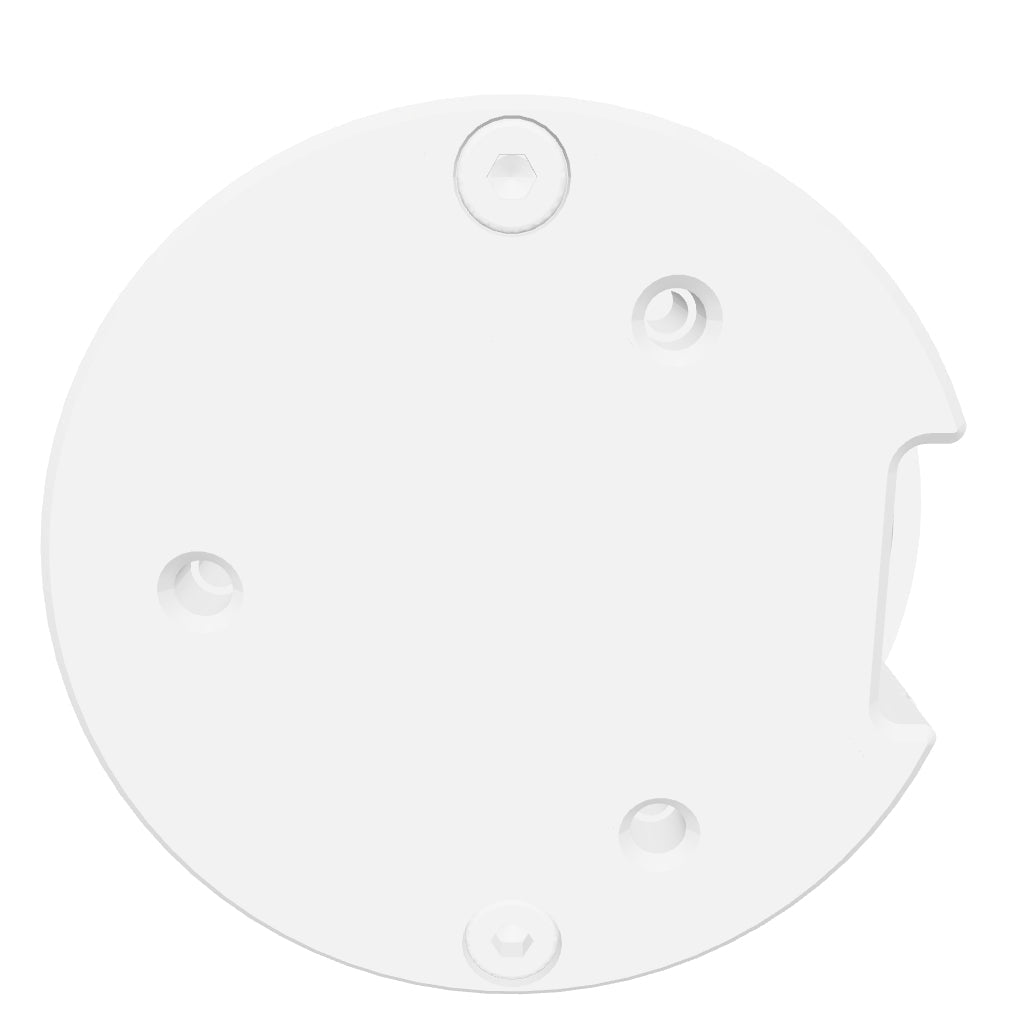

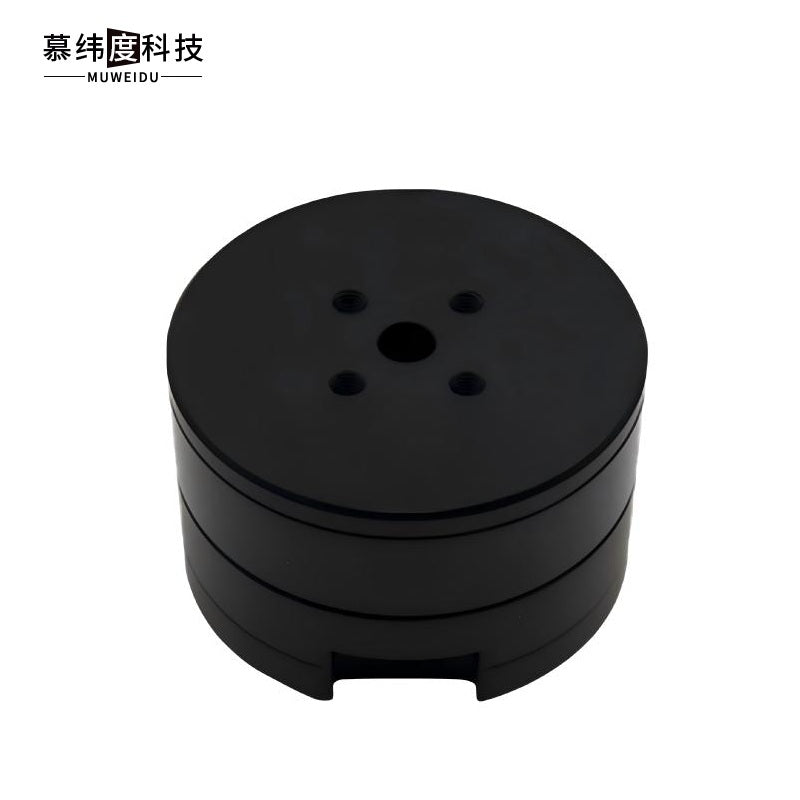

MUWEIDU L3526 Motor
Regular price
$100.00
Unit price
MUWEIDU L3526 Motor - L3526 Motor / RS485 / 15bit (Mountable Slip Ring) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | L3526 |
| Rated Voltage | 12V |
| Rated Current | 0.79A |
| Peak Power | 6.4W |
| Rated Torque | 0.05N.m |
| Peak Torque | 0.13N.m |
| Rated Speed | 1250rpm |
| Encoder | 15bit |
| Rotor Inertia | 58gcm² |
| Motor Temperature Monitoring | YES |
| Control Modes | Speed/Position |
| Communication Protocol | RS485 |
| Overall Dimensions | Φ35mm×26mm |
| Weight | 50g |
