MUWEIDU | SKU:

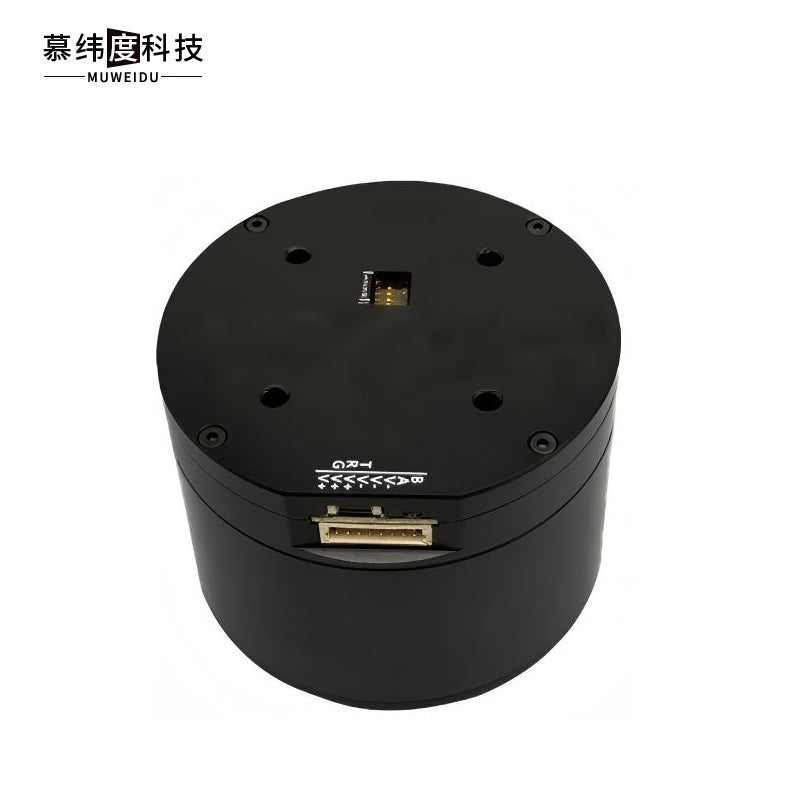

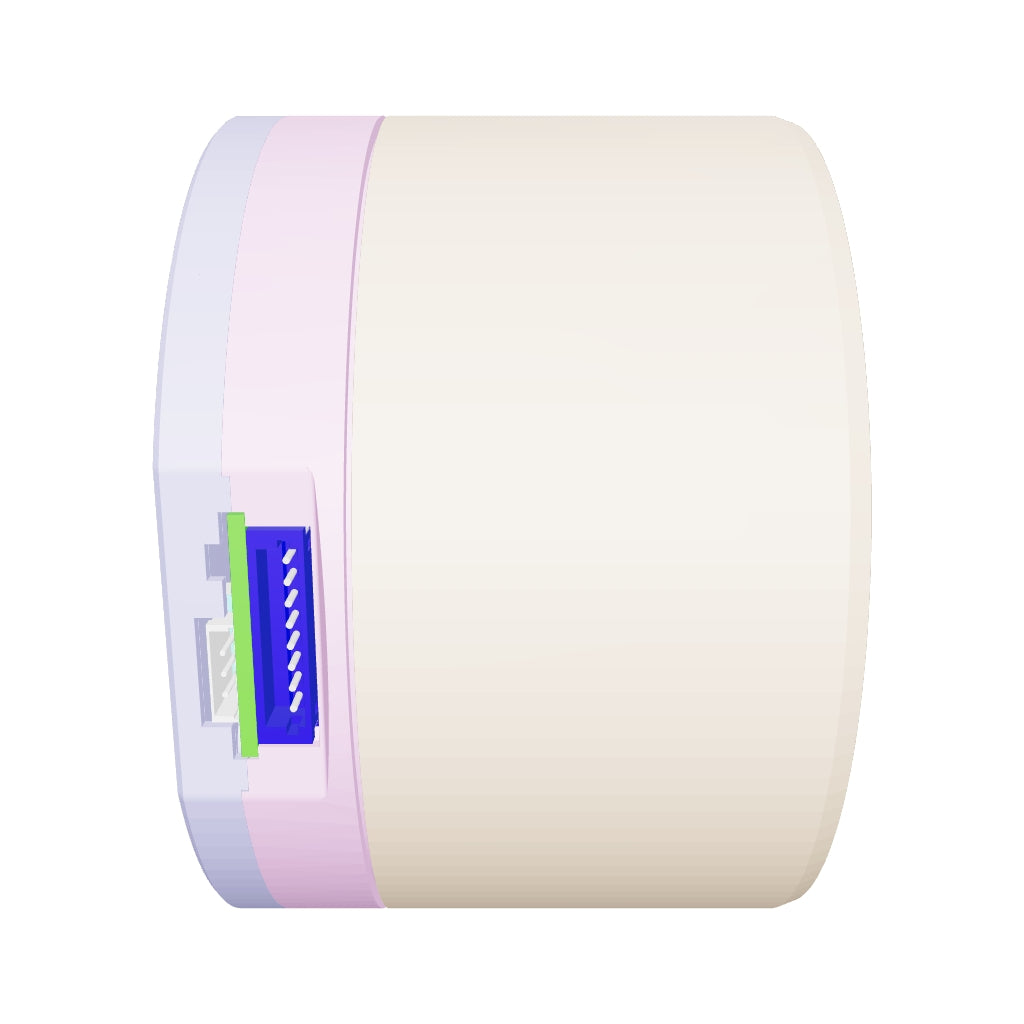

MUWEIDU K7050 Motor
Regular price
$240.00
Unit price
MUWEIDU K7050 Motor - K7050 Motor / RS485 / 10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MUWEIDU K7050 Motor
Regular price
$240.00
Unit price
MUWEIDU K7050 Motor - K7050 Motor / RS485 / 10 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | K7050 (10/28/45T) |
| Rated Voltage | 24V |
| Rated Current | 8.9A / 3.36A / 2A |
| Peak Power | 278W / 44W / 17.5W |
| Rated Torque | 1.6N.m / 1.6N.m / 1.5N.m |
| Peak Torque | 2.1N.m / 2.9N.m / 2.7N.m |
| Rated Speed | 970rpm / 250rpm / 100rpm |
| Encoder | 18bit |
| Rotor Inertia | 1040gcm² |
| Motor Temperature Monitoring | YES |
| Control Modes | Speed/Position |
| Communication Protocol | RS485 or CAN |
| Overall Dimensions | Φ69mm×46mm |
| Weight | 526g |
