MUWEIDU | SKU:

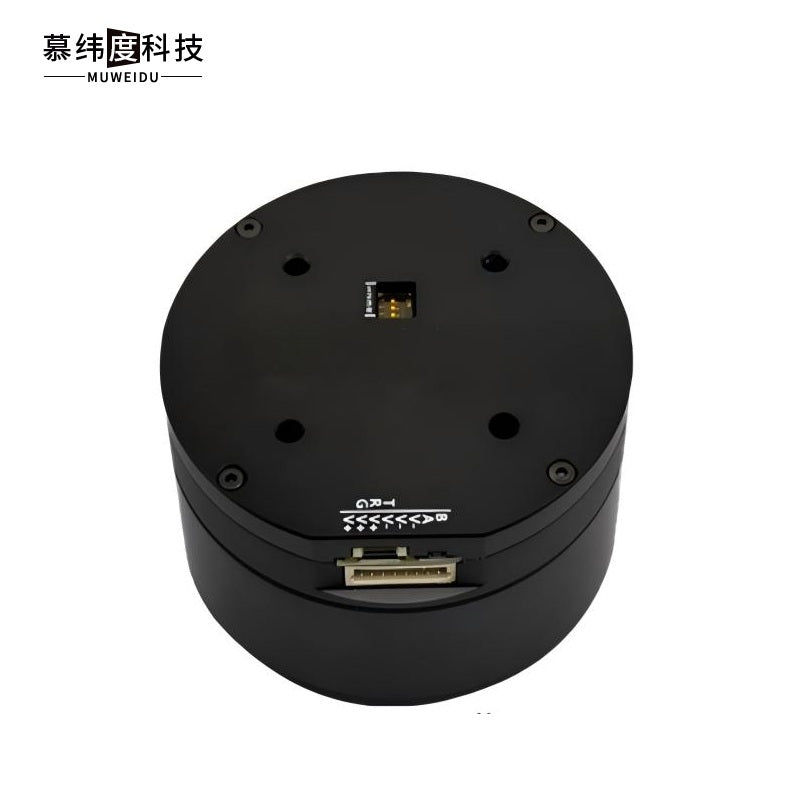

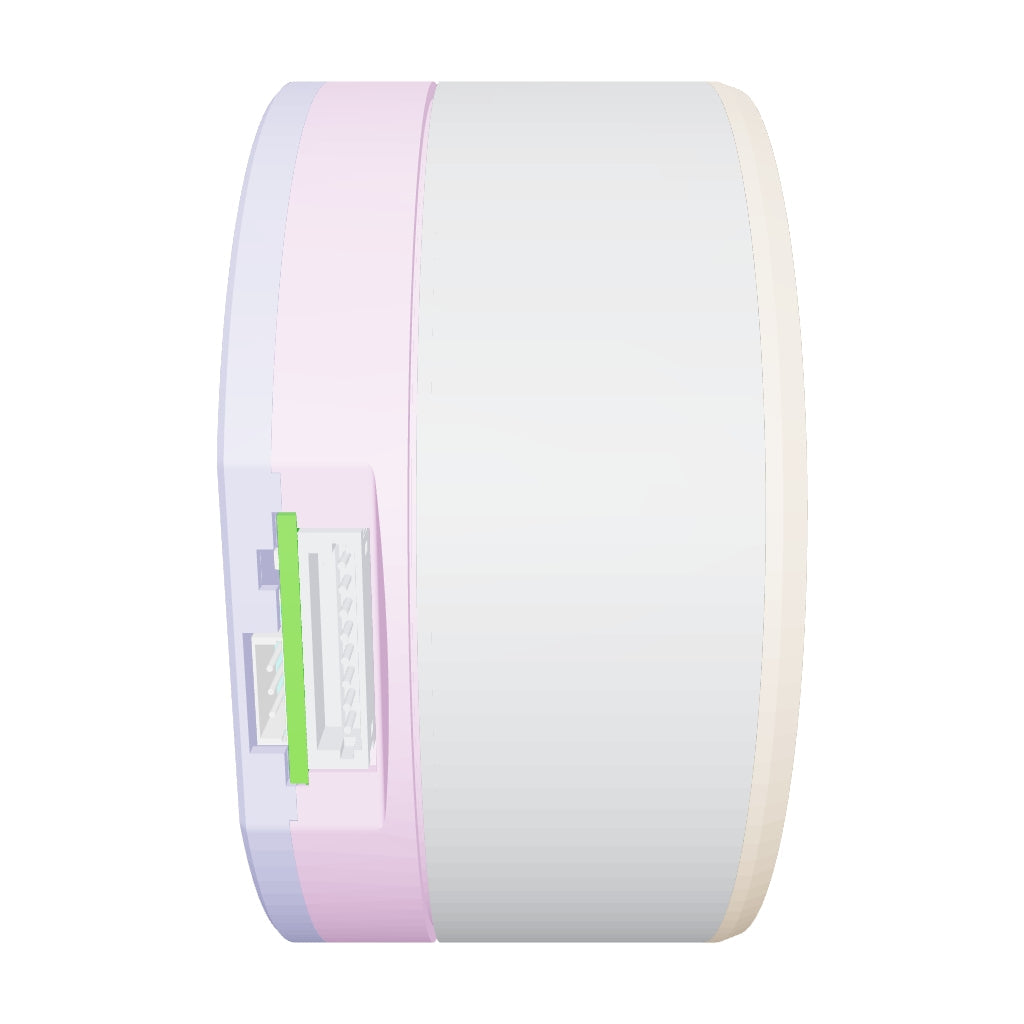

MUWEIDU K7030 Motor
Regular price
$195.00
Unit price
MUWEIDU K7030 Motor - K7030 Motor / RS485 / 10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MUWEIDU K7030 Motor
Regular price
$195.00
Unit price
MUWEIDU K7030 Motor - K7030 Motor / RS485 / 10 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | K7030 (10/23/45T) |
| Rated Voltage | 24V |
| Rated Current | 8.3A / 3.62A / 1.93A |
| Peak Power | 330W / 75W / 24.5W |
| Rated Torque | 1N.m / 1N.m / 0.99N.m |
| Peak Torque | 2N.m / 3.8N.m / 2.42N.m |
| Rated Speed | 1500rpm / 580rpm / 220rpm |
| Encoder | 18bit |
| Rotor Inertia | 933gcm² |
| Motor Temperature Monitoring | YES |
| Control Modes | Speed/Position |
| Communication Protocol | RS485 or CAN |
| Overall Dimensions | Φ69mm×33.9mm |
| Weight | 352g |
