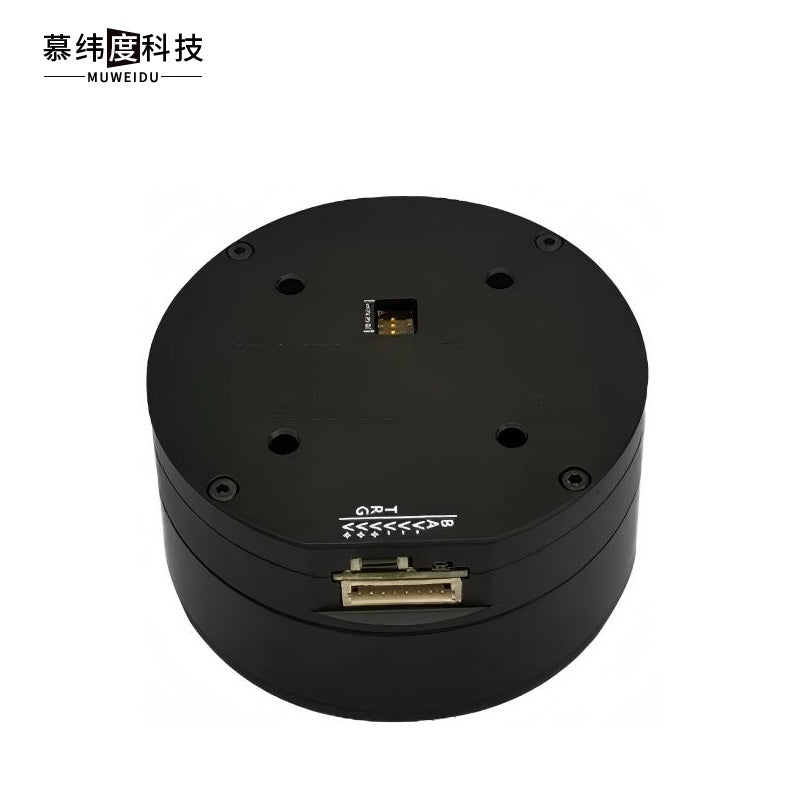

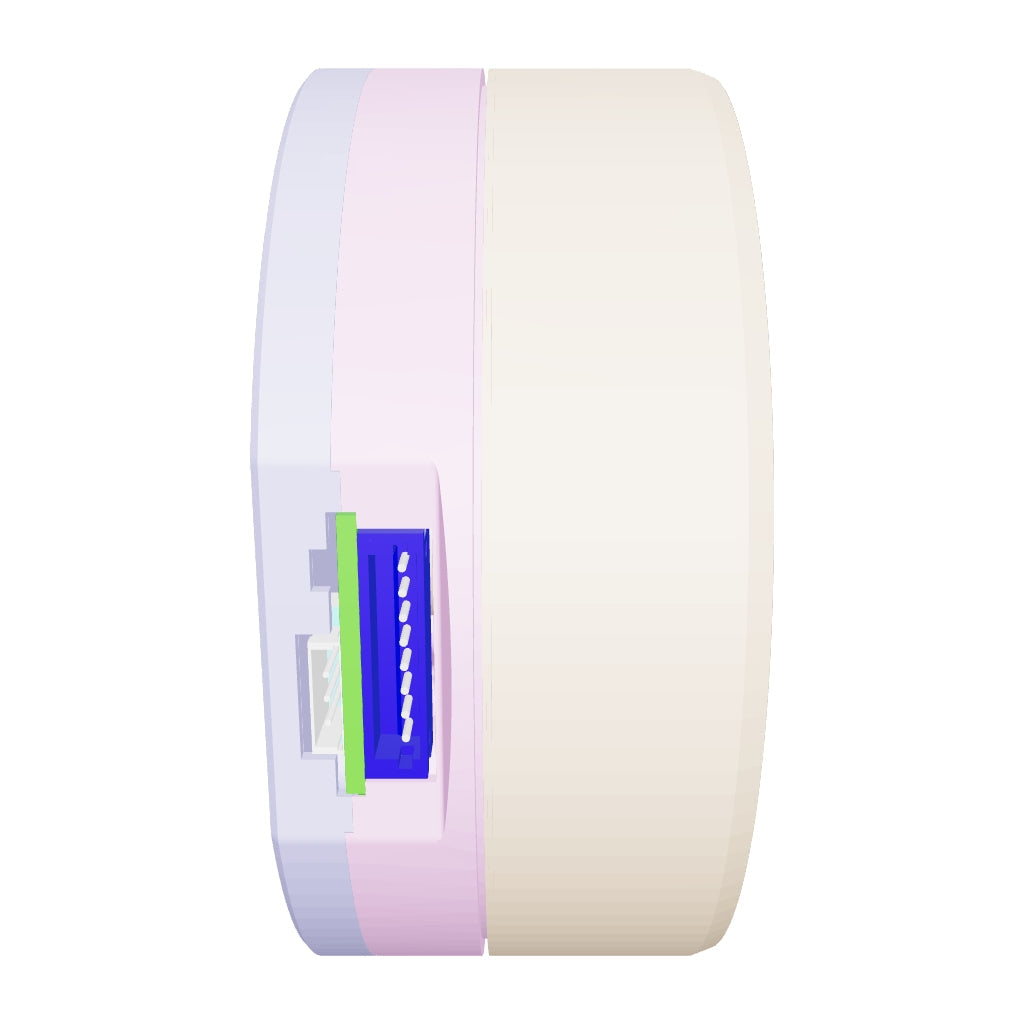

MUWEIDU K7028 Motor
Regular price
$190.00
Unit price
MUWEIDU K7028 Motor - K7028 Motor / RS485 / 23 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | K7028 (23/45T) |
| Rated Voltage | 24V |
| Rated Current | 3.3A / 1.75A |
| Peak Power | 104W / 31W |
| Rated Torque | 0.61N.m / 0.63N.m |
| Peak Torque | 2N.m / 2.1N.m |
| Rated Speed | 940rpm / 400rpm |
| Encoder | 18bit |
| Rotor Inertia | 748gcm² |
| Motor Temperature Monitoring | YES |
| Control Modes | Speed/Position |
| Communication Protocol | RS485 or CAN |
| Overall Dimensions | Φ69mm×28.9mm |
| Weight | 278g |
