MUWEIDU | SKU:
MUWEIDU K6030 Motor
Regular price
$195.00
Unit price
MUWEIDU K6030 Motor - K6030 Motor / RS485 / 15 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

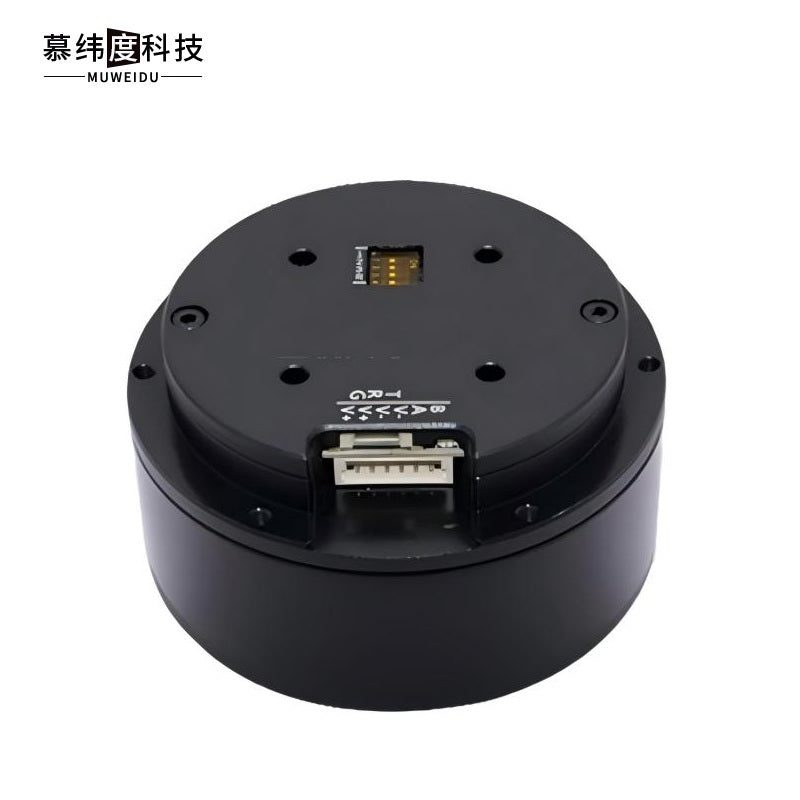

MUWEIDU K6030 Motor
Regular price
$195.00
Unit price
MUWEIDU K6030 Motor - K6030 Motor / RS485 / 15 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | K6030 (15/25T) |
| Rated Voltage | 24V |
| Rated Current | 5.87A / 3.1A |
| Peak Power | 185W / 57W |
| Rated Torque | 0.81N.m |
| Peak Torque | 5.5N.m / 3N.m |
| Rated Speed | 1260rpm / 560rpm |
| Encoder | 18bit |
| Rotor Inertia | 515gcm² |
| Motor Temperature Monitoring | YES |
| Control Modes | Speed/Position |
| Communication Protocol | RS485 or CAN |
| Overall Dimensions | Φ58mm×34mm |
| Weight | 251g |
