MUWEIDU K5030 Motor
Regular price
$150.00
Unit price
MUWEIDU K5030 Motor - K5030 Motor / RS485 / 10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

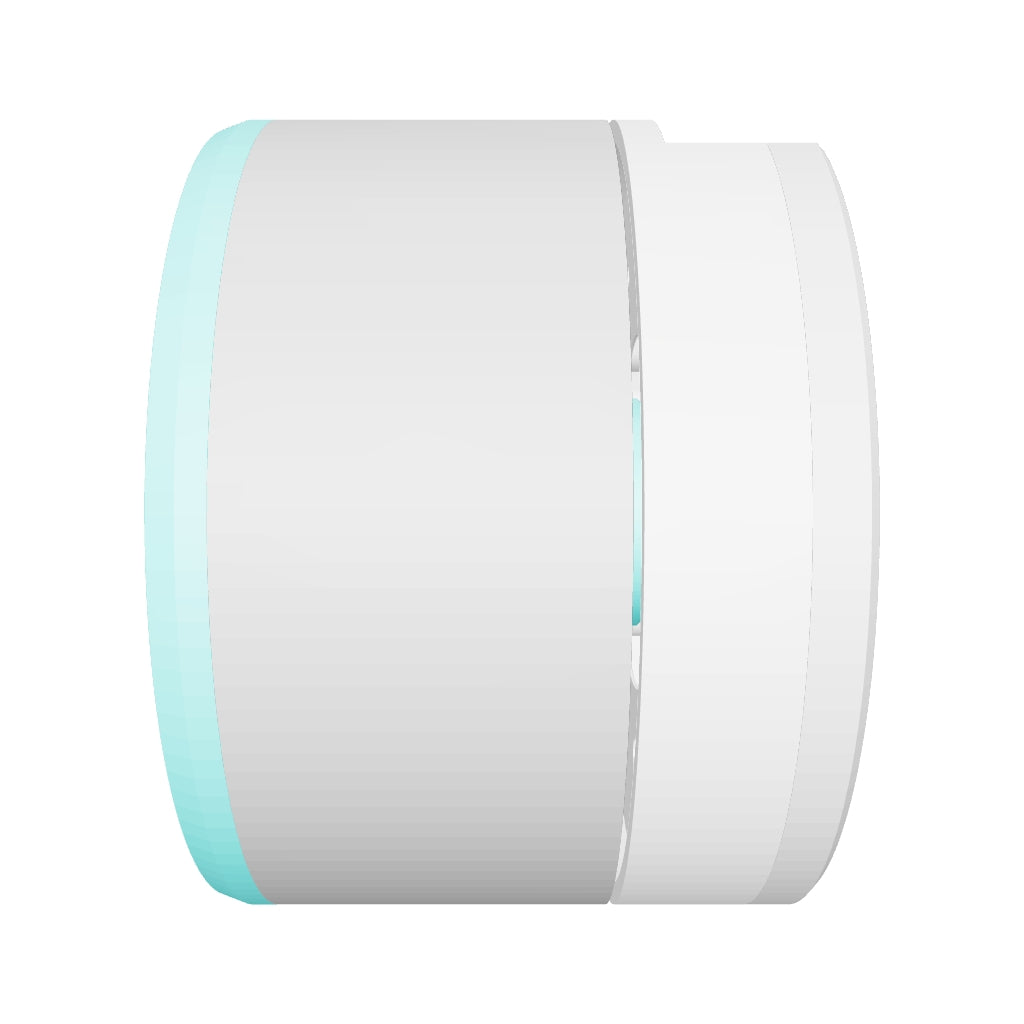

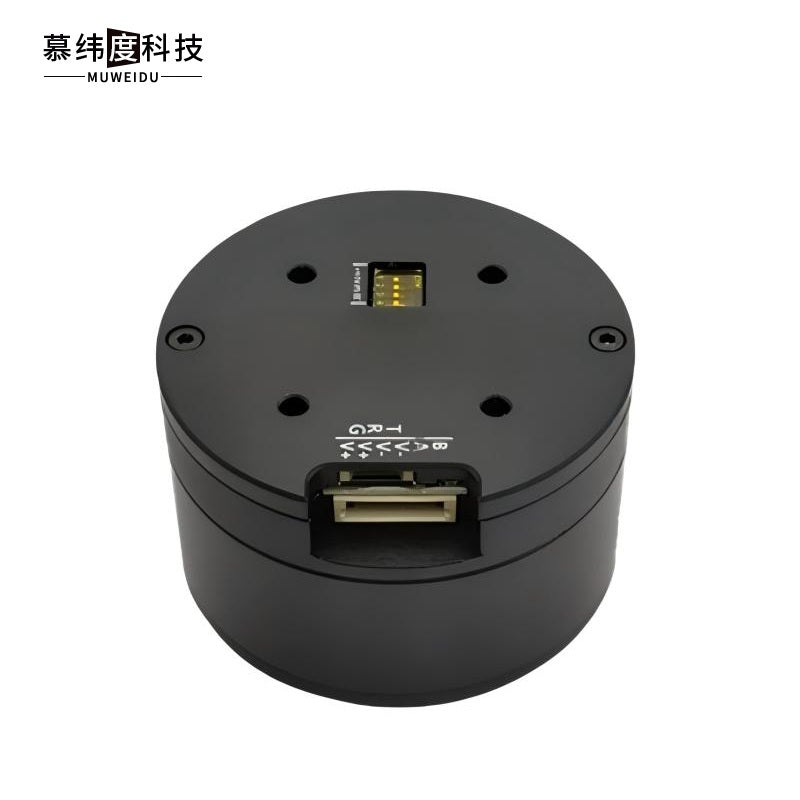

MUWEIDU K5030 Motor
Regular price
$150.00
Unit price
MUWEIDU K5030 Motor - K5030 Motor / RS485 / 10 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | K5030 (10/35T) |
| Rated Voltage | 16V |
| Rated Current | 4.9A / 1.22A |
| Peak Power | 104W /8.8W |
| Rated Torque | 0.38N.m / 0.32N.m |
| Peak Torque | 0.7N.m / 0.82N.m |
| Rated Speed | 1550rpm / 250rpm |
| Encoder | 18bit |
| Rotor Inertia | 202gcm² |
| Motor Temperature Monitoring | YES |
| Control Modes | Speed/Position |
| Communication Protocol | RS485 or CAN |
| Overall Dimensions | Φ49mm×33.9mm |
| Weight | 175g |
