MUWEIDU | SKU:

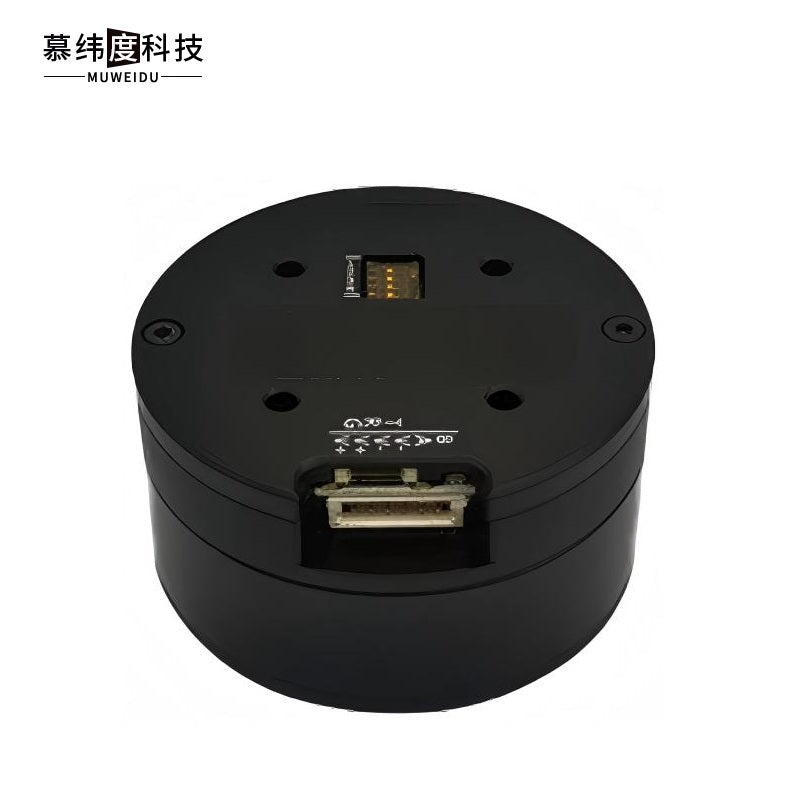

MUWEIDU K5028 Motor
Regular price
$140.00
Unit price
MUWEIDU K5028 Motor - K5028 Motor / RS485 / 10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MUWEIDU K5028 Motor
Regular price
$140.00
Unit price
MUWEIDU K5028 Motor - K5028 Motor / RS485 / 10 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | K5028 (10/35) |
| Rated Voltage | 16V |
| Rated Current | 5.06A / 1.35A |
| Peak Power | 128W /12W |
| Rated Torque | 0.26N.m / 0.24N.m |
| Peak Torque | 0.4N.m / 0.53N.m |
| Rated Speed | 2400rpm / 440rpm |
| Encoder | 18bit |
| Rotor Inertia | 202gcm² |
| Motor Temperature Monitoring | YES |
| Control Modes | Speed/Position |
| Communication Protocol | RS485 or CAN |
| Overall Dimensions | Φ49mm×28.9mm |
| Weight | 137g |
