LKMTECH | SKU:

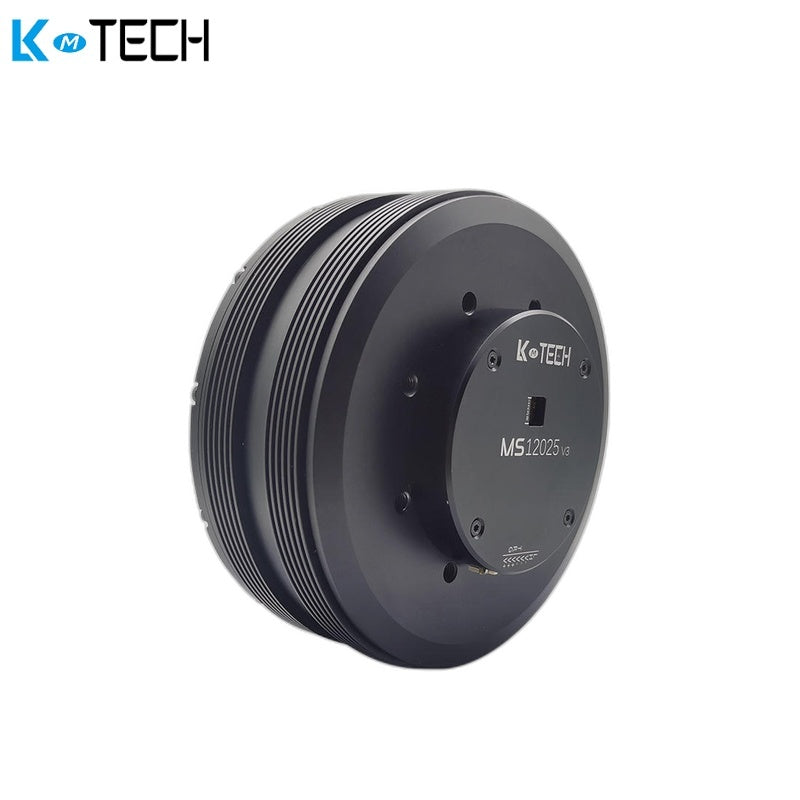

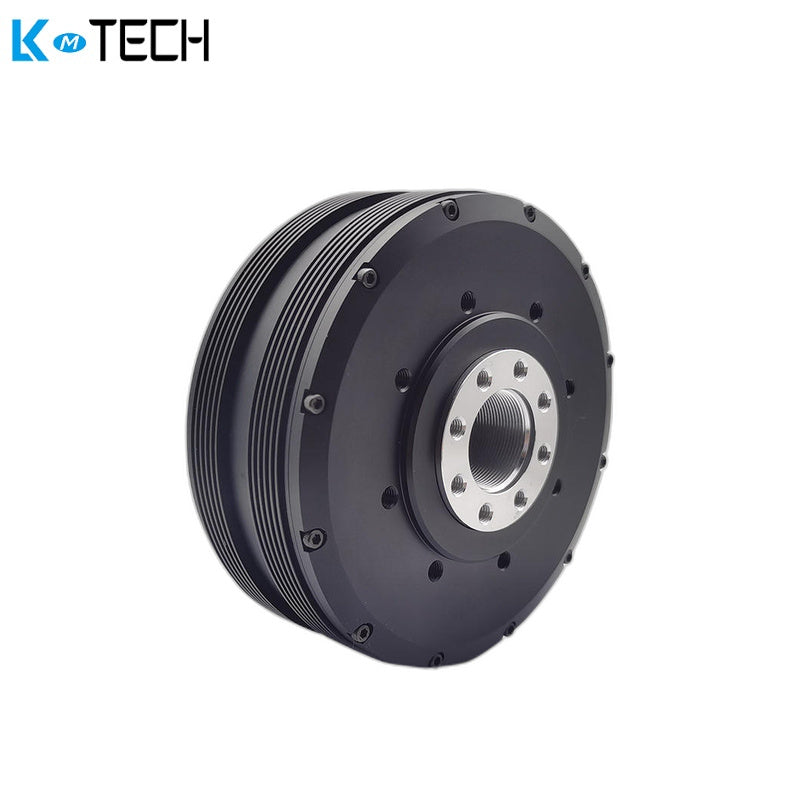

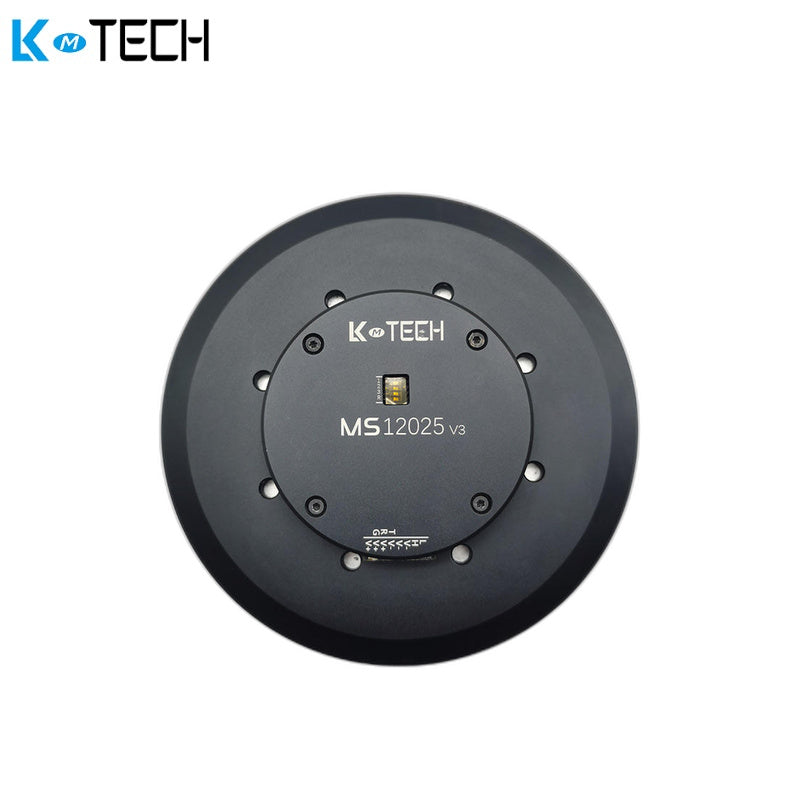

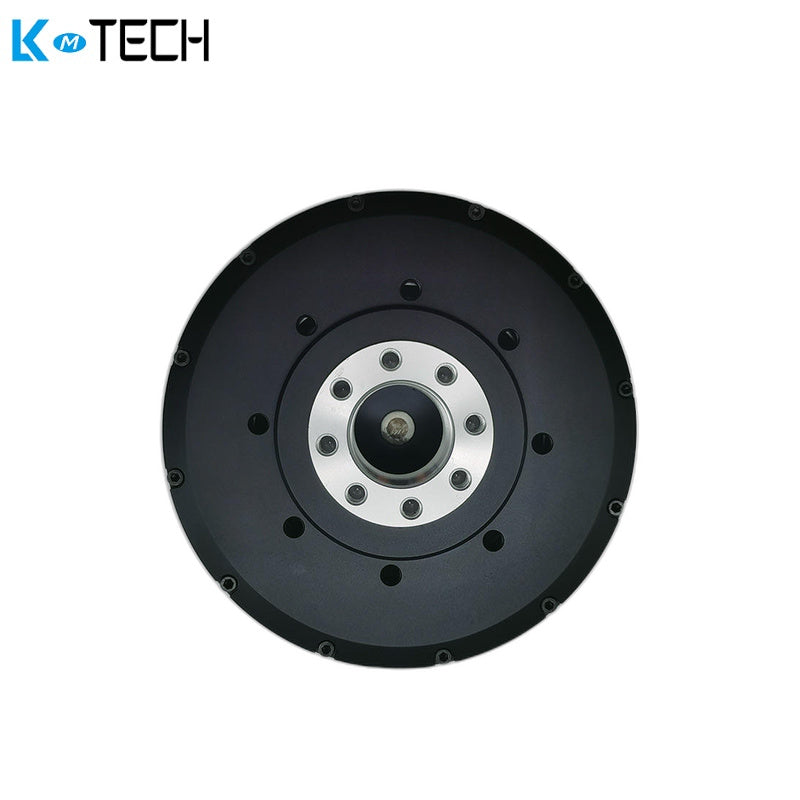

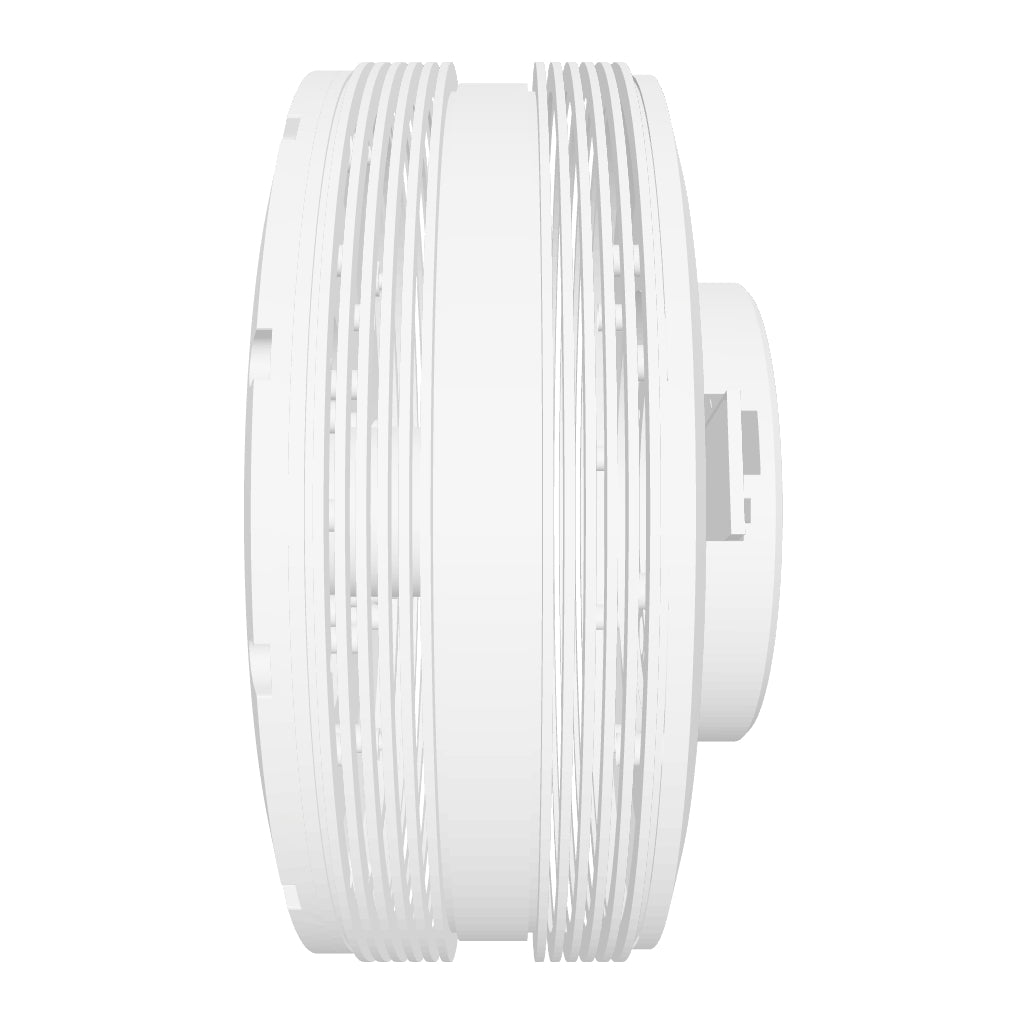

LKMTECH MS12025-V3 Motor
Regular price
$195.00
Unit price
LKMTECH MS12025-V3 Motor - MS12025-V3 without Driver is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LKMTECH MS12025-V3 Motor
Regular priceFrom
$195.00
Unit price
LKMTECH MS12025-V3 Motor - MS12025-V3 without Driver is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Item Name | MS12025 v3 |
| Turns | 50 |
| Rated Voltage (V) | 24 |
| Max Speed (rpm) | 25 |
| Rated Torque (N·m) | 3.5 |
| Rated Speed (rpm) | 96 |
| Rated Current (A) | 1.5 |
| Max Power (W) | 10 |
| Max Torque (N·m) | 5 |
| Speed Constant (rpm/V) | 1.1 |
| Torque Constant (N·m/A) | 2.33 |
| Winding Type | Y |
| Phase Resistance (Ω) | 10.5 |
| Phase Inductance (mH) | 4.8 |
| Motor Poles | 42 |
| Rotor Inertia (g·cm²) | 5500 |
| Motor Temperature | YES |
| Bearing Rated Load (N) | 1650 |
| Motor Weight (g) | 1147 |
| Recommendation Drive - Item Name | MS12025 v3 |
| Drive Input Voltage (V) | 7.4 ~ 24 |
| Communication | RS485 Or CAN |
| Communication Frequency (Hz) | RS485: 500Hz (115200bps) / CAN: 2KHz (1Mbps) |
| Encoder | 15 bit Or 18 bit Magnetic Encoder |
| Baudrate (RS485) (bps) | 9600, 19200, 57600, 115200, 230400, 406800, 1M, 2M |
| Baudrate (CAN) (bps) | 100K, 125K, 250K, 500K, 1M |
| Control Mode | Open Loop(24KHz) / Speed Loop(8KHz) / Position Loop(8KHz) |
| Acceleration Curve | Trapezoid acceleration |
