LinkDynamics | SKU:

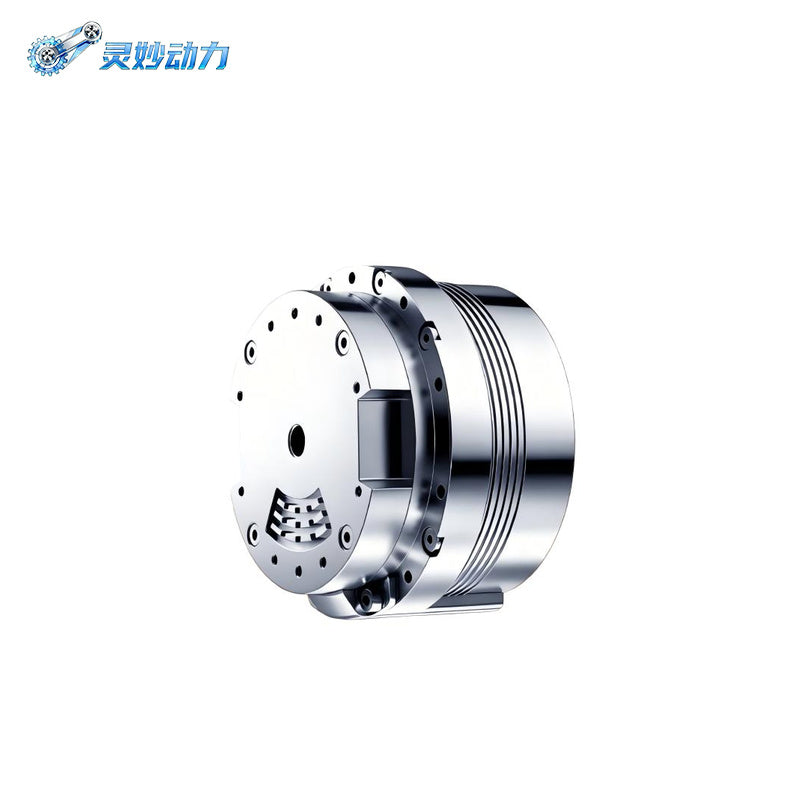

LinkDynamics P80 Motor
Regular price
$400.00
Unit price
LinkDynamics P80 Motor - P80 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LinkDynamics P80 Motor
Regular price
$400.00
Unit price
LinkDynamics P80 Motor - P80 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | P80 |
|---|---|
| Gear Ratio | 16 |
| Rated Voltage | 48 V |
| Rated Phase Current | 4.2 A |
| Rated Power | 195 W |
| Rated Speed | 70 rpm |
| Rated Torque | 20 Nm |
| Peak Speed | 100 rpm |
| Peak Phase Current | 18 A |
| Peak Torque | 80 Nm |
| Motor Efficiency | 75% |
| Torque Constant | 4.4 Nm/A |
| Reducer Backlash | 12 arcmin |
| Communication | CAN/CAN FD |
| Encoder | Dual Magnetic Encoder 14Bit |
| Weight | 0.81 kg |
| Torque Density | 98.8 Nm/kg |
