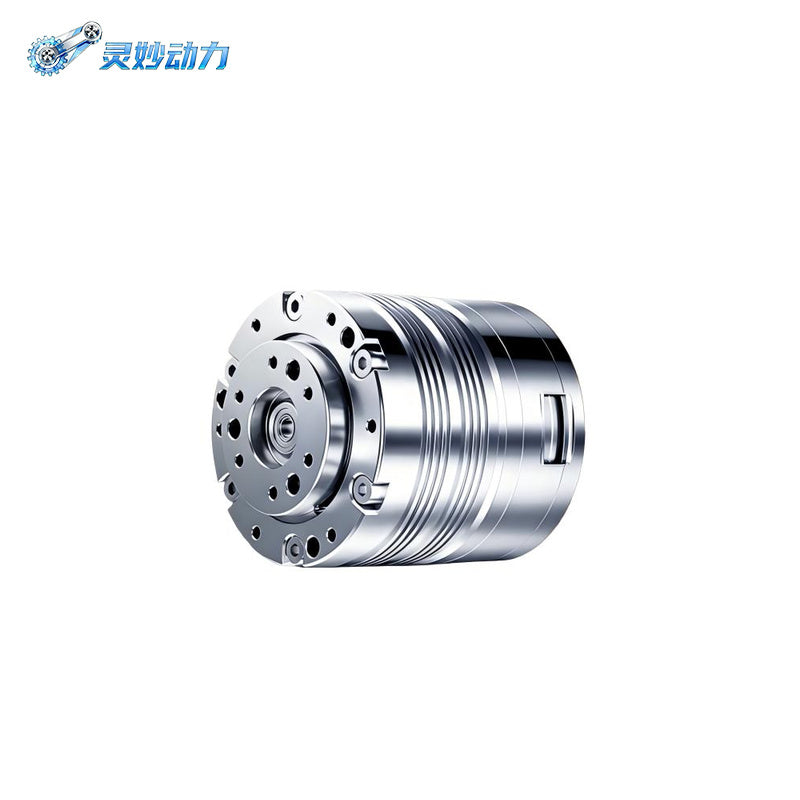

LinkDynamics P50 Motor
Regular price
$270.00
Unit price
LinkDynamics P50 Motor - P50 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | P50 |
|---|---|
| Gear Ratio | 36 |
| Rated Voltage | 48 V |
| Rated Phase Current | 2.5 A |
| Rated Power | 135 W |
| Rated Speed | 77 rpm |
| Rated Torque | 12 Nm |
| Peak Speed | 87 rpm |
| Peak Phase Current | 7.5 A |
| Peak Torque | 36 Nm |
| Motor Efficiency | 72% |
| Torque Constant | 4.8 Nm/A |
| Reducer Backlash | 12 arcmin |
| Communication | CAN/CAN FD |
| Encoder | Dual Magnetic Encoder 14Bit |
| Weight | 0.39 kg |
| Torque Density | 92.3 Nm/kg |
