LinkDynamics | SKU:

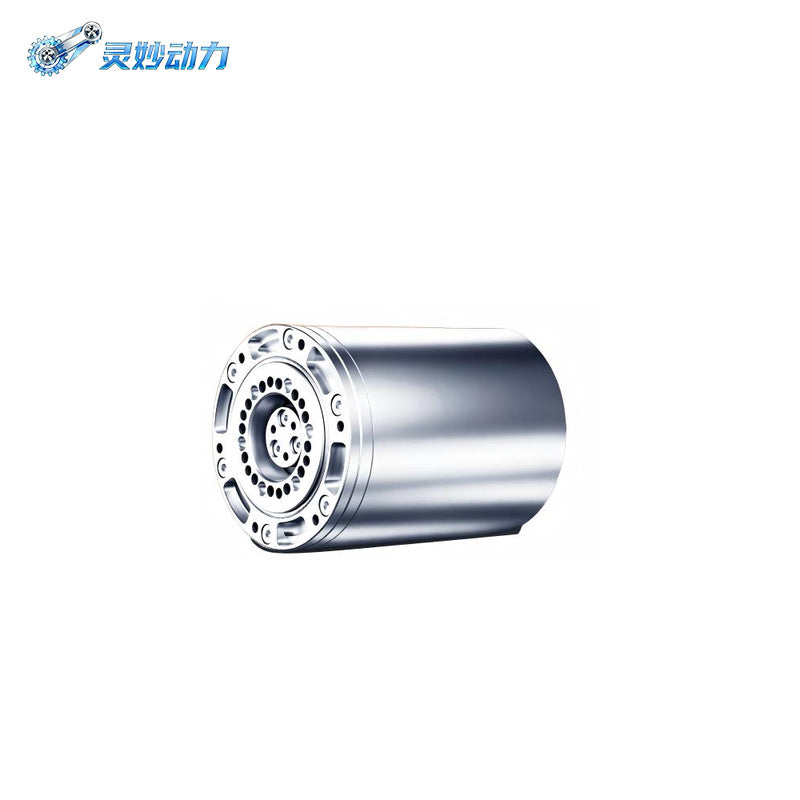

LinkDynamics HT52 Motor
Regular price
$110.00
Unit price
LinkDynamics HT52 Motor - HT52 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LinkDynamics HT52 Motor
Regular price
$110.00
Unit price
LinkDynamics HT52 Motor - HT52 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | HT52 |
|---|---|
| Gear Ratio | 36 |
| Rated Voltage | 48 V |
| Rated Phase Current | 2 A |
| Rated Power | 75 W |
| Rated Speed | 111 rpm |
| Rated Torque | 2.3 Nm |
| Peak Speed | 167 rpm |
| Peak Phase Current | 5.6 A |
| Peak Torque | 5.6 Nm |
| Motor Efficiency | 80% |
| Torque Constant | 1.15 Nm/A |
| Reducer Backlash | 15 arcmin |
| Communication | CAN |
| Encoder | Dual Magnetic Encoder 15Bit |
| Weight | 0.27 kg |
| Torque Density | / |
