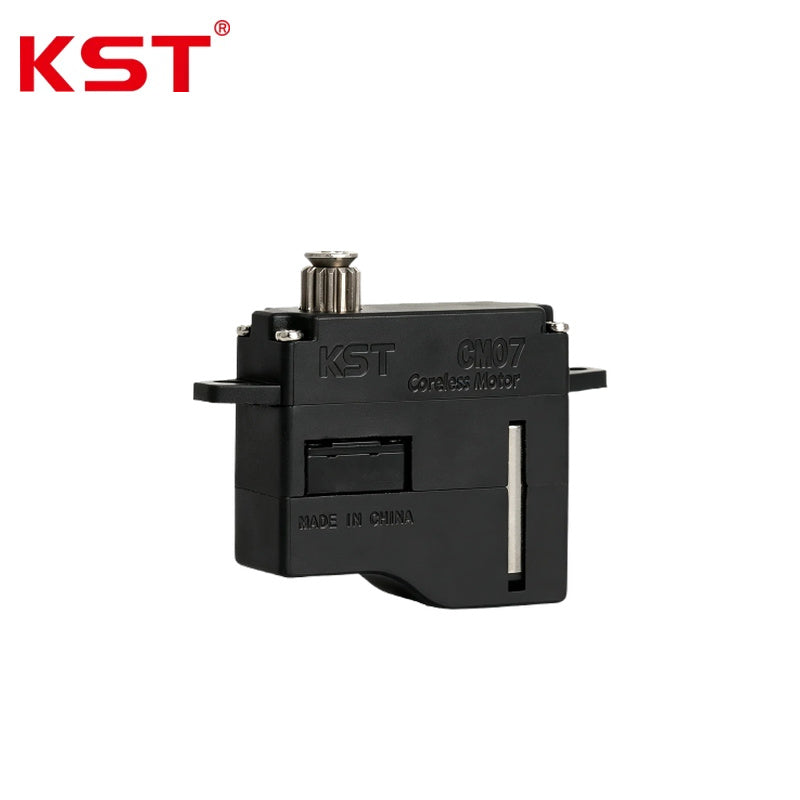

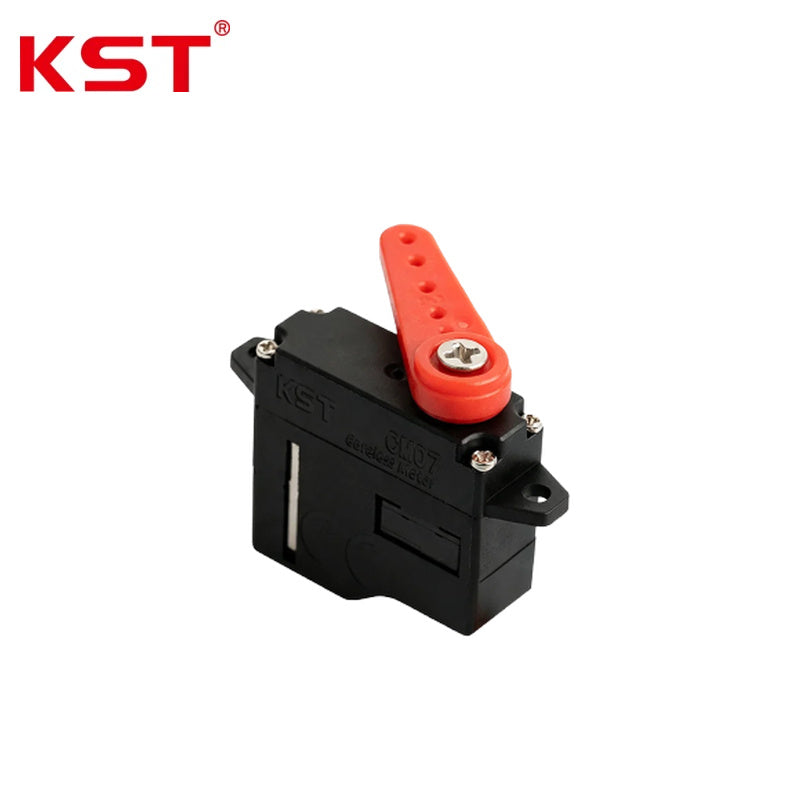

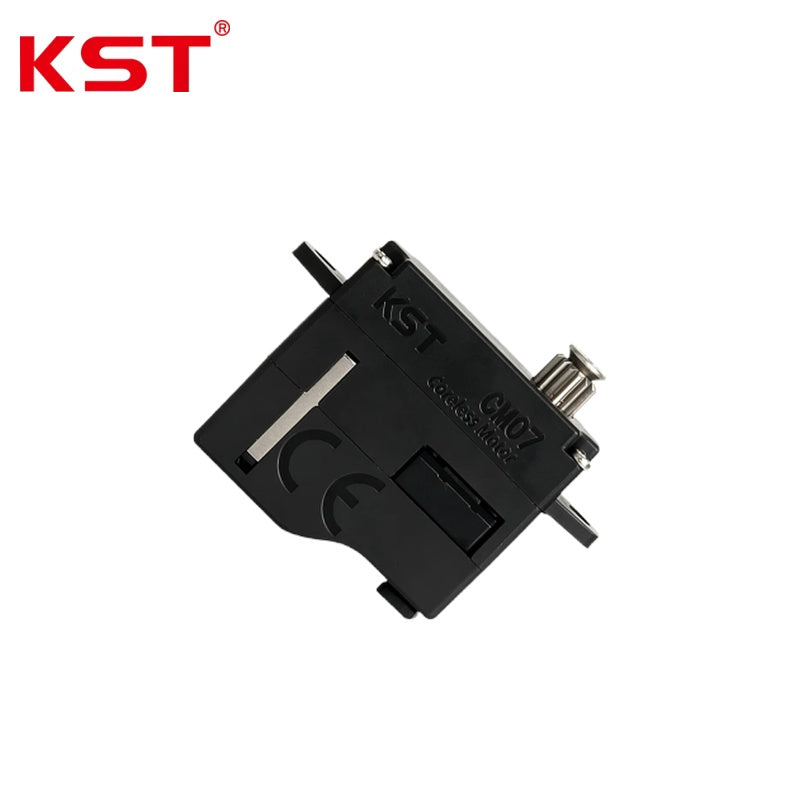

KST CM07 Servo Motor
Regular price
$24.99
Unit price
KST CM07 Servo Motor - CM07 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST CM07 Servo Motor
Regular price
$24.99
Unit price
KST CM07 Servo Motor - CM07 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | DC7.4V |
| Voltage Range | DC3.5V-8.4V |
| Torque | 1.10Kgf.cm@3.5V 1.40Kgf.cm@4.2V 1.80Kgf.cm@6.0V 2.10Kgf.cm@7.4V 2.40Kgf.cm@8.4V |
| Speed | 0.14sec/60°@3.5V 0.11sec/60°@4.2V 0.08sec/60°@6.0V 0.07sec/60°@7.4V 0.06sec/60°@8.4V |
| Working Frequency | 1520us/333Hz |
| Default Travel Angle | ±60° = 120° Total |
| Temperature Range | -10°C — +65°C |
| Case Material | Plastic |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |
| Ball Bearing | 2BB |
| Case Dimensions | 20.5*7.5*19mm±0.2mm |
| Weight | 7g±10% |
