KingKong Technology

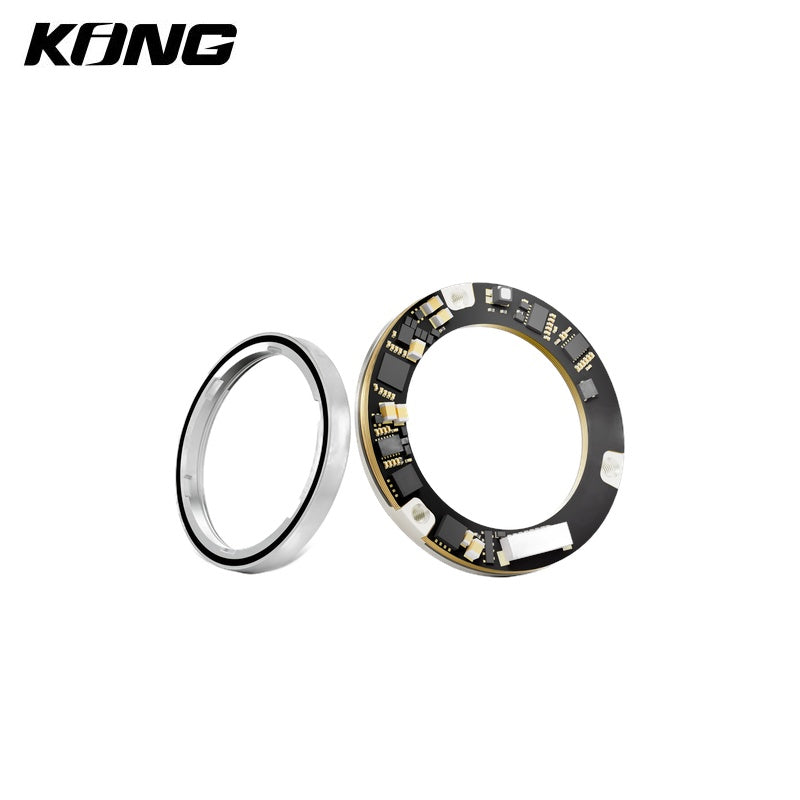

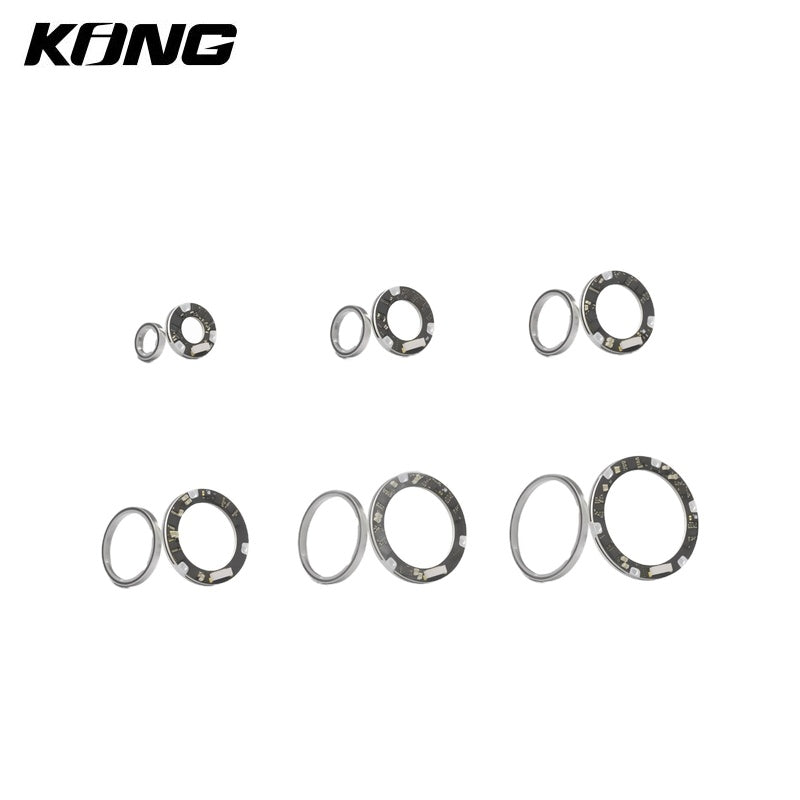

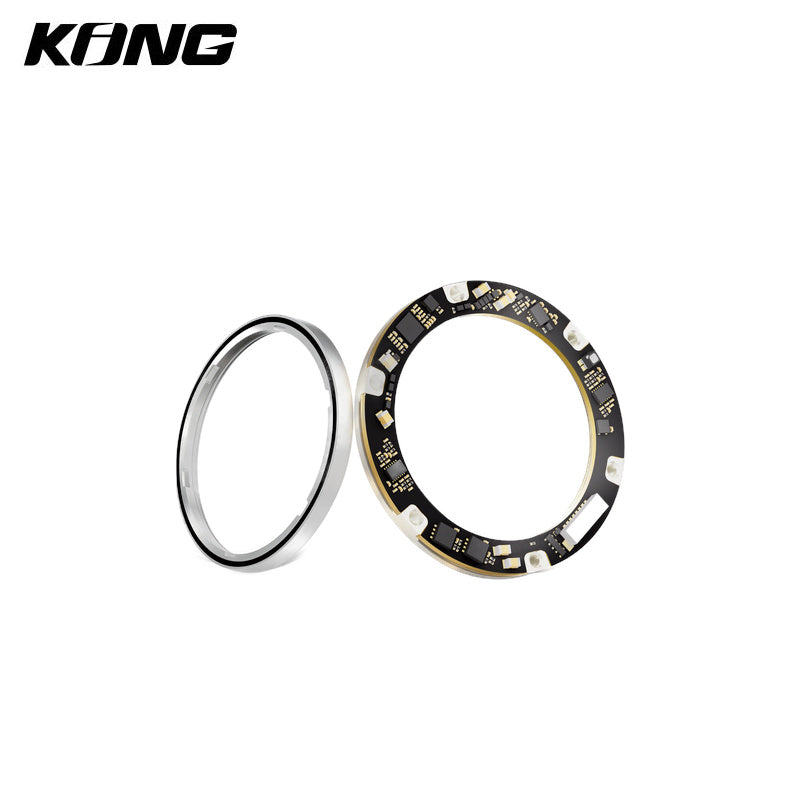

KingKong MPT Series Robot Single Encoder

$280.00
Version
Stator type
Rotor type

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Mounting Axial hollow
Accuracy ±0.01°(assembly dependent)
Supply Voltage 4.5 ~ 5.5 V
Battery Voltage 2.7 ~ 3.6 V
Connection Wire to board connector
Current Consumption ≈ 100 mA
Low-Power Current ≈ 12 μA (static power consumption)
ESD resistance HBM, max. ±2 kV
CDM, max. ±1 kV
Rotor Bracket Stainless steel
Stator Bracket Aluminum alloy
Operating temperature -40 ~ 85 ℃ / -40 ~ 105 ℃ / -40 ~ 125 ℃


KingKong Technology MPT Magnetic Encoder-stp.zip

KingKong Technology MPT Magnetic Encoder-Drawing.pdf

KingKong Technology MPT Magnetic Encoder Bonding Type Front Install.pdf

KingKong Technology MPT Magnetic Encoder Bonding Type Front&Back Install.pdf

KingKong Technology MPT Magnetic Encoder Datasheet v0.6.pdf

KingKong Technology MPT Magnetic Encoder Thread Type Front&Back Install.pdf

KingKong Technology MPT Magnetic Encoder Thread Type Front Install.pdf
