KingKong Technology | SKU:

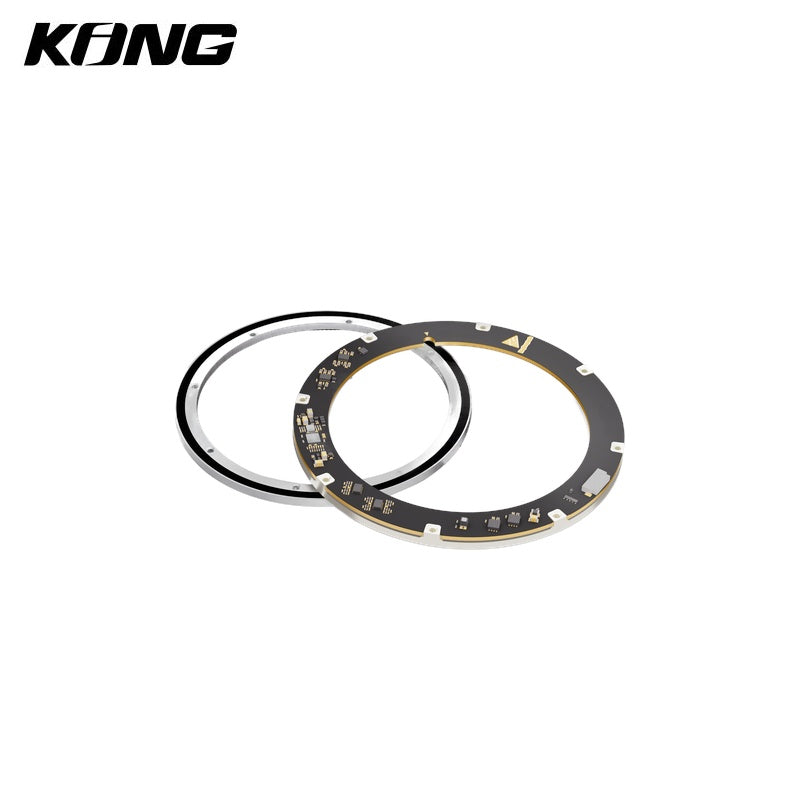

KingKong MPP Series Large-size Joint Single Encoder
Regular price
$550.00
Unit price
KingKong MPP Series Large-size Joint Single Encoder - MPP-40-60 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KingKong MPP Series Large-size Joint Single Encoder
Regular price
$550.00
Unit price
KingKong MPP Series Large-size Joint Single Encoder - MPP-40-60 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Mounting | Axial hollow |
| Accuracy | ±0.01°(assembly dependent) |
| Supply Voltage | 4.5~5.5 V |
| Battery Voltage | 2.7~3.6 V |
| Connection | Wire to board connector |
| Current Consumption | ≈100 mA |
| Low-Power Current | ≈12μA(static power consumption) |
| ESD resistance | HBM,max.±2 kV CDM,max.±1 kV |
| Rotor Bracket | Stainless steel |
| Stator Bracket | Aluminum alloy |
| Operating temperature | -40~85℃/-40~105℃/-40~125℃ |
