KingKong Technology

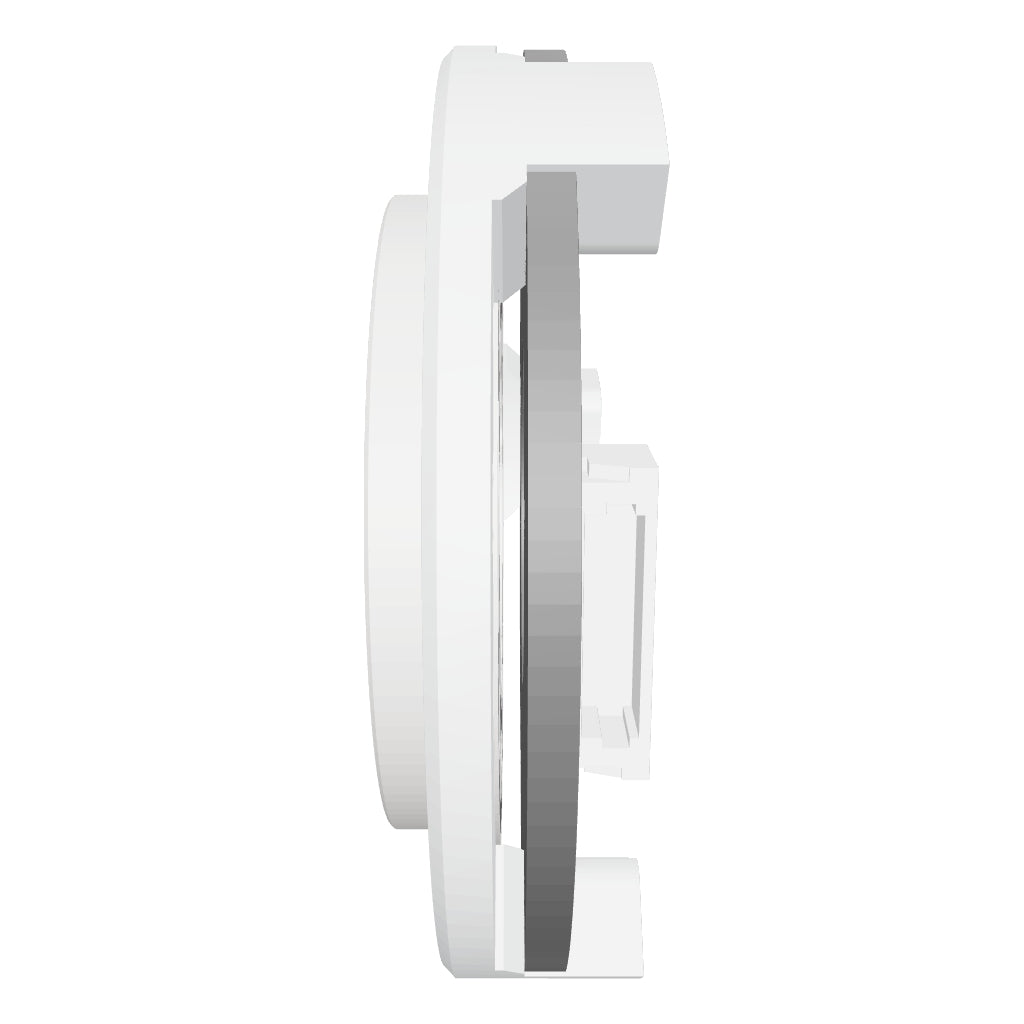

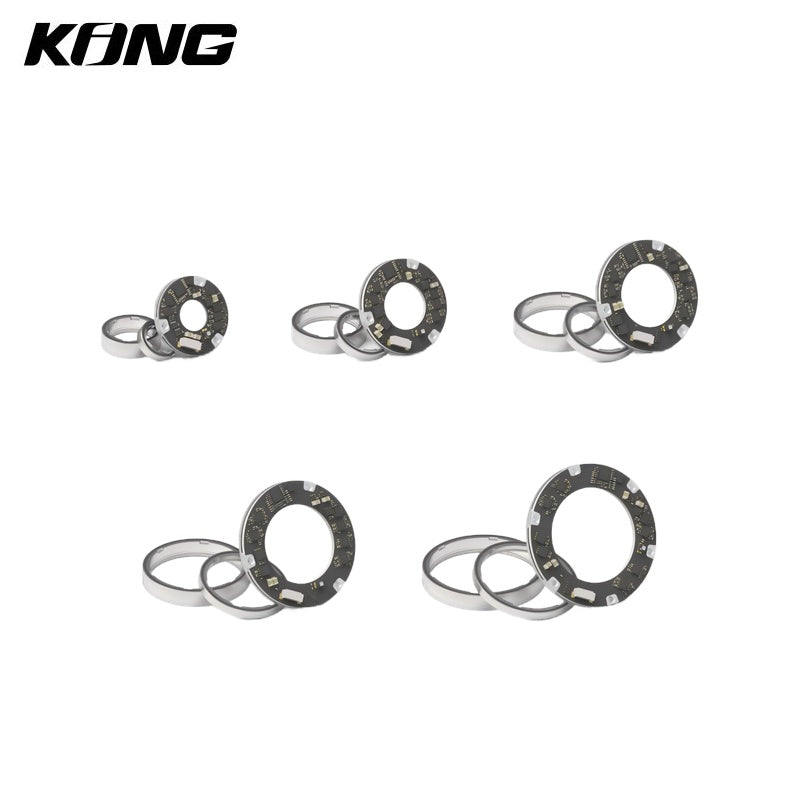

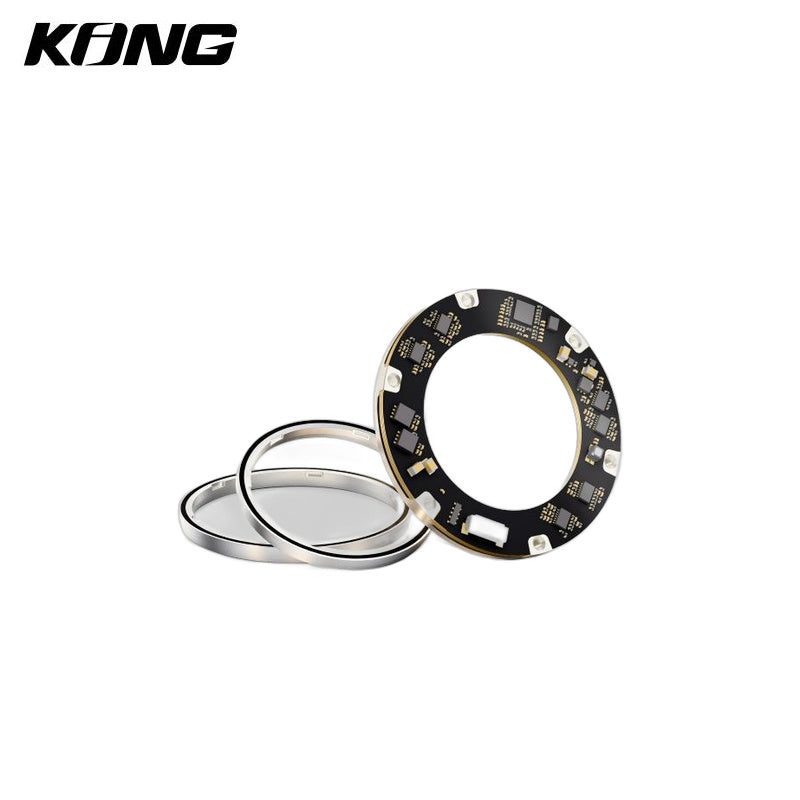

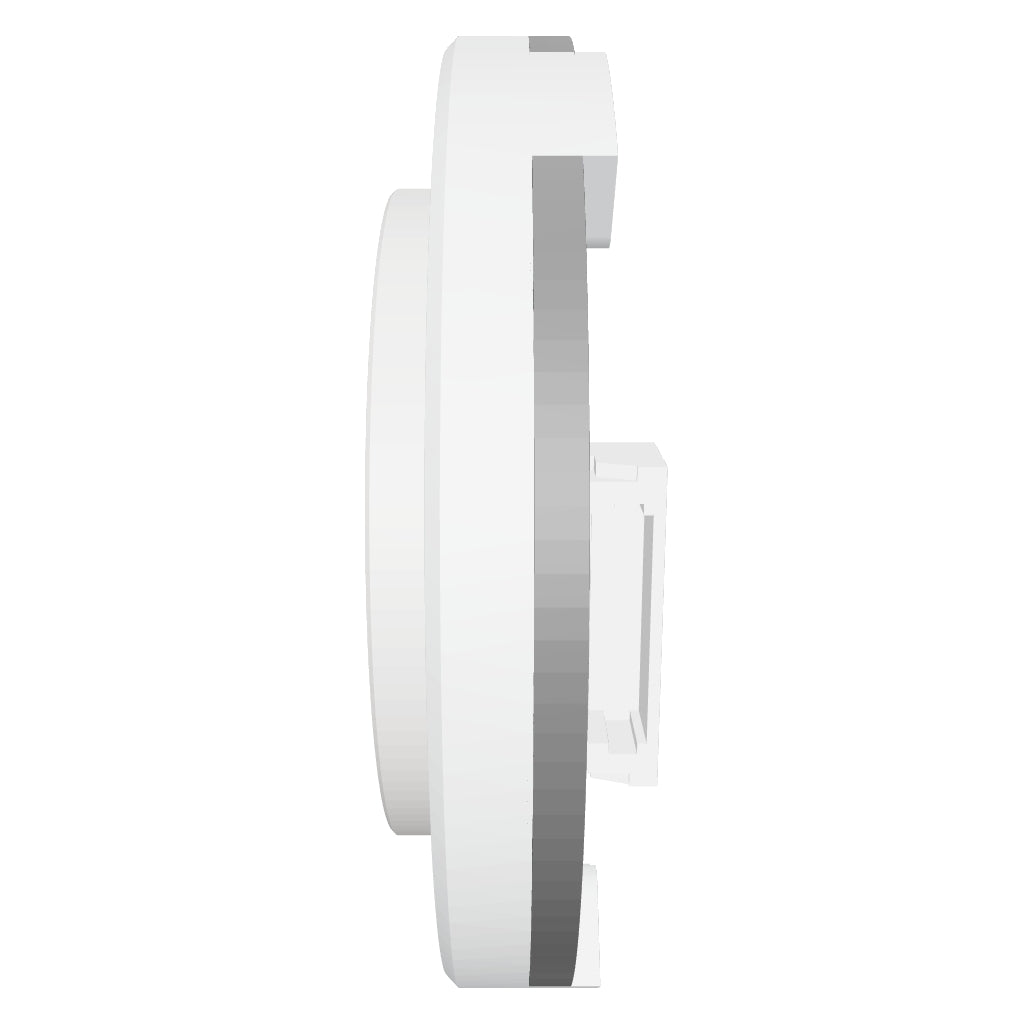

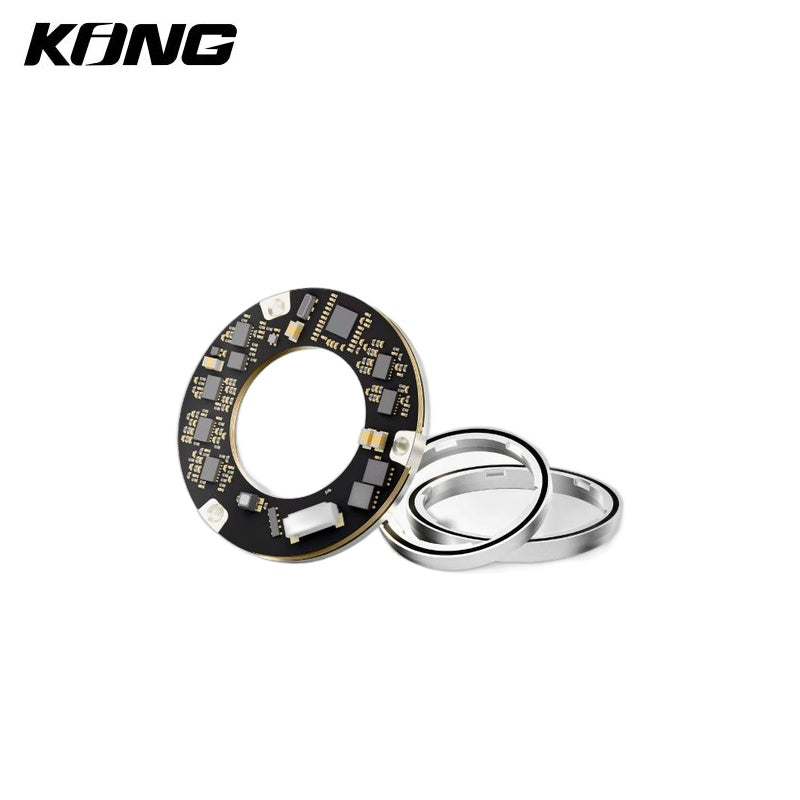

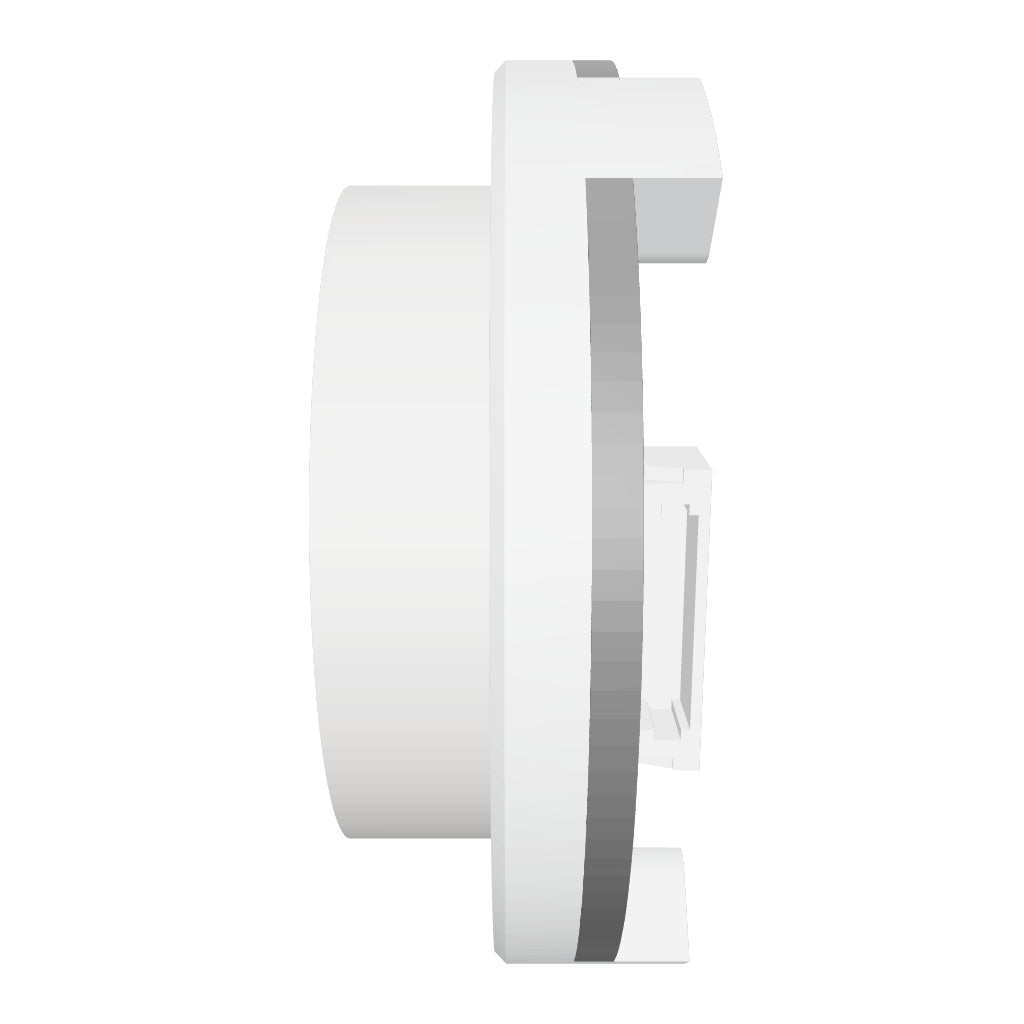

KingKong DPT Series Robot Dual Encoder

$280.00
Version
Stator type
Rotor type

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Mounting Axial hollow
Resolution 24bit
Accuracy ±0.01°(assembly dependent)
Supply Voltage 4.5 ~ 5.5 V
Startup Time 15 ms
Connection Wire-to-Board Connector
Current Consumption ≈ 140 mA
ESD Protection HBM, max. ±2 kV
CDM, max. ±1 kV
Rotor Carrier Stainless steel
Stator Carrier Aluminum Alloy
Operating temperature -40 ~ 85 ℃
-40 ~ 105 ℃
-40 ~ 125 ℃


KingKong Technology DPT Magnetic Dual Encoder-stp.zip

KingKong Technology DPT Magnetic Dual Encoder-Drawing.pdf

KingKong Technology DPT Magnetic Dual Encoder Bonding Type Front Install.pdf

KingKong_Technology_DPT_Magnetic_Dual_Encoder_Thread_Type_FrontBack_Install.pdf

KingKong Technology DPT Magnetic Dual Encoder Datasheet v0.6.pdf
