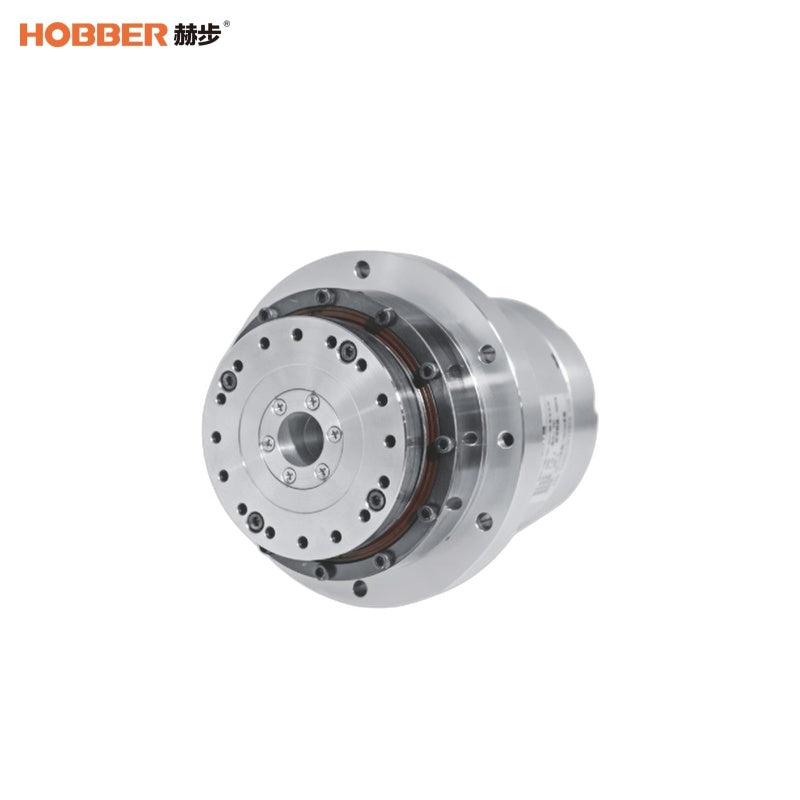

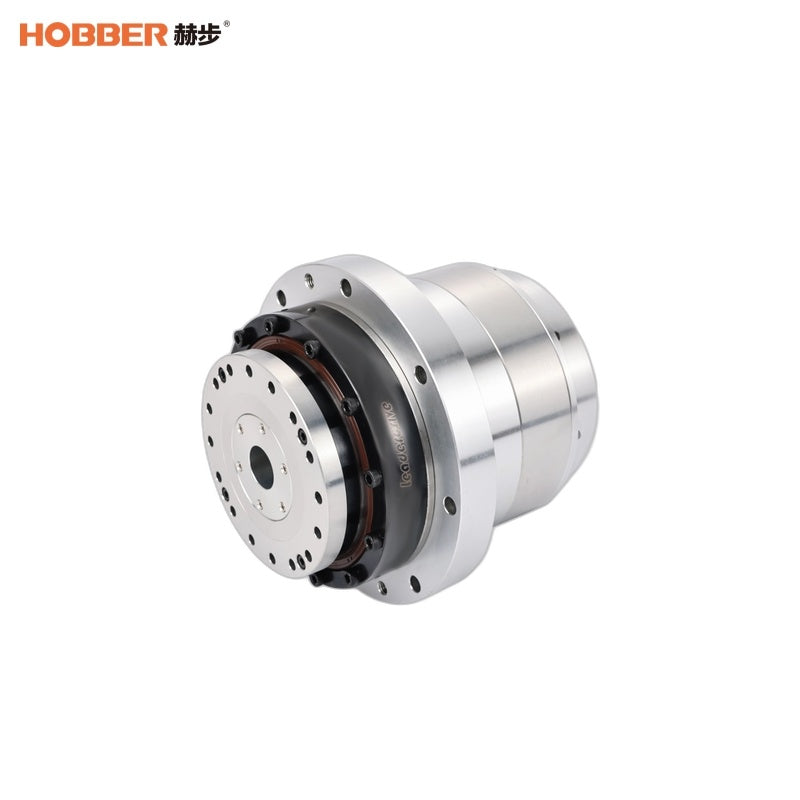

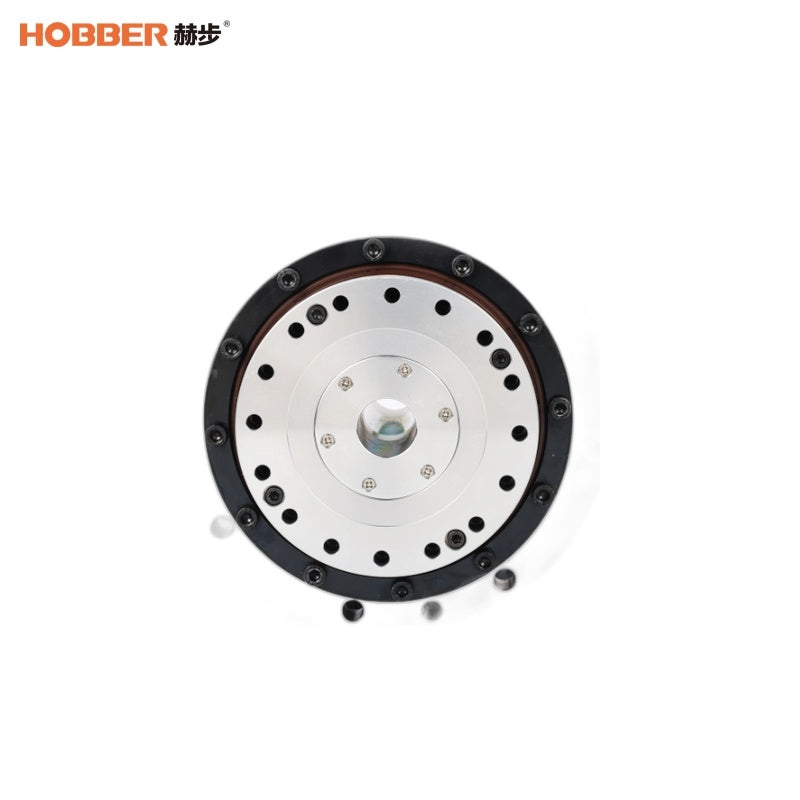

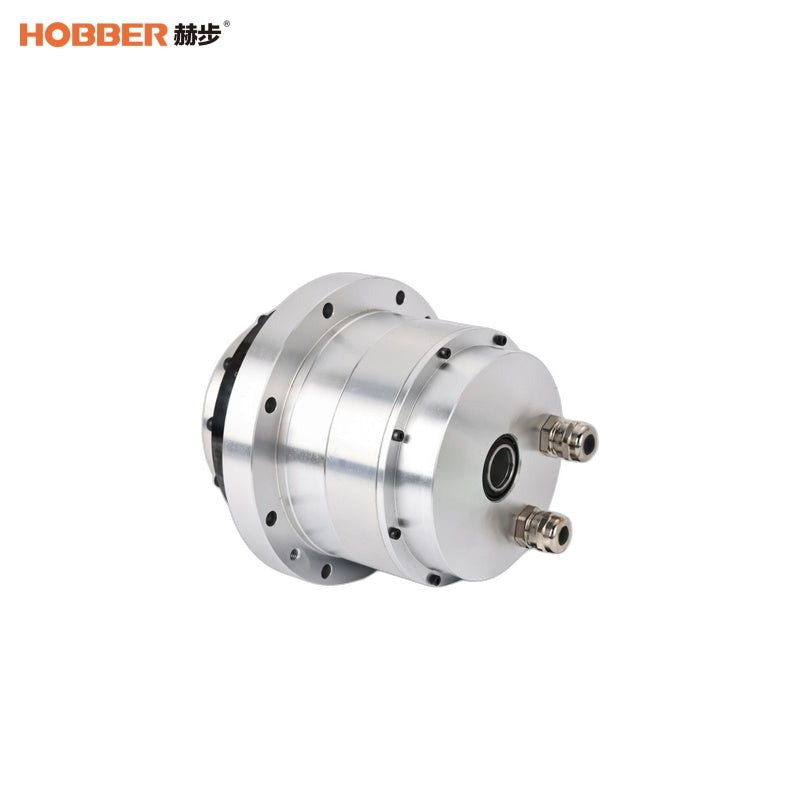

Hobber HAT/HATF-58 Actuator
Regular price
$4,500.00
Unit price
Hobber HAT/HATF-58 Actuator - HAT-58-D / Without Brake / 81 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Hobber HAT/HATF-58 Actuator
Regular priceFrom
$4,500.00
Unit price
Hobber HAT/HATF-58 Actuator - HAT-58-D / Without Brake / 81 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Gear Ratio | |
| Gear Ratio | 81 / 101 / 161 |
| AC 220V Ratings | |
| Peak Torque (AC) | 1828 N.m (81) / 1964 N.m (101) / 2722 N.m (161) |
| Rated Torque (AC) | 951 N.m (81) / 1200 N.m (101) / 1494 N.m (161) |
| Maximum Speed (AC) | 37 rpm (81) / 30 rpm (101) / 19 rpm (161) |
| Rated Speed (AC) | 27 rpm (81) / 22 rpm (101) / 14 rpm (161) |
| Maximum Current (AC) | 33.99 Amms (81) / 29.29 Amms (101) / 27.16 Amms (161) |
| Rated Current (AC) | 17.68 Amms (81) / 17.89 Amms (101) / 14.91 Amms (161) |
| Torque Constant (AC) | 53.784 N.m/Amms (81) / 67.064 N.m/Amms (101) / 100.22 N.m/Amms (161) |
| Motor Phase‑to‑Phase Resistance (AC) | 0.126 Ohms (20°C) |
| Motor Phase‑to‑Phase Inductance (AC) | 0.65 mH |
| Motor Back‑EMF Constant (AC) | 52 Vrms/krpm |
| Encoder & Positioning | |
| Encoder Type | Absolute Encoder |
| Encoder Resolution (Per Revolution) | 2^23 (8,388,608) or 2^17 (131,072) bit |
| Encoder Multi-Revolution Counter | 2^16 (65,536) bit |
| Unidirectional Positioning Accuracy | ≤30 Arcsec(Default values, customizable to ≤15 Arcsec upon request) |
| Repeat Positioning Accuracy | ≤10 Arcsec |
| Load Ratings | |
| Rated Radial Load | 3200 N |
| Rated Axial Load | 3200 N |
| Rated Tilting Moment | 2500 N.m |
| Mechanical Properties | |
| Rotor Moment of Inertia (Without Brake) | 10.23 × 10⁻³ kg·m² |
| Rotor Moment of Inertia (With Brake) | 10.92 × 10⁻³ kg·m² |
| Mass (Without Brake) | 32 Kg |
| Mass (With Brake) | 35.1 Kg |
| Number of Motor Poles | 20 |
| Ambient Conditions | |
| Ambient Conditions | Operating temp: 0~40°C / Storage: ‑20~60°C / Humidity: 20~80% RH (non‑condensing) / Vibration: 24.5 m/s² (10~400 Hz) / Free from dust, metal particles, corrosive/flammable gases, oil mist / Indoor use, avoid direct sunlight / Altitude below 1000 m |
| Safety & Insulation | |
| Safety Certification | CE certified |
| Insulation Resistance | 100 MΩ or higher (DC 500 V) |
| Dielectric Strength | AC 1500 V / 1 min |
| Insulation Class | Class F |
| Protection Rating | |
| Protection Rating | Fully enclosed self-cooling type (IP65) |
