HAITAI | SKU:

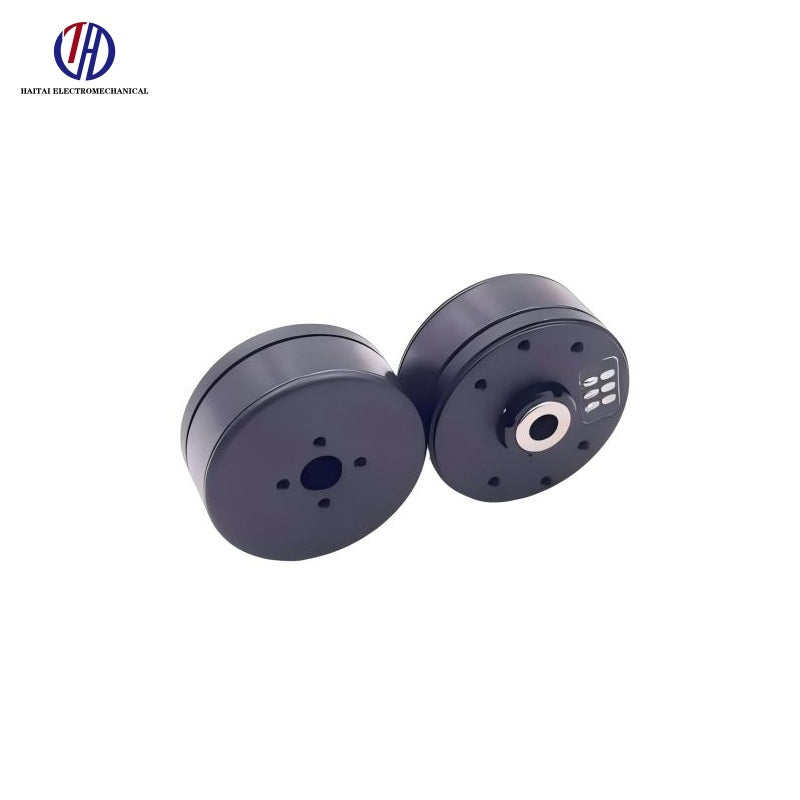

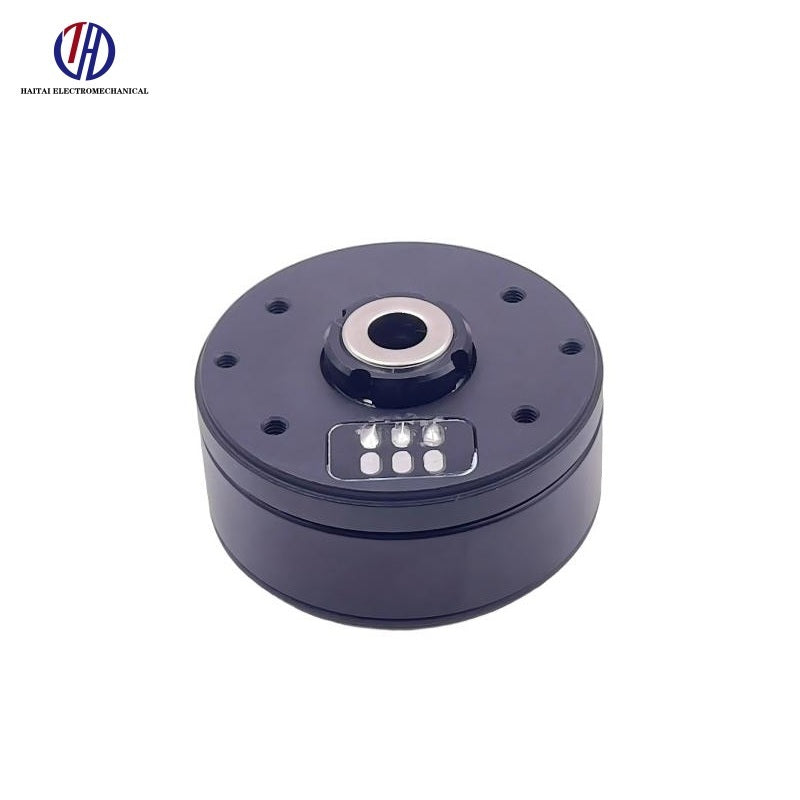

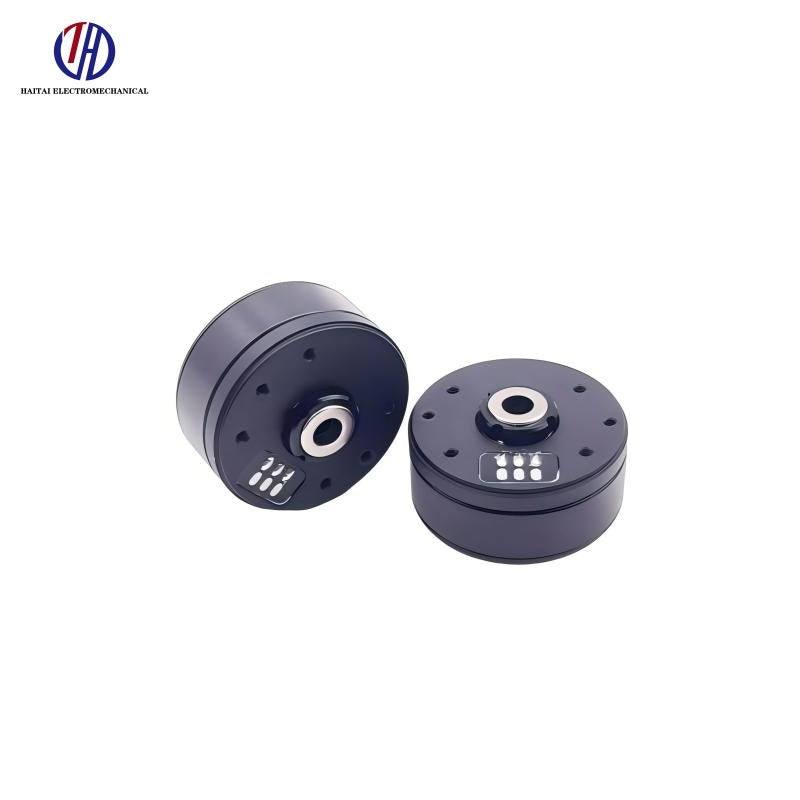

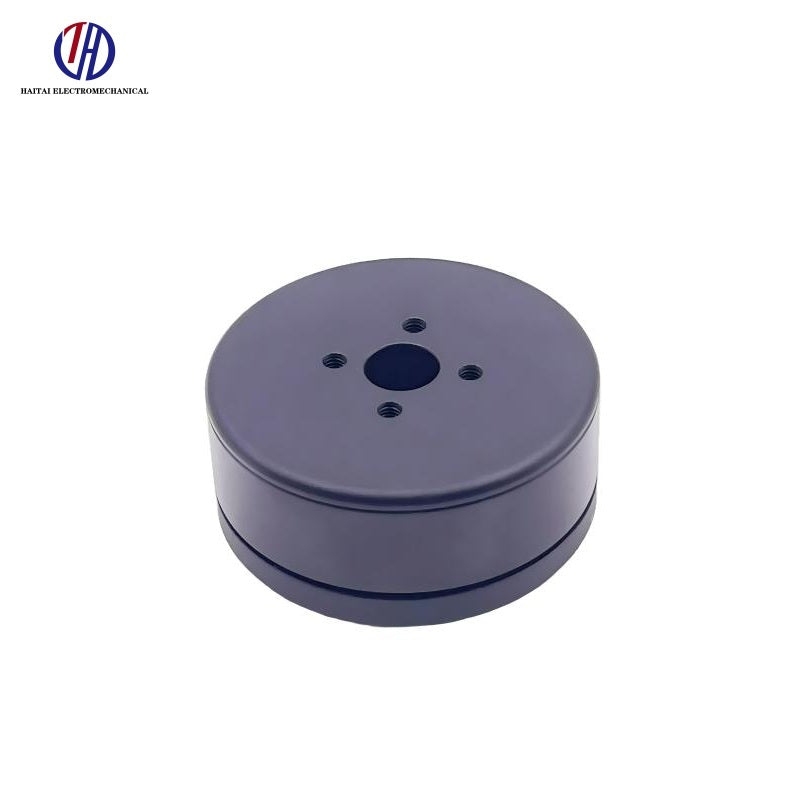

HAITAI HT2806 Motor
Regular price
$15.00
Unit price
HAITAI HT2806 Motor - HT2806 / Without encoder is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HAITAI HT2806 Motor
Regular priceFrom
$15.00
Unit price
HAITAI HT2806 Motor - HT2806 / Without encoder is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 12 V |
| Rated Current | 0.81 A |
| Rated Torque | 0.06 N.m |
| Rated Speed | 950 RPM |
| Peak Speed | 2335 RPM |
| Peak Torque | 0.09 N.m |
| Peak Current | 1.22 A |
| Interphase Resistance | 5.13 Ω |
| Interphase Inductance | 1.64 mH |
| Speed Constant | 195 rpm/V |
| Torque Constant | 0.07 N.m/A |
| Rotor Inertia | 36 gcm² |
| Number of Pole Pairs | 7 Pairs |
| Motor Weight without Encoder | 45.4 g |
| Motor Weight with Encoder | 55.4 g |
| Motor Size without Encoder | Ø34.6 × 18.3 mm |
| Motor Size with Encoder | Ø34.6 × 24.7 mm |
| Encoder Type | AS5048A / AS5600 / AS5047P |
| Working Temperature | -10 ~ 80 °C |
| Max Demagnetize Temperature | 120 °C |
