FJDynamics | SKU:
Sold out

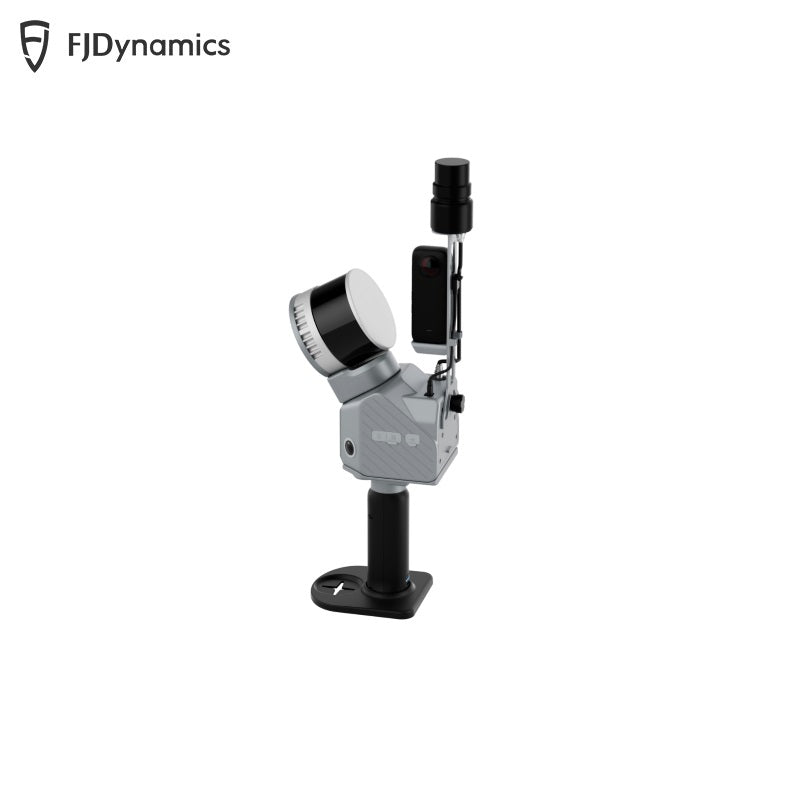

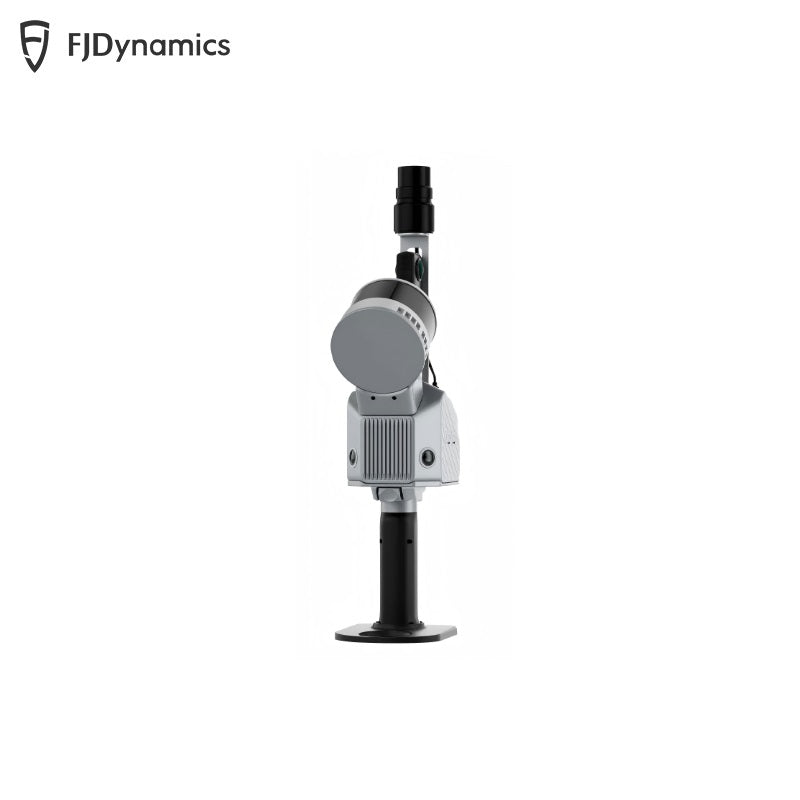

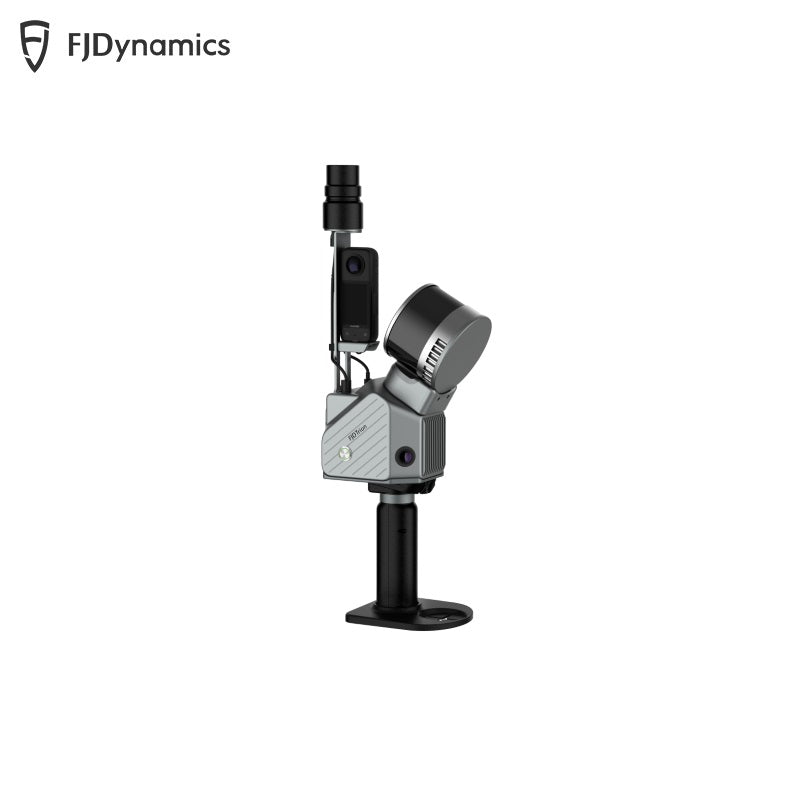

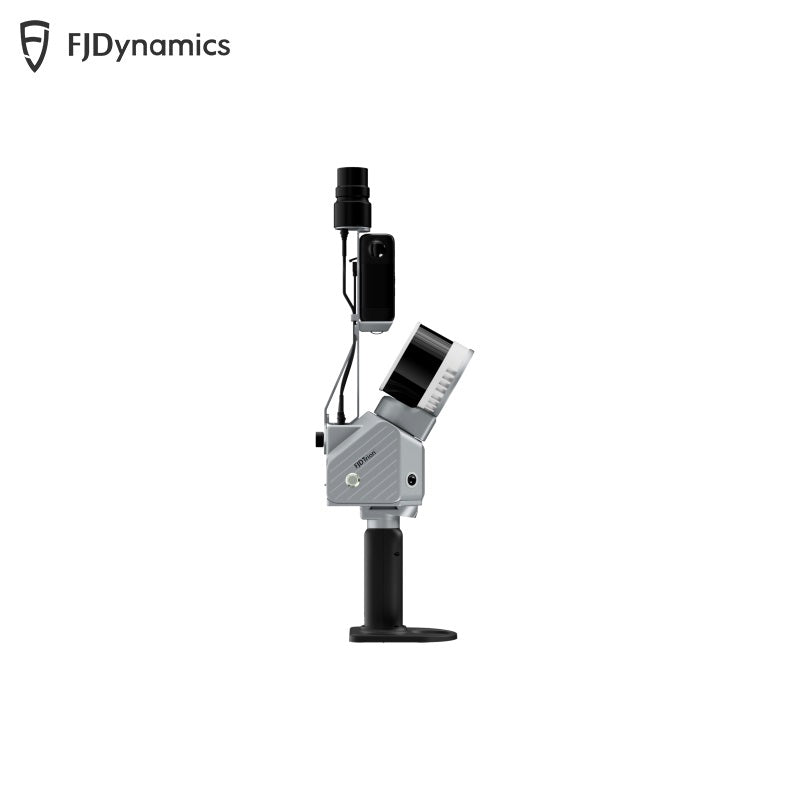

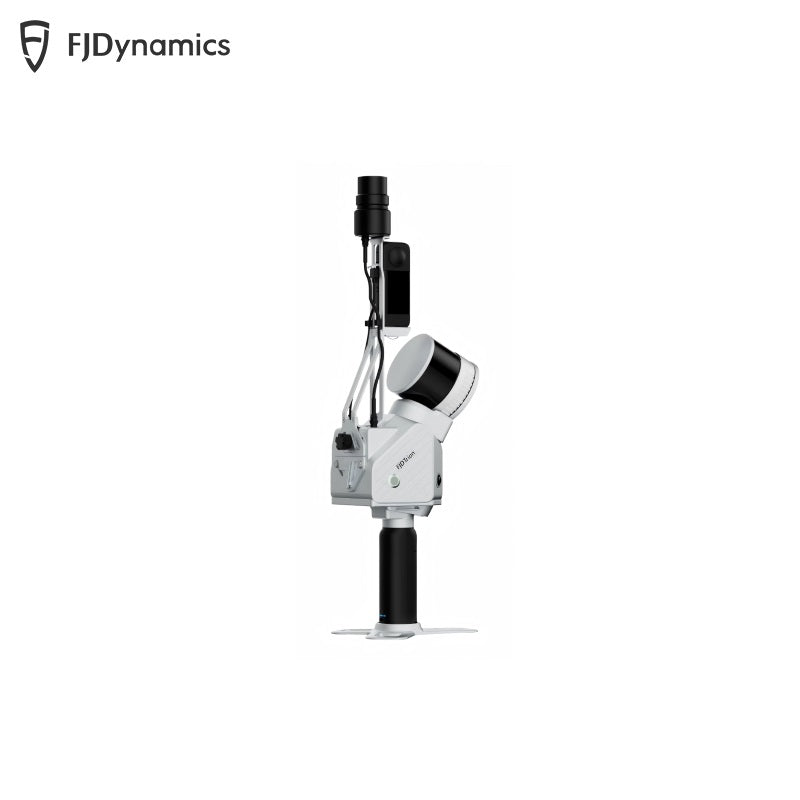

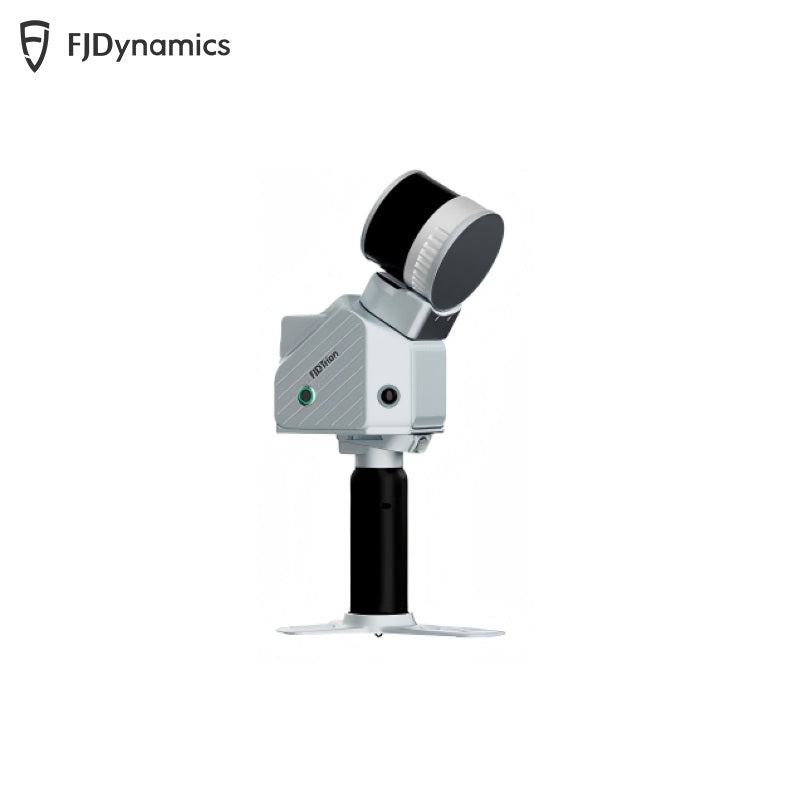

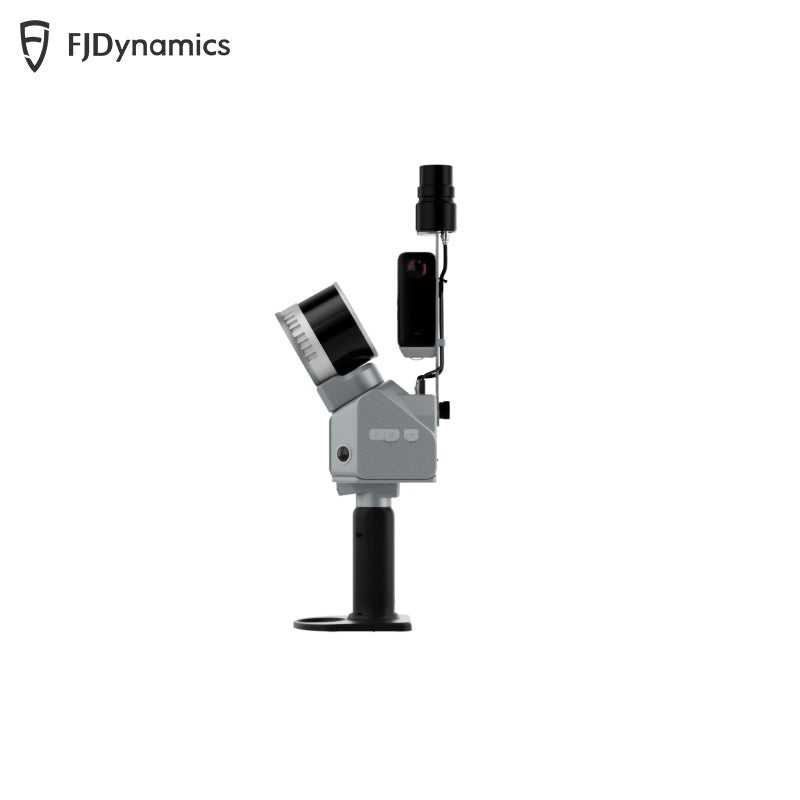

FJDynamics Trion S2 LiDAR Scanner
Regular price
$10,200.00
Unit price
FJDynamics Trion S2 LiDAR Scanner - Trion S2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FJDynamics Trion S2 LiDAR Scanner - Trion S2 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Range | Standard: 120 m @ 80% reflectivity / 80 m @ 10% reflectivity; PRO: 120 m @ 80% reflectivity / 80 m @ 10% reflectivity; MAX: 300 m @ 80% reflectivity / 80 m @ 10% reflectivity |
| Channels | Standard: 16; PRO: 32; MAX: 32 |
| Speed | Standard: 320,000 pts/s; PRO: 640,000 pts/s; MAX: 640,000 pts/s |
| Safety Level | Eye Safety Class I (905nm) |
| FOV | 360° × 270° |
| Relative Accuracy | ≤1 cm |
| Absolute Accuracy | 3 cm |
| Weight | 1.8 kg (Excluding battery, external camera and GNSS module) |
| Battery Life | 3 h (with 1 set of 2 batteries) |
| Storage | 512 GB SSD (1TB expandable) |
| Operating Temperature | -20°C to 50°C |
| Power Consumption | 25 W |
| Weight | 180g |
| Dimensions | 107 x 118 x 398 mm (including base and battery) |
| Point Cloud Format | .las / .ply / .pts / .e57 |
| Power Supply | 10.8 V, 3 A |
| Resolution | 2 × 12 MP |
| Camera FOV | 200° |
