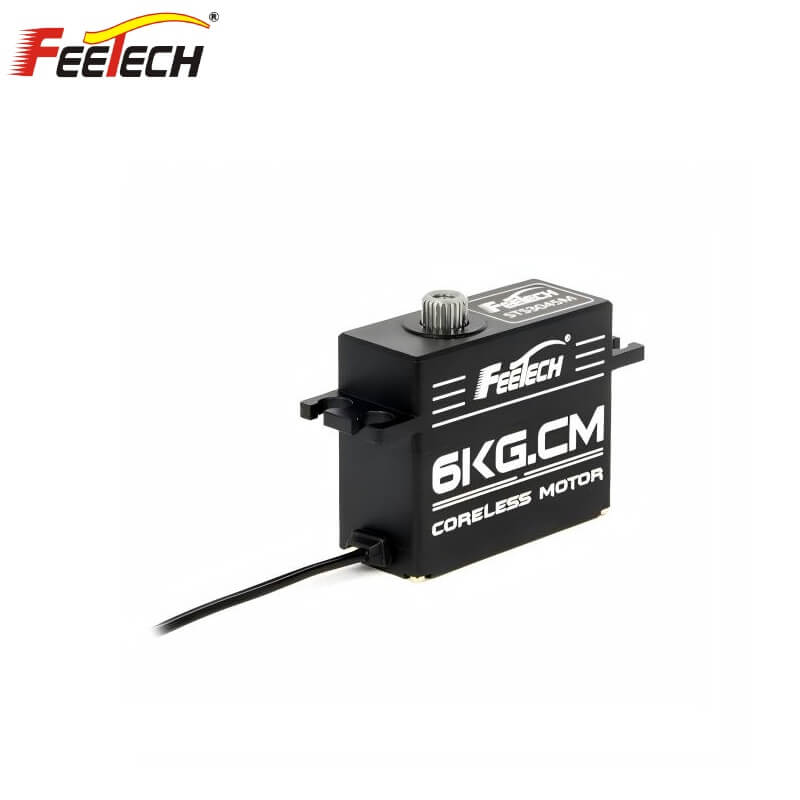

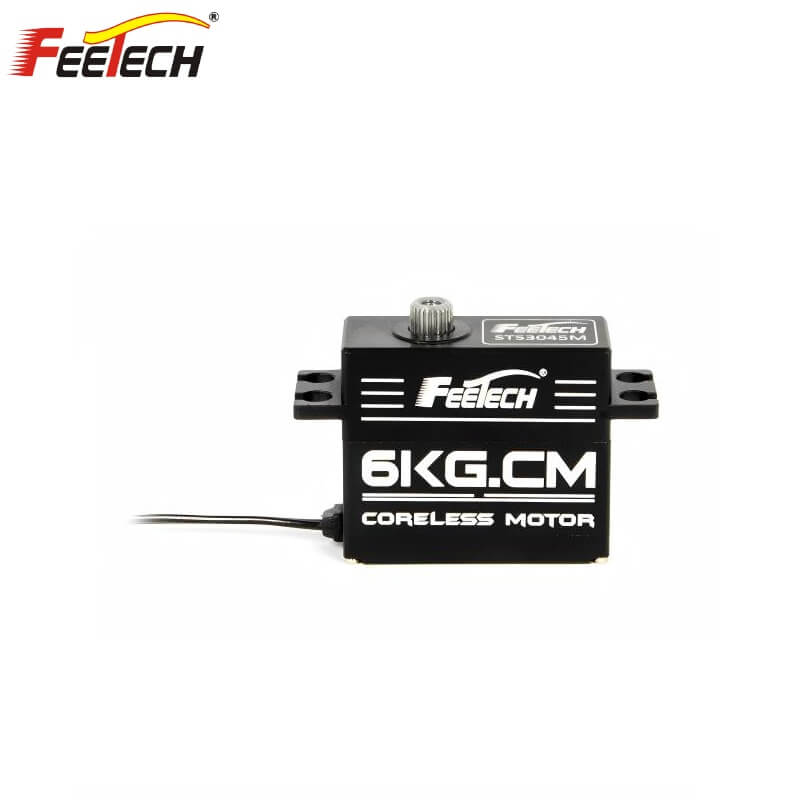

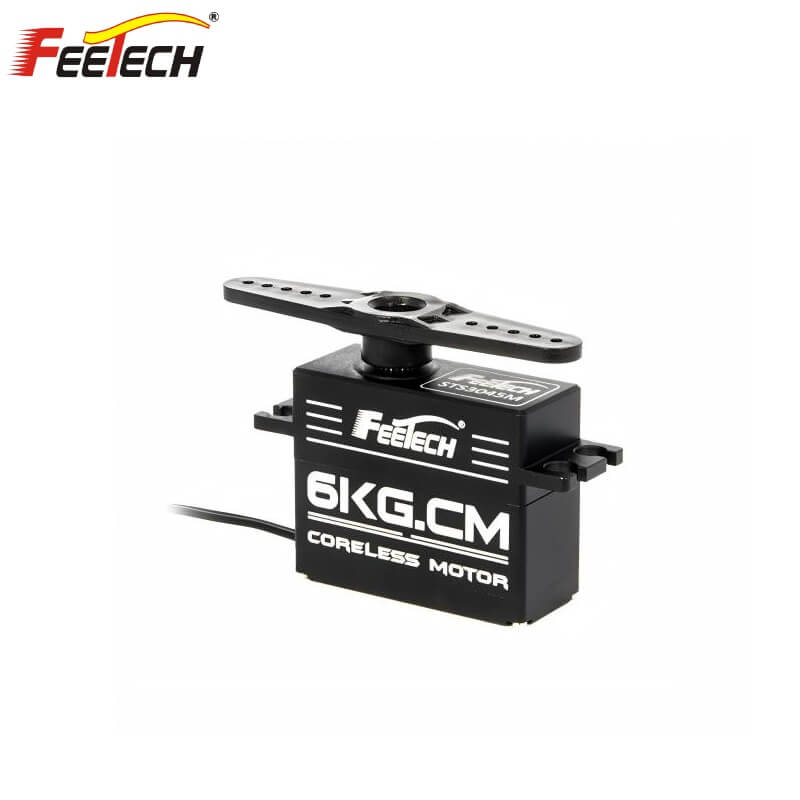

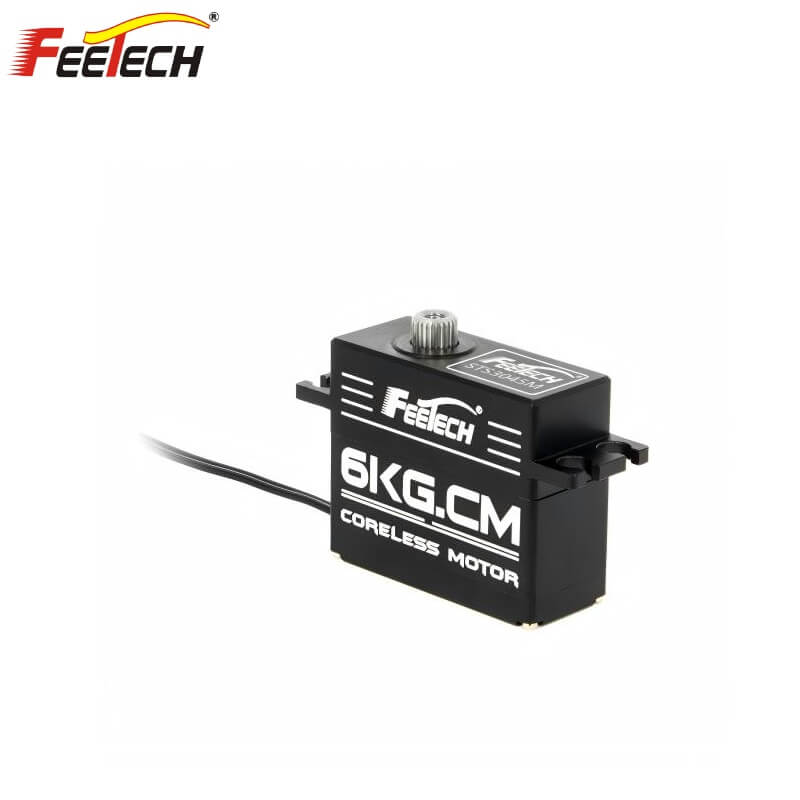

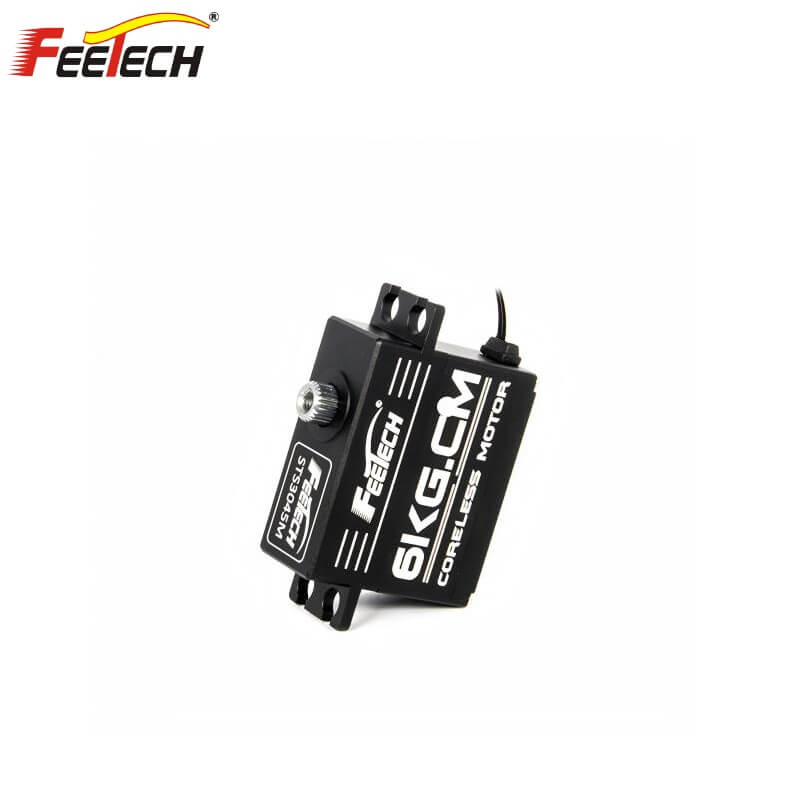

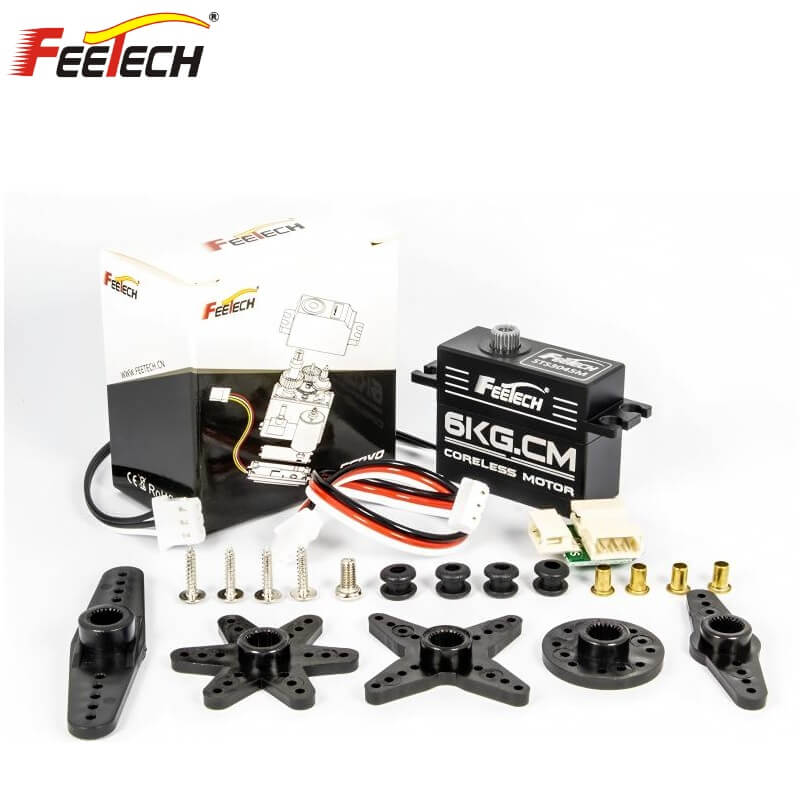

FEETECH STS3045 Servo Motor

Regular price $40.00

Version

Delivery and Shipping

  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter
Value
Model STS3045M
Product Name 6v 6kg 360 degree steering gear
Storage Temperature Range -30℃~80℃
Operating Temperature Range -20℃~60℃
Size A:36mm B:15mm C:29.2mm
Weight 34.8± 1g
Gear type Metal Gear
Limit angle NO limit
Bearing Ball bearings
Horn gear spline 25T/OD5.9mm
Horn type Plastic,POM
Case Aluminium
Connector wire 15CM
Motor Coreless Motor
Operating Voltage Range 4.8-7.4V
No load speed 0.133sec/60°@6V
Runnig current(at no load)  120 mA@6V
Peak stall torque 6kg.cm@6V
Rated torque 2kg.cm@6V
Stall current  1.4A@6V
Command signal Digital Packet
Protocol Type Half Duplex Asynchronous Serial Communication
ID Range 0-253
Communication speed 38400bps ~ 1 Mbps
Running degree 360° (when 0~4096)
Feedback Load, Position,Speed, Input Voltage,Current,Temperature




STS3045-PRODUCT_SPECIFICATION.pdf
