Feetech

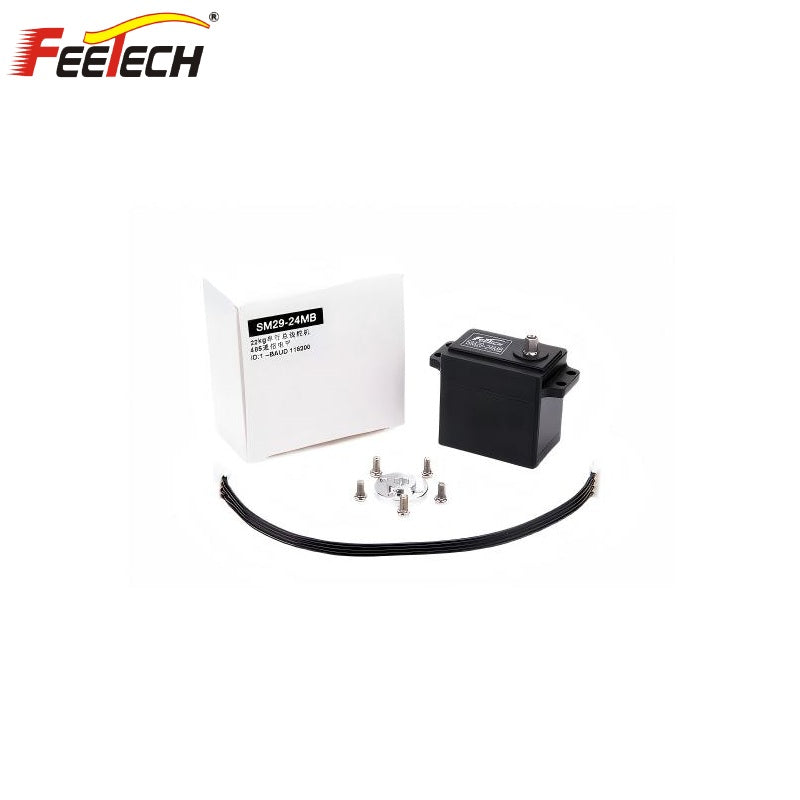

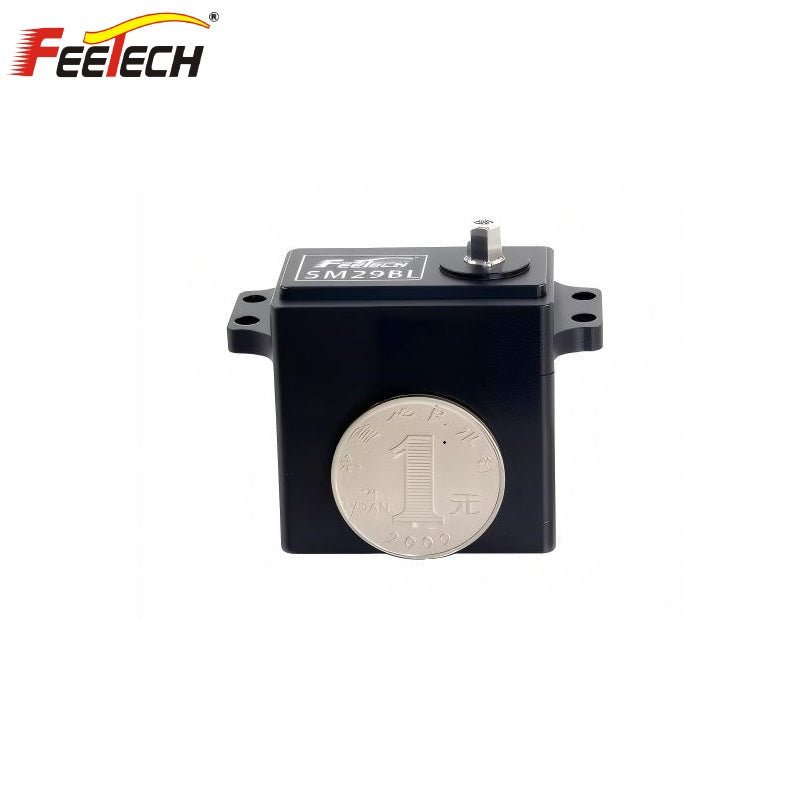

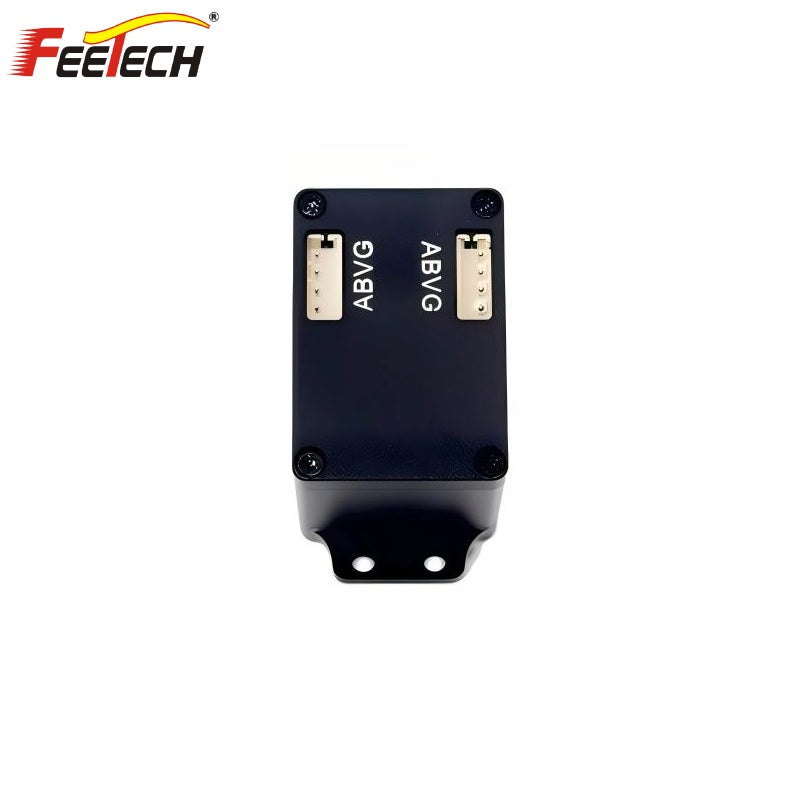

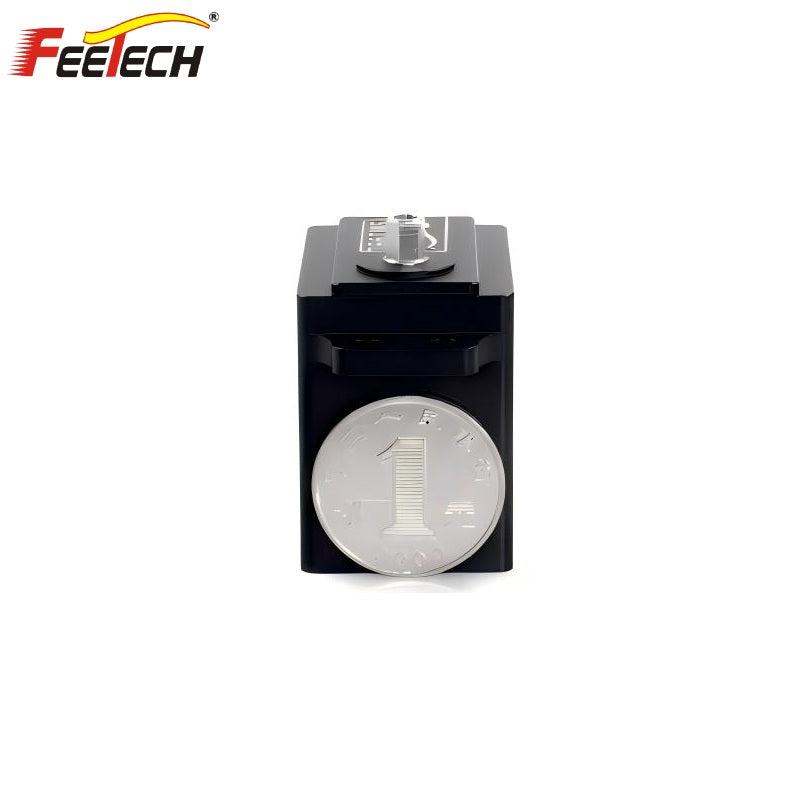

FEETECH SM2924MB Servo Motor

$120.00

Version

SM-2924-C001（24V12KG） SM-2924-C001+URT-1 Debug Board

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Model	SM-2924-C001
Product Name	24V 12kg Modbus-RTU Servo
Storage Temperature Range	-30°C~80°C
Operating Temperature Range	-15°C~80°C
Size	A: 40mm B: 28mm C: 42.3mm
Weight	102g
Gear Type	High-precision all-metal gear
Limit Angle	No Limiter
High Torque	12Kg.cm@24V
Wide Operating Voltage	12-24V
High Resolution	12-bit Encoder (360°/4096, 0.088°)
Servo Control Mode	Rotation Range 0-360° & Multi-turn Arbitrary Angle
Duplex Asynchronous	Modbus-RTU Communication Protocol
Serial Bus Connection	254 ID Addresses Optional
Baud Rate	9600-256000
Power Supply Voltage	24 VDC
Continuous Current	0.8 A
Maximum Axial Load	3N
Maximum Radial Load	10N
Operating Temperature	35°C
Quiescent Current	35mA
No-load Current	130mA
Stall Current	1200mA
PWM Frequency	16KHZ
Position Resolution	0.088°
Stall Torque	24kg.cm@24V
Maximum Speed	110RPM
