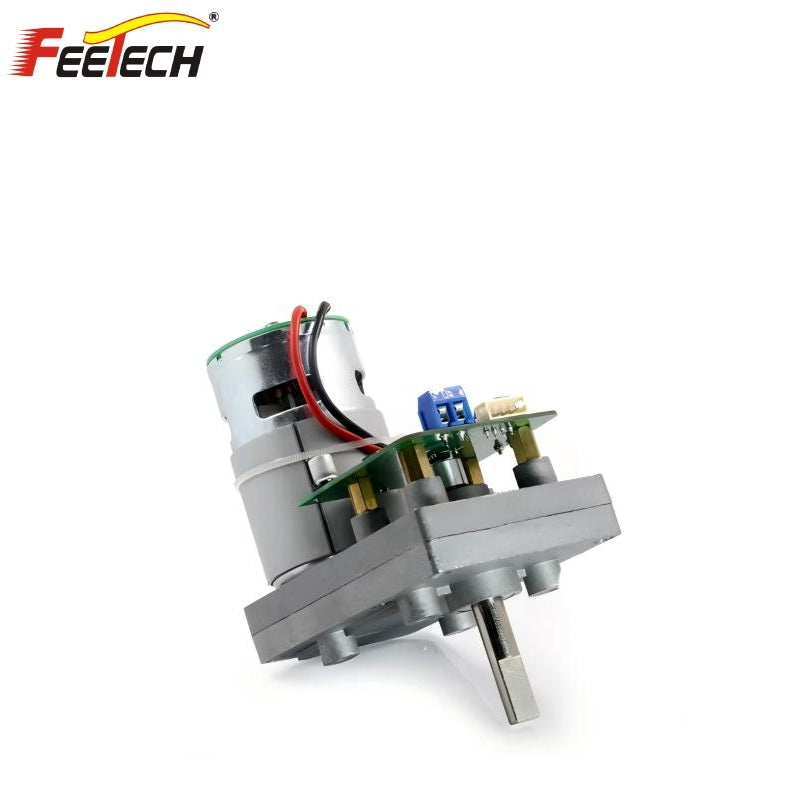

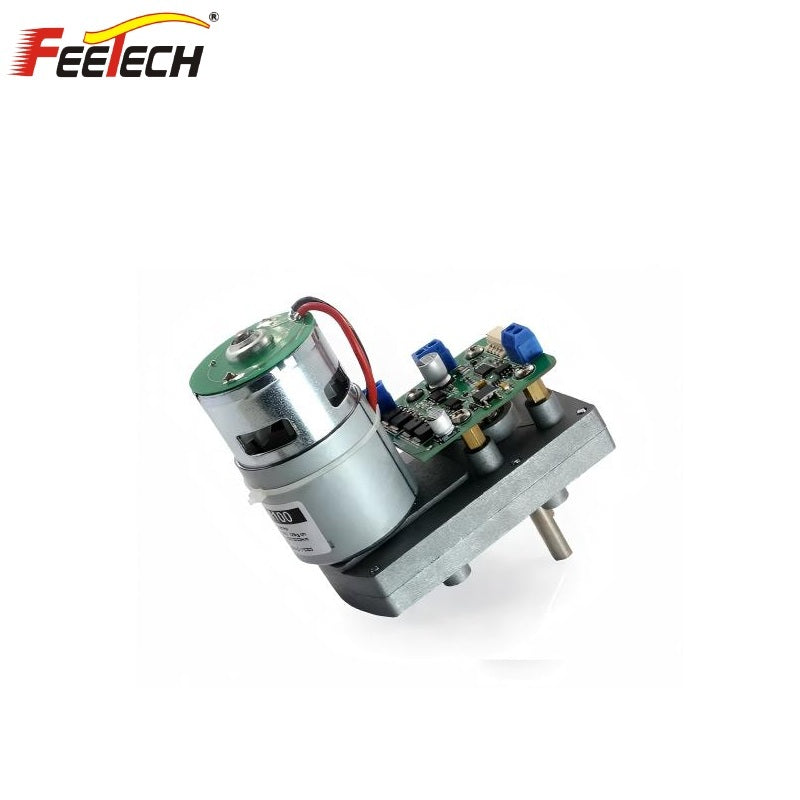

FEETECH SM1500/1000 Servo Motor
Regular price
$70.00
Unit price
FEETECH SM1500/1000 Servo Motor - SM-1500-C001 (12V180KG) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH SM1500/1000 Servo Motor
Regular priceFrom
$65.00
Unit price
FEETECH SM1500/1000 Servo Motor - SM-1500-C001 (12V180KG) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SM-1500-C001 |
| Product Name | 12V 180kg.cm 485/Magnetic Coded Serial Control BUS Servo |
| Storage Temperature Range | -30°C ~ 80°C |
| Operating Temperature Range | -20°C ~ 70°C |
| Size | A: 95.5mm, B: 65mm, C: 85mm |
| Weight | 860g ±0.2 |
| Gear Type | Metal Gear |
| Limit Angle | 360degree (4096) |
| Bearing | 2 Ball bearings |
| Horn Gear Spline | D shape dia=8.0mm |
| Case | metal |
| Connector Wire | 150mm ±5 mm |
| Motor | carbon motor |
| Operating Voltage Range | 12V |
| Idle Current (at stopped) | 15mA |
| No Load Speed | 0.67sec/60degree 15RPM |
| Running Current (at no load) | 200mA |
| Peak Stall Torque | 180kg.cm@12V |
| Rated Torque | 60kg.cm@12V |
| Stall Current | 4500mA@12V |
| Command Signal | Bus Packet Communication RS485 |
| Protocol Type | Half duplex Asynchronous Serial Communication |
| ID Range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running Degree | 360°(when 0~4096) |
| Feedback | Load, Speed, Input Voltage, Current |
| Position Sensor Resolution | 360° (when 0-4095)-CVV |
