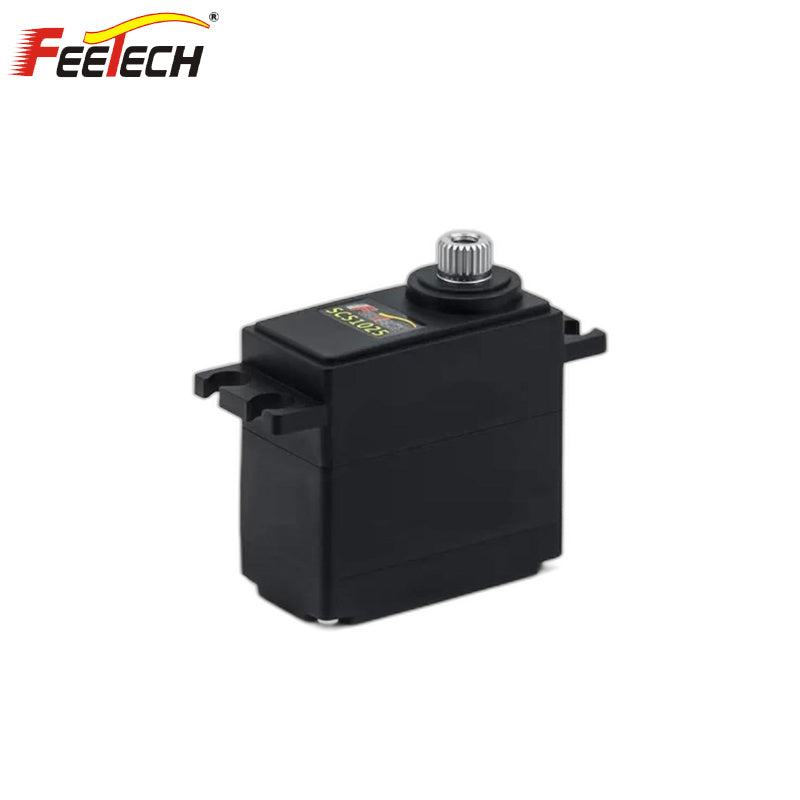

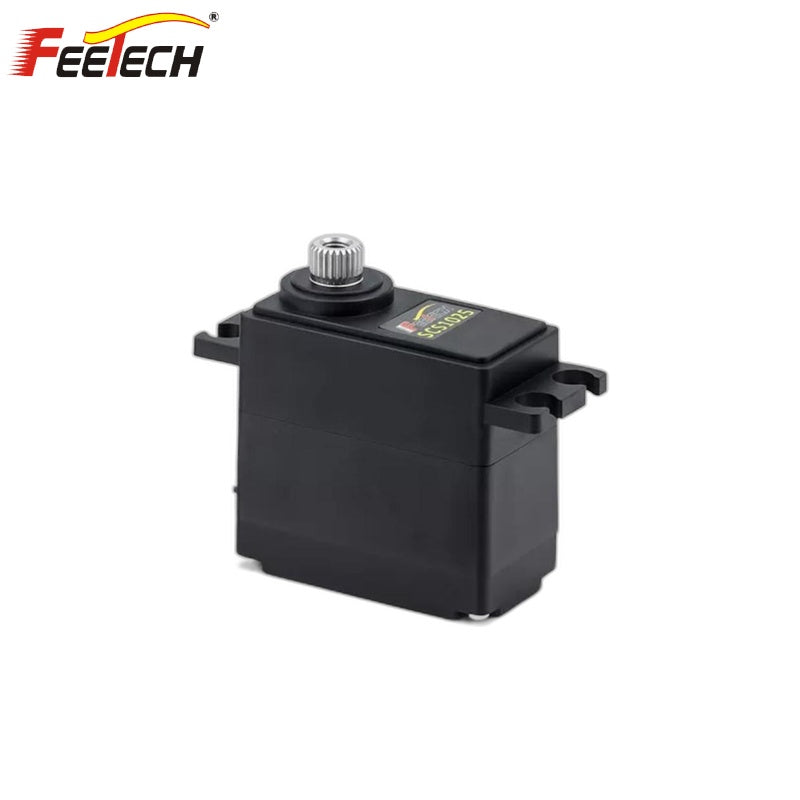

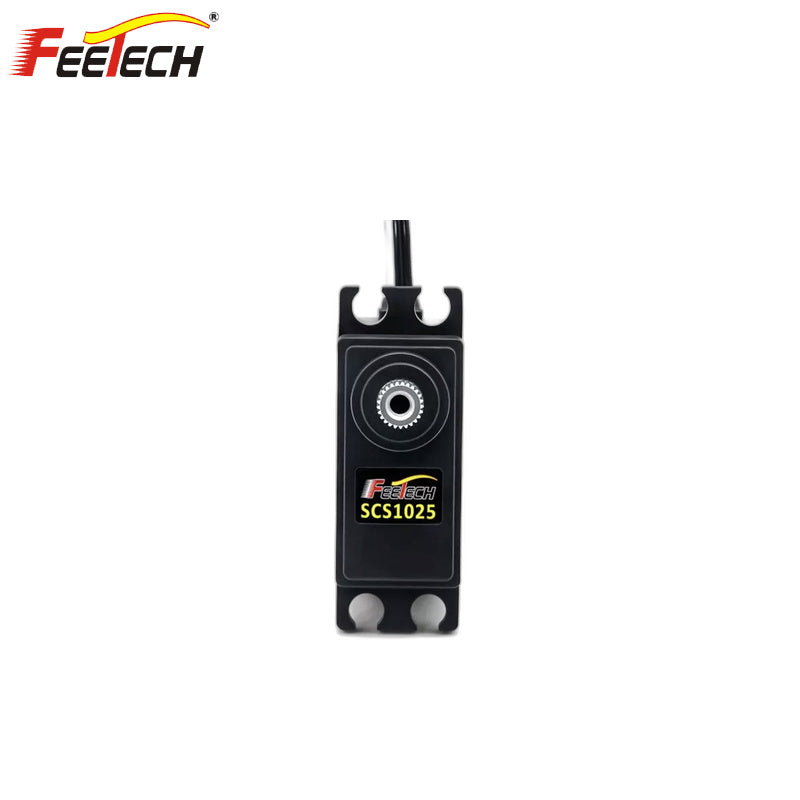

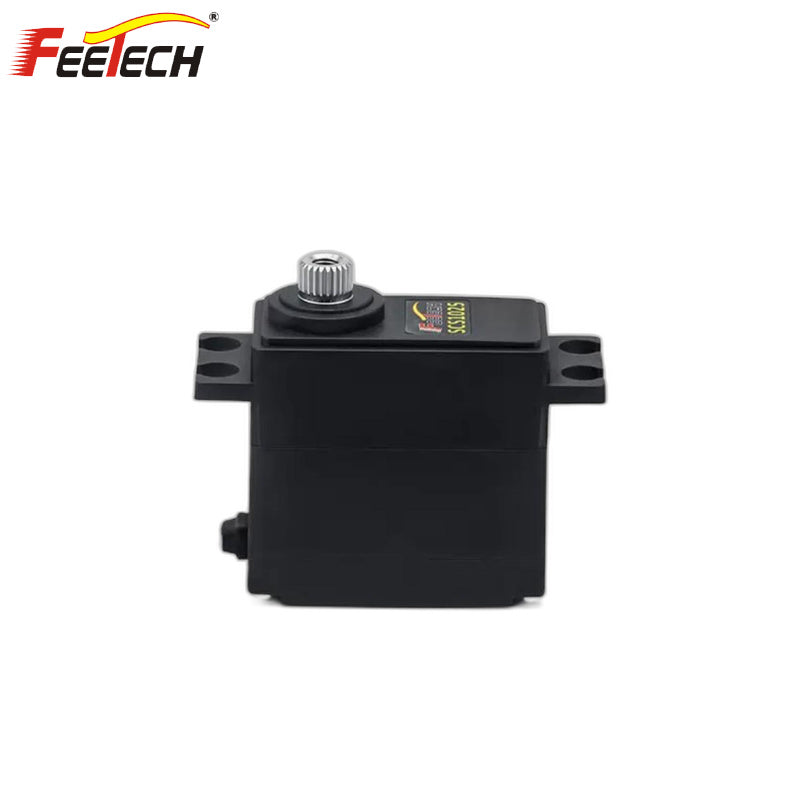

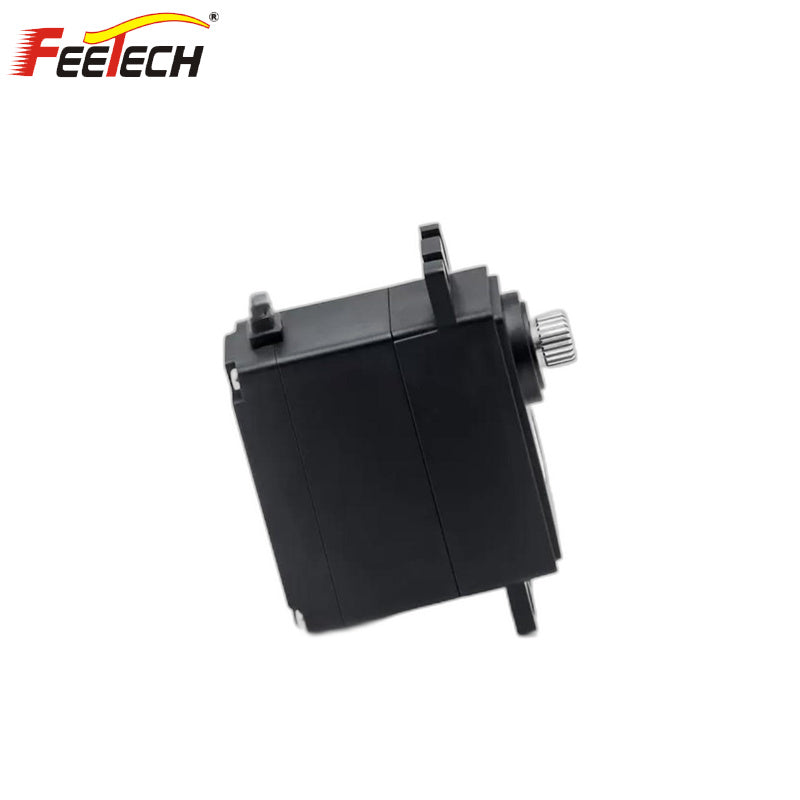

FEETECH SC1025 Servo Motor

$15.00

Version

SC-1025-C001

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Model	SC-1025-C001
Product Name	7.4V 10.5kg.cm Serial Connector
Storage Temperature Range	-20°C ~ +60°C
Operating Temperature Range	-10°C ~ +50°C
Size	A:16.8mm / B:32.4mm / C:30.9mm
Weight	26.7±2g
Gear Type	Metal
Limit Angle	No limit
Bearing Type	Ball bearings
Output Shaft	25T/5.9mm
Gear Ratio	1/361
Case Material	PA66+GF
Connector Wire	15±0.5CM
Motor Type	Core Motor
Operating Voltage Range	4.8V-7.4V
No-load Speed	0.143sec/60° (70RPM) @7.4V
No-load Current	140mA (Max) @7.4V
Peak Stall Torque	10.5kg.cm @7.4V
Rated Torque	3.5kg.cm @7.4V
Stall Current	400mA @7.4V
Command Signal	Digital Packet
Protocol Type	Half duplex Asynchronous Serial Communication
ID Range	0-253
Communication Speed	38400bps ~ 1Mbps
Running Degree	210±5° (0~1023)
Feedback
Load	Supported
Speed	Supported
Position	Supported
Resolution [deg/pulse]	0.214° (220°/1024)
Neutral Position	511
