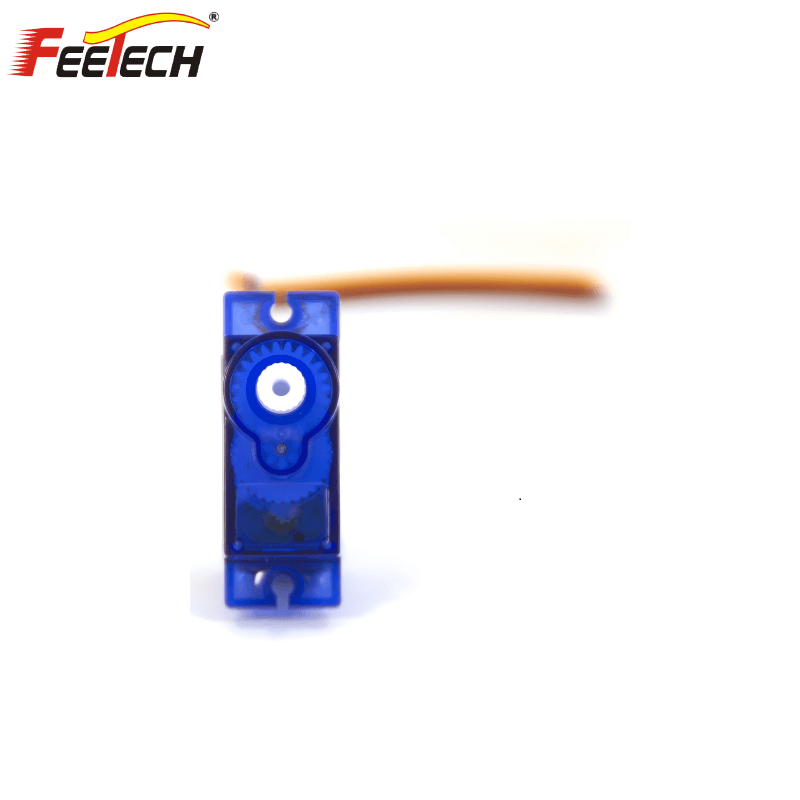

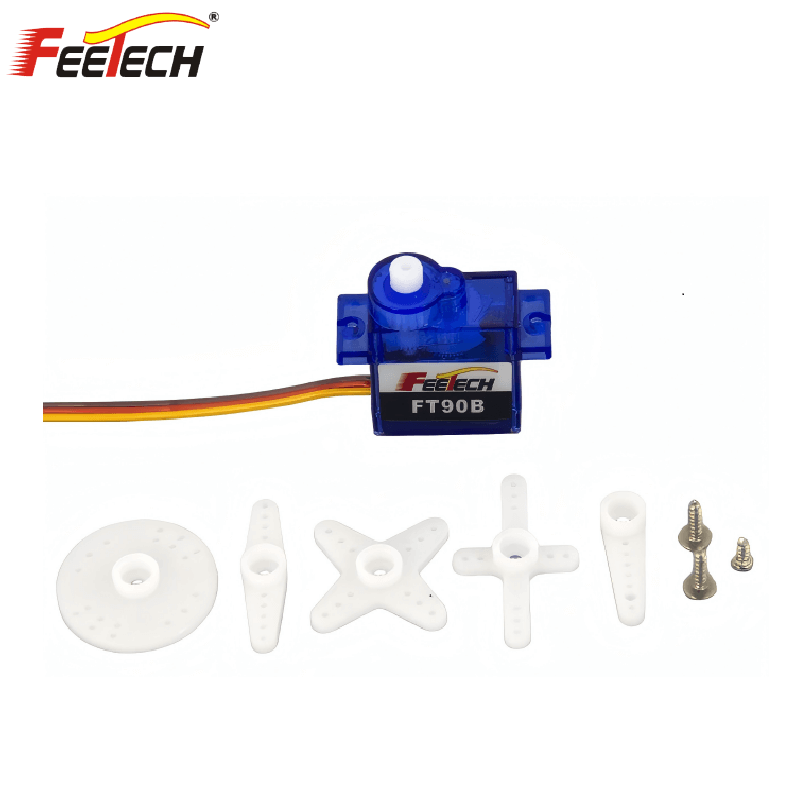

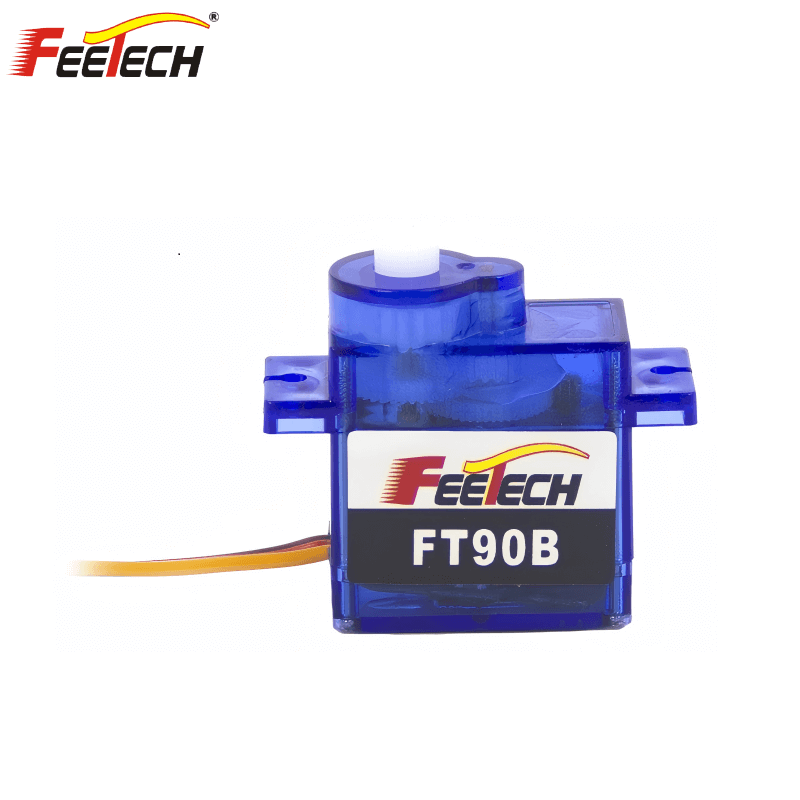

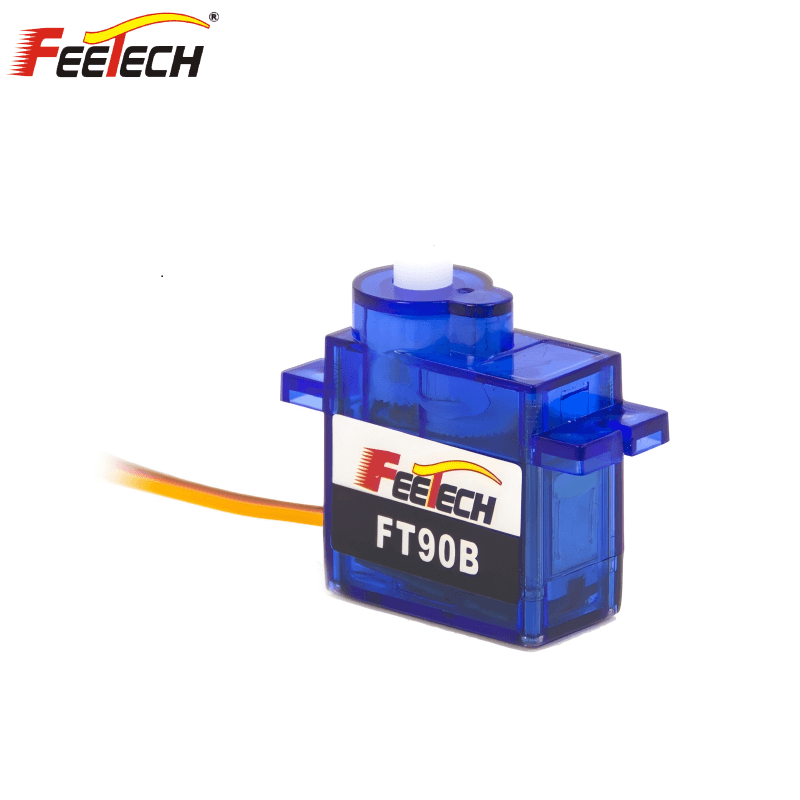

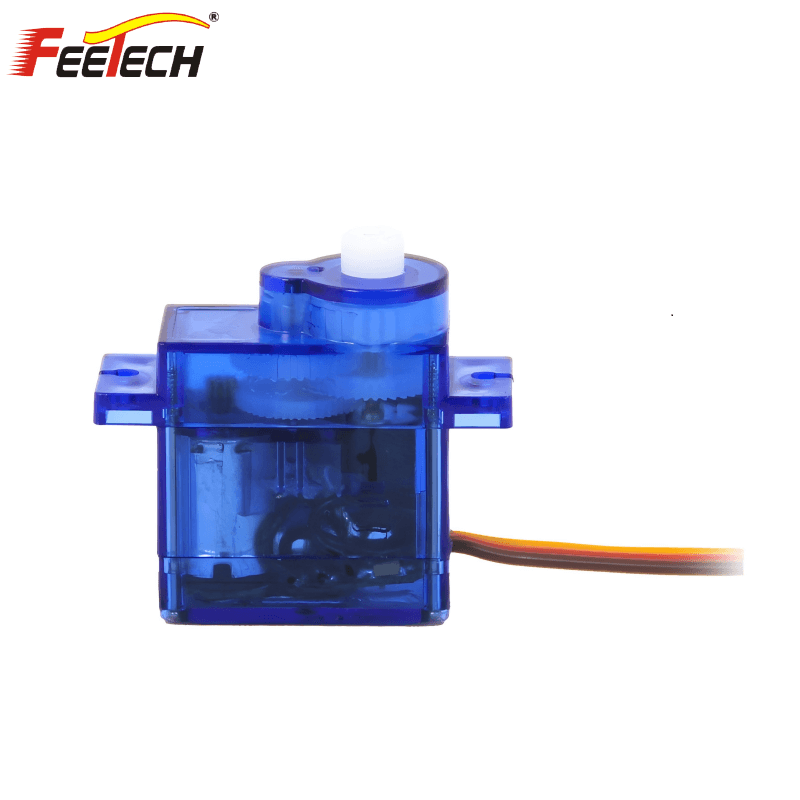

FEETECH FT90B Servo Motor
Regular price
$15.00
Unit price
/
Unavailable
FEETECH FT90B Servo Motor - FT90B is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT90B Servo Motor
Regular price
$15.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | FT90B |
| Product Name | 6V 1.5kg.cm Digital Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -20℃～70℃ |
| Size | A：22.5mm B：12.1mm C：22.4mm |
| Weight | 10.5g |
| Gear type | Plastic Gear |
| Limit angle |
180degree |
| Bearing |
NO Ball bearings |
| Horn gear spline | 21T(4.86) |
| Horn type | Plastic,POM |
| Case | PC |

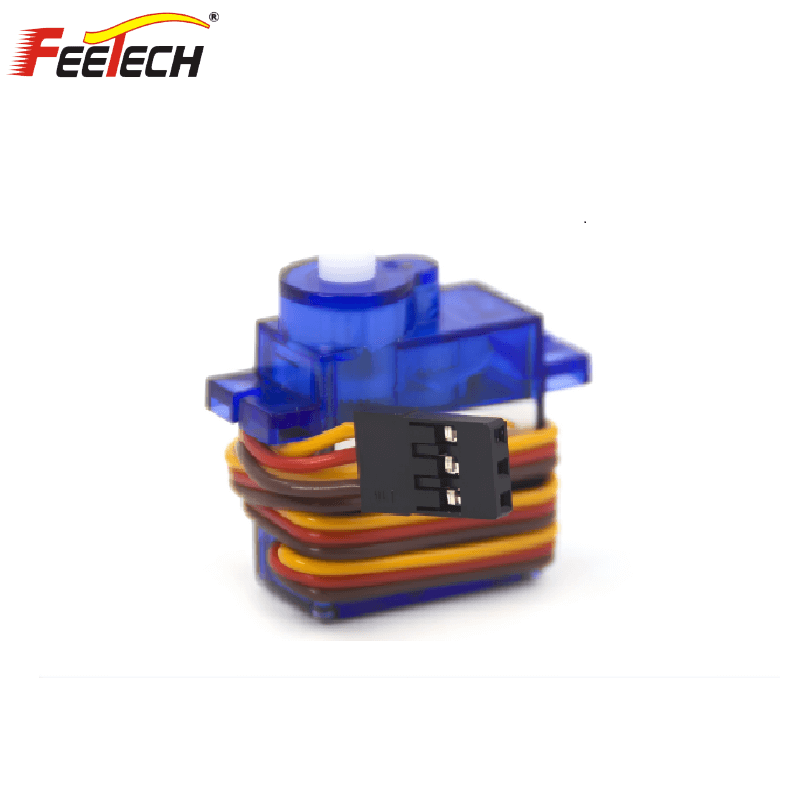

| Connector wire | 250mm ±5 mm（ JR）(Brown ,Red and Orange) |
| Motor |
Metal brush motor |
| Operating Voltage Range | 3-6V |
| Idle current(at stopped) | 4mA-6mA |
| No load speed | 110RPM@6V |
| Runnig current(at no load) | 120 mA @6V |
| Peak stall torque | 1.5kg.cm@6V |
| Rated torque | 0.5kg.cm@6V |
| Stall current | 800mA@6V |
| Running degree | 180°(when 500～2500 μ sec) |
