Feetech | SKU:

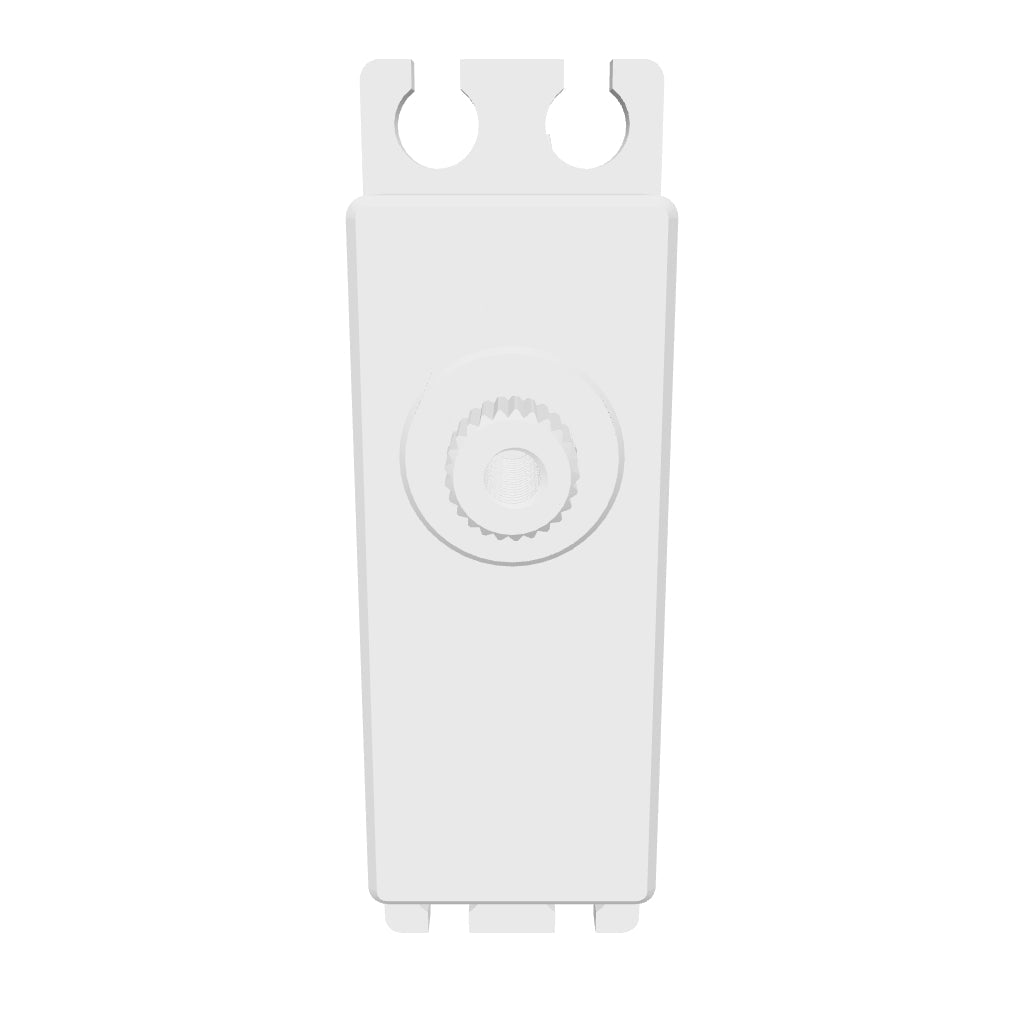

FEETECH FT9025M Servo Motor
Regular price
$40.00
Unit price
/
Unavailable
FEETECH FT9025M Servo Motor - FT9025M (6V8.5KG) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT9025M Servo Motor
Regular price
$40.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FT9025M |
| Product Name | 6V 8.5kg.cm |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -20℃～60℃ |
| Size | A：36mm B：15mm C: 29.2mm |
| Weight | 35.2± 1g |
| Gear type | Metal Gear |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Case | Alumi num |
| Connector wire | 25CM |
| Motor |
Coreless Motor |
| Operating Voltage Range | 4.8-6V |
| Idle current(at stopped) | 6MA@6V |
| No load speed | 0.133sec/60°@6V |
| Runnig current(at no load) | 200mA@6V |
| Peak stall torque | 8.5kg.cm@6V |
| Rated torque | 2.8kg.cm@6V |
| Stall current | 1.4A@6V |
| Command si gnal | Pulse width modulation |
| Amplifier type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180°(at 500→2500μsec) |
| Dead band width | ≤4 μ sec |
| Rotating direction | Counterclockwi se (1500→2000 μ sec) |
