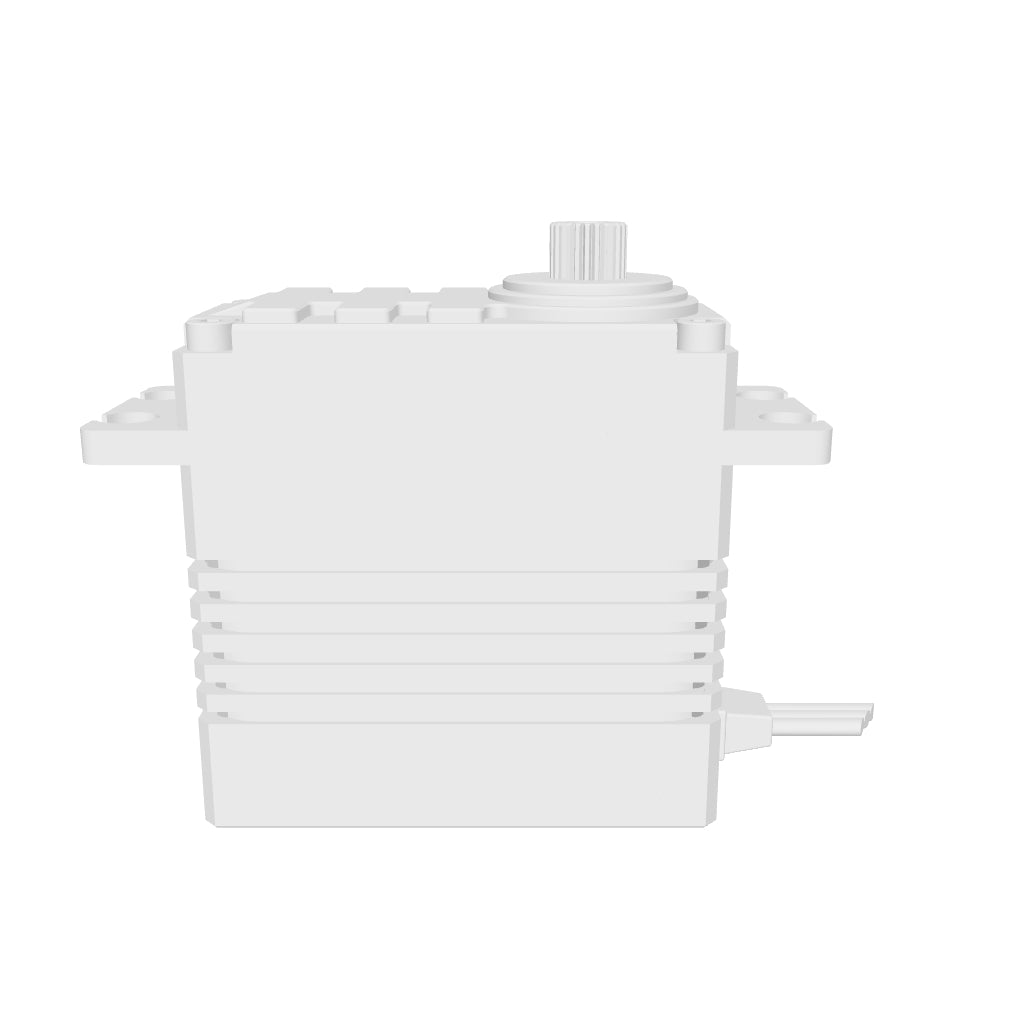

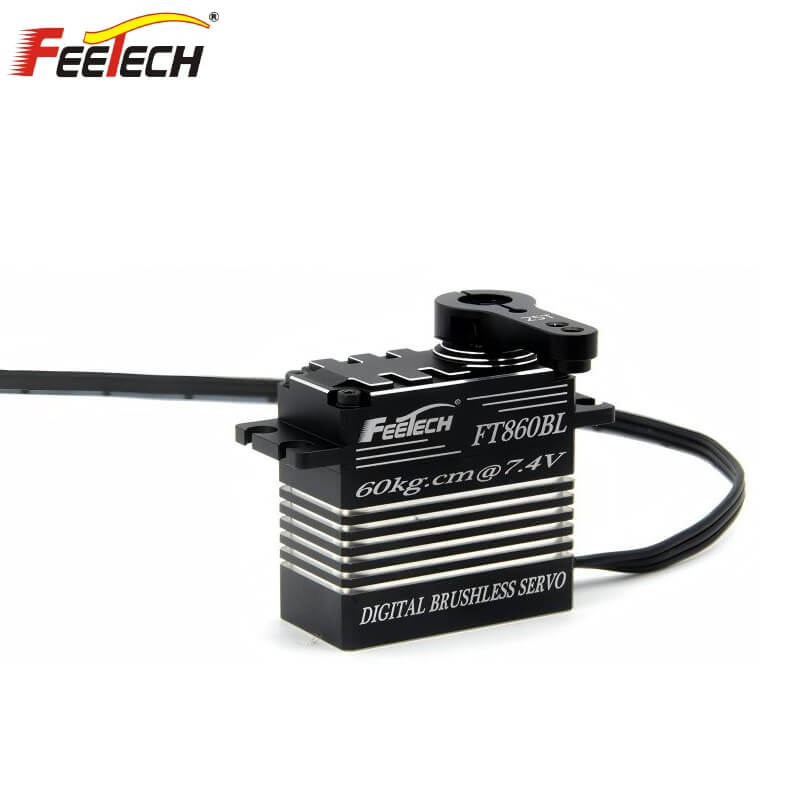

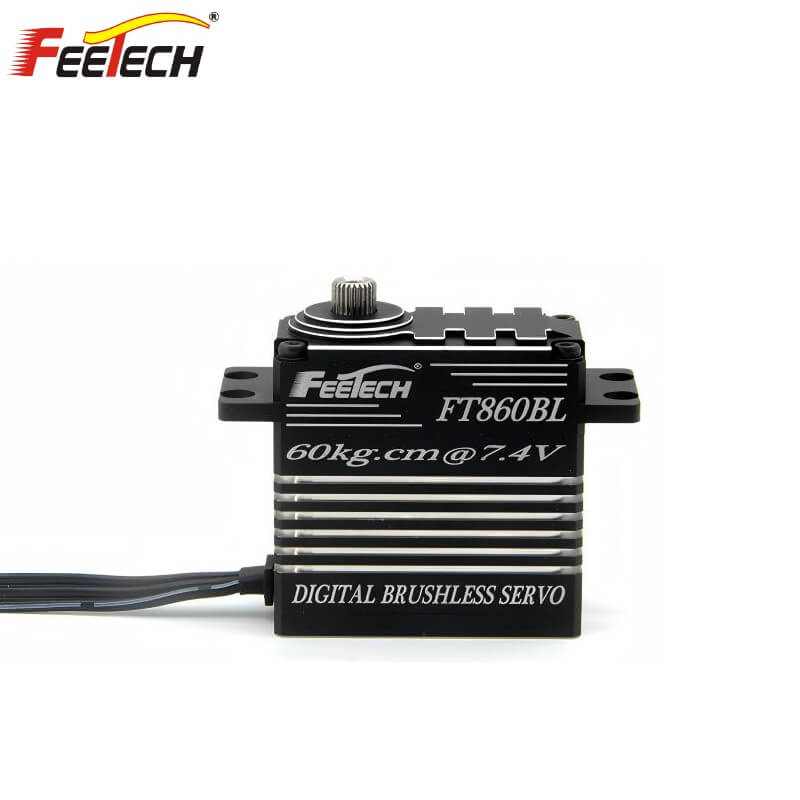

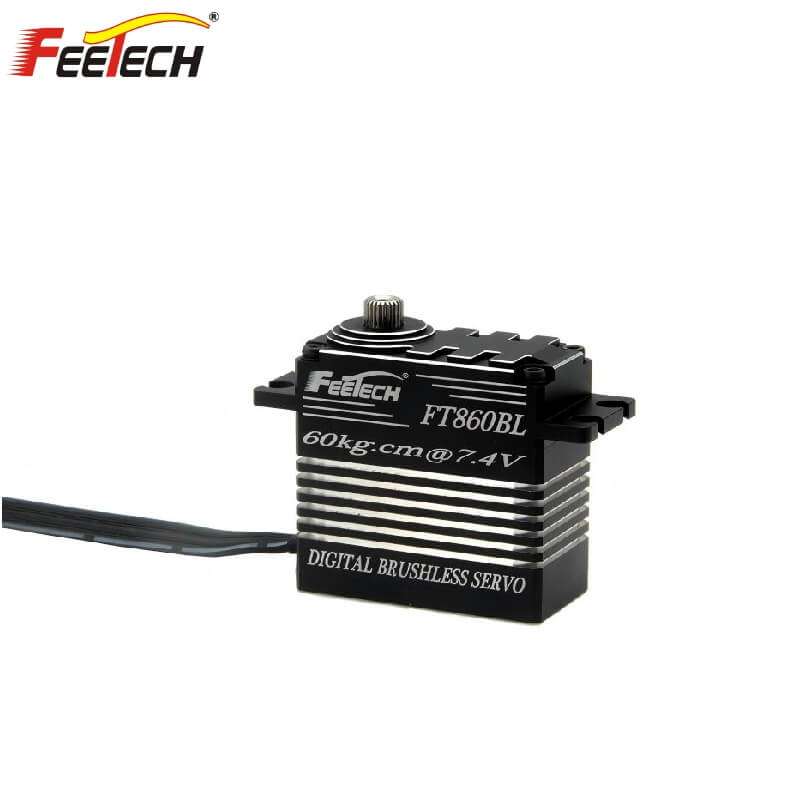

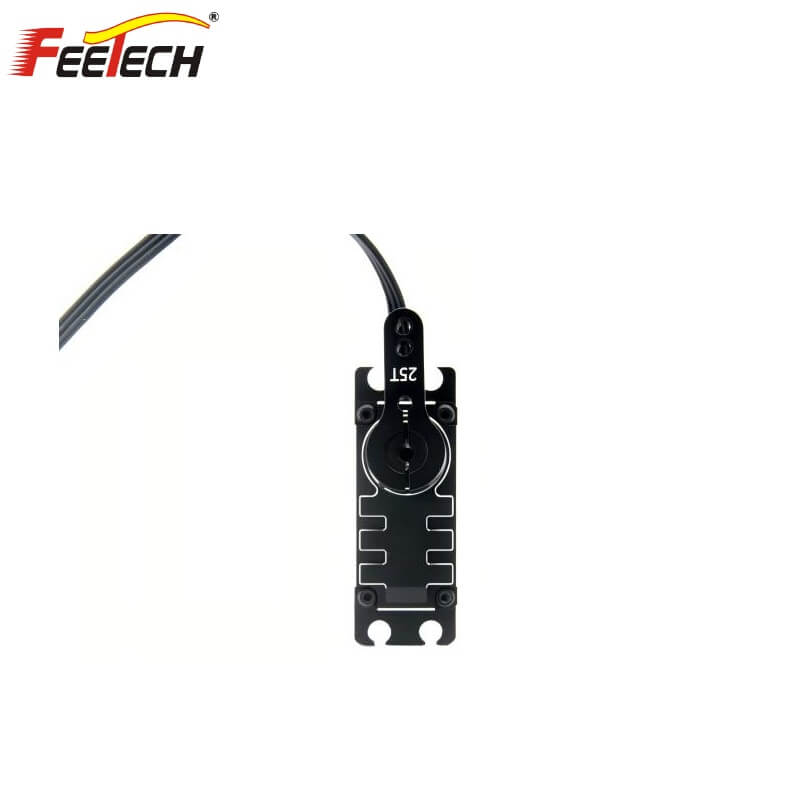

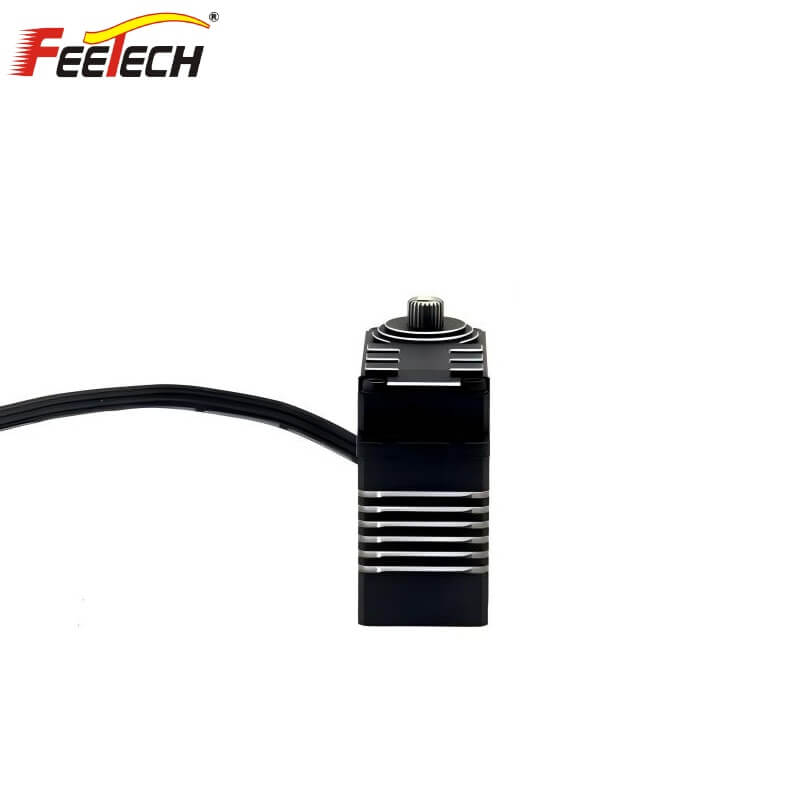

FEETECH FT860B Servo Motor
Regular price
$110.00
Unit price
FEETECH FT860B Servo Motor - FT860B-C001 (8.4V/70kg) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT860B Servo Motor
Regular price
$110.00
Unit price
FEETECH FT860B Servo Motor - FT860B-C001 (8.4V/70kg) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | FT-860B-C001 |
| Product Name | 7.4V 60kg.cm 180 Degree Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -20℃～60℃ |
| Size | A：40mm B：20mm C: 39.9mm |
| Weight | 84g±2g |
| Gear type | Steel |
| Limit angle |
No limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Gear Ratio | 1/356 |
| Case | Aluminum |
| Connector wire | 30±0.5CM |
| Motor |
Brushless Motor |
| Operating Voltage Range | 6-9V |
| Idle current(at stopped) | 12mA@8.4V |
| No load speed | 0.086sec/60°(115RPM)@8.4V |
| Runnig current(at no load) | 490mA@8.4V |
| Peak stall torque | 70kg.cm@8.4V |
| Rated torque | 23kg.cm@8.4V |
| Command signal | Pulse width modulation |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180±5°(at 500→2500μsec) |
| Dead band width | ≤4 μ sec |
| Rotating direction | Counterclockwise (1500→2500 μ sec) |
