Feetech | SKU:

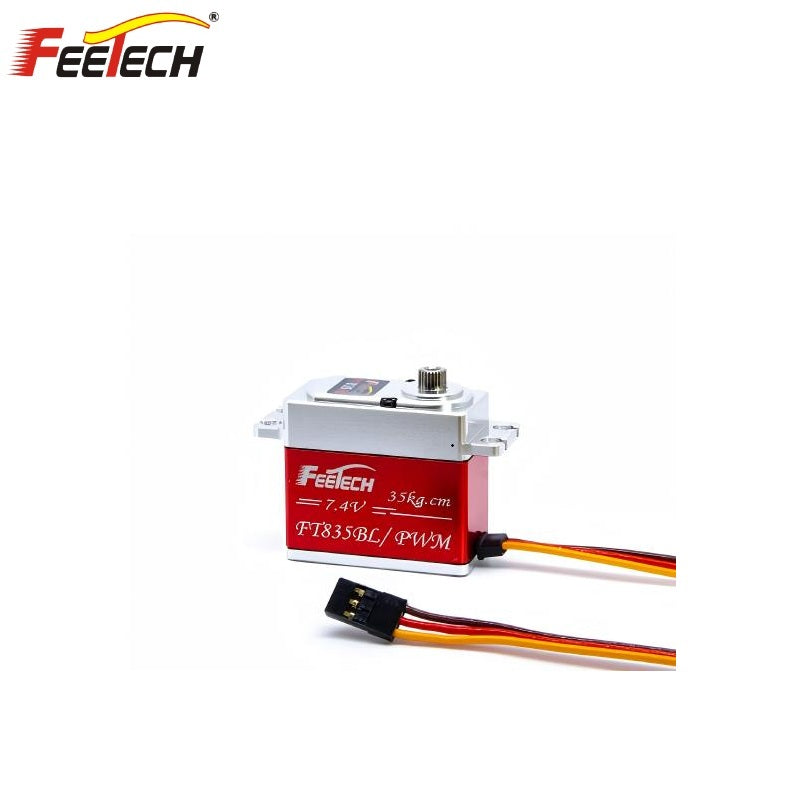

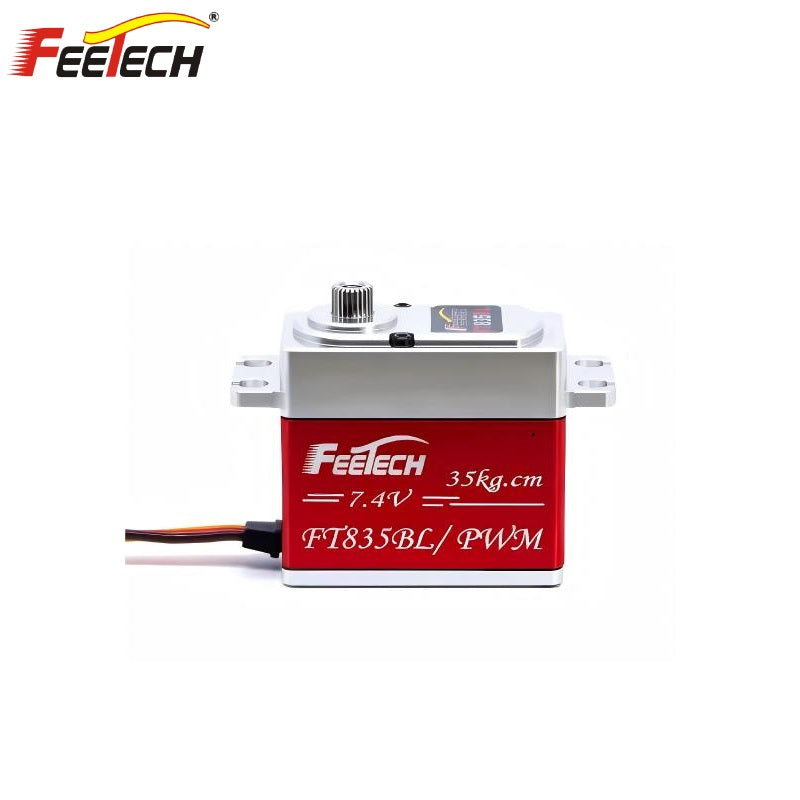

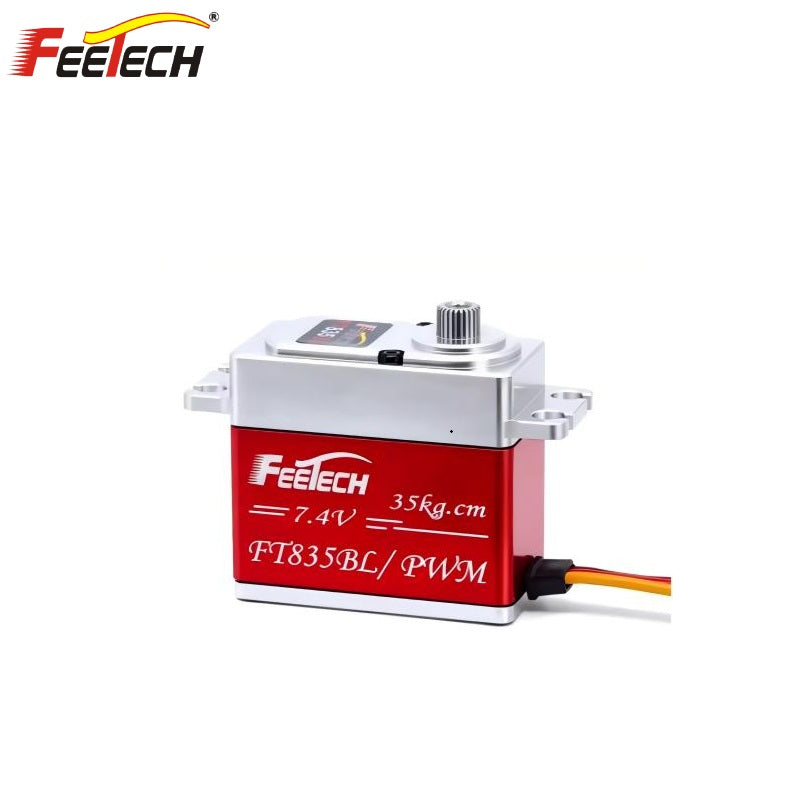

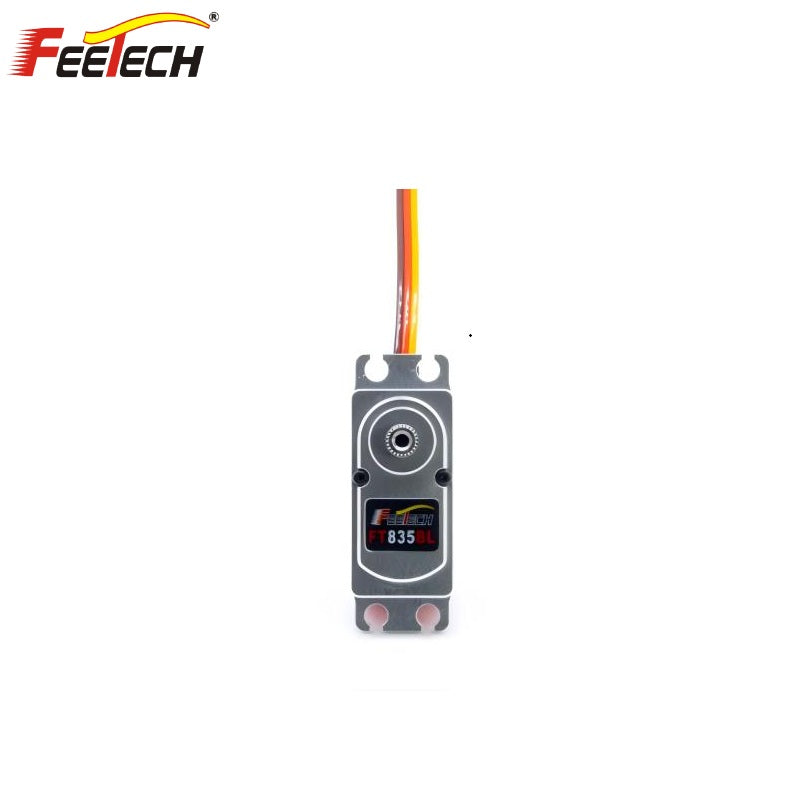

FEETECH FT835BL Servo Motor
Regular price
$85.00
Unit price
FEETECH FT835BL Servo Motor - FT-835B-C001 (7.4V35KG) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT835BL Servo Motor
Regular price
$85.00
Unit price
FEETECH FT835BL Servo Motor - FT-835B-C001 (7.4V35KG) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | |
|---|---|
| Model | FT835BL |
| Product Name | 6V 30kg.cm Brushless Servo |
| Storage Temperature Range | -30°C ~ 80°C |
| Operating Temperature Range | -15°C ~ 70°C |
| Size | A: 40mm, B: 20mm, C: 36.4mm |
| Weight | 77.2±1g |
| Gear Type | Steel |
| Limit Angle | 200 degree |
| Bearing | Ball bearings |
| Horn Gear Spline | 25T/5.9mm |
| Case | Aluminum |
| Connector Wire | 30cm |
| Motor | Brushless Motor |
| Operating Voltage Range | 4V-8.4V |
| Idle Current (at stopped) | 6mA@8.4V |
| No Load Speed | 0.125sec/60°@8.4V |
| Running Current (at no load) | 230mA@8.4V |
| Peak Stall Torque | 40kg.cm@8.4V |
| Rated Torque | 13.3kg.cm@8.4V |
| Stall Current | 4.5A@8.4V |
| Command Signal | Pulse width modification |
| Control System Type | Digital comparator |
| Pulse Width Range | 500-2500 μsec |
| Stop Position | 1500 μsec |
| Running Degree | 180°±5°(at 500→2500μsec) |
| Dead Band Width | ≤4 μsec |
| Rotating Direction | Counterclockwise (at 1500→2000 μsec) |
