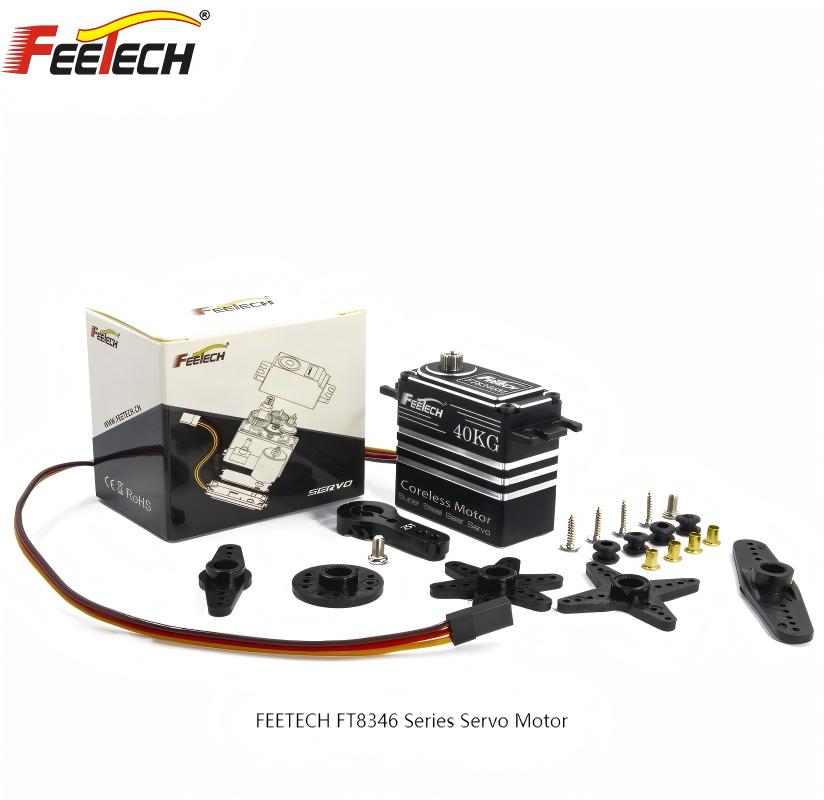

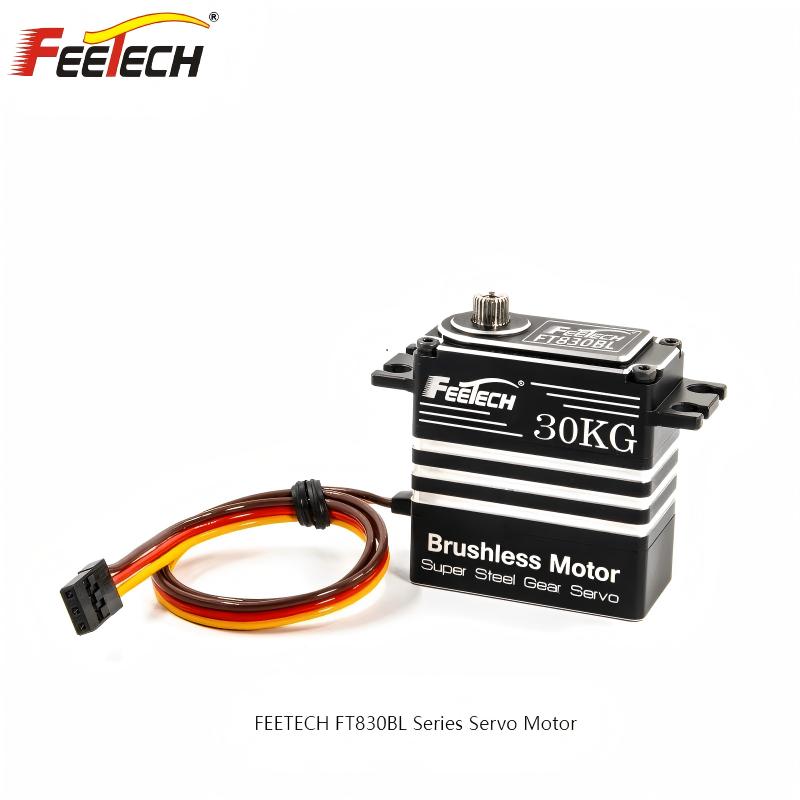

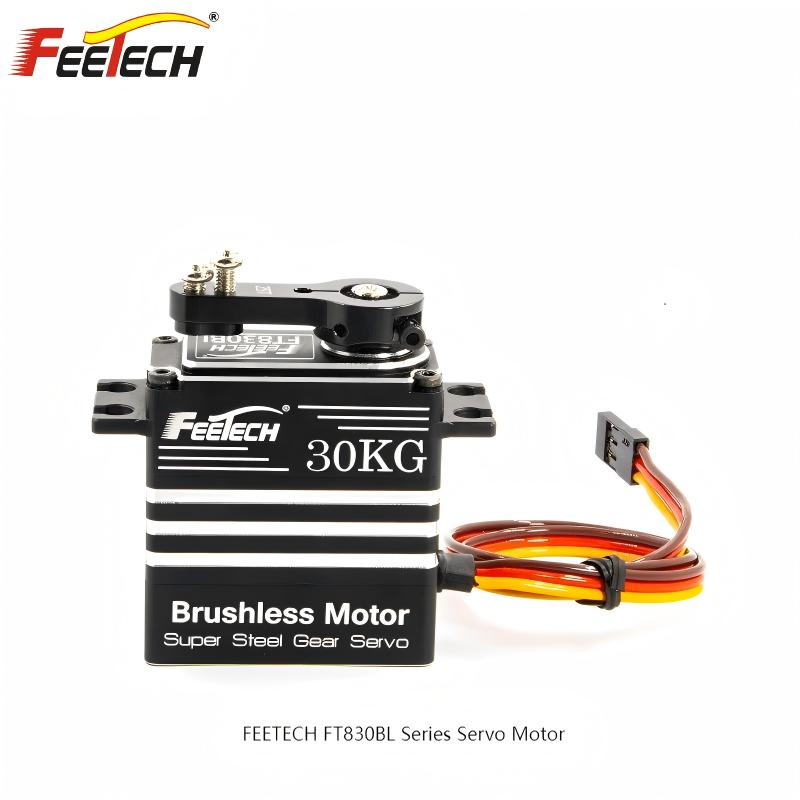

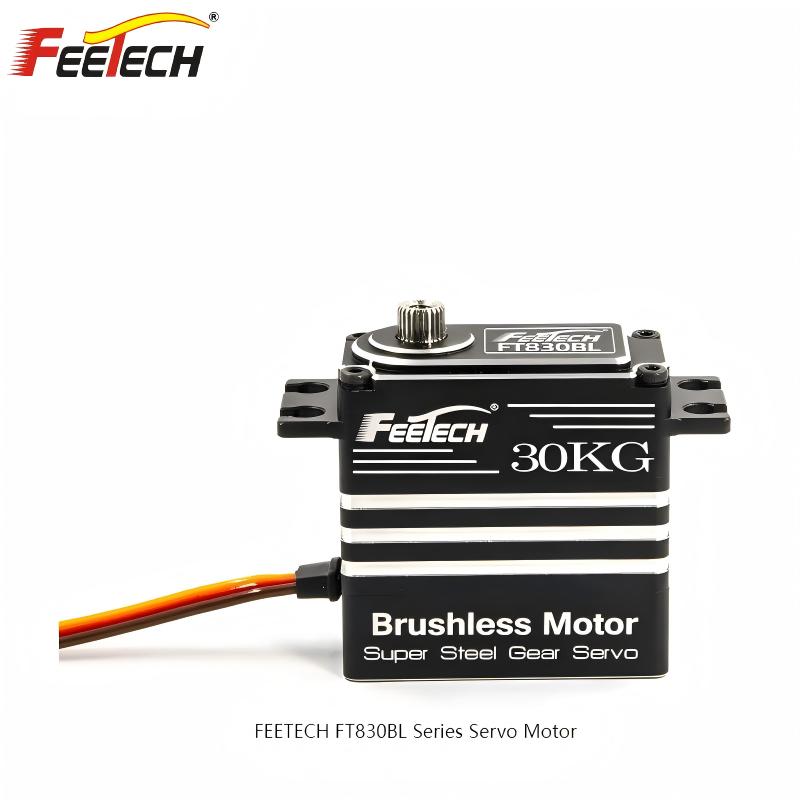

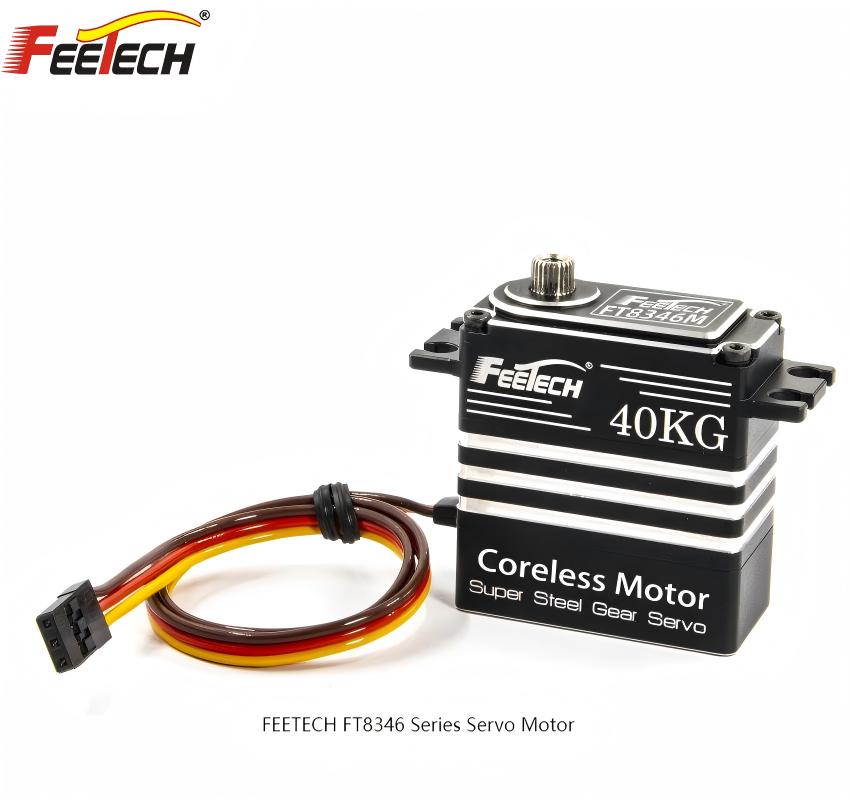

FEETECH FT83 Series Servo Motor
Regular price
$75.00
Unit price
FEETECH FT83 Series Servo Motor - FT-830BL-C001 (7.4V30KG) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT83 Series Servo Motor
Regular priceFrom
$75.00
Unit price
FEETECH FT83 Series Servo Motor - FT-830BL-C001 (7.4V30KG) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value |
|---|---|---|---|
| Model | FT830BL | FT8346M | FT846BL |
| Product Name | PWM digital 180-degree Metal Case Steel Gear Brushless Servo | 7.4V 40kg.cm 360-degree Metal Case Steel Gear Coreless Servo | 7.4V 40kg.cm 180-degree Metal Case Steel Gear Brushless Servo |
| Storage Temperature Range |
-30℃～80℃ |
-30℃～80℃ | -30℃～80℃ |
| Operating Temperature Range | -20℃～60℃ | -20℃～60℃ | -20℃～60℃ |
| Size | A：40mm B：20mm C: 38.95mm | A：40mm B：20mm C: 43.05mm | A：40mm B：20mm C: 38mm |
| Weight | 84.5± 1g | 91.5± 1g | 91.5± 1g |
| Gear type | Steel | Steel | Steel |
| Limit angle |
NO limit |
NO limit | NO limit |
| Bearing |
Ball bearings |
Ball bearings | Ball bearings |
| Horn gear spline | 25T/5.9mm | 25T/5.9mm | 25T/5.9mm |
| Gear Ratio | 1/378 | 1/378 | 1/378 |
| Case | Aluminium | Aluminium | Aluminium |
| Connector wire | 30CM | 30CM | 30CM |
| Motor |
Brushless Motor |
Coreless Motor | Brushless Motor |
| Operating Voltage Range | 6V-7.4V | 4V-8.4V | 4V-8.4V |
| Idle current (stopped) | 6MA@7.4V | 6mA@7.4V | 6MA@7.4V |
| No load speed | 0.135sec/60°@7.4V | 0.22sec/60°@7.4V | 0.151sec/60°@7.4V |
| Runnig current(at no load) | 180mA@7.4V | 300mA@7.4V | 300mA@7.4V |
| Peak stall torque | 30kg.cm@7.4V | 40kg.cm@7.4V | 40kg.cm@7.4V |
| Rated torque | 10kg.cm@7.4V | 13.5kg.cm@7.4V | 13.5kg.cm@7.4V |
| Stall current | 4.2A@7.4V | 3.1A@7.4V | 4.4A@7.4V |
| Command signal | Pulse width modification | Pulse width modification | Pulse width modification |
| Amplifier type | Digital comparator | Digital comparator | Digital comparator |
| Pulse width range | 500~2500 μ sec | 500~2500 μ sec | 500~2500 μ sec |
| Stop position | 1500 μ sec | 1500 μ sec | 1500 μ sec |
| Running degree | 180°(at 500→2500μsec) | 360°(at 500→2500μsec) | 180° (at 500→2500 μ sec) |
| Dead bandwidth |
≤4 μ sec |
≤4 μ sec | ≤4 μ sec |
| Rotating direction | Counterclockwise see (1500→2000 μ sec) | Counterclockwi se (1500→2000 μ sec) | Counterclockwi se (1500→2000 μ sec) |
