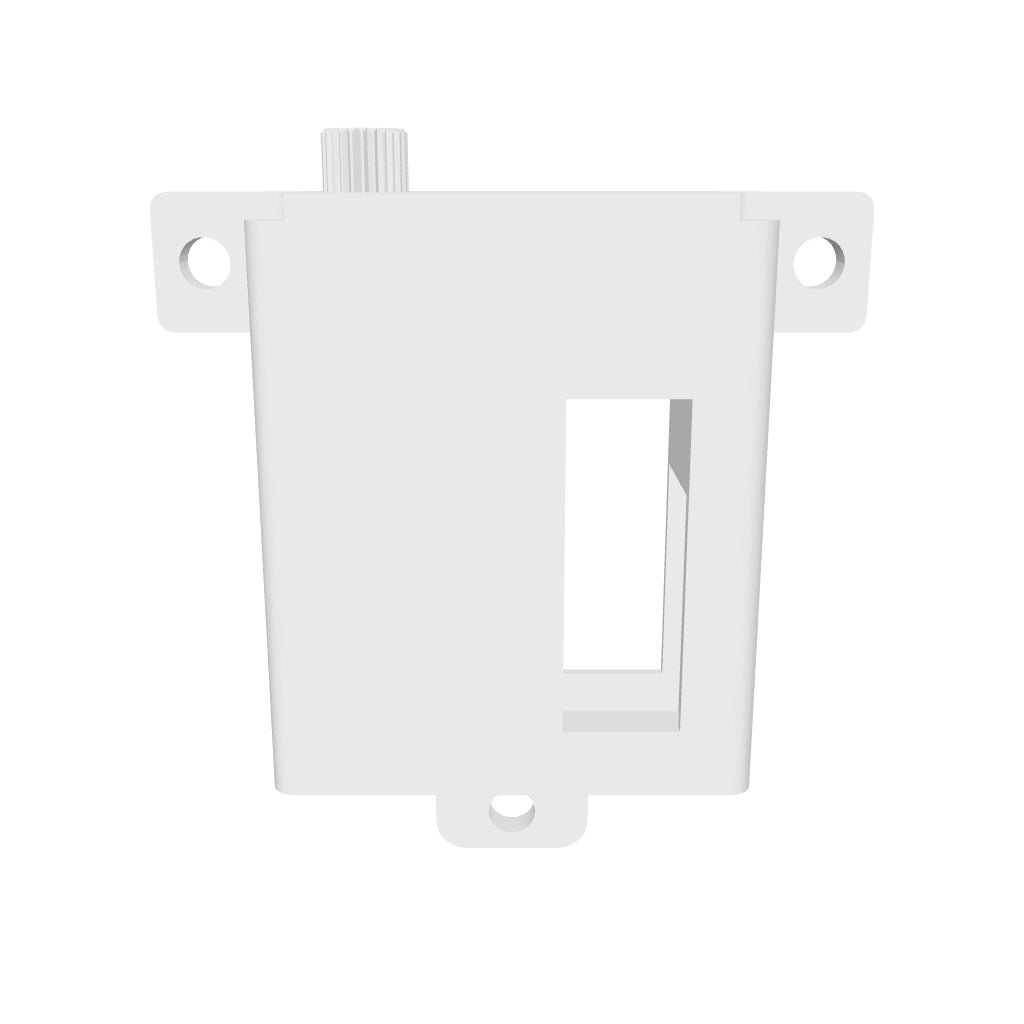

FEETECH FT3325P Servo Motor
Regular price
$15.00
Unit price
/
Unavailable
FEETECH FT3325P Servo Motor - FT-3325-C003 (Plastic Shell 6V 7KG) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT3325P Servo Motor
Regular price
From
$15.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FT3325P |
| Product Name | 6V  7kg.cm120 Degree Digital Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -15℃～70℃ |
| Size | A：30mm B：10mm C：35.5mm . |
| Weight | 26.2± 1g |
| Gear type | Metal Gear |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T |
| Case | ABS |
| Connector wire | 15CM |
| Motor |
Core Motor |
| Operating Voltage Range | 6-8.4V |
| Idle current(at stopped) | 6mA@6V |
| No load speed | 0.13sec/60degree(105RPM)@6V |
| Runnig current(at no load) | 150mA@6V |
| Peak stall torque | 5.8kg.cm@6V |
| Rated torque | 1.9kg.cm@6V |
| Stall current | 1000mA@6V |
| Command si gnal | Pulse width modulation |
| Amplifier type | Digital comparator |
| Pulse width range | 900→2100 μsec |
| Stop position | 1500 μ sec |
| Running degree | 120°(at 900→2100μsec) |
| Dead band width | 2 μsec |
| Rotating direction | Counterclockwise(1000→2000 μsec) |
