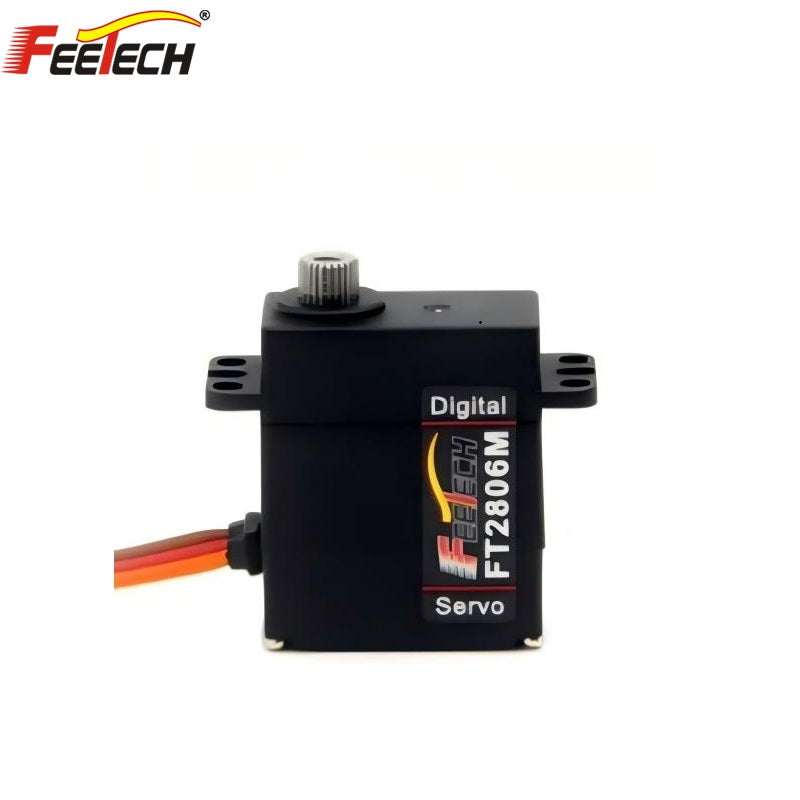

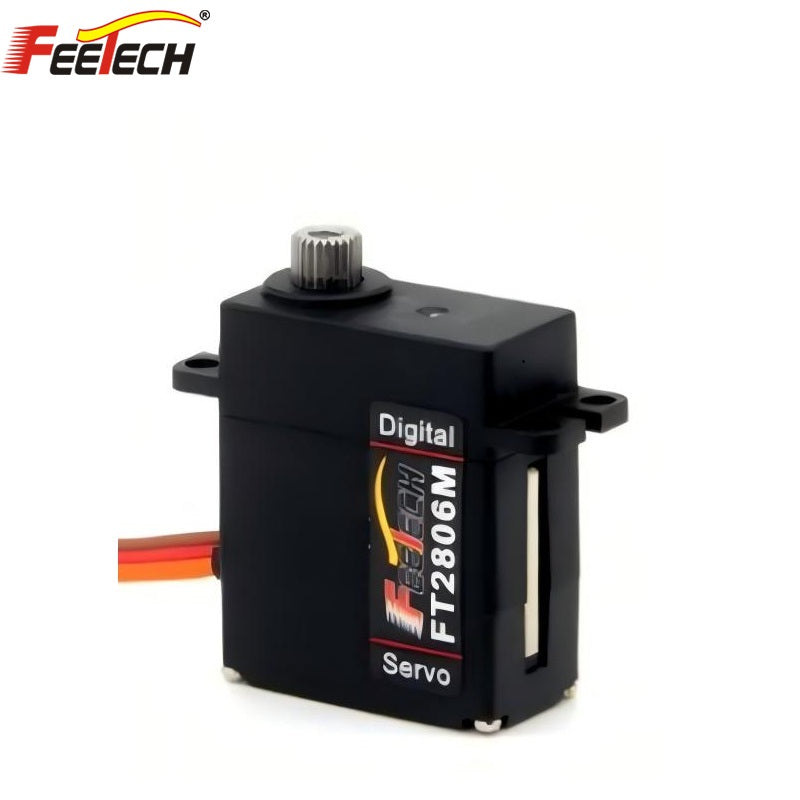

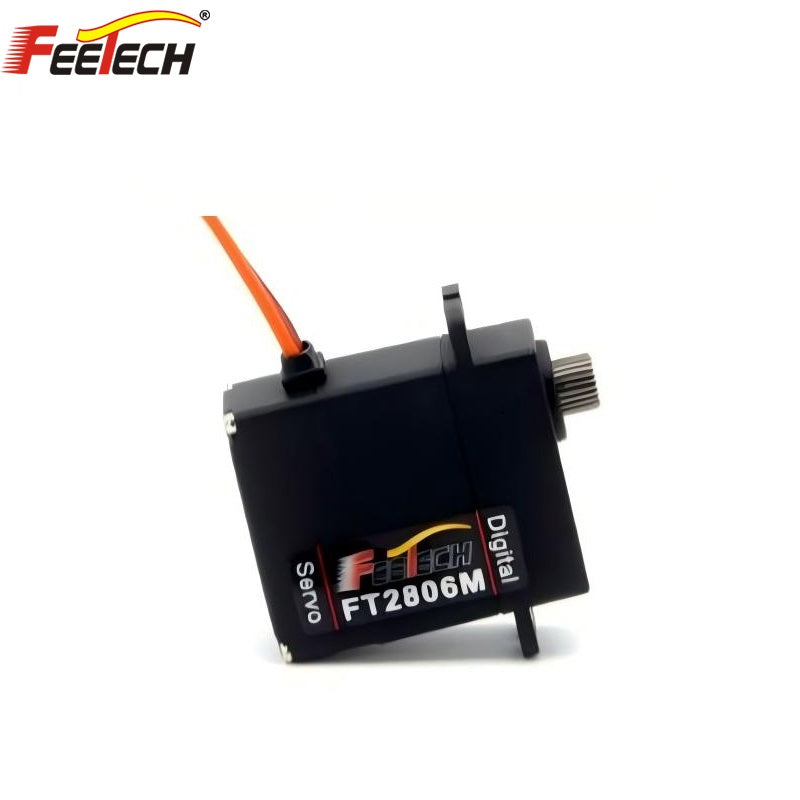

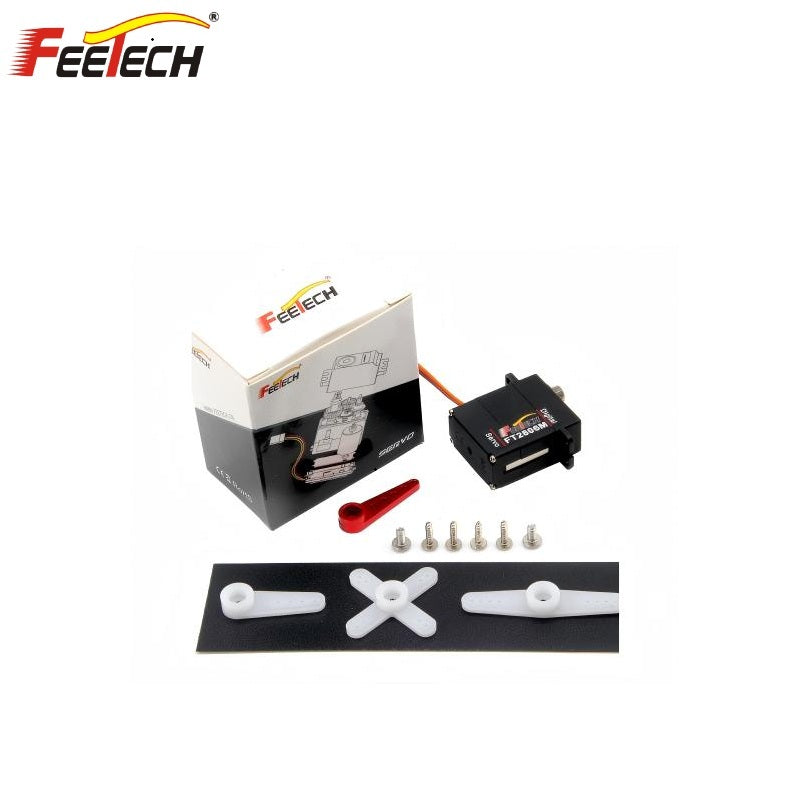

FEETECH FT2806 Servo Motor
Regular price
$20.00
Unit price
FEETECH FT2806 Servo Motor - FT-2806-C001 (7.4V7.2KG) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT2806 Servo Motor
Regular price
$20.00
Unit price
FEETECH FT2806 Servo Motor - FT-2806-C001 (7.4V7.2KG) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | |
|---|---|
| Model | FT-2806-C001 |
| Product Name | 6V 6kg-cm Digital Servo |
| Storage Temperature Range | -30°C ~ 70°C |
| Operating Temperature Range | -20°C ~ 60°C |
| Size | A: 23mm, B: 12mm, C: 27.5mm |
| Weight | 18.3±2g |
| Gear Type | Metal |
| Limit Angle | No limit |
| Bearing | Ball bearings |
| Horn Gear Spline | 25T/4.95mm |
| Horn Type | Plastic,POM |
| Case | PA66+GF |
| Connector Wire | 25±1CM |
| Motor | Coreless Motor |
| Operating Voltage Range | 4.8-8.4V |
| Idle Current (at stopped) | 6mA@7.4V |
| No Load Speed | 0.073 sec/60°@7.4V |
| Running Current (at no load) | 80mA@7.4V |
| Peak Stall Torque | 7.2kg.cm@7.4V |
| Rated Torque | 2.4kg.cm@7.4V |
| Stall Current | 2.0A@7.4V |
| Command Signal | Pulse width modification |
| Amplifier Type | Digital Controller |
| Pulse Width Range | 500–2500 μsec |
| Neutral Position | 1500 μsec |
| Running Degree | 180±5°(at 500–2500μsec) |
| Dead Band Width | ≤4 μsec |
| Rotating Direction | Counterclockwise(at 500–2500 μsec) |
