Feetech | SKU:

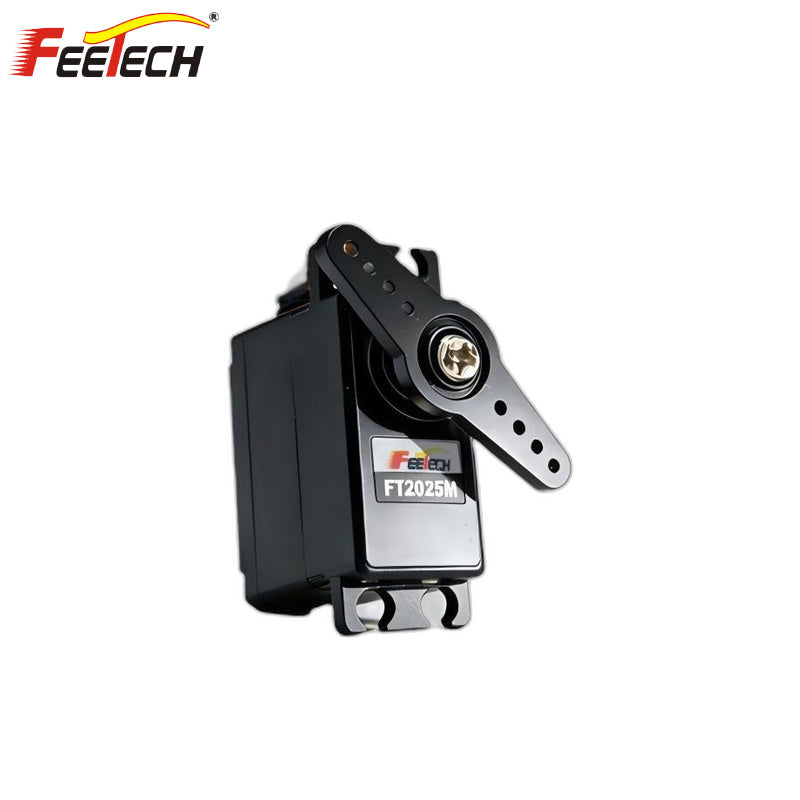

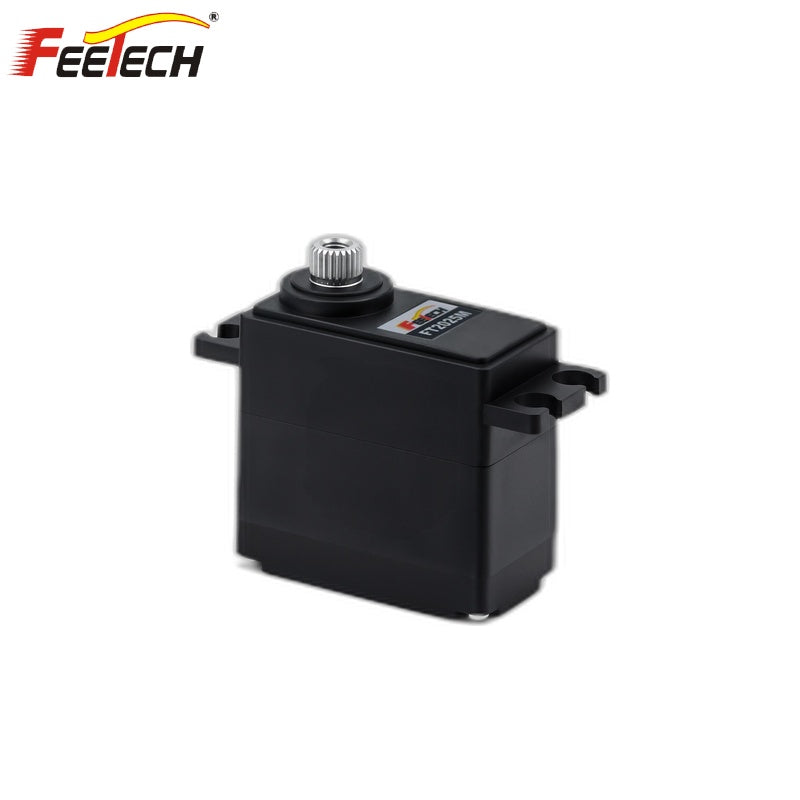

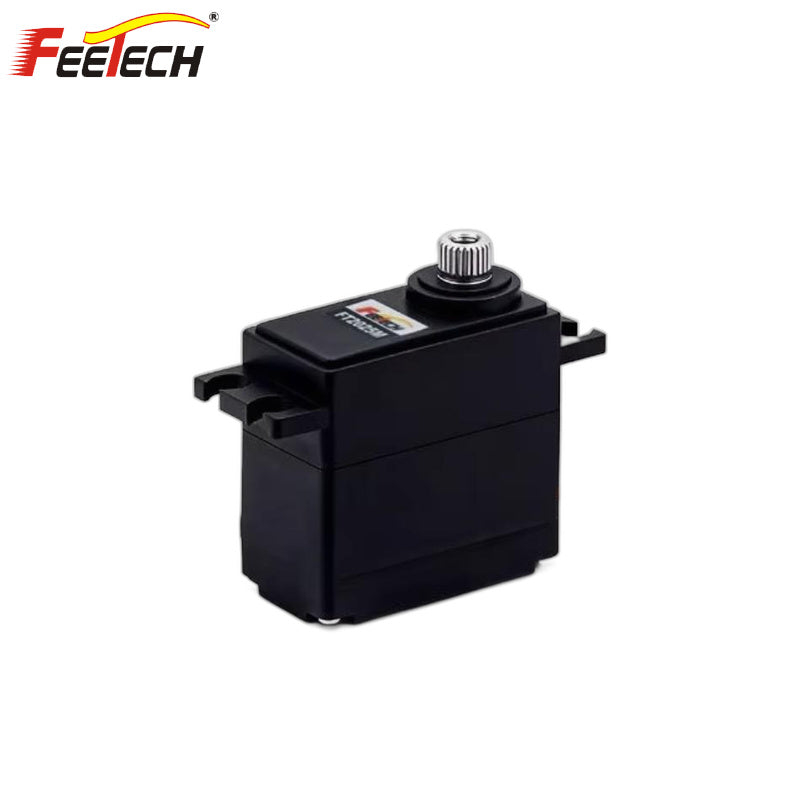

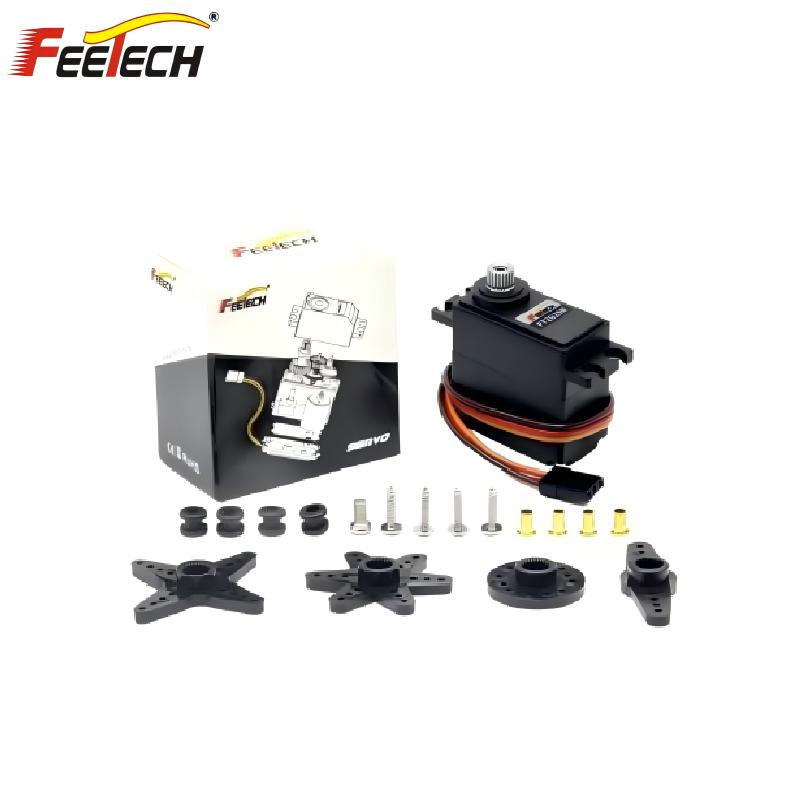

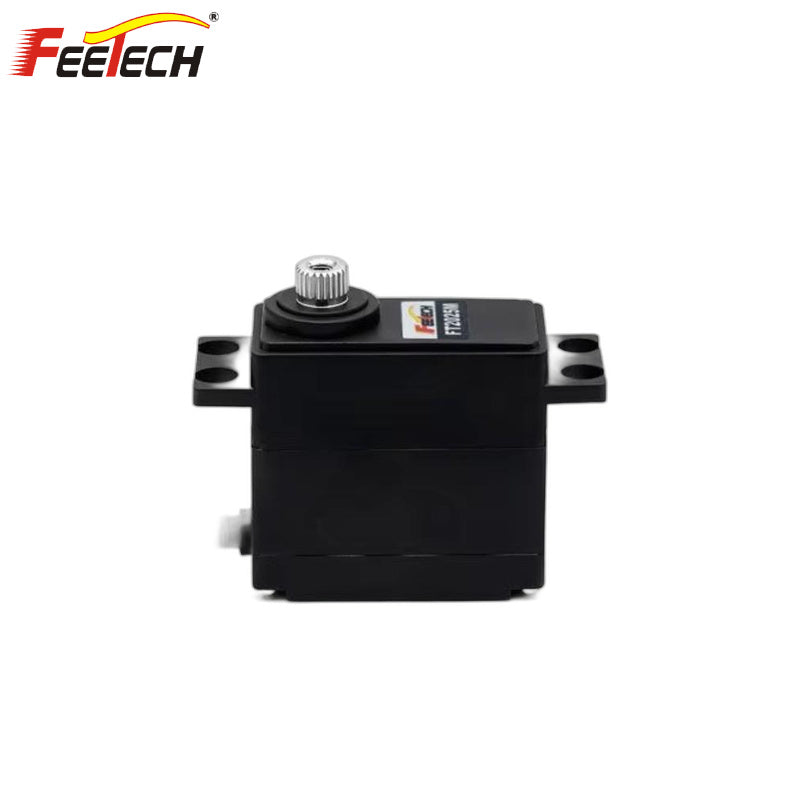

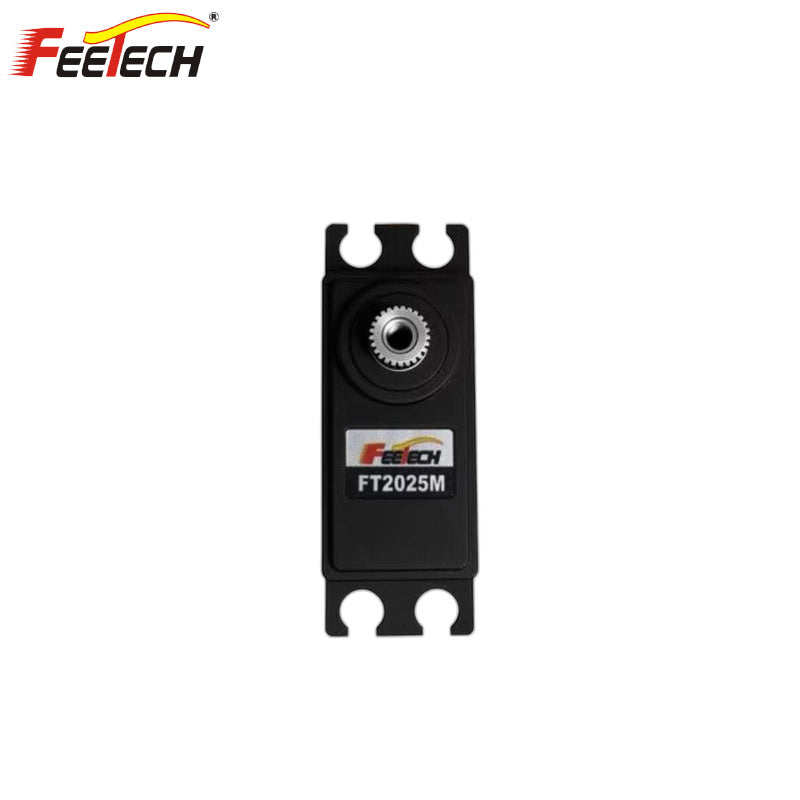

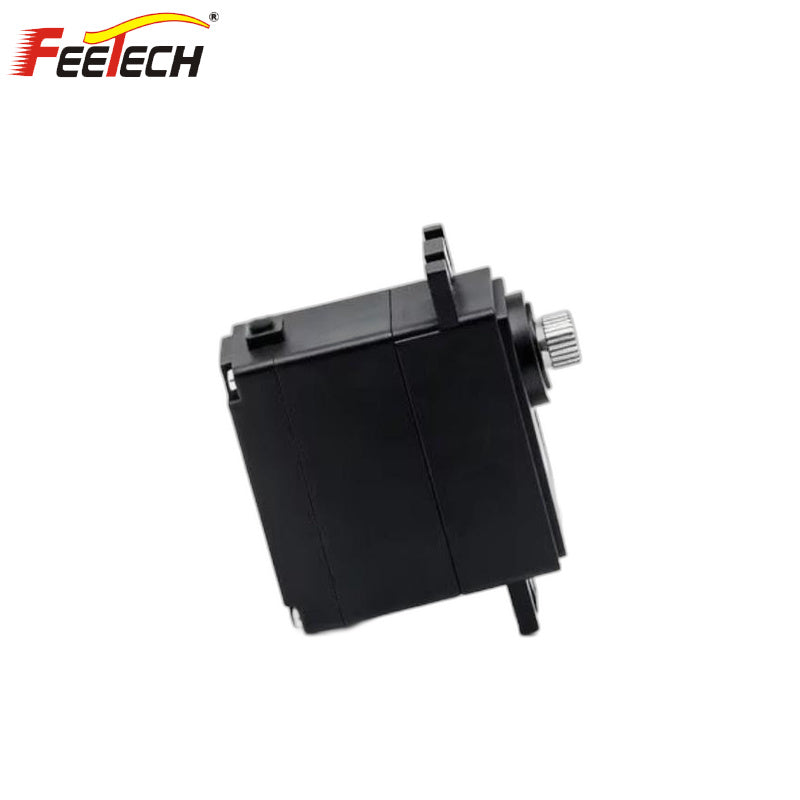

FEETECH FT2025 Servo Motor
Regular price
$16.00
Unit price
FEETECH FT2025 Servo Motor - FT-2025-C001 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT2025 Servo Motor
Regular price
$16.00
Unit price
FEETECH FT2025 Servo Motor - FT-2025-C001 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FT-2025-C001 |
| Product Name | 6V 10.5kg.cm 180° Servo |
| Storage Temperature Range | -30°C ~ 70°C |
| Operating Temperature Range | -20°C ~ 60°C |
| Size | A:16.8mm / B:32.4mm / C:30.9mm |
| Weight | 26.7±1g |
| Gear Type | Metal |
| Limit Angle | No limit |
| Bearing | Ball bearings |
| Output Shaft | 25T/5.9mm |
| Gear Ratio | 1/361 |
| Case Material | PA66+GF |
| Connector Wire | 25±1CM |
| Motor Type | Coreless Motor |
| Operating Voltage Range | 4.8V-7.4V |
| Idle Current (at stopped) | 8mA @7.4V |
| No-load Speed | 0.133sec/60° (75RPM) @7.4V |
| No-load Current | 280mA @7.4V |
| Peak Stall Torque | 12.4kg.cm @7.4V |
| Rated Torque | 4.1kg.cm @7.4V |
| Stall Current | 1.8A @7.4V |
| Rated Current | 600mA ±10% @7.4V |
| Command Signal | Pulse width modification |
| Amplifier Type | Digital comparator |
| Pulse Width Range | 500 ~ 2500 μsec |
| Stop Position | 1500 μsec |
| Running Degree | 180° (at 500→2500 μsec) |
| Dead Band Width | ≤4 μsec |
| Rotating Direction | Counterclockwise (at 500→2500 μsec) |
