Feetech | SKU:

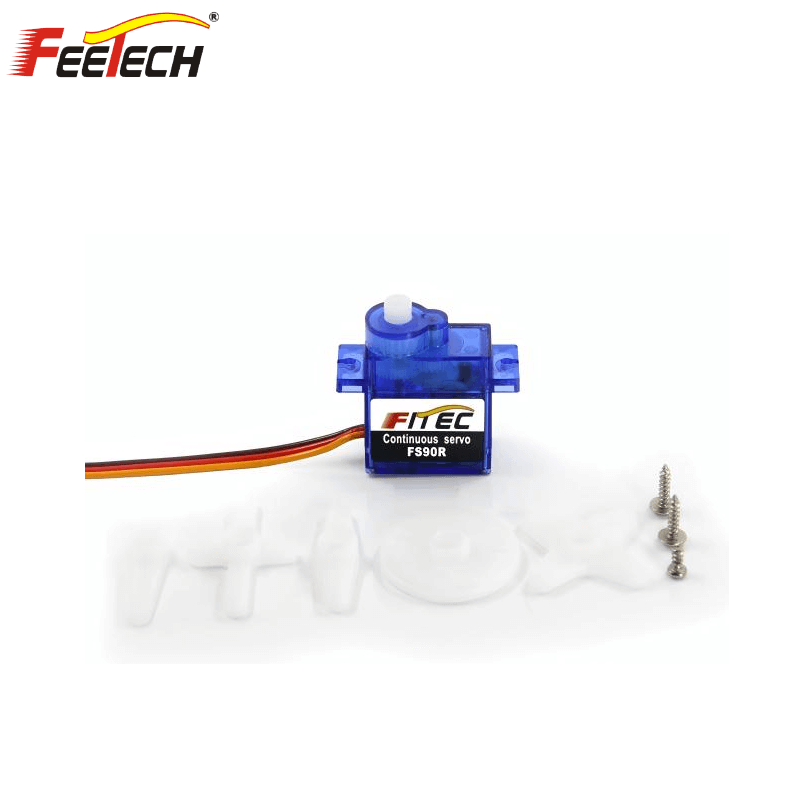

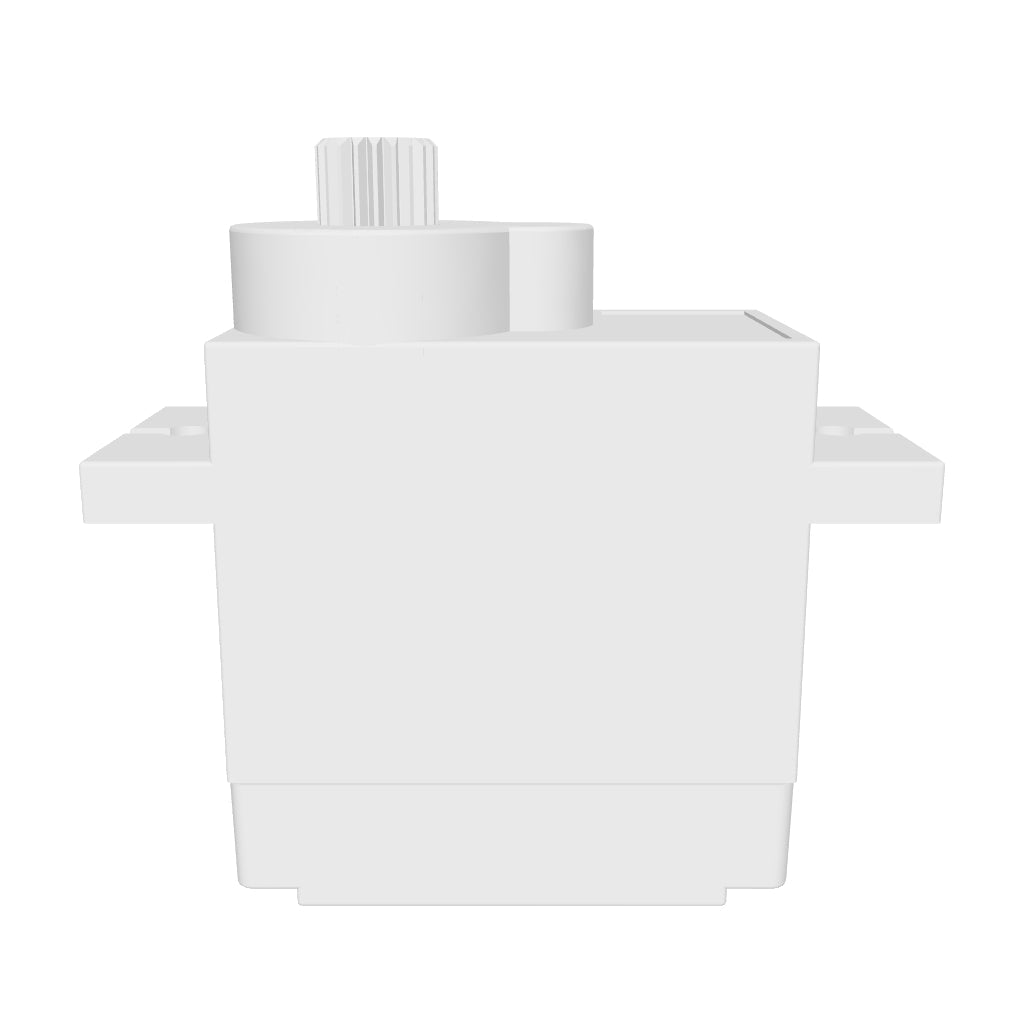

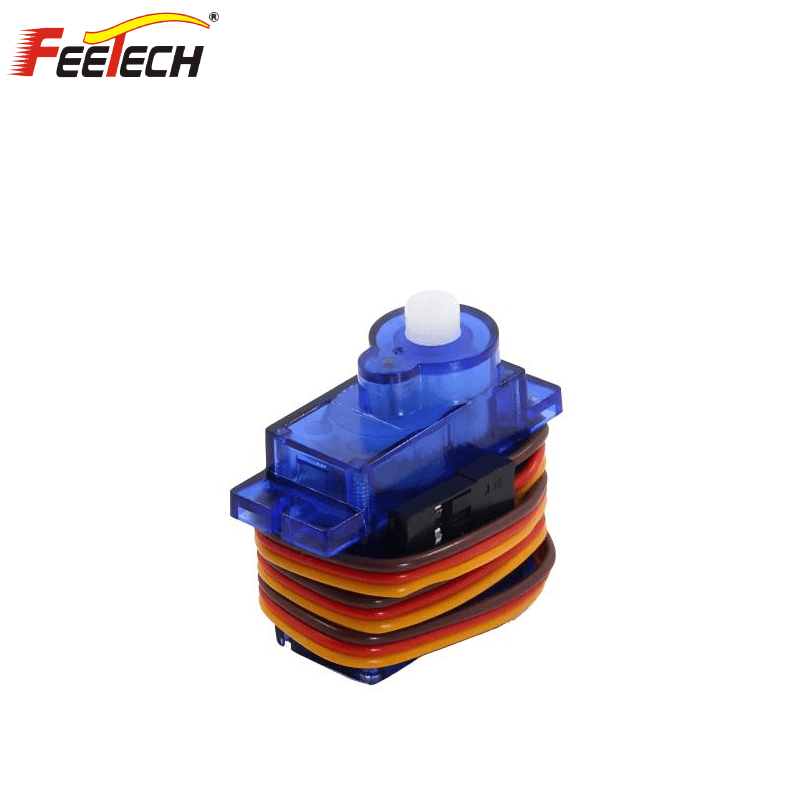

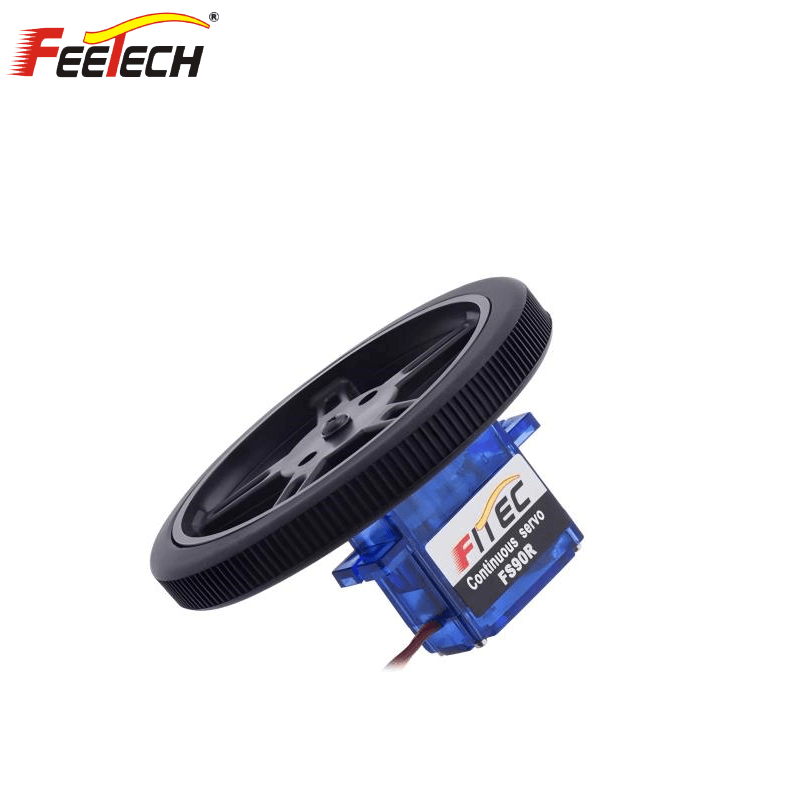

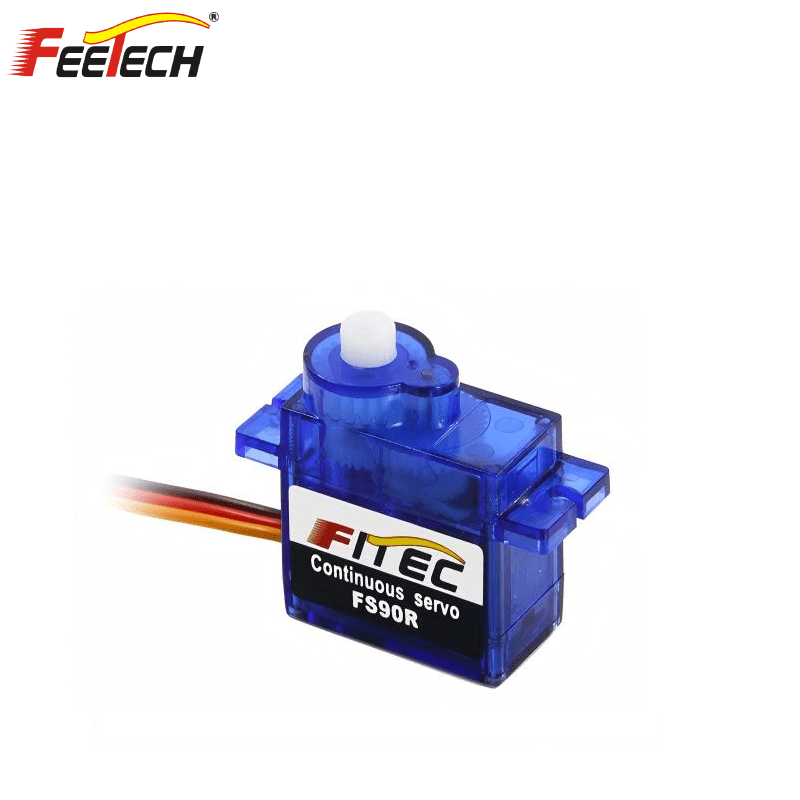

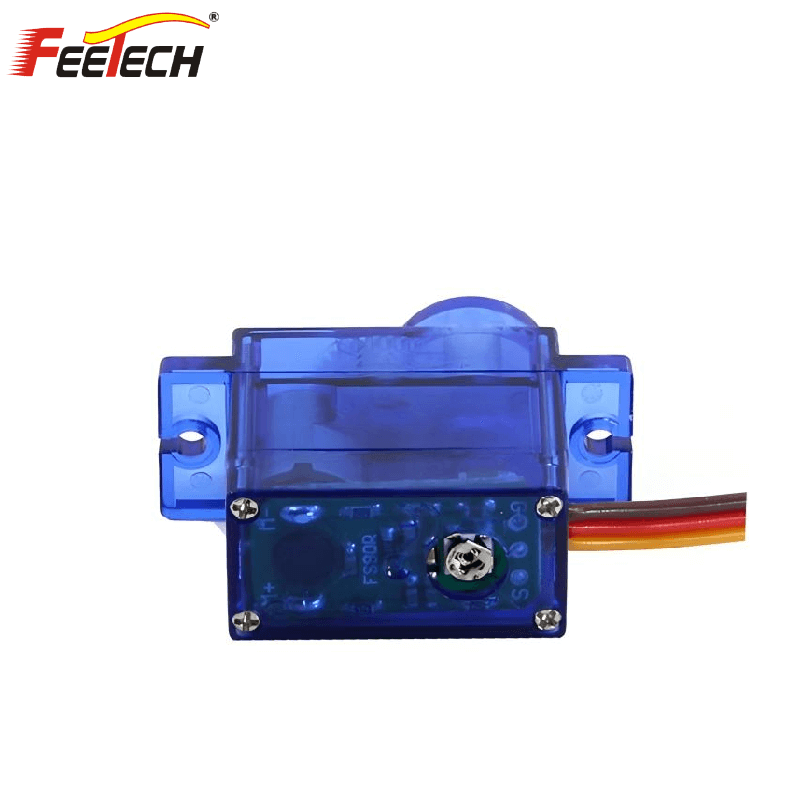

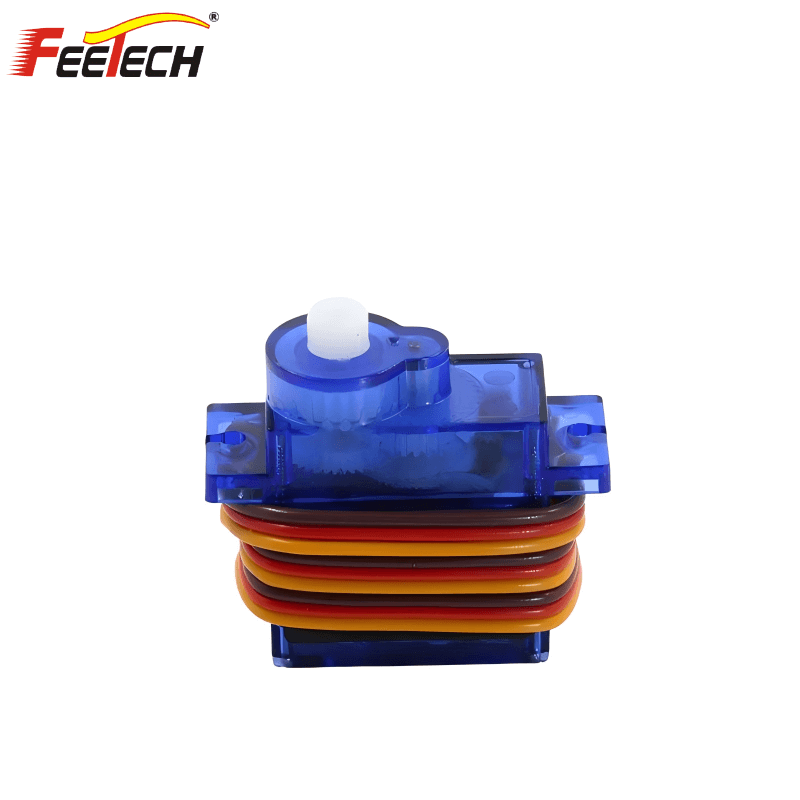

FEETECH FS90R Servo Motor
Regular price
$15.00
Unit price
FEETECH FS90R Servo Motor - FS-90R-C001 (6V1.5KG) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FS90R Servo Motor
Regular price
$15.00
Unit price
FEETECH FS90R Servo Motor - FS-90R-C001 (6V1.5KG) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | FS90R |
| Product Name | 4.8V.1. 3kg. cm Analog 360 Degree Continuous rotation Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -15℃～70℃ |
| Size | A：22.5mm B：12.1mm C：27.7mm |
| Weight | 9g ±0.2 |
| Gear type | Plastic Gear (Nylon & POM ) |
| Limit angle |
NO limit |
| Bearing |
NO Ball bearings |
| Horn gear spline | 21T(4.86mm) |
| Horn type | Plastic,POM |
| Case | Nylon & Fiberglass |
| Connector wire | 250mm ±5 mm |
| Motor |
Coreless motor |
| Operating Voltage Range | 4.8-6V |
| No load speed | 100RPM/60°@6V |
| Runnig current(at no load) | 130 mA@6V |
| Peak stall torque | 1.5kg.cm@6V |
| Rated torque | 0.5kg.cm@6V |
| Stall current | 800mA@6V |
| Command signal | Pulse width modification |
| Amplifier type | Analog comparator |
| Pulse width range | 700~2300usec |
| Stop position | 1500 μsec |
| Running degree | 360 DegreeContinuous rotation |
| Dead band width |
90 μsec |
| Rotating direction | CCW (when 1500~2300 μsec) |
