Eyevolution

Eyevolution P320 Camera

$6,130.00

Version

P320-A P320-B

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value

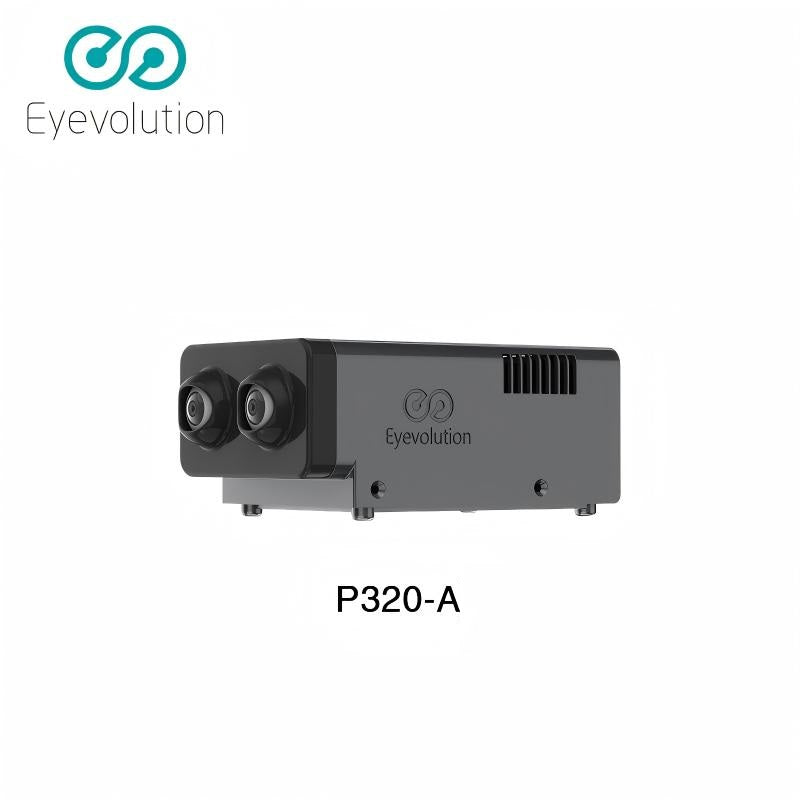

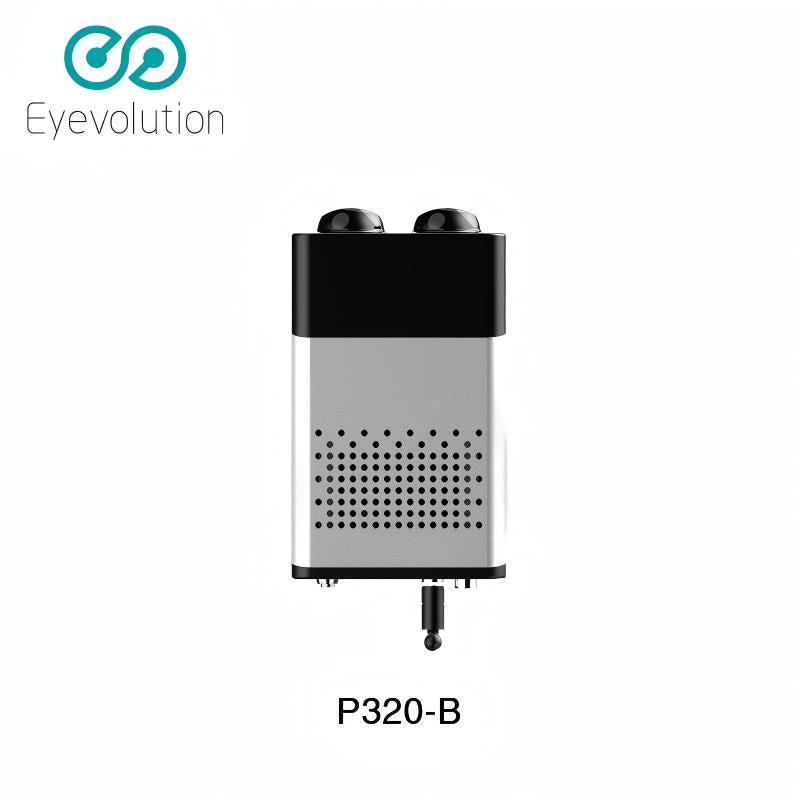

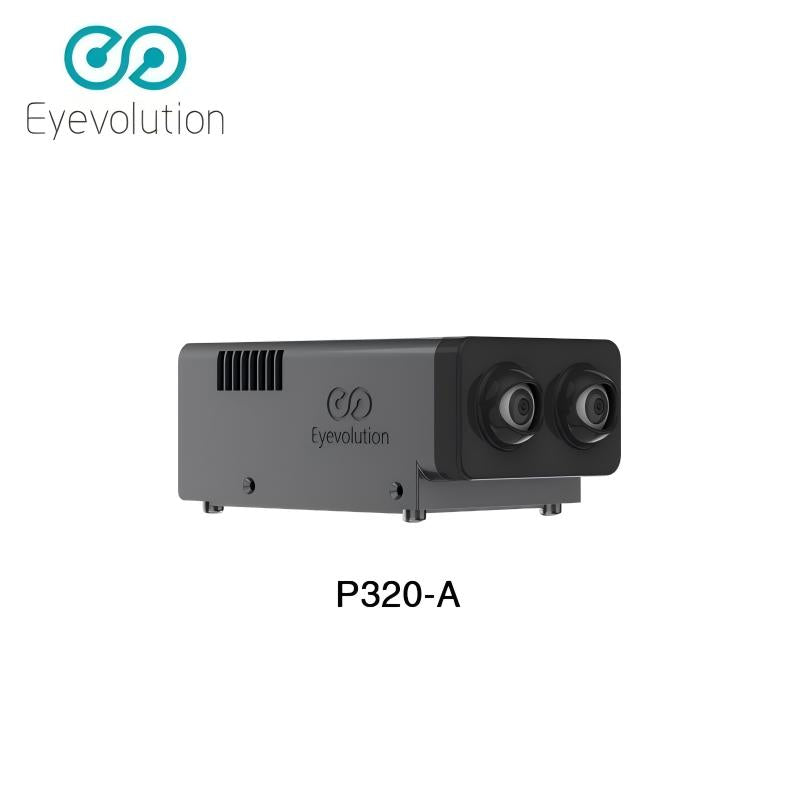

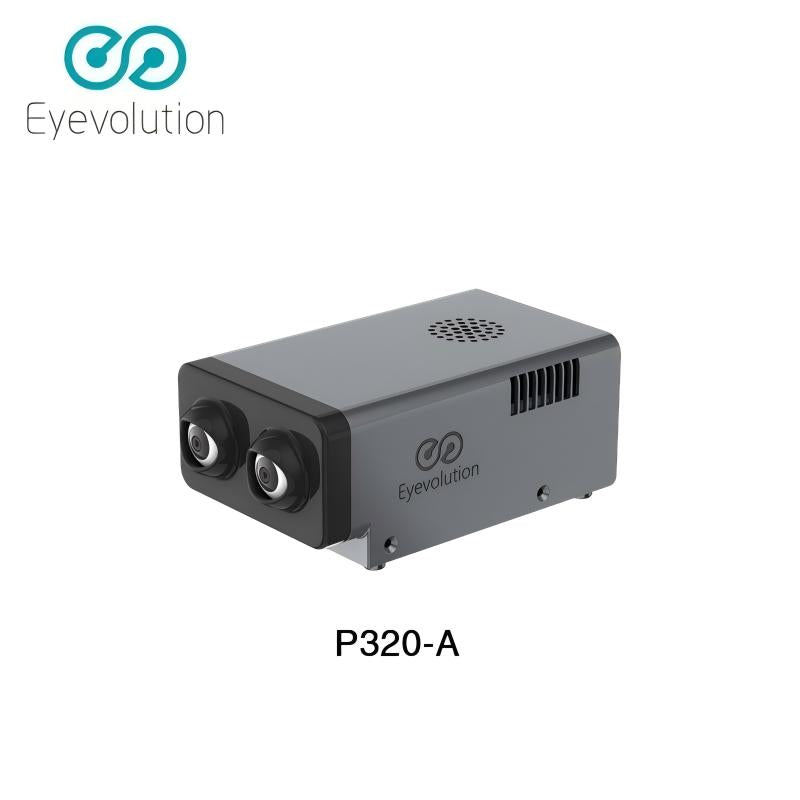

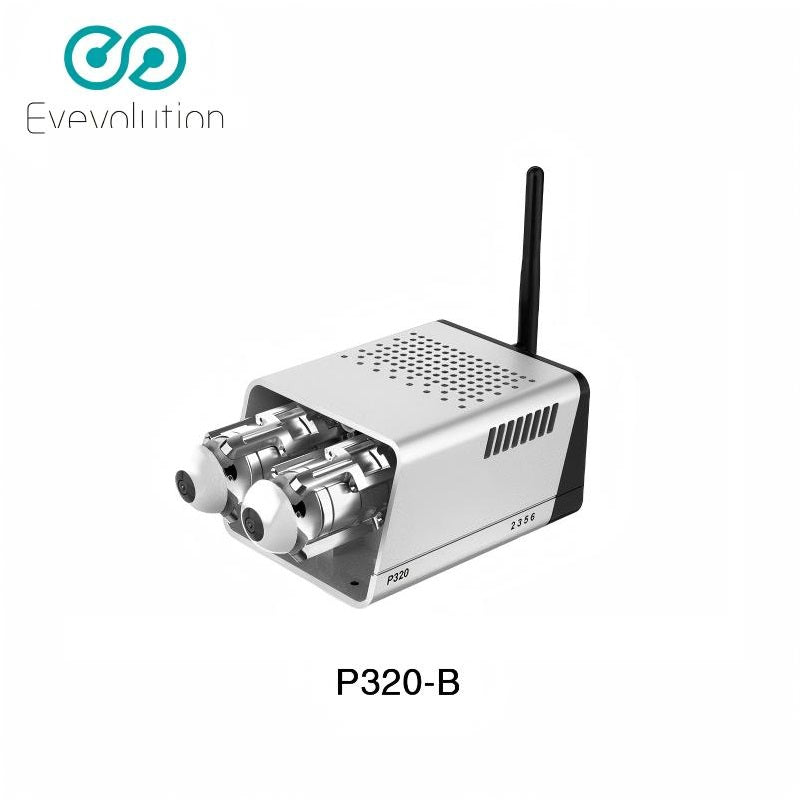

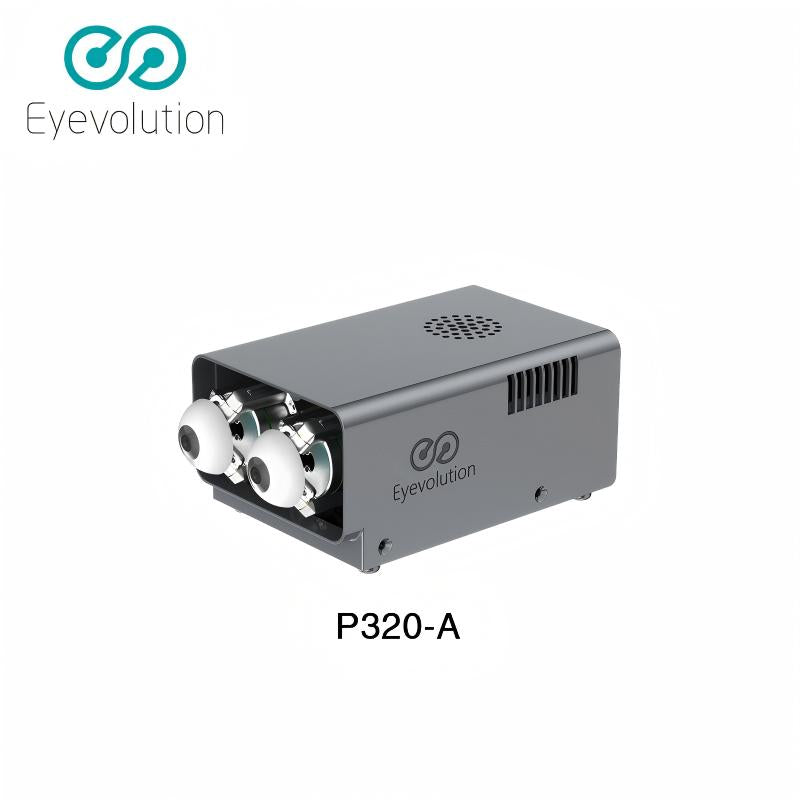

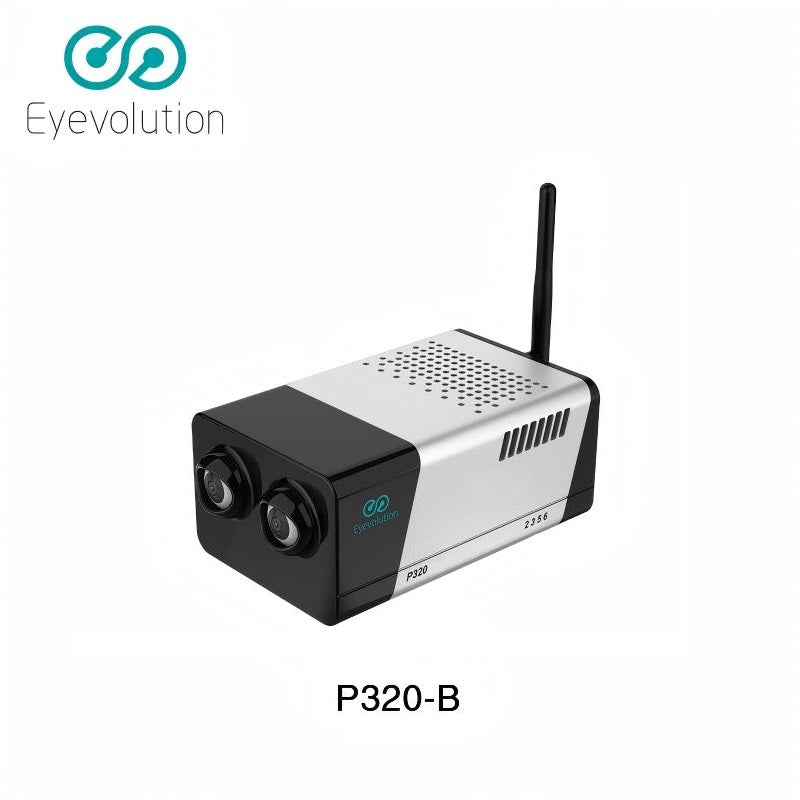

Model	BinoSense P320‑A	BinoSense P320‑B
Dimensions	165 × 91 × 68 mm	170 × 93 × 69 mm
Single Eye & Computing Platform Dimensions	Single eye: 98 × 39 × 50 mm; Computing platform: 78 × 54 × 36 mm
Degrees of Freedom	Pitch / Roll / Yaw per eye (3 DoF each)
Motor Precision	±0.0045°
Supported Motion Types	Saccade, Smooth Pursuit, VOR, etc.
Closed‑Loop Control Frequency	500 Hz
Camera Field of View	100° (W), 80° (H)
Gaze Range	±25° (Pitch), ±30° (Roll), ±25° (Yaw)
Max Angular Velocity	720°/s
Optional Eyeball Diameter	19 mm (default), 25 mm, 30 mm
Camera	Monocular 1600 × 1200 @ 25 fps, Color
Shutter & Sync	Rolling Shutter, Synchronous Stereo Image Acquisition
Baseline Distance	40 – 200 mm (default 40 mm with housing; adjusting requires removing housing and self‑mounting)
Working Distance	0.2 m ~ ∞
SDK	Linux / Windows, ROS 2 package, C/C++ & Python
Functions	Multi‑unit sync, synchronized data acquisition, high‑precision dynamic calibration, full ocular motion control, compatible with nearly all fixed‑binocular algorithms
Expansion	GPS, temperature sensors, etc.; external sync signal I/O (customization required)
Computing Platform	Jetson Orin NX 16 GB
Interfaces	DC, HDMI, USB, Ethernet
Mounting	Top, side (static), and ceiling (static) installation
Weight	0.67 kg	0.9 kg
Power Supply	12 V 5 A
