ENCOS | SKU:

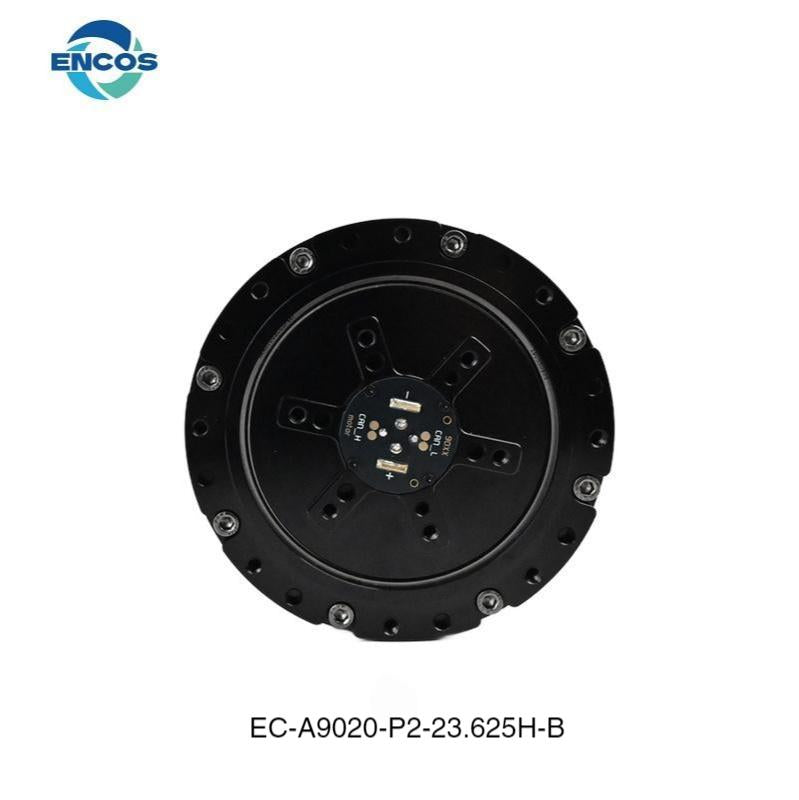

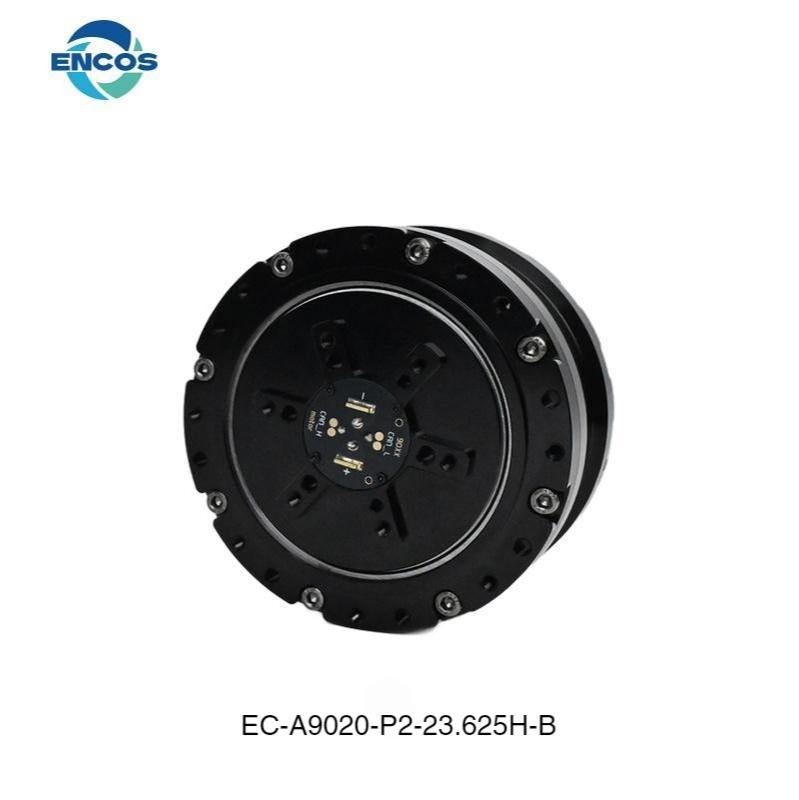

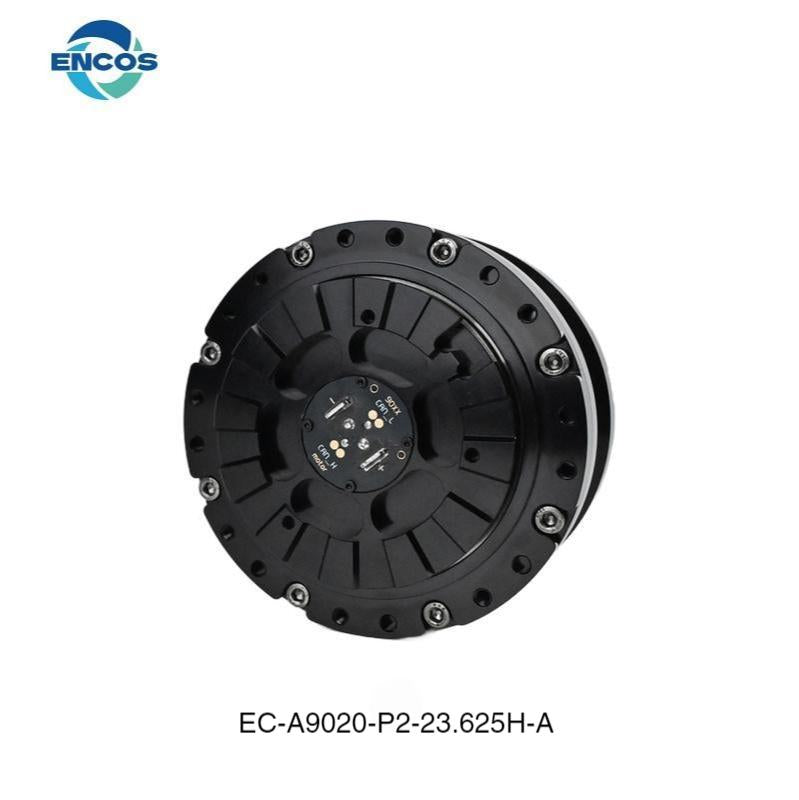

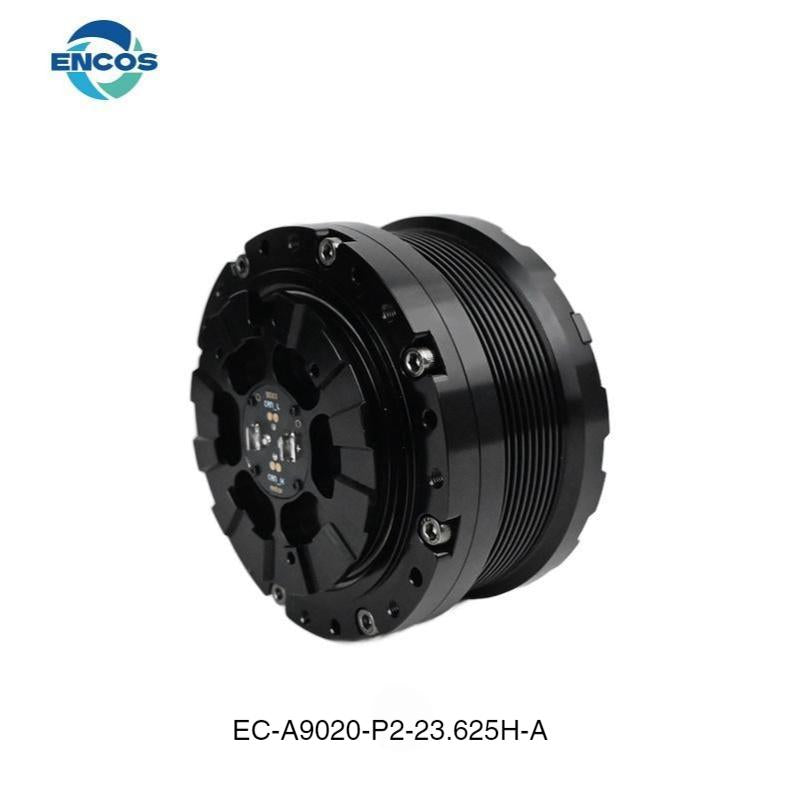

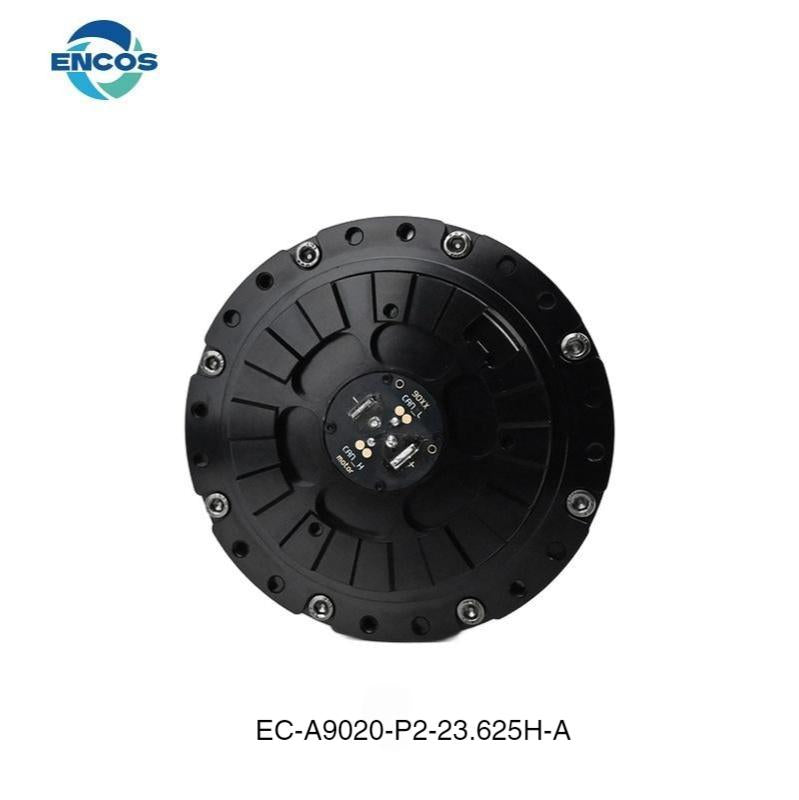

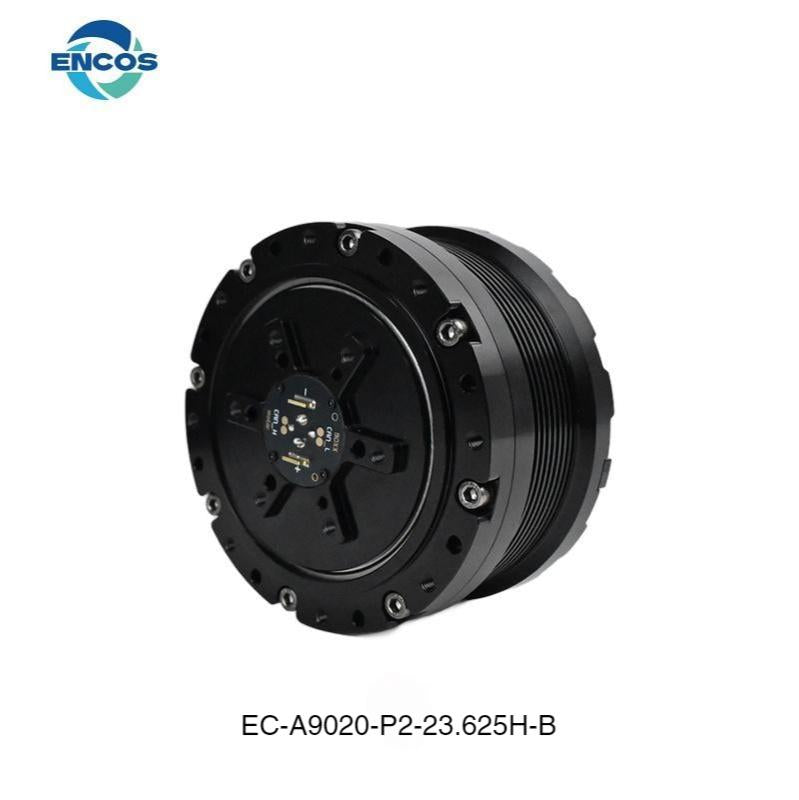

ENCOS EC-A9020-P2-23.625H Motor
Regular price
$1,580.00
Unit price
ENCOS EC-A9020-P2-23.625H Motor - EC-A9020-P2-23.625H-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ENCOS EC-A9020-P2-23.625H Motor
Regular price
$1,580.00
Unit price
ENCOS EC-A9020-P2-23.625H Motor - EC-A9020-P2-23.625H-A is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 72 V |
| Rated Bus Current | 26.8 A |
| Rated Input Power | 1929.6 W |
| Rated Phase Current | 29 A |
| Rated Torque (0RPM) | 66 Nm |
| Allows Continuous Torque (50RPM) | 45 Nm |
| Peak Phase Current | 160 A |
| Peak Speed | 245 RPM |
| Peak Torque | 280 Nm |
| Torque Constant | 1.9 Nm/A |
| Average Motor Efficiency | 71% |
| Communication Mode | CAN / CAN FD |
| Communication Baud Rate | 1M / 5M |
| Double Encoder | YES |
| Reduction Ratio | 23.625 |
| Weight | 1741 g (Model A) / 1698 g (Model B) |
| Reducer Backlash | 18 Arcmin |
| Motor Dimensions (O.D. × Thickness) | 106×82mm (With power connector) / 106×71.8mm (Without power connector, Model A) / 106×79mm (With power connector) / 106×67mm (Without power connector, Model B) |
| Hole Diameter | 7 mm |
| Axial And Radial Loads | 2.81 KN |
| Bending Moment Resistance | 73 Nm |
| Cross Roller Bearing Type | 7005 |
| The Rotor Inertia Of The Motor | 150.9 kgmm² |

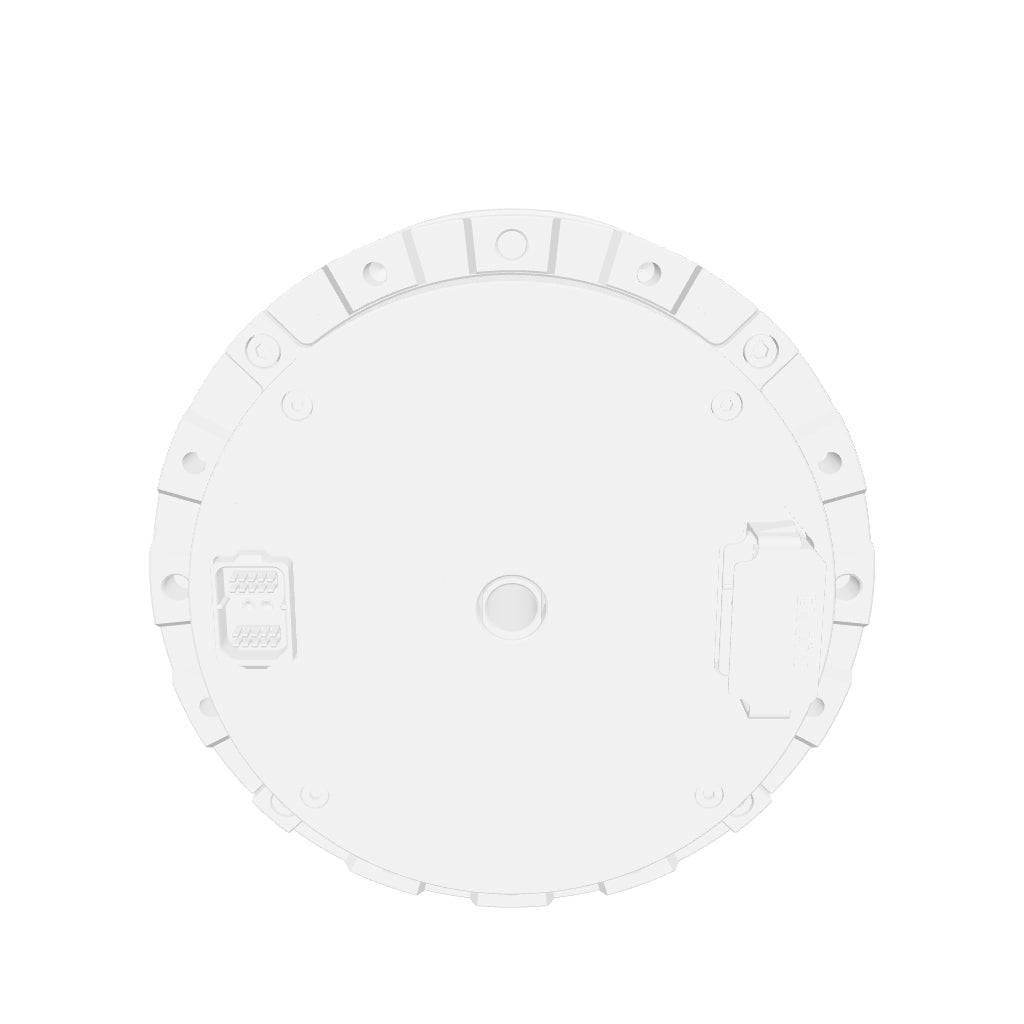

ENCOS-EC-A9020-P2-23.625H-A.stp

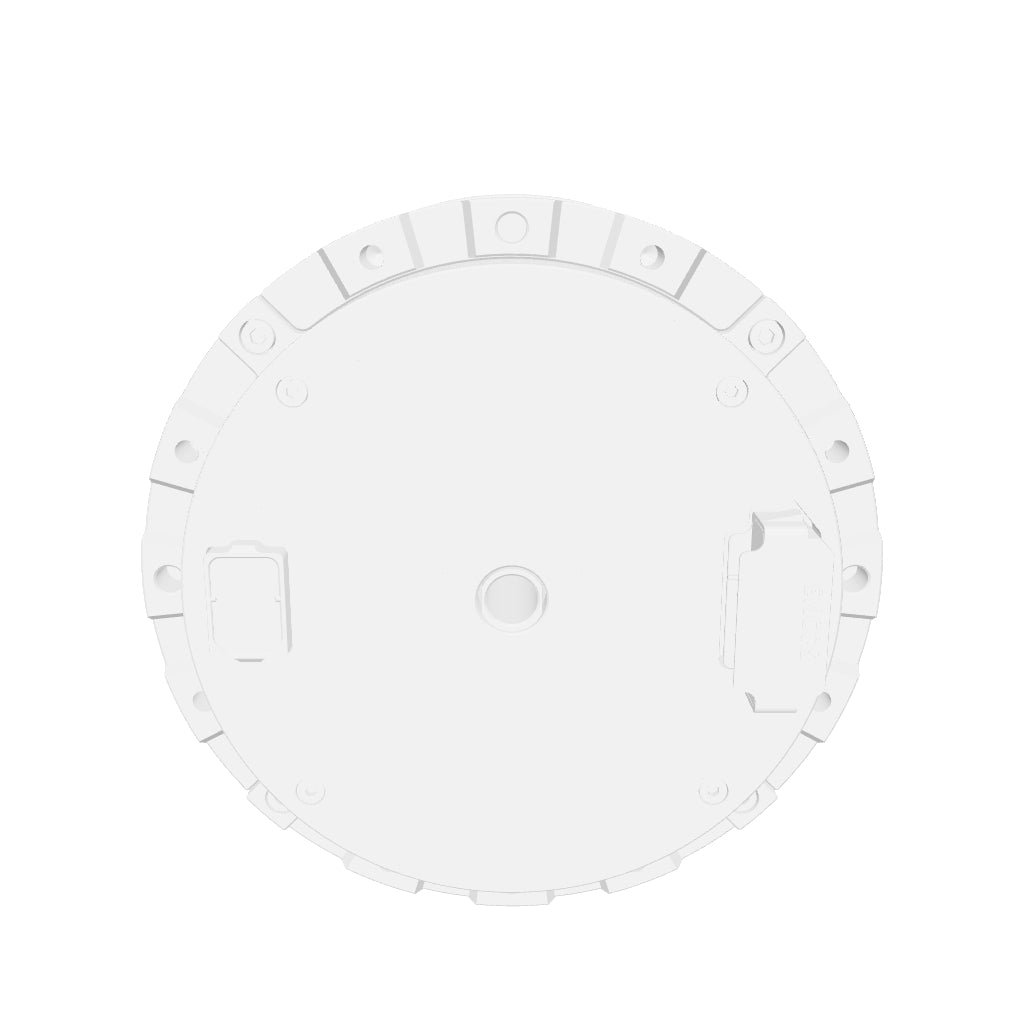

ENCOS-EC-A9020-P2-23.625H-B.stp
