ENCOS | SKU:

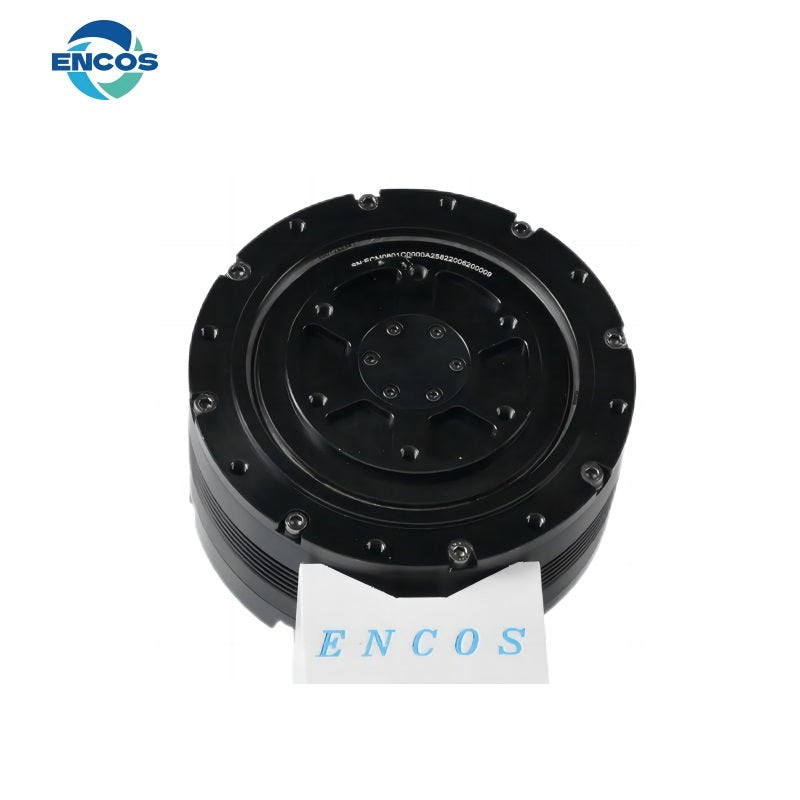

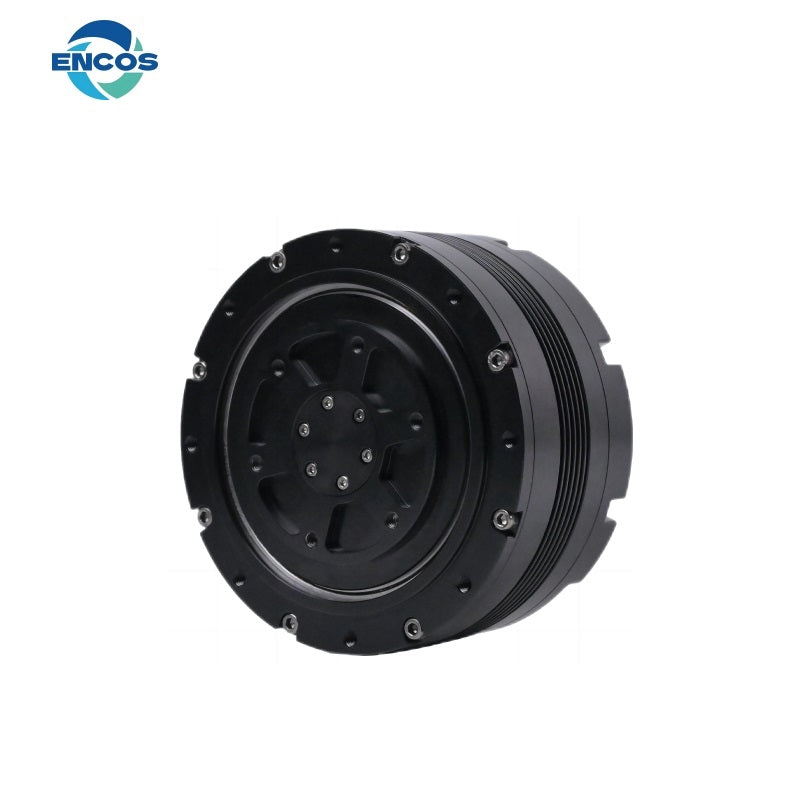

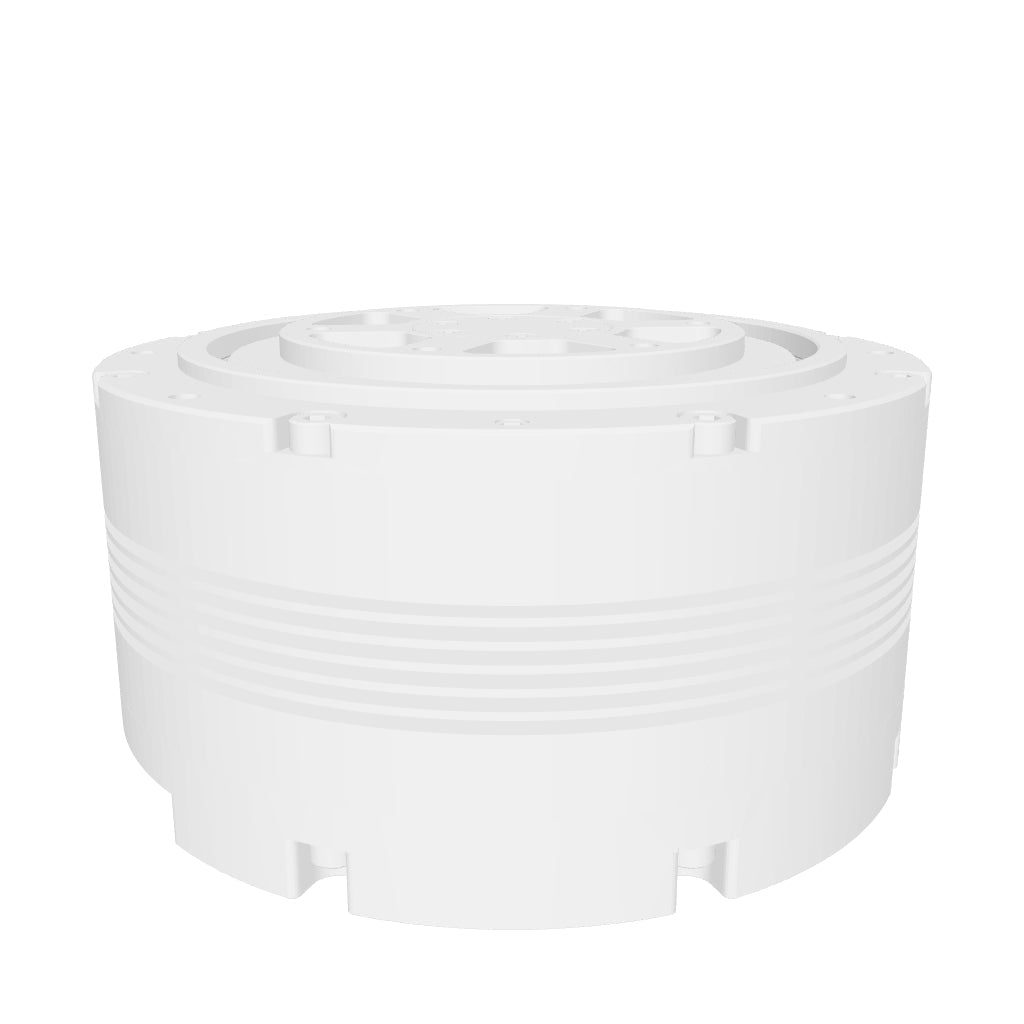

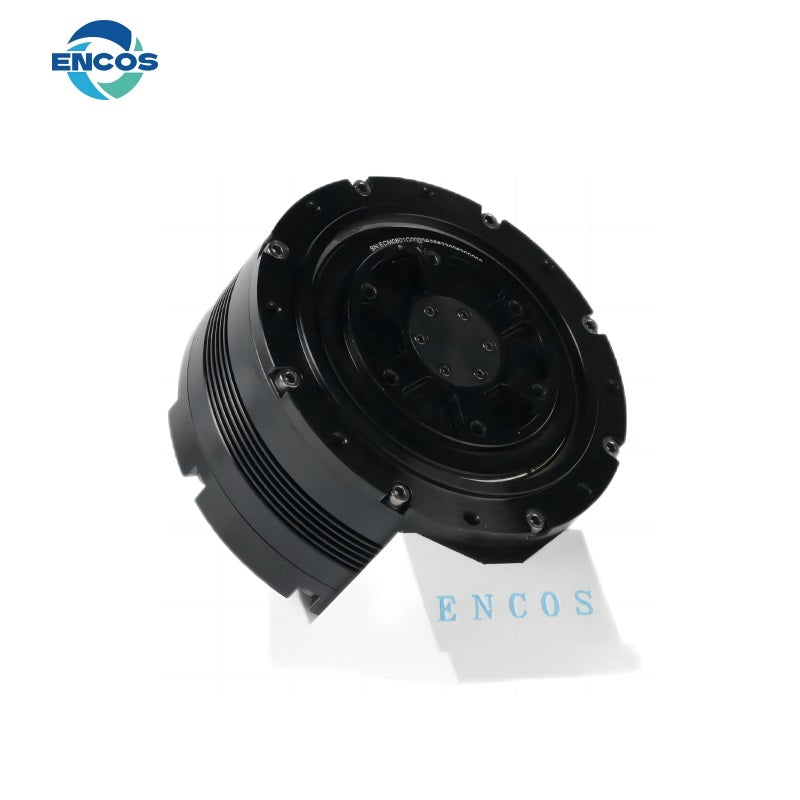

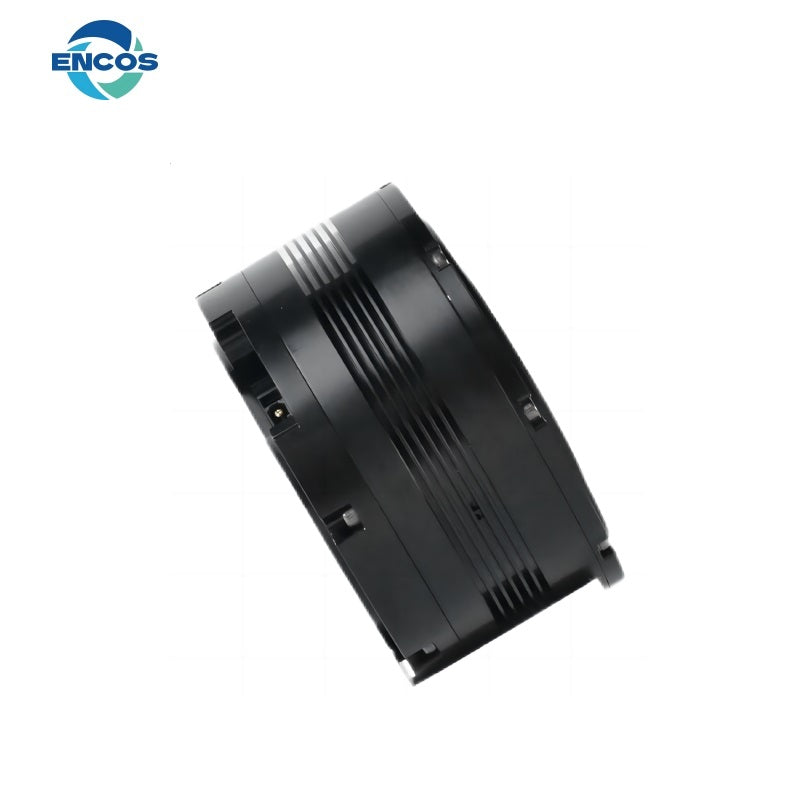

ENCOS EC-A8116-P1-18 Motor
Regular price
$1,125.00
Unit price
ENCOS EC-A8116-P1-18 Motor - EC-A8116-P1-18 (CAN & Dual Encoder) / NOT Include is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ENCOS EC-A8116-P1-18 Motor
Regular priceFrom
$1,125.00
Unit price
ENCOS EC-A8116-P1-18 Motor - EC-A8116-P1-18 (CAN & Dual Encoder) / NOT Include is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | EC-A8116-P1-18 | EC-A8116-P1-18H |
|---|---|---|
| Reduction Ratio | 18 | 18 |
| Rated Voltage | 48 V | 48 V |
| Rated Bus Current | 19.4 A | 19.4 A |
| Rated Phase Current | 21 A | 21 A |
| Rated Power | 931.2 W | 931.2 W |
| Rated Speed | 132 RPM | 132 RPM |
| Rated Torque | 40 Nm | 40 Nm |
| Peak Speed | 140 RPM | 140 RPM |
| Peak Phase Current | 70 A | 70 A |
| Peak Torque | 130 Nm | 130 Nm |
| Efficiency | 76% | 76% |
| Torque Constant | 2.35 Nm/A | 2.35 Nm/A |
| Weight | 961 g | 968 g |
| Backlash | 12 Arcmin | 12 Arcmin |
| Motor Size | 105x57 mm | 105x57 mm |
| Hole Diameter | 5 mm | |
| Communication Mode | CAN | CAN |
| Communication Baud Rate | 1M | 1M |
| Double Encoder | Yes | Yes |
| Axial And Radial Loads | 2.81 KN | 2.81 KN |
| Bending Moment Resistance | 98 Nm | 98 Nm |
| Cross Roller Bearing Type | 7005 | 7005 |
| The Rotor Inertia Of The Motor | 189 kgmm² | 197 kgmm² |
| Torque Density | 135.28 Nm/kg | 134.3 Nm/kg |
ENCOS-EC-A8116-P1-18-Product_instalation_drawing.pdf
ENCOS-EC-A8116-P1-18H-Product_instalation_drawing.pdf
