ENCOS

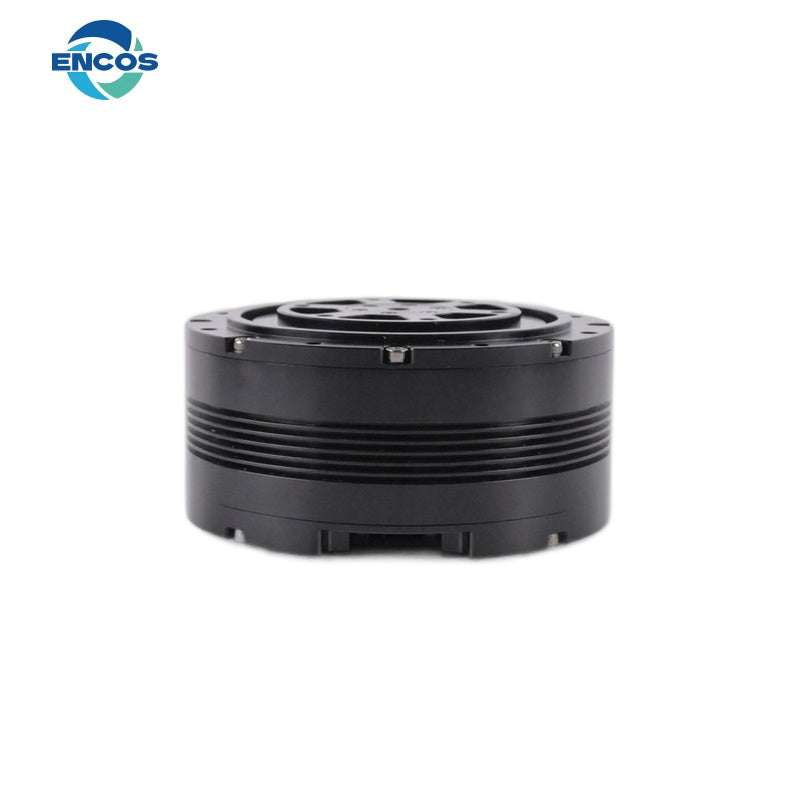

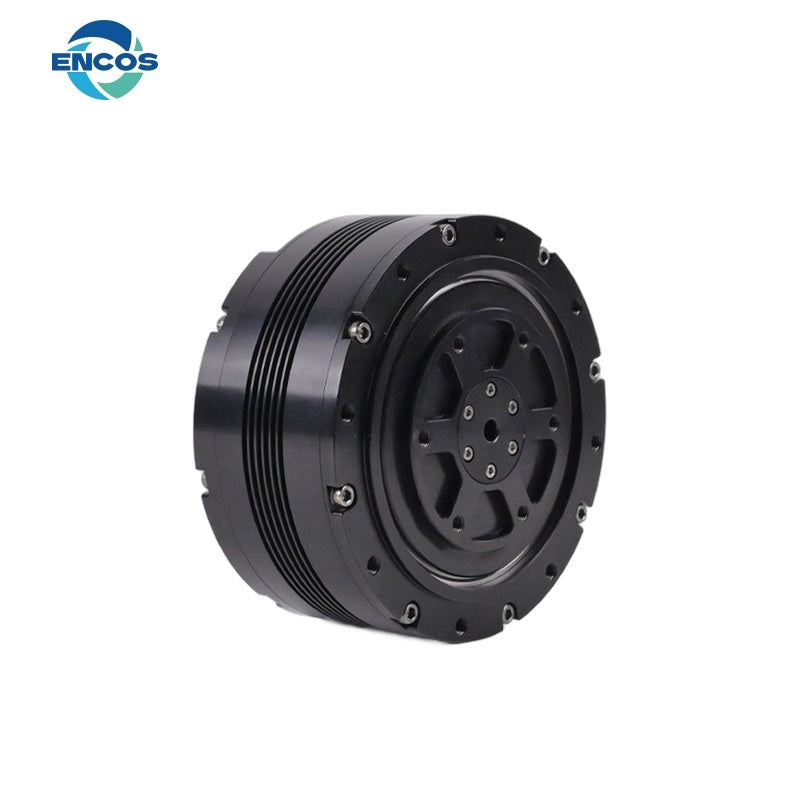

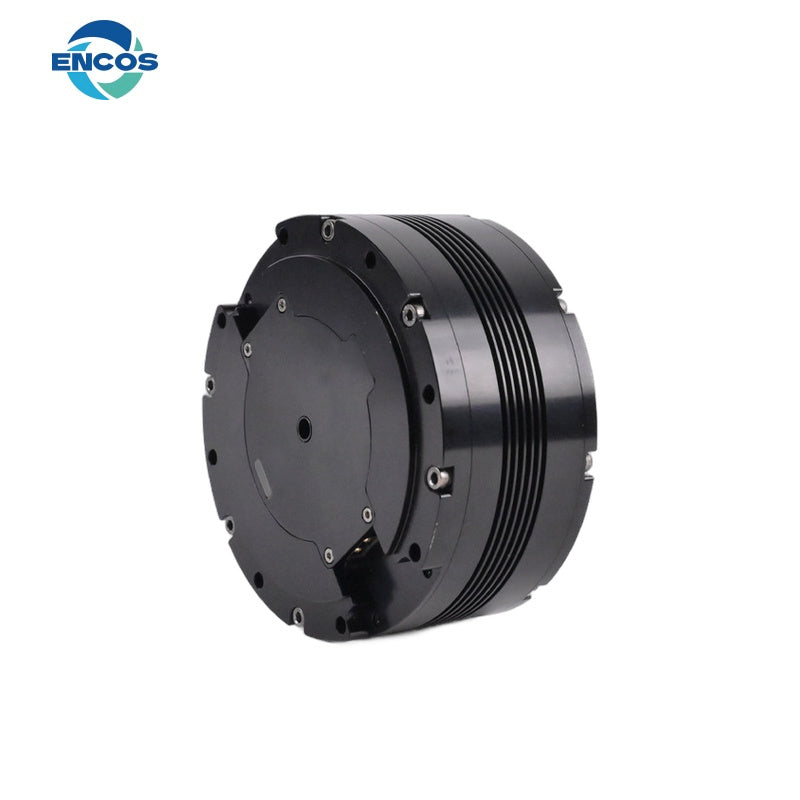

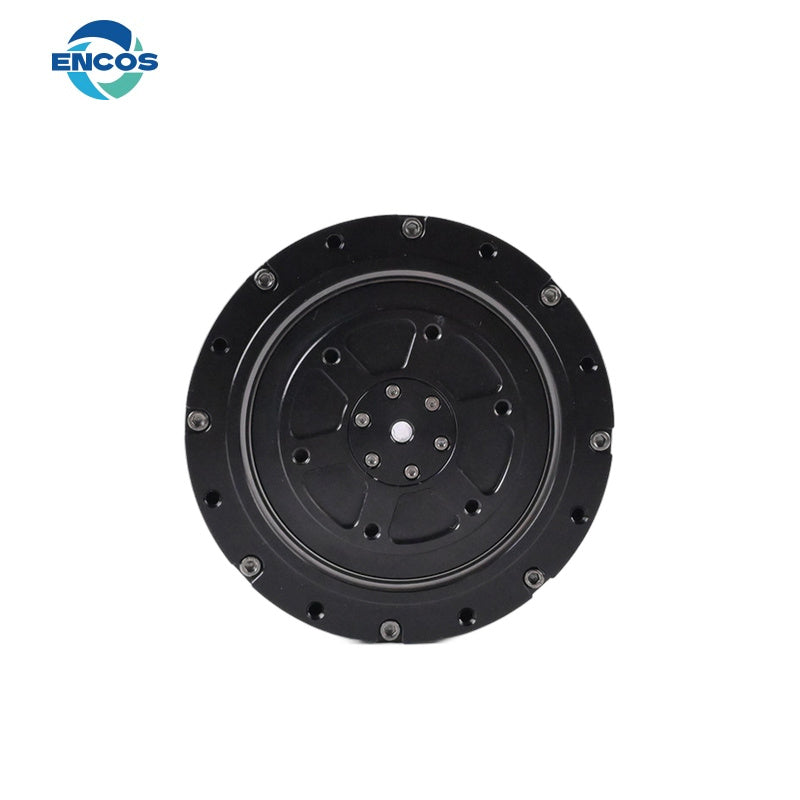

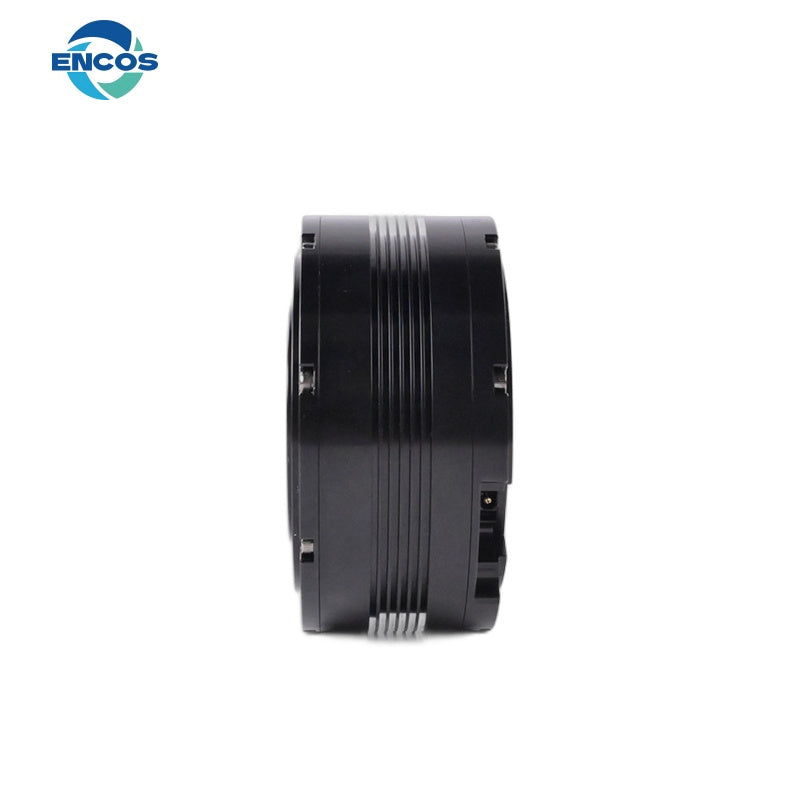

ENCOS EC-A8112-P1-18H Motor

$1,255.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Reduction Ratio 18
Rated Voltage 48 V
Rated Bus Current 8.3 A
Rated Phase Current 13.3 A
Rated Input Power 398.4 W
Rated Speed 133 RPM
Rated Torque (0RPM) 22 Nm
Allows Continuous Torque (50RPM) 21 Nm
Peak Speed 150 RPM
Peak Phase Current 55 A
Peak Torque 94 Nm
Efficiency 80%
Torque Constant 2.1 Nm/A
Weight 883 g
Backlash 18 Arcmin
Motor Size [Outside Diameter (O.D.) × Thickness (T)] 105 × 53 mm
Hole Diameter 5 mm
Communication Mode CAN (optional CAN FD)
Communication Baud Rate 1M / 5M
Double Encoder YES
Axial And Radial Loads 2.81 KN
Bending Moment Resistance 98 Nm
Cross Roller Bearing Type 7005
The Rotor Inertia Of The Motor 98 kgmm²
Peak Torque Density 106.5 Nm/kg

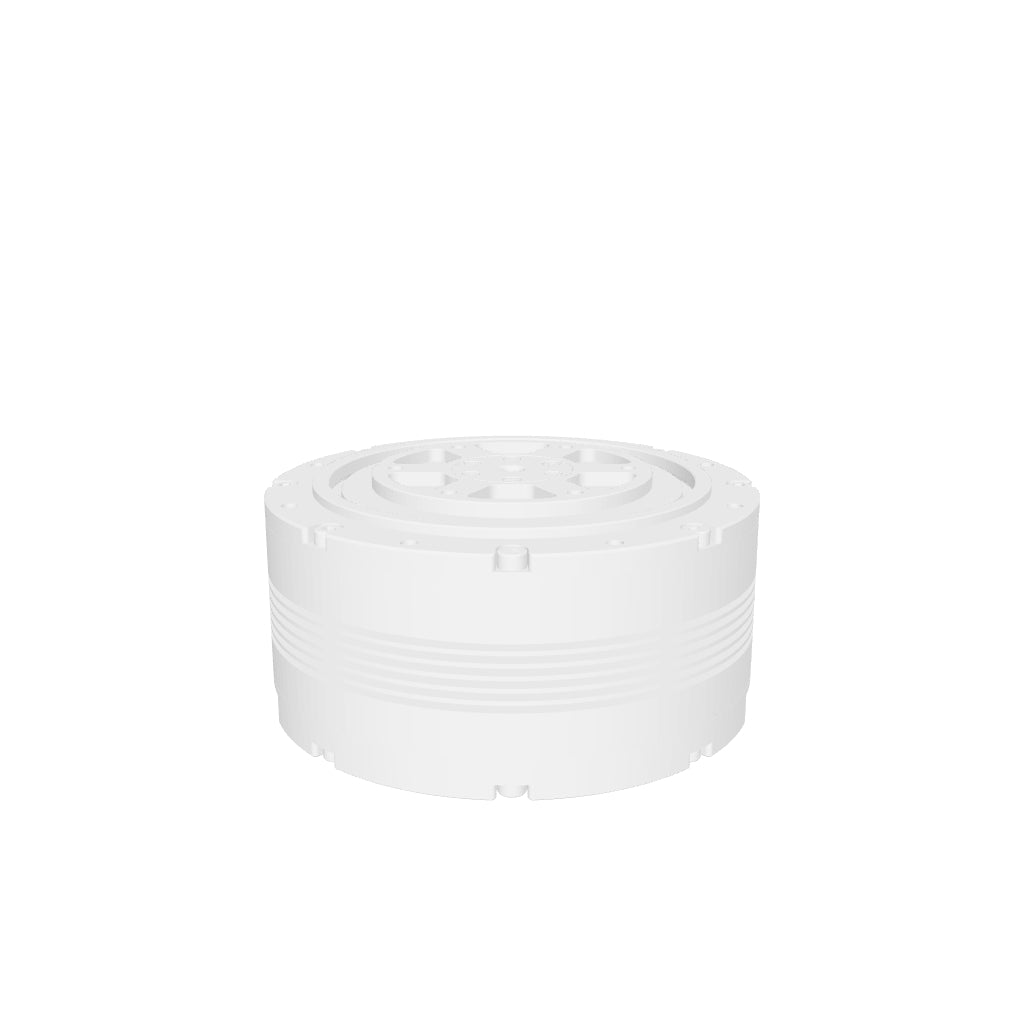

ENCOS-EC-A8112-P1-18H.stp
