ENCOS

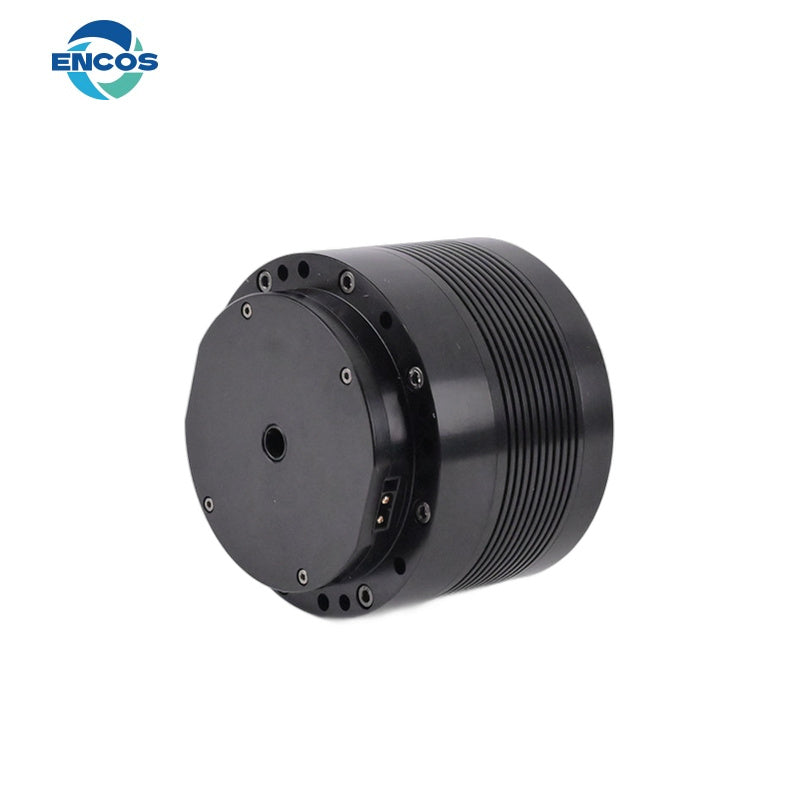

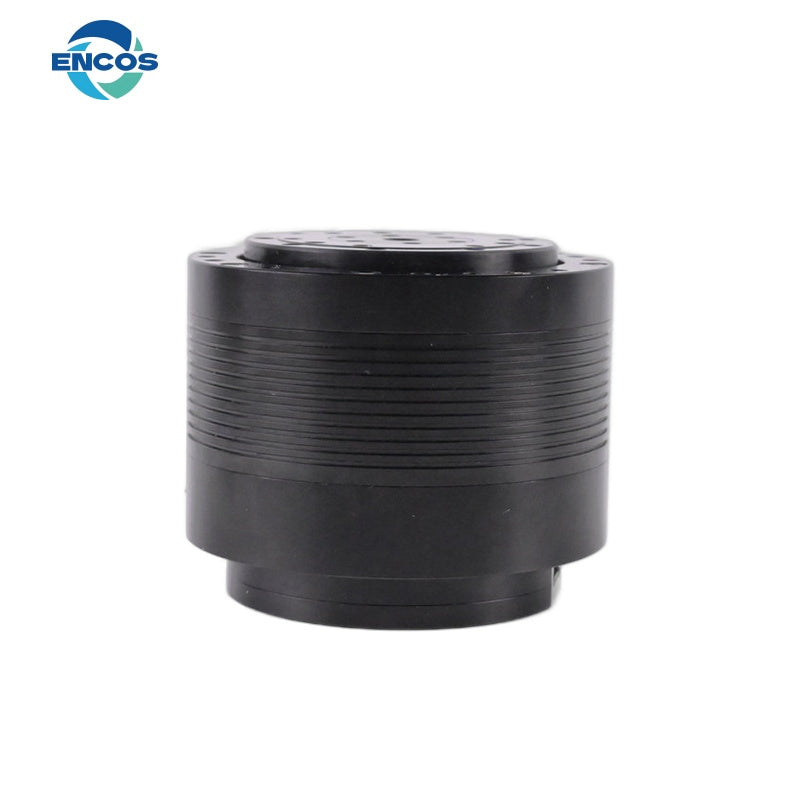

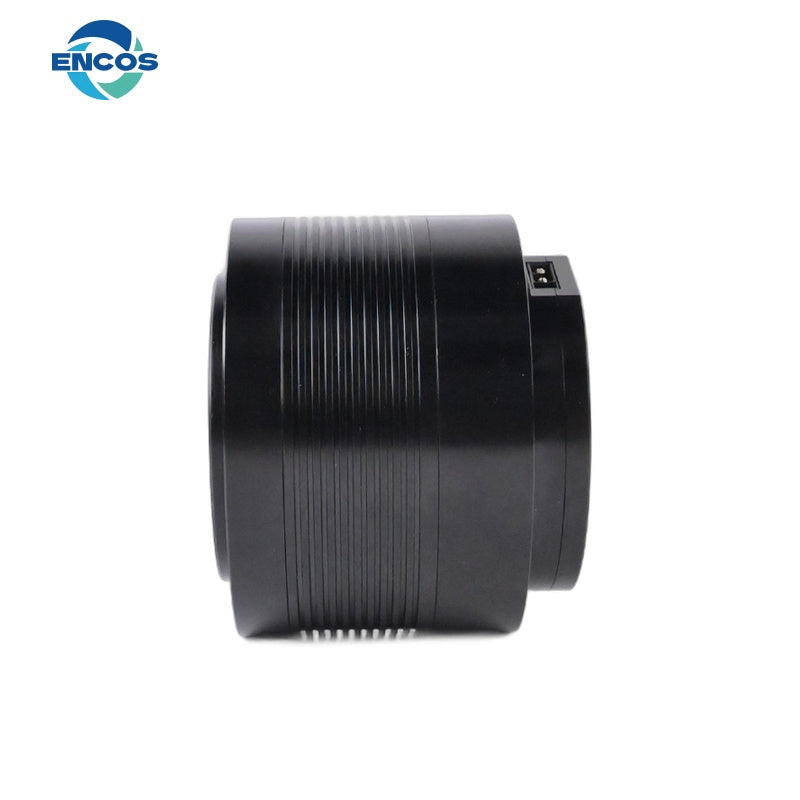

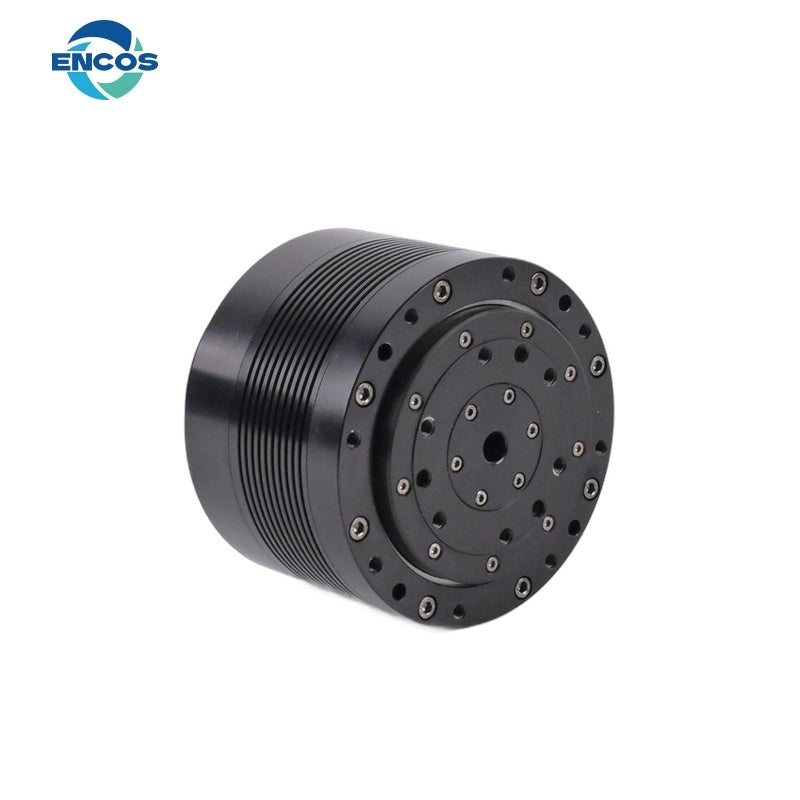

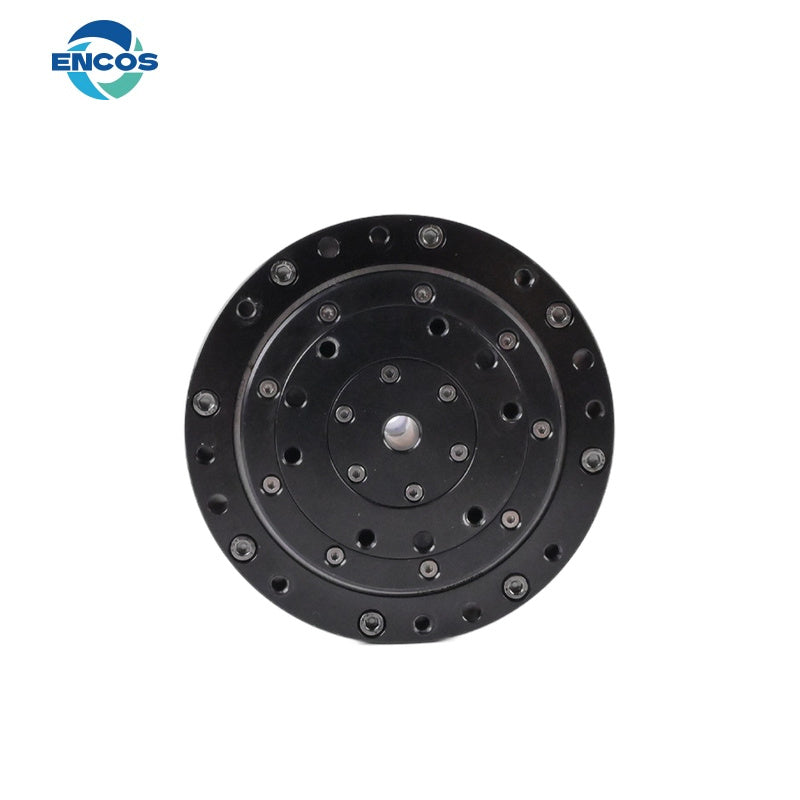

ENCOS EC-A6416-P2-30.25H Motor

$1,130.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Reduction Ratio 30.25
Rated Voltage 48 V
Rated Bus Current 8.18 A
Rated Phase Current 9.7 A
Rated Input Power 392.64 W
Rated Speed 97 RPM
Rated Torque (0RPM) 25 Nm
Allows Continuous Torque (50RPM) 19 Nm
Peak Speed 119 RPM
Peak Phase Current 60 A
Peak Torque 132 Nm
Efficiency 75%
Torque Constant 2.65 Nm/A
Weight 1013 g
Backlash 18 Arcmin
Motor Size [Outside Diameter (O.D.) × Thickness (T)] 88 × 73.9 mm
Hole Diameter 7 mm
Communication Mode CAN (optional CAN FD)
Communication Baud Rate 1M / 5M
Double Encoder YES
Axial And Radial Loads 2.63 KN
Bending Moment Resistance 78 Nm
Cross Roller Bearing Type 6005
The Rotor Inertia Of The Motor 102.678 kgmm²
Peak Torque Density 130.3 Nm/kg

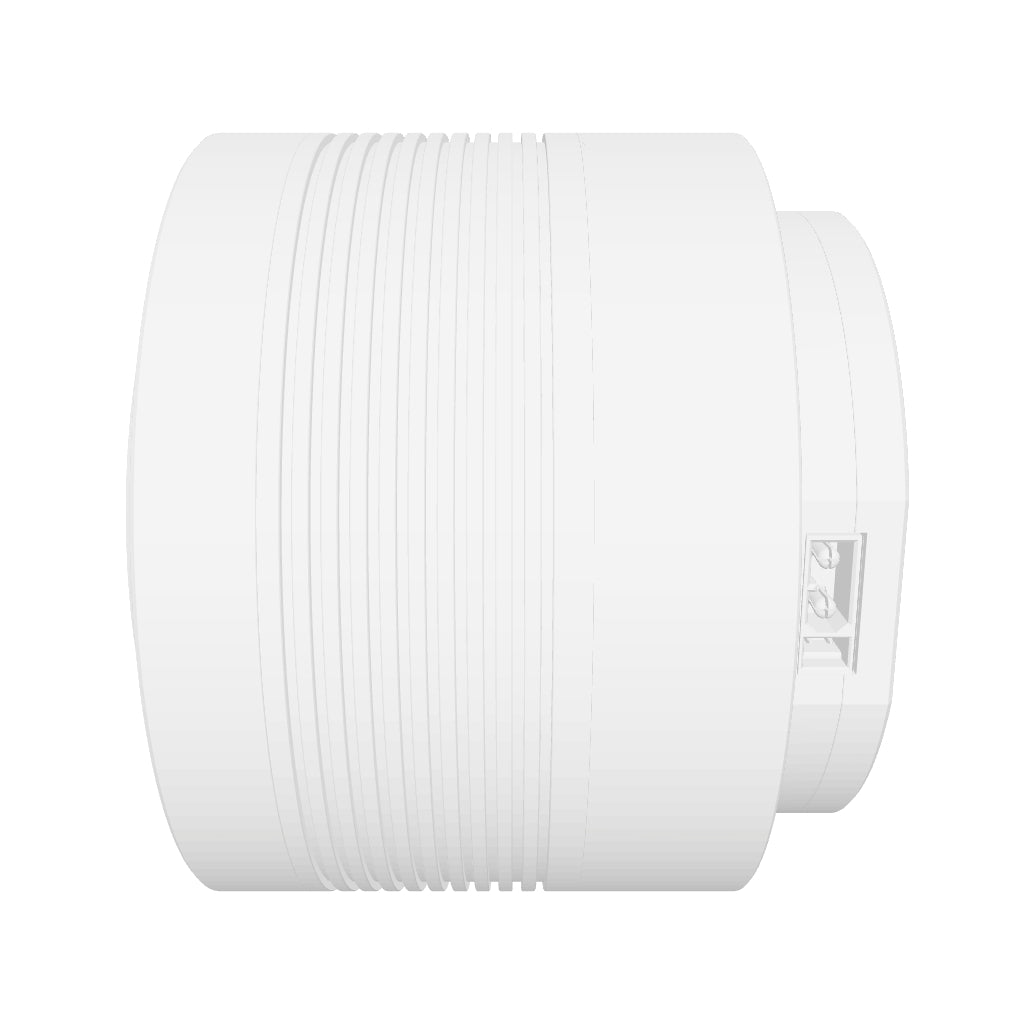

ENCOS-EC-A6416-P2-30.25H.stp
