ENCOS

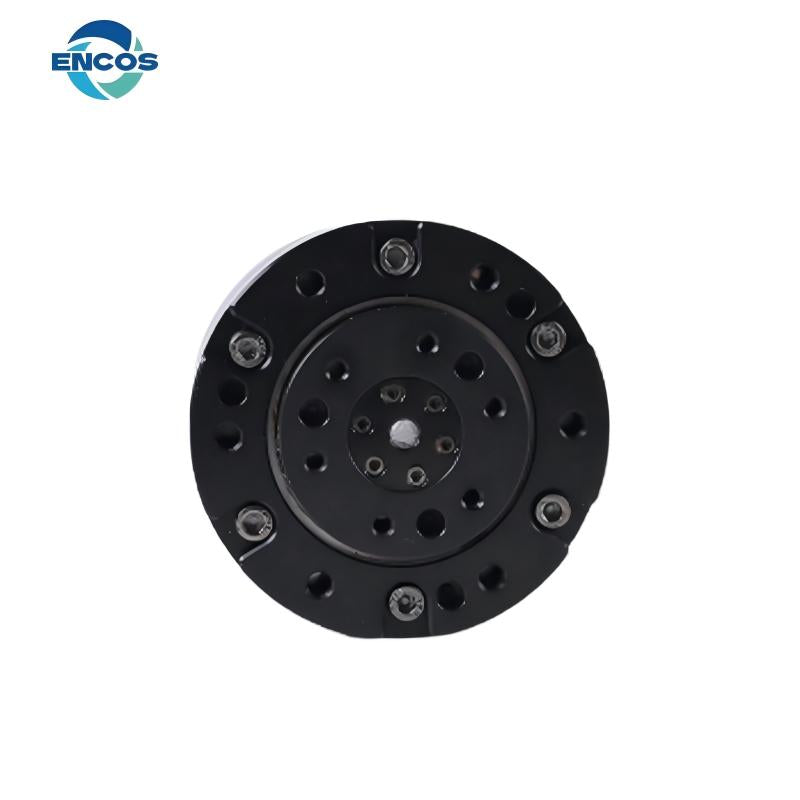

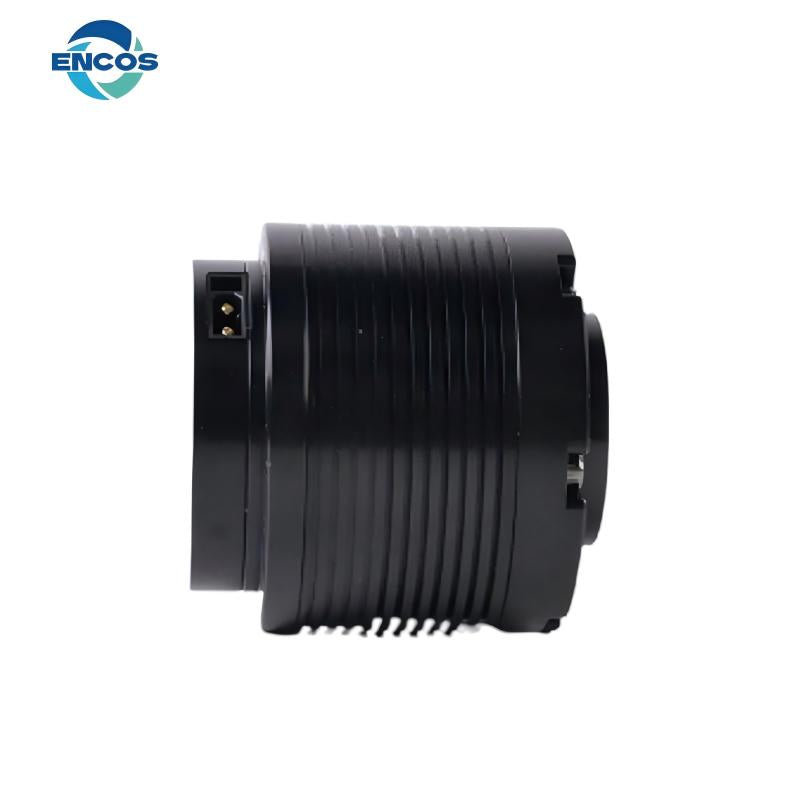

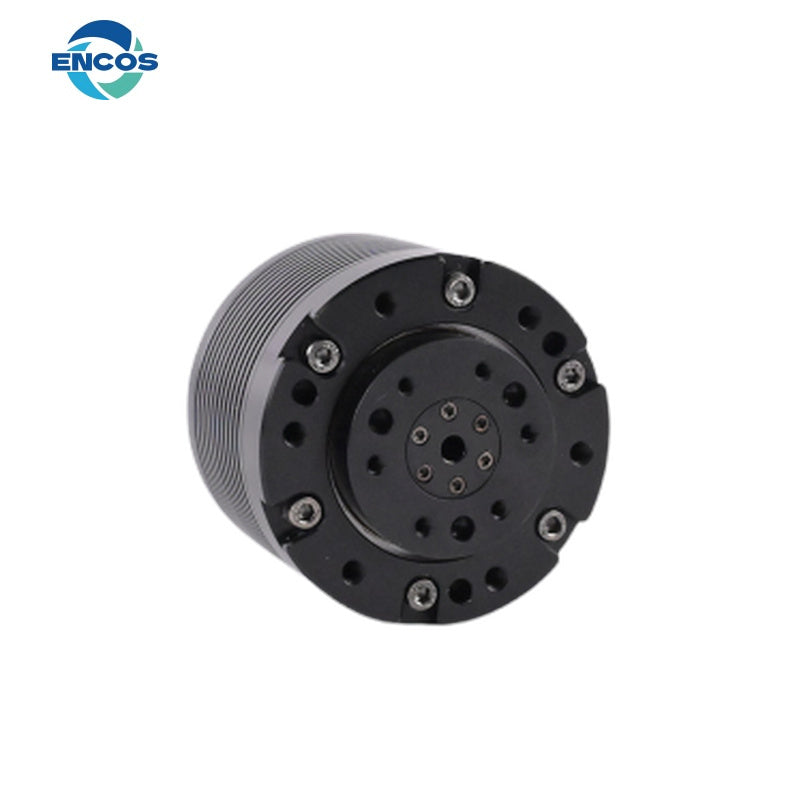

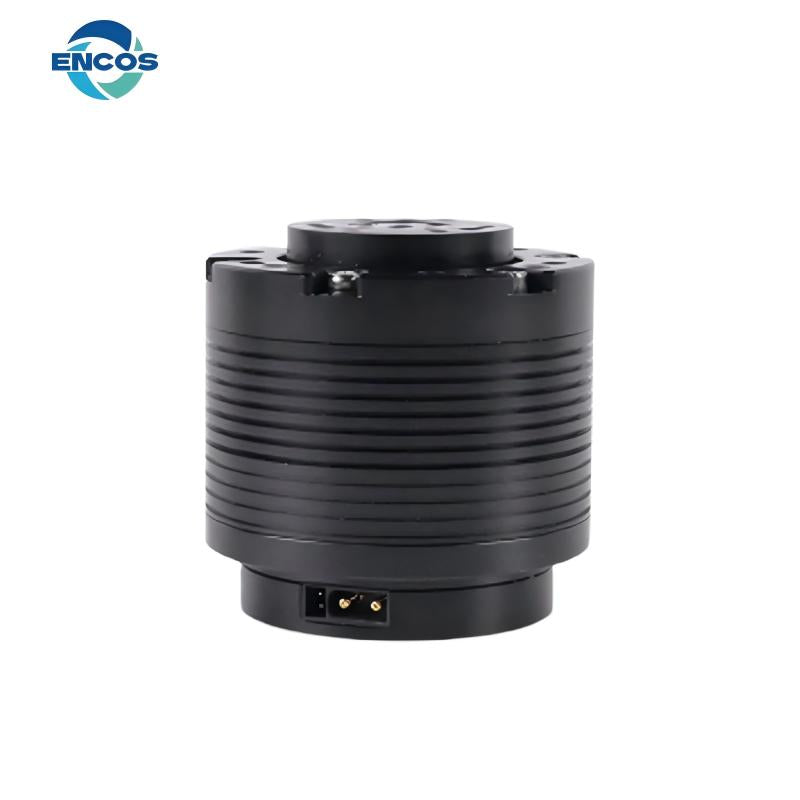

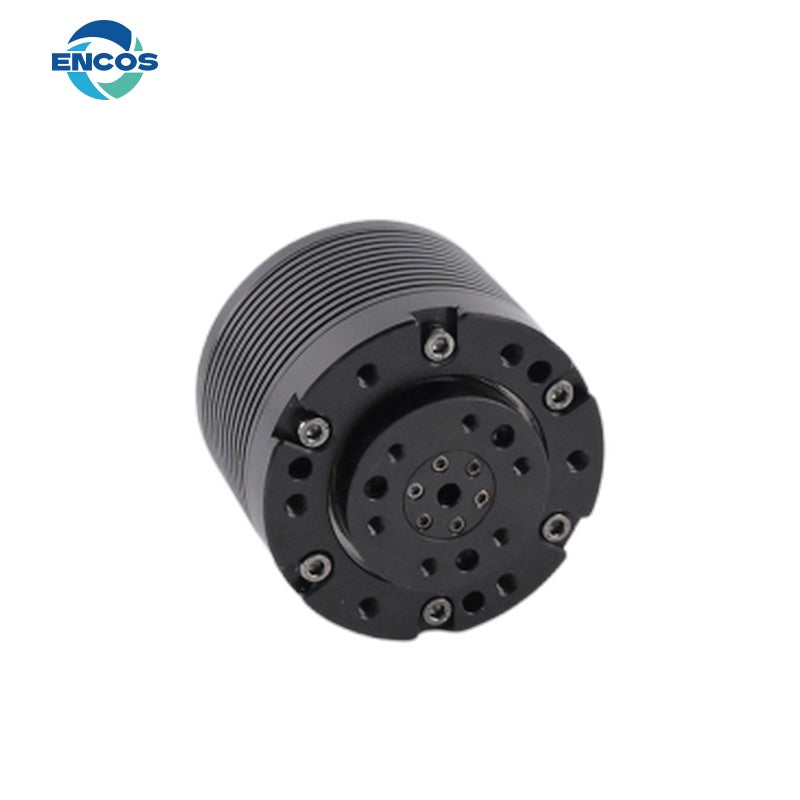

ENCOS EC-A4310-P2-36H Motor

$755.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Reduction Ratio 36
Rated Voltage 48 V
Rated Bus Current 5.7 A
Rated Phase Current 8.1 A
Rated Input Power 273.6 W
Rated Speed 150 RPM
Rated Torque (0RPM) 12 Nm
Allows Continuous Torque (50RPM) 9.5 Nm
Peak Speed 170 RPM
Peak Phase Current 17 A
Peak Torque 36 Nm
Efficiency 71%
Torque Constant 1.4 Nm/A
Weight 414 g
Backlash 18 Arcmin
Motor Size [Outside Diameter (O.D.) × Thickness (T)] 60 × 59.5 mm
Hole Diameter 4 mm
Communication Mode CAN (optional CAN FD)
Communication Baud Rate 1M / 5M
Double Encoder YES
Axial And Radial Loads 1.89 KN
Bending Moment Resistance 28 Nm
Cross Roller Bearing Type 3005
The Rotor Inertia Of The Motor 18 kgmm²
Peak Torque Density 87 Nm/kg

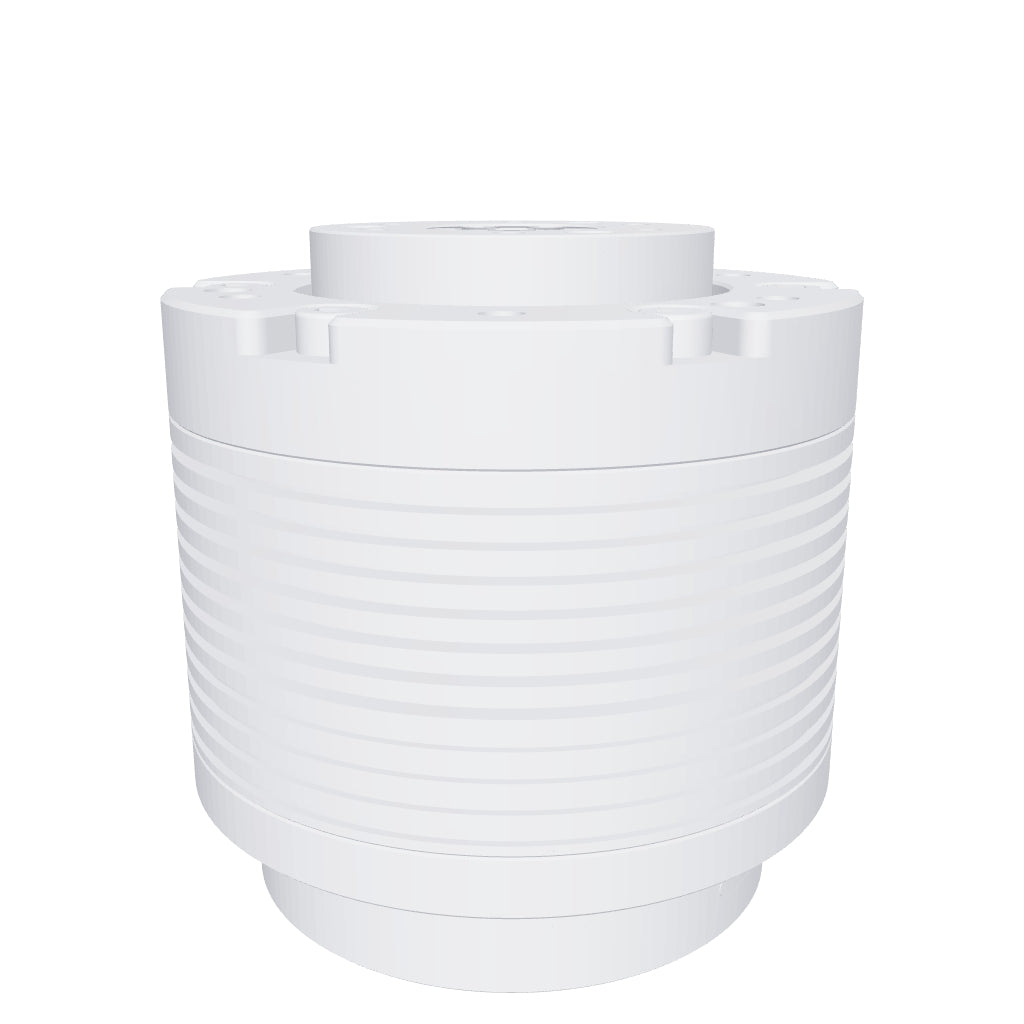

ENCOS-EC-A4310-P2-36H.stp
